JA 182mm Solar Cells Multi Busbar 550Wp 560Wp 570Wp Dual Glass Solar Panel Monocrystalline 530Wp 535Wp 540Wp 545Wp 550Wp Photovoltaic Module All Black 400Wp 405Wp 410Wp 415Wp Solar Panel
Brand Name :
JAPower Range :
380-605WpMax. Efficiency :
21.5%Weight :
27.3kgNumber of Cells :
144 CellsDimensions of Module :
2278x1134x30mmGlass :
3.2mmCable :
4mm2, 300mm in length, length can be customizedBacksheet :
WhiteWind/Snow Load :
5400Pa/2400PaPacking :
QC 4.10-351/ MC4-EV02AFrame: :
Anodized aluminum alloy frameJunction Box: :
IP68, three diodes
Assembled with 11BB PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Mono: JAM54S30 390-415/MR
JAM72S30 530-555/MR
JAM78S30 580-605/MR

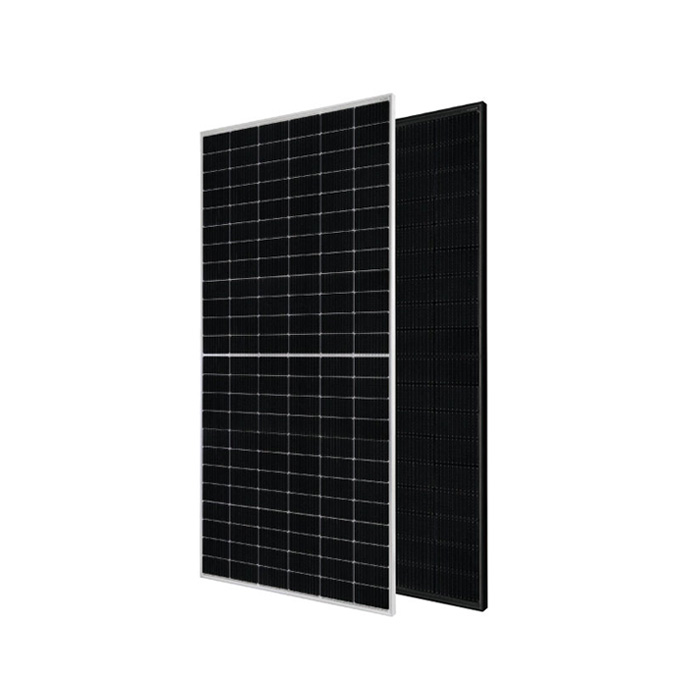

All Black: JAM54S31 380-405/MR

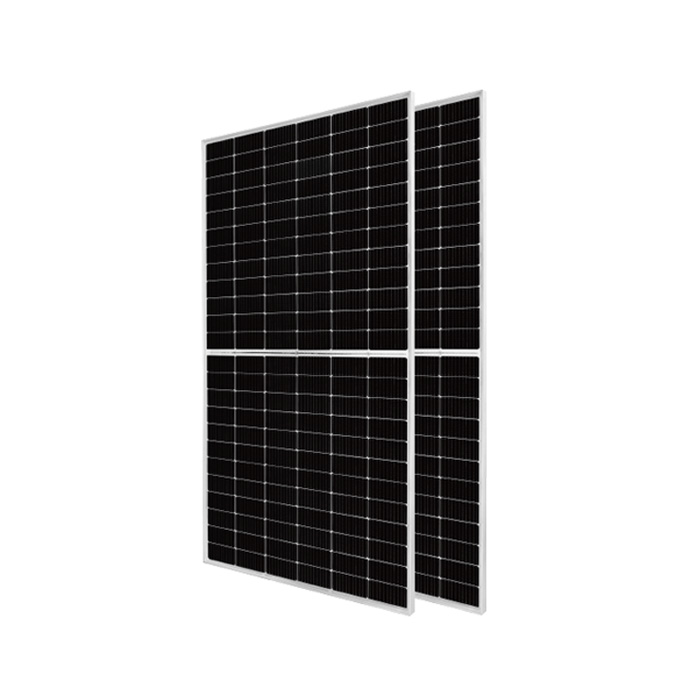

Assembled with 11BB bifacial PERCIUM cells and the half-cell configuration, these double glass modules have the capability of converting the incident light from the rear side together with the front of side into electricity, providing higher output power, lower temperature coefficient, less shading loss, as well as enhanced tolerance for mechanical loading.
Bifacial: JAM72D30 525-550/MR
JAM78D30 580-605/MR
| Type | JAM72S30-530/MR | JAM72S30-535/MR | JAM72S30-540/MR | JAM72S30-545/MR | JAM72S30-550/MR | JAM72S30-555/MR |
| Rated Maximum Power(Pmax) [W] | 530 | 535 | 540 | 545 | 550 | 555 |
| Open Circuit Voltage(Voc) [V] | 49.3 | 49.45 | 49.60 | 49.75 | 49.90 | 50.02 |
| Maximum Power Voltage(Vmp) [V] | 41.31 | 41.47 | 41.64 | 41.80 | 41.96 | 42.11 |
| Short Circuit Current(lsc) [A] | 13.72 | 13.79 | 13.86 | 13.93 | 14.00 | 14.07 |
| Maximum Power Current(lmp) [A] | 12.83 | 12.90 | 12.97 | 13.04 | 13.11 | 13.18 |
| Module Efficiency[%] | 20.5 | 20.7 | 20.9 | 21.1 | 21.3 | 21.5 |
| Power Tolerance | 0-+5W | |||||
| Temperature Coefficient of lsc(a_lsc) | +0.045%/°C | |||||
| Temperature Coefficient of Voc([3_ Voc) | -0.275%/°C | |||||
|
Temperature Coefficient of Pmax(y_Pmp) |
-0.350%/°C |
|||||
AUTHORIZATION
JA Solar is highly committed to retaining its 'leadership in mono’and being a loyal partner in its distribution network.
We have obtained their official authorization and established a long-term, stable, and sustainable cooperative relationship.
