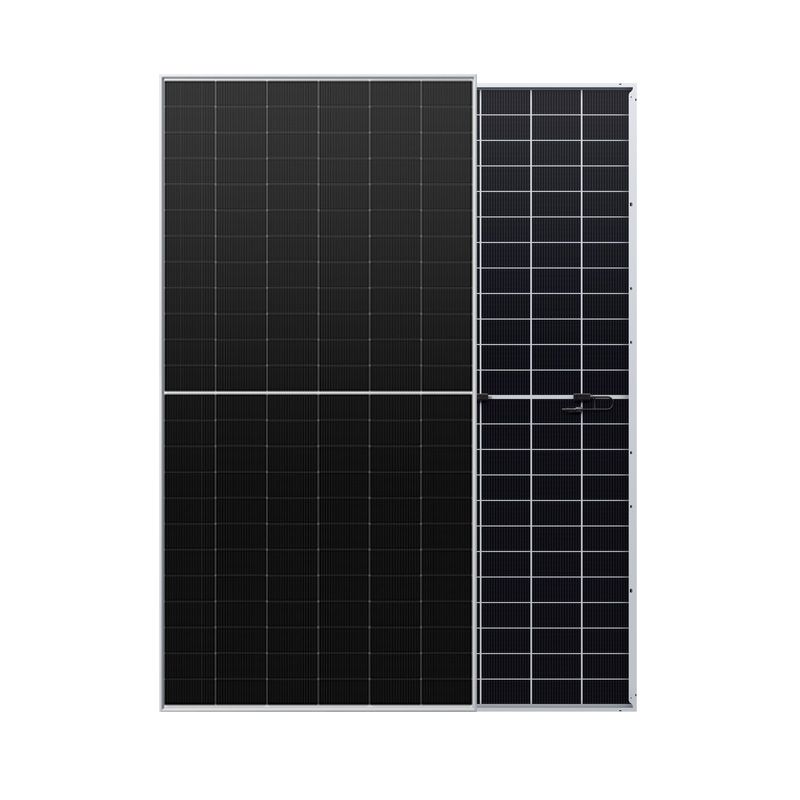

The Longi 620W Bifacial Double Glass Solar Panel is a high-performance photovoltaic module designed for utility-scale, commercial, and industrial solar installations. Combining advanced N-type TOPCon technology with a bifacial design, it delivers exceptional energy efficiency and durability, making it ideal for projects requiring high power density and long-term reliability.
Brand Name :
LongiPower Range :
585-620MDimensions of Module :
2382x1134x30 mmWeight :
33.5 kgGlass :
2 mmFrame :
Anodized AluminiumJunction Box :
IP68, three diodesCable :
4mm², 400mm in length, length can be customizedMax. Efficiency :
21.9%Wind/Snow Load :
5400Pa/2400PaNumber of Cells :
144 CellsPacking :
QC 4.10-351/ MC4-EV02AHigh Efficiency & Power Output
With a panel efficiency of 23% and a maximum power output of 620W, this module optimizes energy generation even in limited space459.
Utilizes N-type TOPCon cells and bifacial technology, enabling power generation from both sides and increasing energy yield by up to 30% in reflective environments (e.g., snow, sand, or light-colored surfaces)211.
Robust Dual-Glass Construction
Features 2.0+2.0mm tempered double glass for enhanced durability, weather resistance, and a lifespan exceeding 30 years45.
The frameless or anodized aluminum alloy frame design ensures resistance to corrosion, PID (Potential Induced Degradation), and low LID (Light-Induced Degradation)511.
Advanced Technology Integration
Incorporates half-cut cell design and multi-busbar (MBB) technology to minimize energy loss and improve shading tolerance49.
Operates efficiently across a wide temperature range (-40°C to 85°C) and performs well under low-light conditions5.
Certifications & Warranty
Certified to international standards (TÜV, CE, ISO, IEC) and equipped with an IP68-rated junction box for waterproof and dustproof reliability911.
Backed by a 30-year linear power warranty, ensuring long-term performance stability45.
Versatile Applications
Suitable for large-scale solar farms, commercial rooftops, and industrial projects. Its 144-cell configuration and compatibility with DC1500V systems support seamless integration into high-voltage setups.
Product Parameter(STC)
Module Type | LR7-72HGD-595M | LR7-72HGD-600M | LR7-72HGD-605M | LR7-72HGD-610M | LR7-72HGD-620M |
Maximum Power (Pmax/W) | 595 | 600 | 605 | 610 | 620 |
Open Circuit Voltage (Voc/V) | 49.53V | 49.63V | 49.73V | 49.84V | 50.05 |
Short Circuit Current (lsc/A) | 11.58 | 11.64 | 11.70 | 11.76 | 11.90 |
Voltage at Maximum Power (Vmp/V) | 41.83 | 41.93 | 42.03 | 42.14 | 42.34 |
Current at Maximum Power (Imp/A) | 13.52 | 13.6 | 13.68 | 13.76 | 1392 |
Module Efficiency(%) | 22.0 | 22.2 | 22.4 | 22.6 | 23.0 |
Operational Temperature | -40°C ~ +85°C | ||||
Power Output Tolerance | 0~3% | ||||
Temperature Coefficient of lsc | +0.045%/°C | ||||
Temperature Coefficient of Voc | -0.230%/°C | ||||
Temperature Coefficient of Pmax | -0.280%/°C |
AUTHORIZATION
LONGi Solar is highly committed to retaining its 'leadership in mono’and being a loyal partner in its distribution network.
We have obtained their official authorization and established a long-term, stable, and sustainable cooperative relationship.
