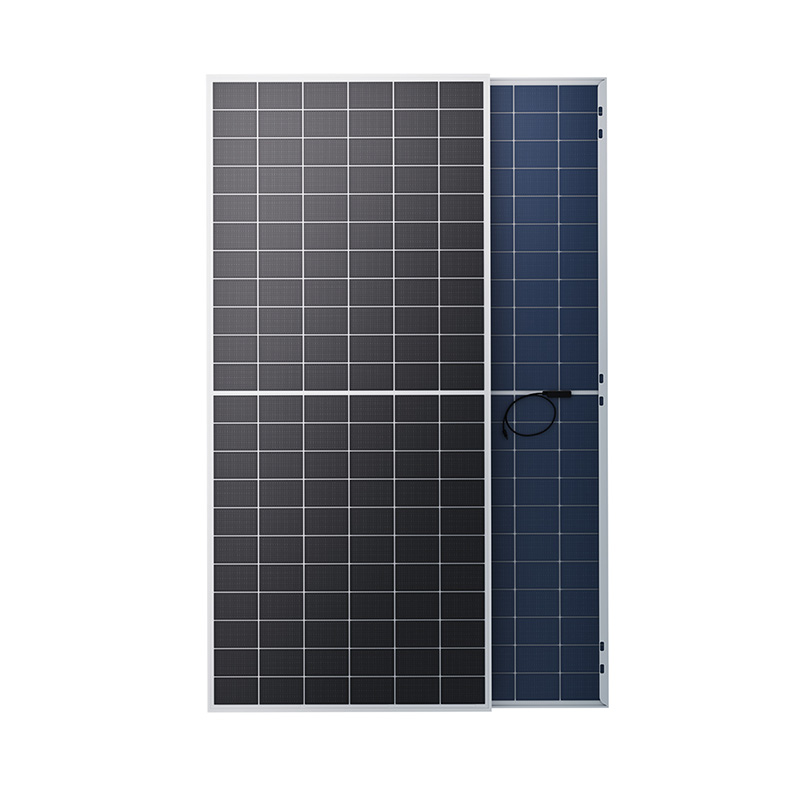

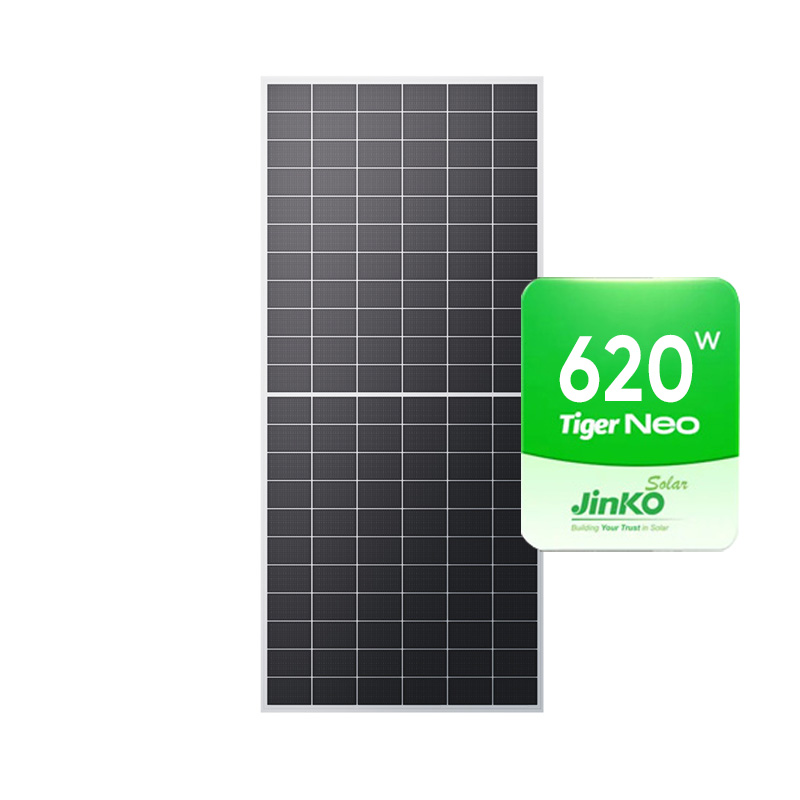

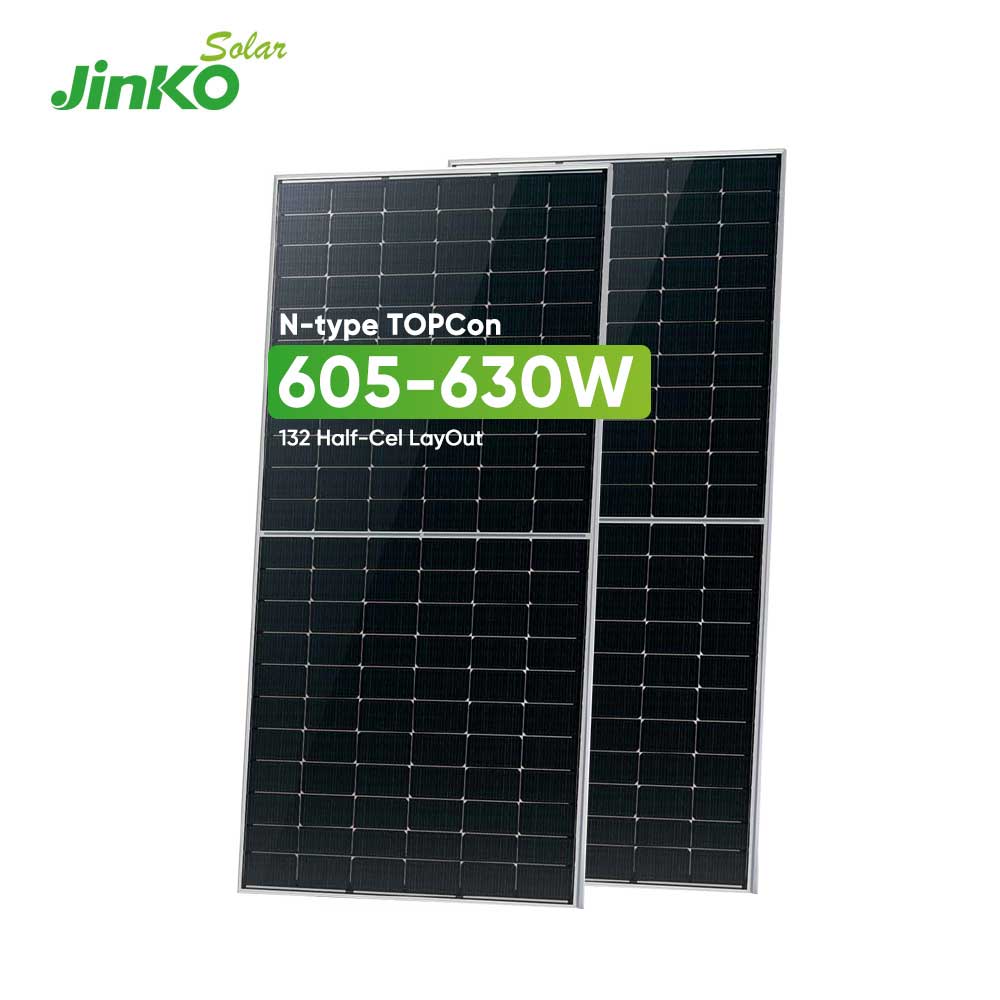

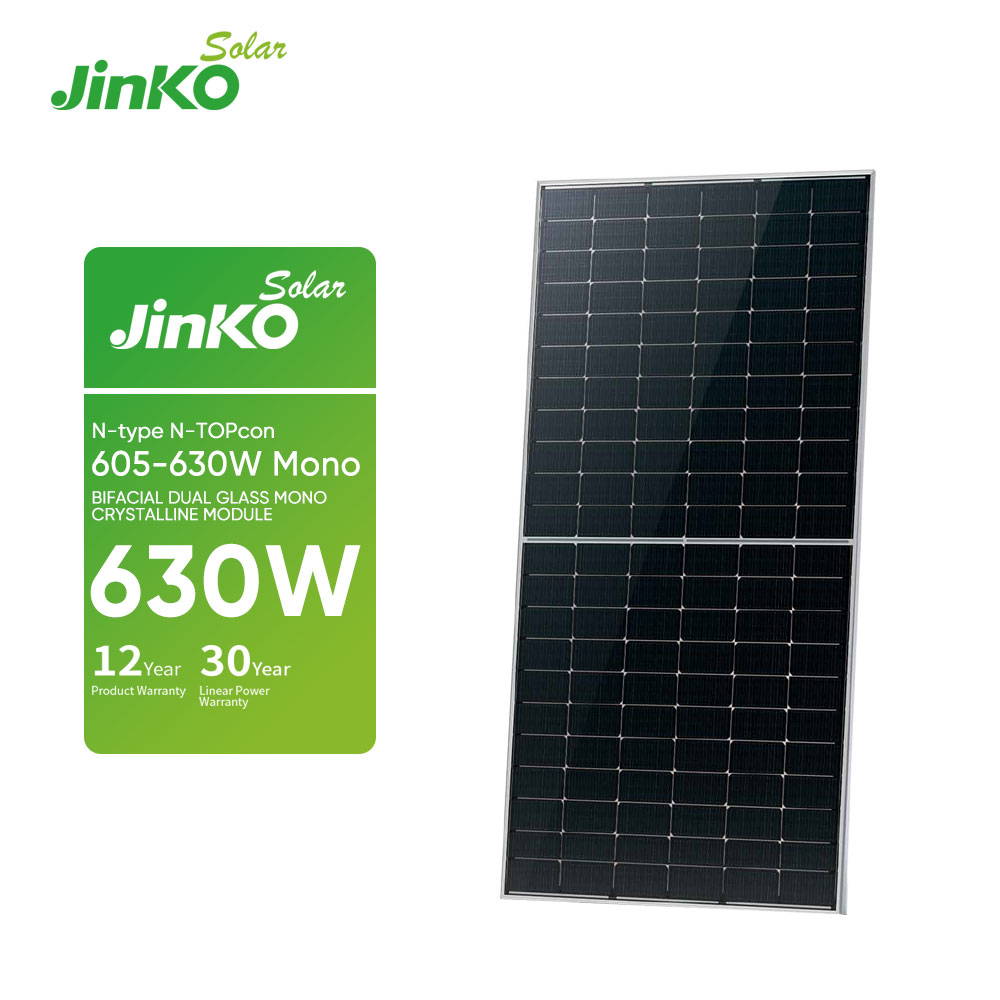

The Jinko 605–630W N-Type Bifacial Monocrystalline Solar Module delivers ultra-high power output and exceptional efficiency. Built with advanced N-Type cell technology and bifacial design, it captures energy from both the front and rear sides, maximizing yield even in limited spaces. With superior reliability and long-term performance, this module is ideal for utility-scale and commercial solar projects.
Brand Name :
JinkoPower Range :
605-630WDimensions of Module :
2382×1134×30 mmWeight :
32.4kgGlass :
Double GlassFrame :
Anodized Aluminium AlloyJunction Box :
IP68 RatedCable :
TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized LengthMax. Efficiency :
22.95%Wind/Snow Load :
1000W/m2Packing :
Wooden BoxNumber of Cells :
132 (2×66)
-Ultra-High Efficiency & Bifacial Power Generation
620W Output: Advanced N-type TOPCon cell technology delivers exceptional conversion efficiency, ensuring superior energy yields even in limited space.
Bifacial Design: Captures sunlight on both sides, generating up to 20%+ additional energy from reflected light (rear-side gain varies by installation conditions)
-Robust Double Glass Construction
Durability: Frameless design with 2mm tempered glass on both sides enhances mechanical strength, resistance to PID (Potential Induced Degradation), and corrosion.
Weatherproof: IP68-rated, withstands extreme temperatures (-40°C to +85°C), heavy snow loads (up to 6,000Pa), and wind loads (4,000Pa).
-Lower Degradation & Extended Lifespan
Low Temperature Coefficient: -0.29%/°C minimizes efficiency loss in high-heat environments.
Enhanced Longevity: N-type cells and double-glass encapsulation reduce annual degradation to just ~0.4%, ensuring over 30 years of reliable performance.
-Smart Compatibility & Sustainability
Versatile Installation: Compatible with trackers and fixed-tilt systems, ideal for Ground-mounted solar Industrial rooftops.
Eco-Friendly: Lead-free, low-carbon footprint manufacturing aligns with global sustainability goals.
Why Choose Jinko Solar?
As a global leader in solar innovation, Jinko Solar combines industry-leading R&D with proven quality control. The Tiger Neo 620W bifacial module empowers businesses to achieve higher ROI through unmatched energy density, reduced LCOE (Levelized Cost of Energy), and future-proof performance.
Ideal For:
Large Farm
Commercial and industrial rooftops
Projects requiring high-wattage, space-efficient solutions
Bifacial：JKM620N-66HL4M-BDV
Product Parameters(STC)
| Module Type | JKM610N-66HL4M-BDV | JKM615N-66HL4M-BDV | JKM620N-66HL4M-BDV | JKM625N-66HL4M-BDV | JKM630N-66HL4M-BDV |
| Maximum Power (Pmax) | 610Wp | 615Wp | 620Wp | 625Wp | 630Wp |
| Maximum Power Voltage (Vmp) | 40.46V | 40.60V | 40.74 V | 40.88V | 41.02V |
| Maximum Power Current (Imp) | 15.08A | 15.15A | 15.22A | 15.29A | 15.36A |
| Open-circuit Voltage (Voc) | 48.68V | 48.88V | 49.08V | 49.28V | 49.48V |
| Short-circuit Current (Isc) | 15.96A | 16.02A | 16.08A | 16.14A | 16.20A |
| Module Efficiency STC (%) | 22.58% | 22.77% | 22.95% | 23.14% | 23.32% |
AUTHORIZATION
Jinko Solar is highly committed to retaining its 'leadership in mono’and being a loyal partner in its distribution network.
We have obtained their official authorization and established a long-term, stable, and sustainable cooperative relationship.
