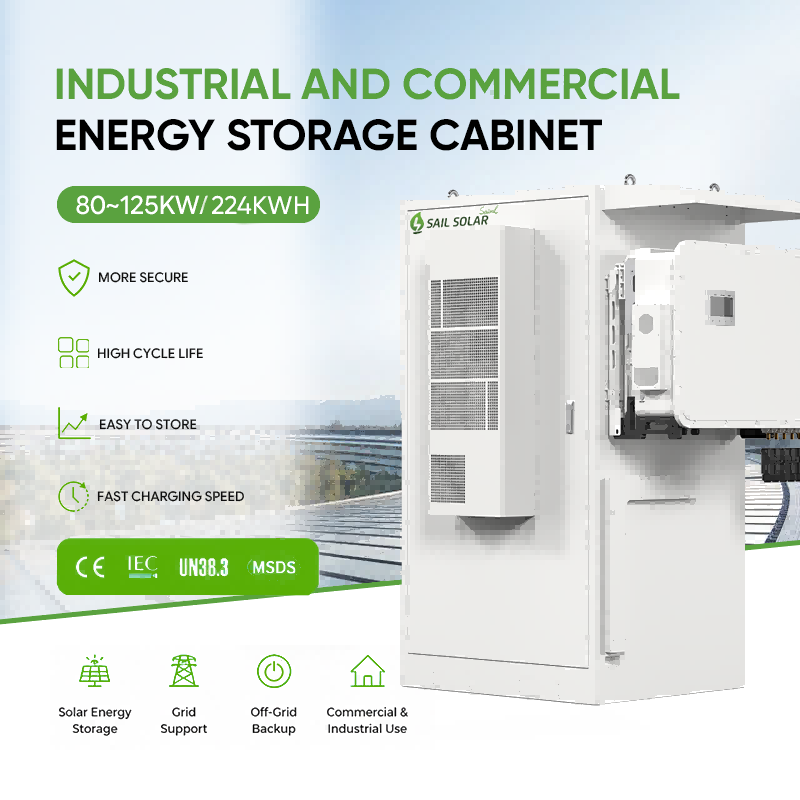

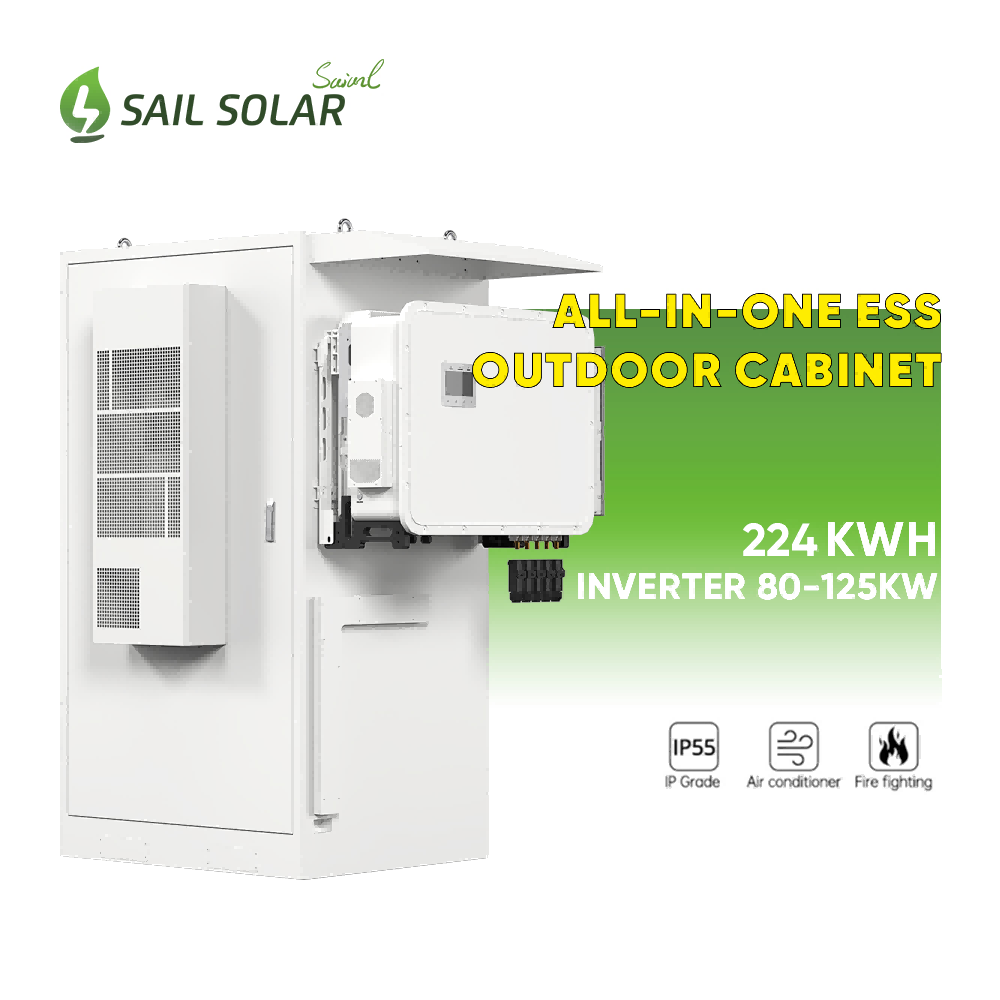

All in One 80-125KW 224KWH Lithium Battery Cabinet C&I Energy Storage System

Sail Solar 224kwh energy storage cabinet features a high-standard integrated structure with IP54/IP55 waterproof and dustproof protection grade. Adopting premium LiFePO4 battery cells, this integrated cabinet integrates battery packs, intelligent BMS, EMS energy management system and independent thermal management. It is a cost-effective and reliable new energy storage solution for global commercial and industrial users, widely exported to Europe, Southeast Asia, the Middle East, Africa, South America and other regions, and supports customized OEM/ODM services to meet diverse customer needs.

  • Brand Name :

    Sail Solar
  • Model Number :

    BESS-224
  • System Configuration :

    224kwh
  • Power Range :

    80-125kw
  • Rated AC Output Power :

    380/400V, 277/480V
  • Grid Type :

    Off-grid, Hybrid
  • Number of Cycles :

    8000
  • Battery Type :

    Lifepo4
  • Operation Temperature :

    -20℃-50℃
  • Cooling :

    Air-cooling
  • Dimensions (W*D*H) :

    1300*1260*2375mm
  • Protection degree :

    IP55

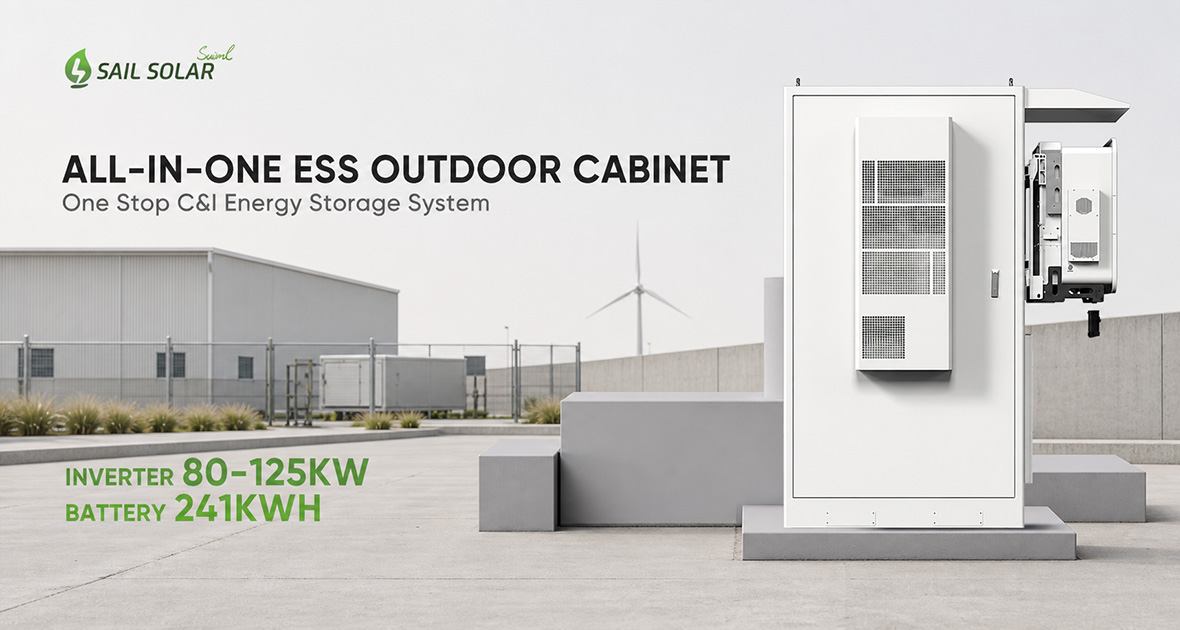

Sail Solar 241KWH Energy Storage Cabinet

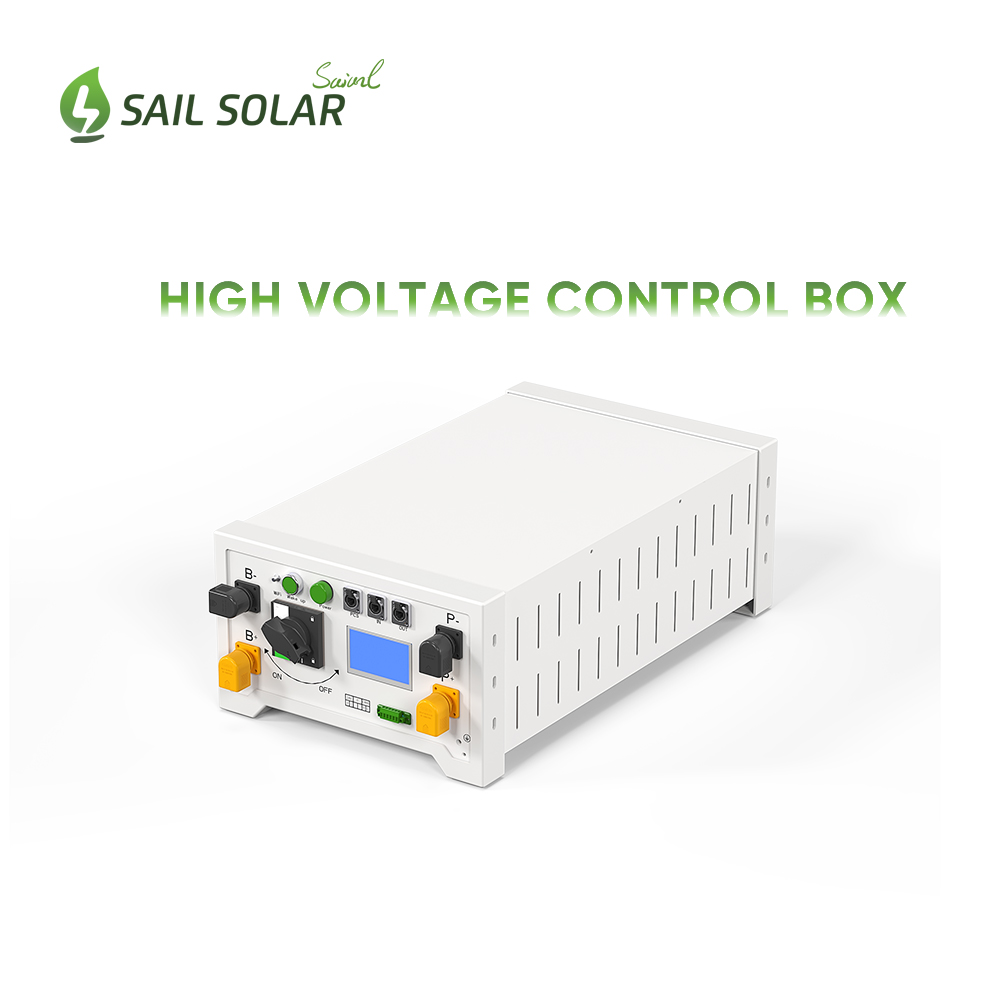

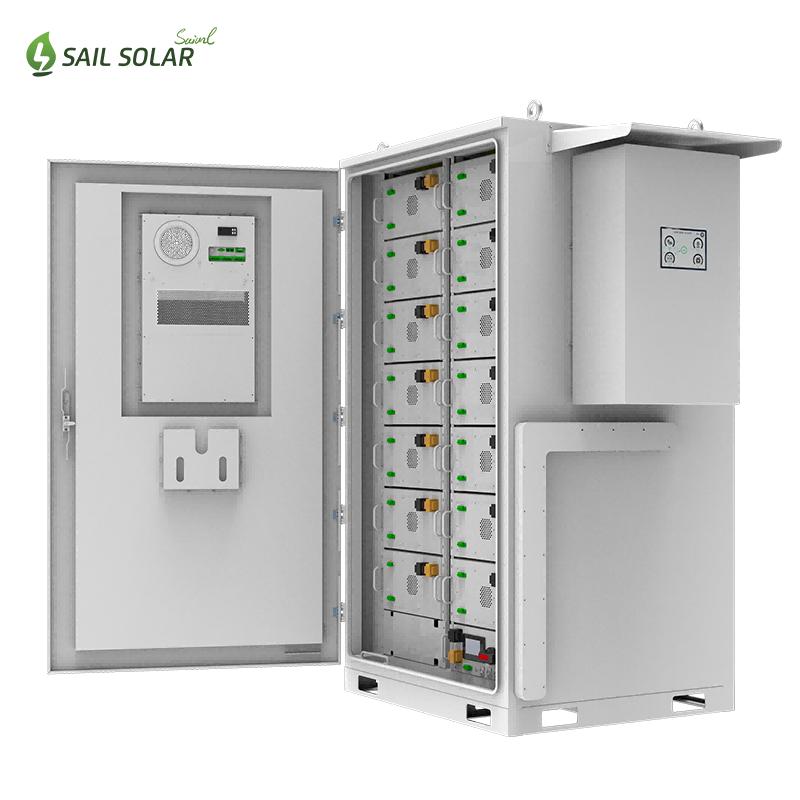

Components

--------------占位---------------

Technical Datasheet

Battery Parameters:

Battery Cell LFP 3.2V 314AH

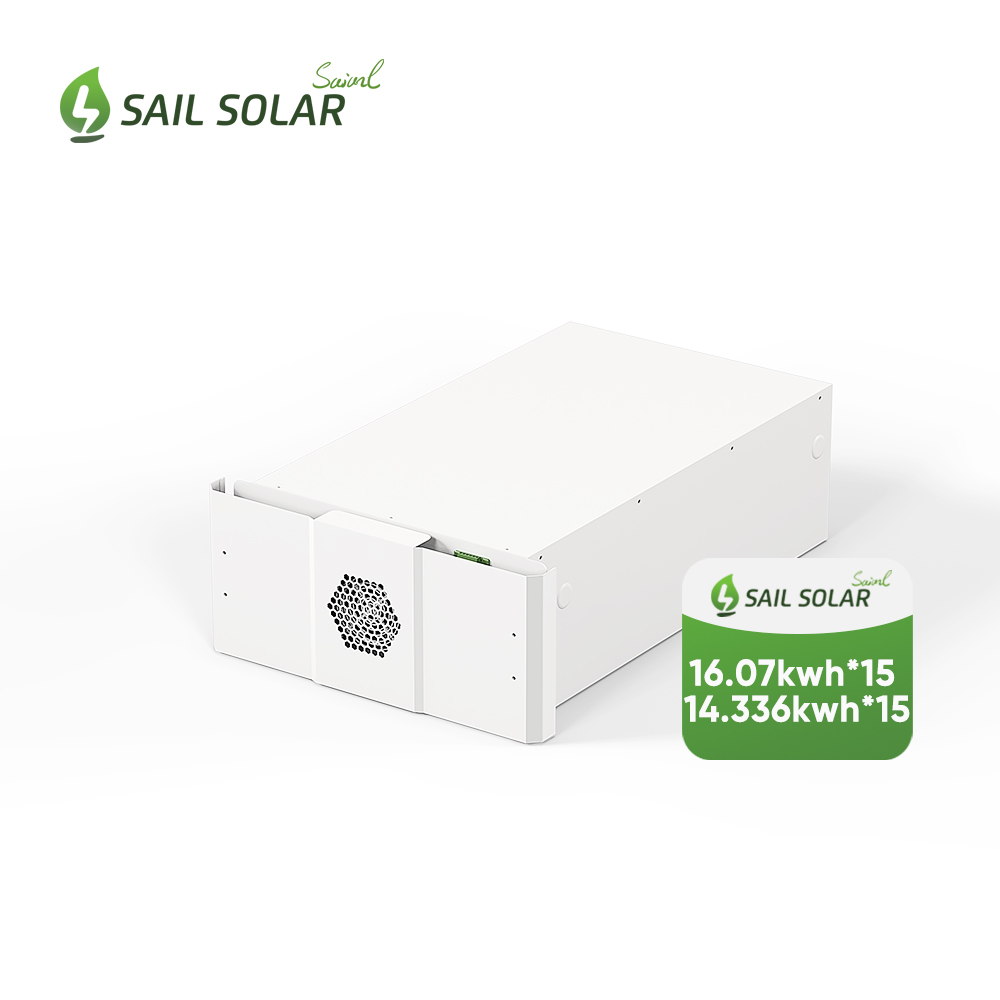

Battery Pack 51.2V 314AH
Battery Cluster Rated Voltage 716.8V
Battery Cluster Rated Energy 224.98KWH
Recommend Charging/Discharging Current 100A
Max Charge/Discharge Working Cuurent 200A


Cabinet:

Size: W*D*H 1300*1260*2375mm
Weight: 2500KG
Operating Temperature Range -20-50℃
Noise 75db
Fire Protection System Integrated (Refrigeration, Ventilation, Heating)
Communication  RS232/RS485/CAN

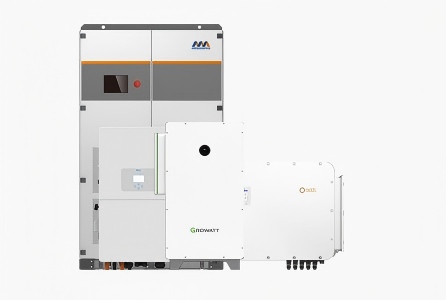

Inverter:

Energy Storage Inverter Solis 100~125KW, AC: Three Phase 380V

--------------占位---------------

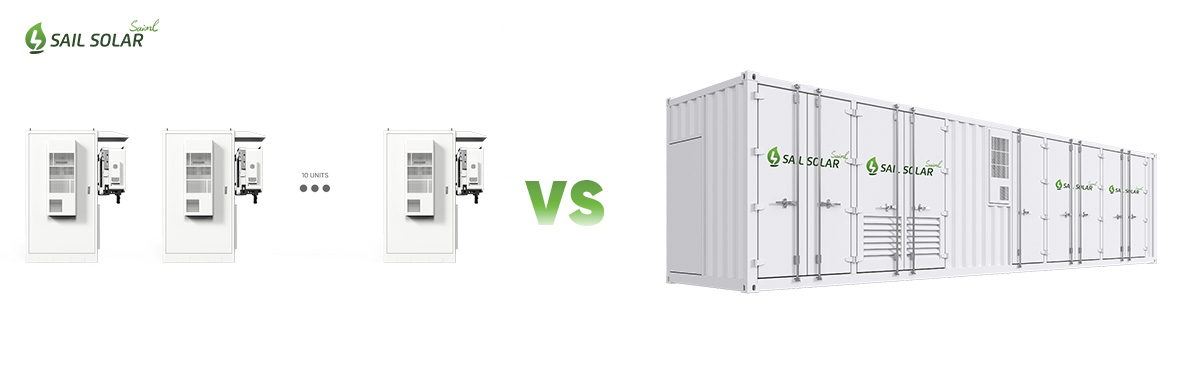

10*241kwh energy cabinets VS 40'ft energy storage container









Core Advantages:
1. Split heat load design delivers better cell temperature uniformity under high-temperature conditions
2. Single cooling component failure only affects 10% of total capacity, with extreme system redundancy
3. Compact single-cabinet size ensures good ventilation, minimal heat accumulation and fast hot air dissipation



Core Advantages:
1. Factory pre-integrated design only requires single on-site cable connection, enabling the fastest construction
2. Directly applicable for ocean freight, with convenient dangerous goods declaration, customs clearance and shipping
3. Single integrated fire, monitoring and temperature control system for extremely simple O&M
4. Standardized appearance facilitates one-time approval for grid connection and type tests

Key Disadvantages:
1.Heavy on-site commissioning for parallel BMS/PCS cluster, with tedious circulating current and voltage equalization debugging
2.10 cabinets connected poses high requirements for later matainence
3. Doubled quantity of foundations, cables, busbar cabinets and fire points, leading to higher EPC costs
Key Disadvantages:
1.Large enclosed containers have mild heat accumulation, causing slight cell temperature deviation and marginally lower cycle durability.
2.Centralized cooling design lacks redundancy; fan or AC failure will shut down the entire system.


--------------占位---------------
