Trina Tier 1 Mono Vertex S+ Series 415Wp 420Wp 425Wp 430Wp 435Wp Solar Panel Black Frame 425Wp 430Wp 435Wp 440Wp 445Wp 450Wp Bifacial PV Module

Trina New Design Tier 1 Vertex S+ Series 415Wp 420Wp 425Wp 430Wp Half Cell Solar Panel Monocrystalline 430Wp 435Wp 440Wp 445Wp 450Wp PV Module Black Frame Hot Seller 420Wp 425Wp 430Wp 435Wp 440Wp Solar Panel Black Aluminum Frame

  • Brand Name :

    Trina
  • Power Range :

    415-440Wp
  • Weight :

    21kg
  • Max. Efficiency :

    22%
  • Number of Cells :

    144 Cells
  • Dimensions of Module :

    1762×1134×30 mm
  • Glass :

    1.6*1.6 mm
  • Cable :

    Photovoltaic Technology Cable 4.0mm2
  • Wind/Snow Load :

    5400Pa/2400Pa
  • Connector :

    MC4 EVO2 / TS4 PLUS / TS4*
  • Frame: :

    30mm (1.18 inches) Anodized Aluminium Alloy, Black
  • Junction Box: :

    IP 68 rated



Trina Solar's new generation Vertex S+ is based on n type i-TOPCon technology with 210mm advanced platform. It adopts 1.6*1.6mm ultra-slim dual-glass design. The product ensures the higher power generation, high reliability and safety, lightweight and easy to install.

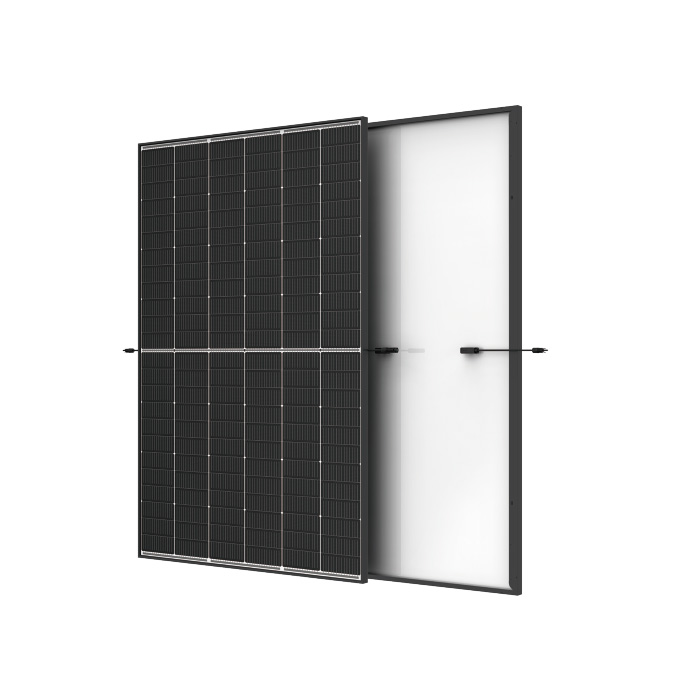

The monofacial NEG9R.28 comes with a white rear encapsulant for maximum output power, boasting up to 445Wp and reaching 22.3% efficiency.







Trina Solar's new generation Vertex S+ is based on n type i-TOPCon technology with 210mm advanced platform.Upgraded dual glass of Vertex S, less prone to micro-cracks and scratches on the back during installation, excellent fire rating, weather resistance, salt spray, sand dust, ammonia performance which is fully applicable in coastal, high temperature, humidity area and harsh environment.

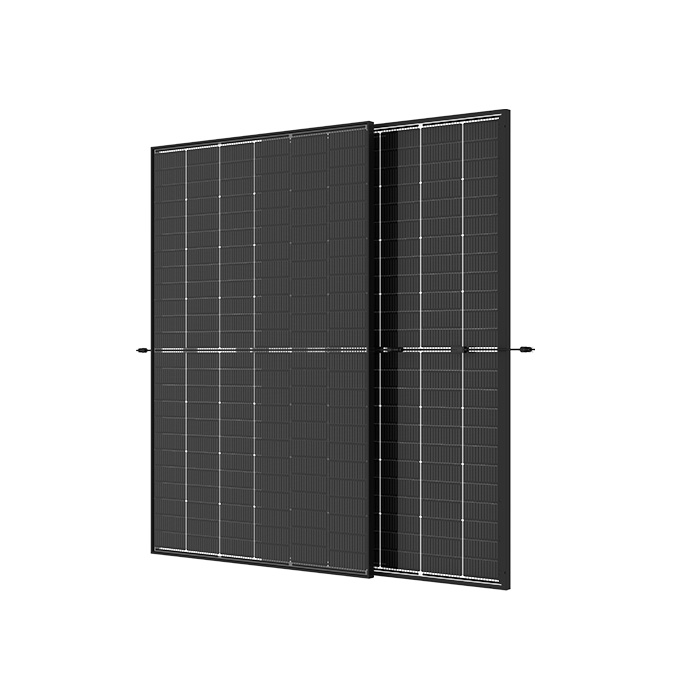

The transparent NEG9RC.27 is the preferred option for high-end aesthetic applications. This bifacial module features a front side power of 435Wp, at 21.8% efficiency. Both types feature a surface area of just under 2 square meters and a black aluminum frame.









Product Parameters(STC)



Module Type
TSM-DEG9R.28 425W
TSM-DEG9R.28 430W TSM-DEG9R.28 435W TSM-DEG9R.28 440W TSM-DEG9R.28 445W
Power Tolerance-PMAX(W)
0 ~ +5
Maximum Power Voltage-VMPP(V)
42.9
43.2
43.6
44.0
44.3
Maximum Power Current-IMPP(A)
9.92
9.96
9.99
10.01
10.05
Open Circuit Voltage-VOC(V)
50.9
51.4
51.8
52.2
52.6
Short Circuit Current-ISC(A)
10.56
10.59
10.64
10.67
10.71
Module Efficiency η m (%)
21.3
21.5
21.8
22.0
22.3
Operational Temperature
-40~+85ºC
Maximum System Voltage
1500V DC (IEC)
Max Series Fuse Rating
20A
Temperature Coeffcient of PMAX
- 0.30%/°C
Temperature Coeffcient of VOC
- 0.24%/°C
Temperature Coeffcient of ISC
0.04%/°C





AUTHORIZATION



Trina Solar is highly committed to retaining its 'leadership in mono’and being a loyal partner in its distribution network.

We have obtained their official authorization and established a long-term, stable, and sustainable cooperative relationship.
