Longi Tier 1 Mono 560Wp 550Wp 545Wp 540Wp 535Wp Double Glass Solar Panel Longi PV Module All Black 400Wp 410Wp 420Wp

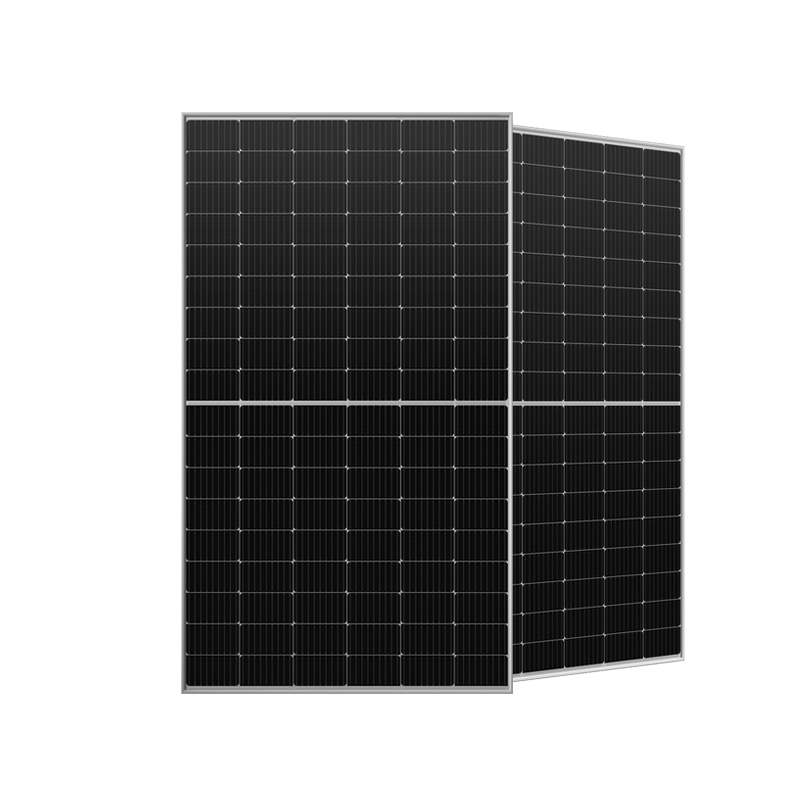

Longi Hi-MO 5 Series 540Wp 545Wp 550Wp 555Wp 560Wp Monocrystalline Multi Busbar Half Cell Double Glass 480Wp 490Wp 500Wp 505Wp Solar Panel Himo 5m PV Module All Black 420Wp 415Wp 410Wp 405Wp

  • Brand Name :

    Longi
  • Power Range :

    400-560Wp
  • Max. Efficiency :

    21.7%
  • Weight :

    27.5kg
  • Number of Cells :

    144 Cells
  • Dimensions of Module :

    2278X 1134X35mm
  • Glass :

    3.2mm coated tempered glass
  • Backsheet :

    White
  • Cable :

    4mm2, 300mm in length, length can be customized
  • Wind/Snow Load :

    5400Pa/2400Pa
  • Connector :

    QC 4.10-351/ MC4-EV02A
  • Frame: :

    Anodized aluminum alloy frame
  • Junction Box: :

    IP68, three diodes

The 54-cell Hi-MO 5m is mainly used in the distributed field, following the 182mm size and adopting a new 54 -cell, with a maximum output power of 425W and an output efficiency of 21.8%, also has all black model with the same 54-cell; the maximum power of 72-cell has been upgraded to 560w.



Monofacial: LR5-54HPH 405-425M

                    LR5-72HPH 540-560M

All Black:     LR5-54HPB 400-420M





Both bifacial and monofaical of Hi-MO 5 with 72-cell is mainly for large ground-mount power plants, also both bifacial and monofacial available in 66-cell formats, which use the new gallium-doped silicon.



Monofacial: LR5-66HPH 480-505M

                    LR5-72HPH 530-550M

Bifacial:        LR5-66HBD 475-500M

                    LR5-72HBD 525-545M



Large-format modules with M10 wafer size use dual-glass and frame packaging to ensure module strength.

Gallium-doped technology overcomes LID degradation and guarantees the long-term power generation of the module.

Additional power generation from the backside of bifacial modules increases the overall energy yield

Product Parameter(STC)



Module Type LR5-72HPH-540M LR5-72HPH-545M LR5-72HPH-550M LR5-72HPH-555M LRS-72HPH-560M
Maximum Power (Pmax/W) 540 545 550 555 560
Open Circuit Voltage (Voc/V) 49.50 49.65 49.80 49.95 50.10
Short Circuit Current (lsc/A) 13.85 13.92 13.98 14.04 14.10
Voltage at Maximum Power (Vmp/V) 41.65 41.8 41.95 42.10 42.25
Current at Maximum Power (Imp/A) 12.97 13.04 13.12 13.19 13.26
Module Efficiency(%) 20.9 21.1 21.3 21.5 21.7
Operational Temperature  -40'C ~ +85'C
Power Output Tolerance 0~3%
Temperature Coefficient of lsc +0.050%/°C
Temperature Coefficient of Voc -0.265%/°C
Temperature Coefficient of Pmax  -0.340%/°C
