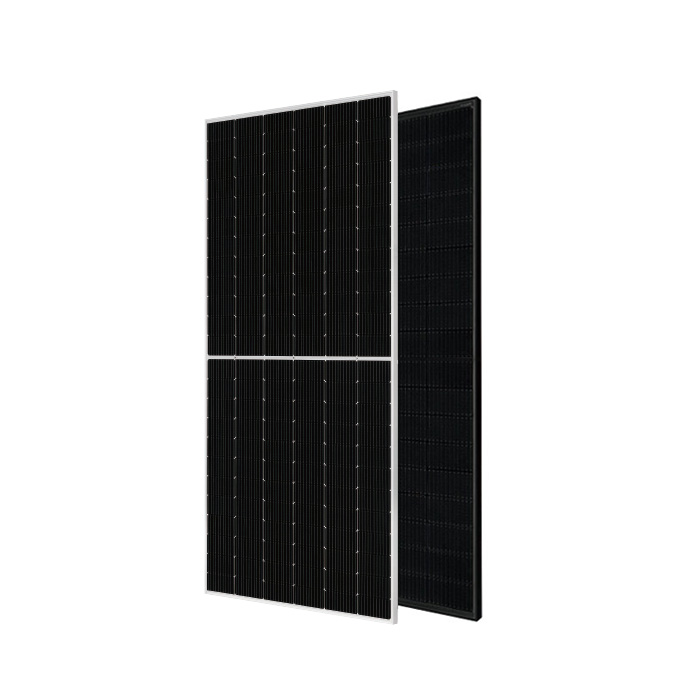

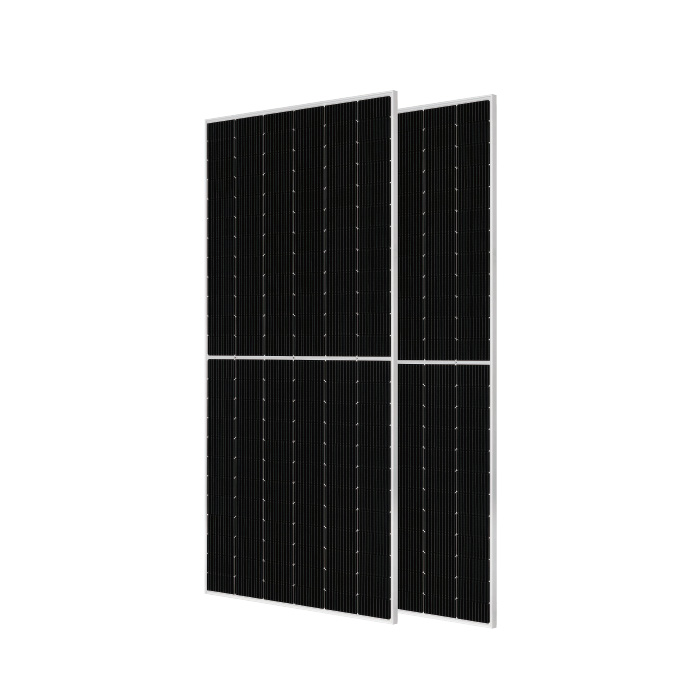

Tier 1 JA DeepBlue 4.0 Series TopCon Technology Mono and Bifacial Solar Panel 620Wp 630Wp 640Wp GB Half Cut 420Wp 430Wp 440Wp 445Wp

JA DeepBlue 4.0 Series TopCon Technology Mono and Bifacial Solar Panel 620Wp 630Wp 640Wp GB Half Cut 420Wp 430Wp 440Wp 445Wp

  • Brand Name :

    JA
  • Power Range :

    400-610Wp
  • Max. Efficiency :

    21.9%
  • Weight :

    27.3kg
  • Number of Cells :

    144 Cells
  • Dimensions of Module :

    2278x1134x30mm
  • Glass :

    3.2mm
  • Backsheet :

    White
  • Cable :

    4mm2, 300mm in length, length can be customized
  • Wind/Snow Load :

    5400Pa/2400Pa
  • Packing :

    QC 4.10-351/ MC4-EV02A
  • Frame: :

    Anodized aluminum alloy frame
  • Junction Box: :

    IP68, three diodes


Assembled with 11BB TopCon cells and gap less ribbon connection technology, the modules can offer higher output power with improved module efficiency, the reduction of cells gaps. Brings outstanding module appearance. The half-cell configurature makes less shading effect, lower risk of hot spot,as well as more reliable and stable power generation.



Mono:

JAM54S40 430-455/LR



Assembled with 11BB bifacial TopConIUM cells and the gap less ribbon connection technology, these double glass modules have the capability of converting the incident light from the rear side together with the front of side into electricity, providing higher output power, lower temperature coefficient, less shading loss, as well as enhanced tolerance for mechanical loading.



Bifacial:

JAM54D40 420-445/GB

JAM54D41 430-455/LB

JAM78D40 615-640/GB









Product Parameter(STC)


Type JAM54S40-430/LR JAM54S40-435/LR JAM54S40-440/LR JAM54S40-445/LR JAM54S40-450/LR JAM54S40-455/LR
Rated Maximum Power(Pmax) [W]  430 435 440 445 450 455
Open Circuit Voltage(Voc) [V]  38.50 38.70 38.90 39.10 39.30 39.50
Maximum Power Voltage(Vmp) [V]  32.12 32.29 32.47 32.65 32.82 33.00
Short Circuit Current(lsc) [A]  14.14 14.23 14.31 14.40 14.48 14.56
Maximum Power Current(lmp) [A]  13.39 13.47 13.55 13.63 13.71 13.79
Module Efficiency[%]  21.5 21.8 22.0 22.3 22.5 22.8
Power Tolerance  0-+5W
Temperature Coefficient of lsc(a_lsc) +0.045%/°C
Temperature Coefficient of Voc([3_ Voc) -0.250%/°C

Temperature Coefficient of Pmax(y_Pmp)

-0.290%/°C





AUTHORIZATION



JA Solar is highly committed to retaining its 'leadership in mono’and being a loyal partner in its distribution network.

We have obtained their official authorization and established a long-term, stable, and sustainable cooperative relationship.
