Canadian BiHiKu6 182mm 530Wp 535Wp 540Wp 545Wp 550Wp Monocrystalline Double Glass Solar Panel Multi Busbar Half Cell Solar Panel HiKu6 400Wp 405Wp 410Wp 415Wp 420Wp PV All Black Module 380Wp 385Wp 390Wp 395Wp 400Wp 405Wp
Brand Name :
CanadianPower Range :
380-555WpDimensions of Module :
2278 ˣ 1134 ˣ 30 mmWeight :
27.6kgGlass :
3.2 mm tempered glass with anti-ref-lective coatingFrame :
Anodized aluminium alloy, crossbar enhancedJunction Box :
IP68, 3 bypass diodesCable :
4 mm2 (IEC), 12 AWG (UL)Max. Efficiency :
21.5%Wind/Snow Load :
5400Pa/2400PaBacksheet :
35mm(1.38 inches) Anodized Aluminium AlloyPacking :
T6 or T4 series or MC4-EVO2Number of Cells :
144Cells
Solar panels CanadianSolar HiKu6 are capable of producing up from 545W, and have 144 cells.Ideal for customers looking for high efficiency at the best price. It was built of monocrystalline 182mm (M10) half-cut cells with multi-bus bar (MBB) and paving technology.
The Canadian Solar Max Power solar panel comes with a 12-year warranty and certifies a performance of over 83% for at least 25 years.

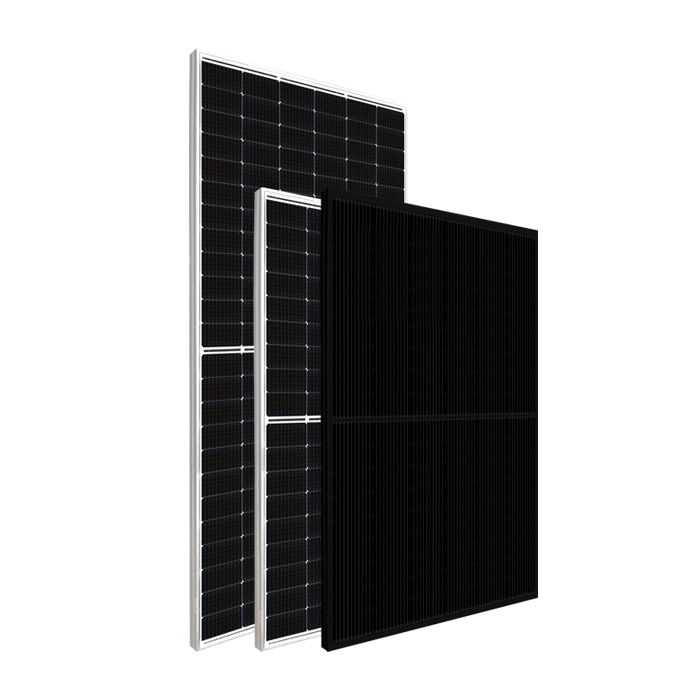

High Power Dual Cell PERC Module
CS6R: 1722 x 1134 x 30 mm
Power range：400~420 W
CS6W: 2261 x 1134 x 35 mm
Power range: 530~555 W
CS6L: 1903 x 1134 x 30 mm
Power range: 445~465 W
CS6R(All Black): 1722 x 1134 x 30 mm
Power range: 380~405 W
Wafer size 182 mm
Module efficiency up to 21.6 %
2.7% more energy yield in module lifetime
The Canadian Solar BiHiKu6 solar panel has enhanced its reliability with its LID/LeTID mitigation technology, lower hotspot temperature, improved shading tolerance, and its ability to minimise micro-crack impact features.
The high material stability of the double-glass structure ensures the long-term stable power generation of the solar system.

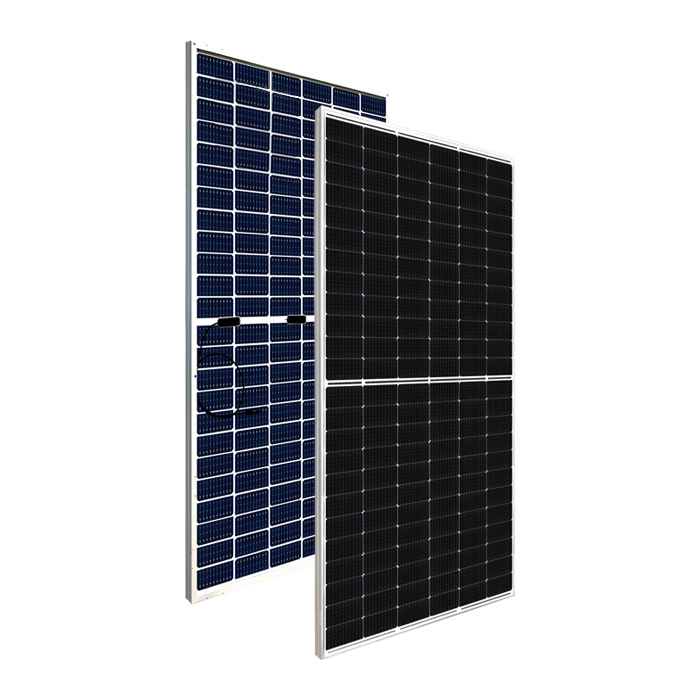

Bifacial High Power Dual Cell PERC Module
CS6W: 2266 x 1135 x 30 mm
Front side power range: 520~550 W
Wafer size 182 mm
Up to 30% more energy yield from back side
Low hot spot temperature
Product Paramter(STC)
| CS6W | 530W | 535W | 540W | 545W | 550W | 555W |
|
Nominal Max. Power (Pmax)
|
530 W | 535 W | 540 W | 545 W | 550 W | 555 W |
|
Opt. Operating Voltage (Vmp)
|
40.9 V | 41.1 V | 41.3 V | 41.5 V | 41.7 V | 41.9 V |
|
Opt. Operating Current (Imp)
|
12.96 V | 13.02 V | 13.08 V | 13.14 V | 13.20 V | 13.25 V |
|
Open Circuit Voltage (Voc)
|
48.8 V | 49.0 V | 49.2 V | 49.4 V | 49.6 V | 49.8 V |
|
Short Circuit Current (Isc)
|
13.80 V | 13.85 V | 13.90 V | 13.95 V | 14.0 V | 14.05 V |
|
Module Efficiency
|
20.5 V | 20.7 V | 20.9 V | 21.1 V | 21.3 V | 21.5 V |
|
Operating Temperature
|
-40°C ~ +85°C
|
|||||
|
Max. System Voltage
|
1500V (IEC/UL)) or 1000V (IEC/UL))
|
|||||
|
Module Fire Performance
|
TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
|
|||||
|
Max. Series Fuse Rating
|
30 A
|
|||||
|
Application Classification
|
Class A
|
|||||
|
Power Tolerance
|
0 ~ + 10 W
|
|||||
