Canadian Tier 1 BiHiKu7 210mm 640Wp 650Wp 660Wp 670Wp Monocrystalline Double Glass Solar Panel Multi Busbar Half Cell Solar Panel 580Wp 585Wp 590Wp 595Wp 600Wp PV Module HiKu7 Series 600Wp 605Wp 610Wp 615Wp
Brand Name :
CanadianPower Range :
580-670WpMax. Efficiency :
21.6%Weight :
34.4kgNumber of Cells :
132CellsDimensions of Module :
2384 ˣ 1303 ˣ 35 mmGlass :
3.2 mm tempered glass with anti-ref-lective coatingCable :
4 mm2 (IEC), 12 AWG (UL)Backsheet :
35mm(1.38 inches) Anodized Aluminium AlloyWind/Snow Load :
5400Pa/2400PaPacking :
T6 or T4 series or MC4-EVO2Frame: :
Anodized aluminium alloy, crossbar enhancedJunction Box: :
IP68, 3 bypass diodes
Monocrystalline photovoltaic module of PERC technology of the prestigious Canadian Solar brand. This panel as all of the brand has a positive tolerance of power 0 / +10W ideal for grid connection facilities with space limitation where space and power per square meter with operating voltages of up to 1500V in series.
HiKu7 can solve the less space problem, as it is the most efficient solar panel with high WP. Hiku panel has a 12 year guarantee on product, manufacture and materials and 25 years of production with degradation of the solar panel in a linear way, which ensures the highest performance and reliability throughout the life of the photovoltaic installation.

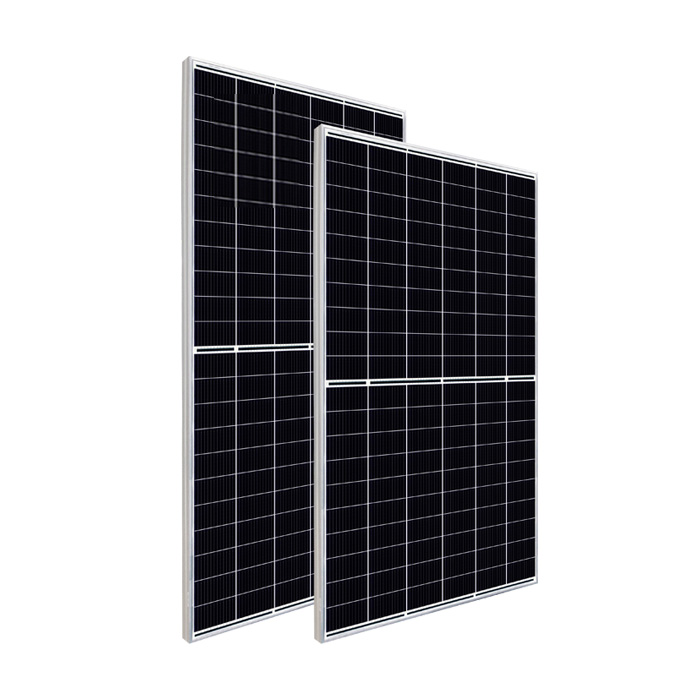

High Power Dual Cell PERC Module
CS7N: 2384 x 1303 x 35 mm
Power range: 640~670 W
CS7L: 2172 x 1303 x 35 mm
Power range: 580~610 W
Wafer size 210 mm
Module efficiency up to 21.6 %
Lower BOS cost & LCOE cost

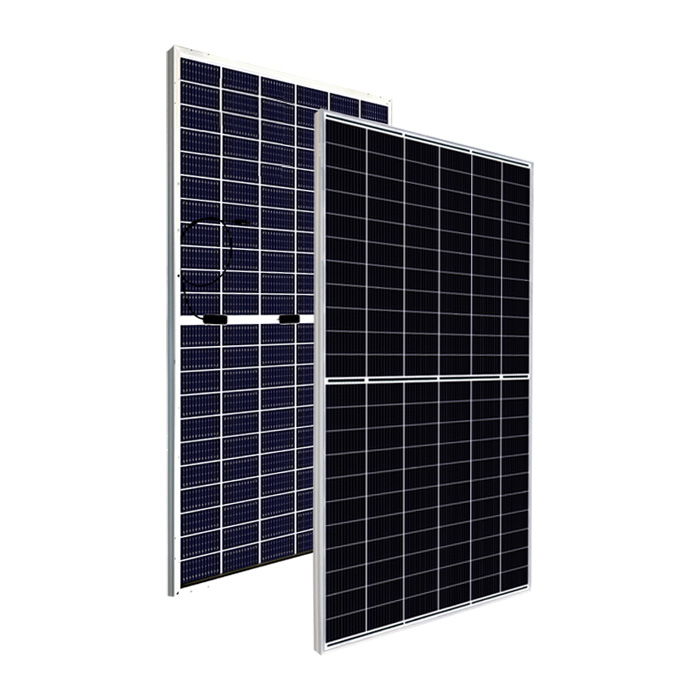

The BiHiKu7 is Canadian Solar’s bifacial dual-cell PERC module with a power output of up to 670 Wp. A bifacial module generates energy from both the front and the rear end. As a result, their energy yield is higher than traditional solar panels. The high material stability of the double-glass structure ensures the long-term stable power generation of the solar system.
The modules are equipped with the Canadian Solar advanced Regeneration (CSAR) technology that helps in reducing light and elevated temperature-induced degradation (LeTid) by 50%. The panels also provide better shading tolerance and a 40 ℃ hotspot temperature which reduces the risk of module failure.
Bifacial High Power Dual Cell PERC Module
CS7N: 2384 x 1303 x 33 mm
Front side power range: 635~665 W
CS7L: 2172 x 1303 x 33 mm
Front side power range: 575~600 W
Wafer size 210 mm
Up to 8.9 % lower LCOE
Excellent hot spot performance
Product Paramter(STC)
|
CS7N
|
640MS | 645MS | 650MS | 655MS | 660MS | 665MS | 670MS |
|
Nominal Max. Power (Pmax)
|
640 W
|
645 W
|
650 W
|
655 W
|
660 W
|
665 W
|
670 W
|
|
Opt. Operating Voltage (Vmp)
|
37.5 V
|
37.7 V
|
37.9 V
|
38.1 V
|
38.3 V
|
38.5 V
|
38.7 V
|
|
Opt. Operating Current (Imp)
|
17.07
|
17.11 A
|
17.16 A
|
17.20 A
|
17.24 A
|
17.28 A
|
17.32 A
|
|
Open Circuit Voltage (Voc)
|
44.6 V
|
44.8 V
|
45.0 V
|
45.2 V
|
45.4 V
|
45.6 V
|
45.8 V
|
|
Short Circuit Current (Isc)
|
18.31
|
18.35 A
|
18.39 A
|
18.43 A
|
18.47 A
|
18.51 A
|
18.55 A
|
|
Module Efficiency
|
20.6%
|
20.8%
|
20.9%
|
21.1%
|
21.2%
|
21.4%
|
21.6%
|
|
Operating Temperature
|
-40°C ~ +85°C
|
||||||
|
Max. System Voltage
|
1500V (IEC/UL)) or 1000V (IEC/UL))
|
||||||
|
Module Fire Performance
|
TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
|
||||||
|
Max. Series Fuse Rating
|
30 A
|
||||||
|
Application Classification
|
Class A
|
||||||
|
Power Tolerance
|
0 ~ + 10 W
|
||||||
