N Type Bifacial Dual Glass 555W 560W 565W 570W 575W 580W Photovoltaic Solar Panel Module

N Type 182mm Solar Cells Half Cult Multi Busbar Bifacial Solar PV Panel 555W 560W 565W 570W 575W 580W Monocrystalline Dual Glass Topcon Solar Panel Module

  • Brand Name :

    SAIL SOLAR
  • Power Range :

    555~580W
  • Weight :

    31.6kg
  • Max. Efficiency :

    22.46%
  • Number of Cells :

    144Cells
  • Dimensions of Module :

    2285x1134x35mm
  • Glass :

    Dual glass, 2.0mm coated tempered glass
  • Cable :

    4mm2, 300mm in length, length can be customized
  • Wind/Snow Load :

    5400Pa/2400Pa
  • Connector :

    MC4
  • Frame: :

    Anodized aluminum alloy frame
  • Junction Box: :

    IP68, three diodes

182mm PERC Half Cult 144Cells MBB Mono Bifacial 555Watt ~580Watt Solar Panel

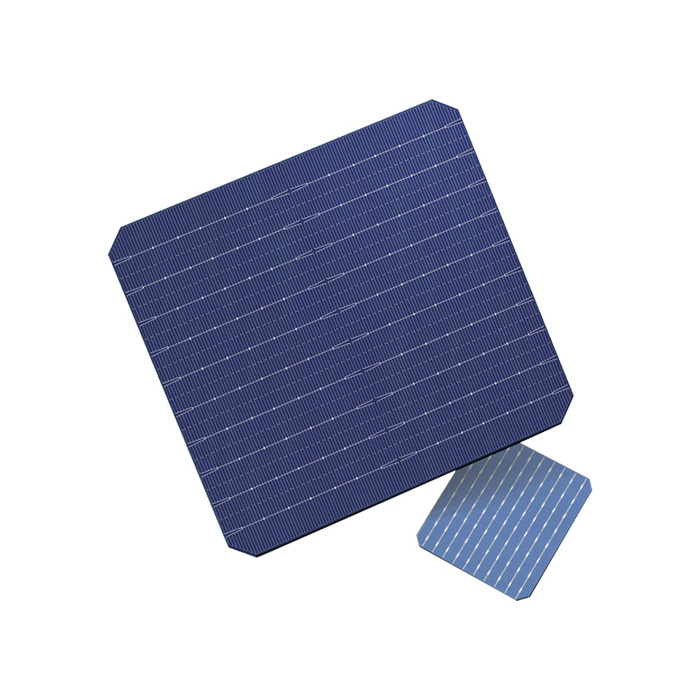

182mm Solar Cells

N-TOPCon 144cells 182mm half cut cell bifacial solar panel power is 555W-580W. Half cut cell solar panel is produced with the up-to-date technology in the design & manufacturing process, with excellent quality performance. N-TOPCon half cell solar panel advantages include: lower attenuation, better weak light performance and lower power consumption cost.











Bificial solar panel, double side generating, rear side up to 20% of rated power generation, increase the extra power generation and reduce LOCE rate.

Up to 580W rated power, most powerful and popular module in market;

High transmission glass, increase the sunlight transmission and reflection.

Labor bearable size and weight module , suitable for ground mounting , flat rooftop inclined installing projects and carport project.

Assembled with 35mm frame, better mechanical durability, easy for handling and installing.

Similar panel cost with monoficial panel with supernumerary incoming, increase the rate of return on investment.

A grade & first class material, strictly quality controlling processes to guarantee 25 years 80% power output and 30 years lifespan.

-40℃- 85℃ working temperature, outstanding durable ability in sands, water field, high temperature,high humidity and alpine harsh environment.

TUV Rheinland IEC ,CE  approved.

Module ID  SAS555MNB-144H SAS560MNB-144H SAS565MNB-144H SAS570MNB-144H SAS575MNB-144H SAS580MNB-144H
Maximum Power (Pmax/W) 555 560 565 570 575 580
Maximum Power Voltage (Vmp/V) 41.64 41.96 42.15 42.30 42.45 42.60
Maximum Power Current (Imp/A) 13.33 13.35 13.41 13.48 13.55 13.62
Open Circuit Voltage (Voc/V) 50.32 50.67 50.87 51.07 51.47 51.47
Short Circuit Current (Isc/A) 14.06 14.13 14.19 14.25 14.37 14.37
Module Efficiency (%) 21.49 21.68 21.88 22.07 22.26 22.46
Power Output Tolerance (W)
 0~+5W
Temperature Coefficient of Isc
+0.045%/°C
Temperature Coefficient of Voc
 -0.250%/°C
Temperature Coefficient of Pmax  -0.290%/°C

STC (Standard Testing Conditions): Irradiance 1000W/m2, Cell Temperature 25°C, Spectra at AM1.5

Test uncertainty for Pmax: ±3%



Certification

SAIL SOALR' s pv panel module have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments etc. We do our best to provide customers with quality products, for the customer's investment and income to provide protection.

  1. ISO 9001: 2015: ISO Quality Management System
  2. ISO 14001: 2015: ISO Environment Management System
  3. ISO 45001: 2018: Occupational Health and Safety
  4. CE & EU declaration of conformity
  5. IEC 61215 / IEC 61730 Anti-PID Test for Photovoltaic Module
  6. IEC 61701 Salt Mist Corrosion Test for Photovoltaic Module
  7. IEC 60068-2-68 Dust and Sand Test for Photovoltaic Module
  8. UL1703 / UL 61730 – PV Module Safety Standards by UL / CSA / INTERTEK
  9. Italian First-Class Report on Fire Prevention
  10. INMETRO Ex Tariff for Brazil
  11. MCS / JEPC & JET / CEC(Clean Energy Council) approved PV modules / FIDE / CB / DEWA / RETIE

    •
