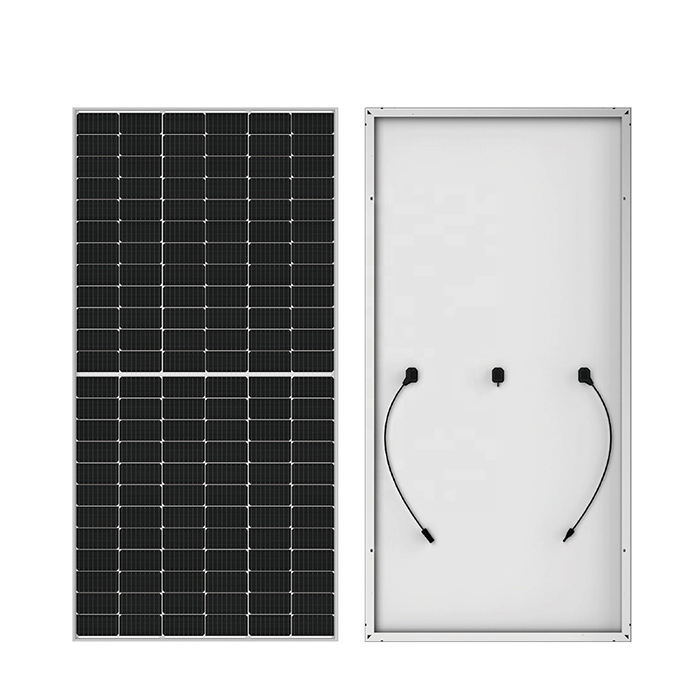

166mm PERC Cells Mono MBB & Half-cut Technology, SAIL SOALR HiPro3 Series 144Cells Solar Panel Power Range 450W 455W 460W 465W 470W.
Brand Name :
SAIL SOLARPower Range :
450~470WDimensions of Module :
2094x1038x35mmWeight :
23.5kgGlass :
3.2mm coated tempered glassFrame :
Anodized aluminum alloy frameJunction Box :
IP68, three diodesCable :
4mm2, 300mm in length, length can be customizedMax. Efficiency :
21.2%Wind/Snow Load :
5400Pa/2400PaNumber of Cells :
144CellsBacksheet :
WhitePacking :
MC4166mm PERC Half Cells MBB Mono 450W-470W Solar Panel Price

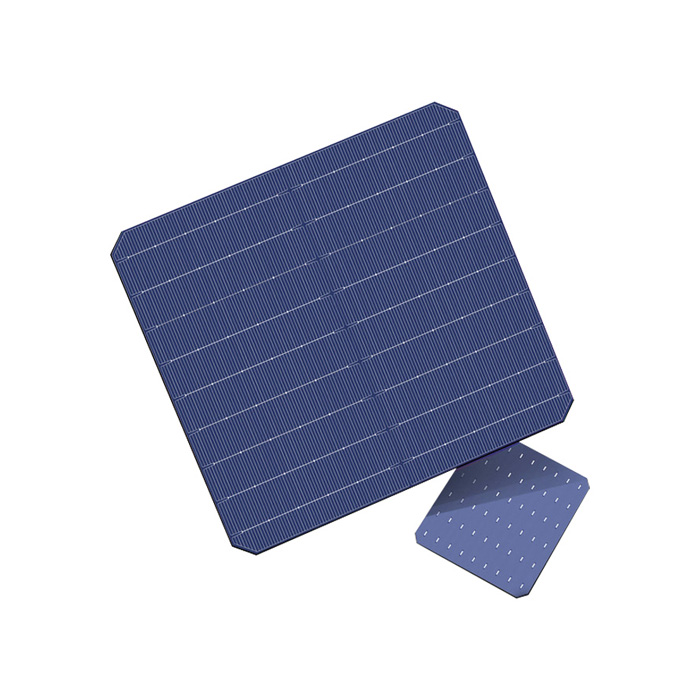

M6 series 166mm solar cells use Passivated Emitter Rear Contact (PERC) technology, it is an advanced mono-crystalline solar cells. solar panels built with PERC cells have an additional layer on the back，So, this additional layer allows more sunlight to capture and turn into electricity, making PERC cells more efficient than traditional cells.
Warranty 12 years warranty for materials and processing, 25 years warranty for extra linear power output.
Positive power tolerance (0 +5W) guaranteed
High module conversion efficiency (up to 20.9%)
Reduced resistive loss with lower operating current
Higher energy yield with lower operating temperature, reduced hot spot risk with optimized electrical design and lower operating current
--
| Module ID | SAS450M-144H | SAS455M-144H | SAS460M-144H | SAS465M-144H | SAS470M-144H |
| Maximum Power (Pmax/W) | 450 | 455 | 460 | 465 | 470 |
| Maximum Power Voltage (Vmp/V) | 41.52 | 41.82 | 42.13 | 42.43 | 42.69 |
| Maximum Power Current (Imp/A) | 10.84 | 10.88 | 10.92 | 10.96 | 11.01 |
| Open Circuit Voltage (Voc/V) | 49.70 | 49.85 | 50.01 | 50.15 | 50.31 |
| Short Circuit Current (Isc/A) | 11.36 | 11.41 | 11.45 | 11.49 | 11.53 |
| Module Efficiency (%) | 20.3 | 20.5 | 20.7 | 20.9 | 21.2 |
| Power Output Tolerance (W) |
0~+5W | ||||
| Temperature Coefficient of Isc |
+0.044%/°C | ||||
| Temperature Coefficient of Voc |
-0.272%/°C | ||||
| Temperature Coefficient of Pmax | -0.350%/°C | ||||
STC (Standard Testing Conditions): Irradiance 1000W/m2, Cell Temperature 25°C, Spectra at AM1.5
Test uncertainty for Pmax: ±3%
Certification
SAIL SOALR' s pv panel module have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments etc. We do our best to provide customers with quality products, for the customer's investment and income to provide protection.
