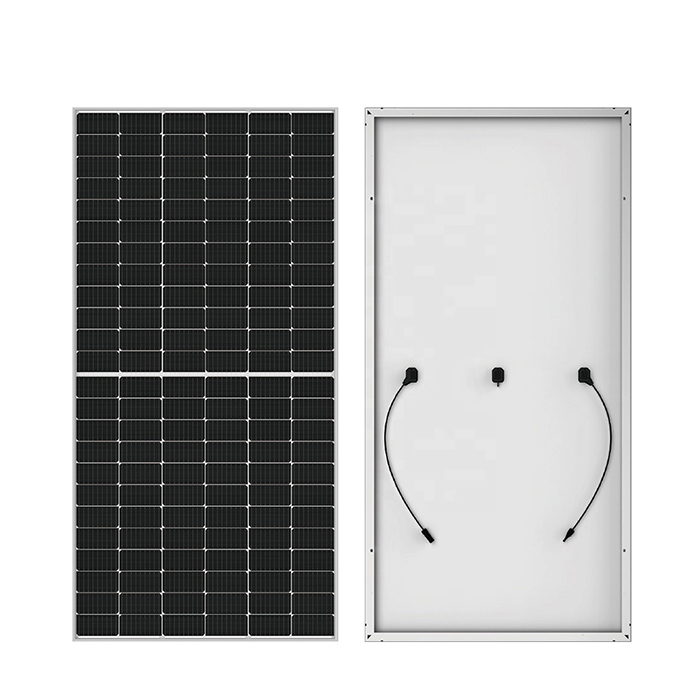

166mm PERC Cells Mono MBB & Half-cut Technology, SAIL SOALR HiPro3 Series 120Cells Solar Panel Power Range 350W 360W 365W 370W 375W 380W 390W
Brand Name :
SAIL SOLARPower Range :
350~390WDimensions of Module :
1755x1038x35mmWeight :
19.5kgGlass :
3.2mm coated tempered glassFrame :
Anodized aluminum alloy frameJunction Box :
IP68, three diodesCable :
4mm2, 300mm in length, length can be customizedMax. Efficiency :
21.5%Wind/Snow Load :
5400Pa/2400PaBacksheet :
WhitePacking :
MC4Number of Cells :
120Cells166mm PERC Half Cells MBB Mono 350W-390W Solar Panel Price

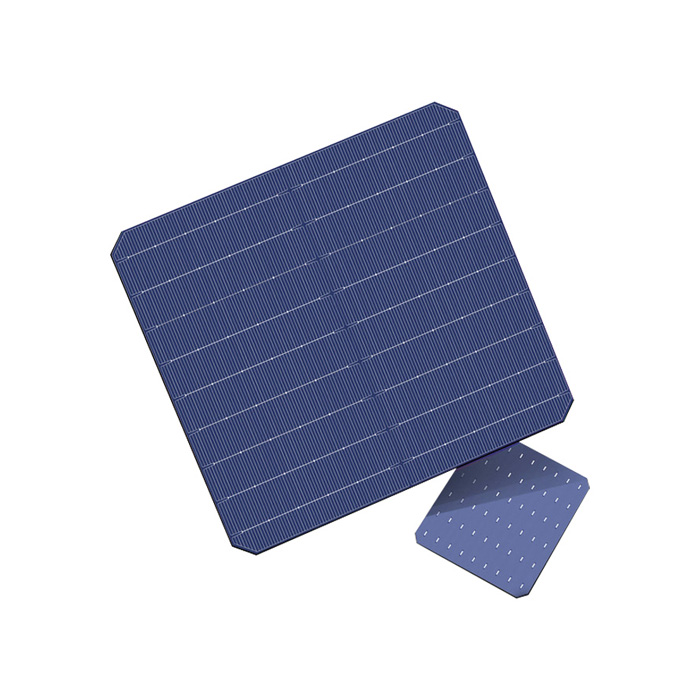

PERC cells back surface is deposited with insulating film, which is called the passivating layer, it has higher efficiency. P-type solar cells have a high resistance to radiation and degradation, SAIL SOALR using this well-researched technology by lowering production cost to make better P-type solar panels for applications.
Product Feature
SAIL SOLAR redefined the high-efficiency module series by integrating 166mm silicon wafers with bifacial, multi-busbar and half-cut cells technology. The multi-busbar improves the power generation performance of the cells, and the half-cell technology reduces losses caused by ribbon resistance. Meanwhile, half cult technology also reduces the impact of micro-cracks and hot spot effects.
| Module ID | SAS350M-120H | SAS360M-120H | SAS370M-120H | SAS380M-120H | SAS390M-120H |
| Maximum Power (Pmax/W) | 350 | 360 | 370 | 380 | 390 |
| Maximum Power Voltage (Vmp/V) | 33.6 | 34.0 | 34.4 | 34.8 | 35.2 |
| Maximum Power Current (Imp/A) | 10.42 | 10.59 | 10.76 | 10.92 | 11.08 |
| Open Circuit Voltage (Voc/V) | 40.1 | 40.5 | 40.9 | 41.3 | 41.7 |
| Short Circuit Current (Isc/A) | 11.15 | 11.35 | 11.52 | 11.69 | 11.86 |
| Module Efficiency (%) | 19.2 | 19.8 | 20.3 | 20.9 | 21.5 |
| Power Output Tolerance (W) |
0~+5W | ||||
| Temperature Coefficient of Isc |
+0.044%/°C | ||||
| Temperature Coefficient of Voc |
-0.272%/°C | ||||
| Temperature Coefficient of Pmax | -0.350%/°C | ||||
STC (Standard Testing Conditions): Irradiance 1000W/m2, Cell Temperature 25°C, Spectra at AM1.5
Test uncertainty for Pmax: ±3%
Certification
SAIL SOALR' s pv panel module have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments etc. We do our best to provide customers with quality products, for the customer's investment and income to provide protection.
