Jinko N-type Series Tier 1 All Black 420Wp 415Wp 410Wp Mono 550Wp 545Wp 540Wp Solar Panel PV Module

Jinko N-type Series Monocrystalline Multi Busbar 550Wp 555Wp 560Wp Bifacial Half Cell Solar Panel PV Module Double Glass All Black 420Wp 415Wp 410Wp 405Wp Black Frame

  • Brand Name :

    Jinko
  • Power Range :

    400-630Wp
  • Max. Efficiency :

    21.51%
  • Weight :

    22kg
  • Number of Cells :

    108 Cells
  • Dimensions of Module :

    1178×1134×35mm
  • Glass :

    3.2mm
  • Backsheet :

    All Black
  • Cable :

    4mm2, 300mm in length, length can be customized
  • Wind/Snow Load :

    5400Pa/2400Pa
  • Connector :

    MC4
  • Frame: :

    Anodized aluminum alloy frame
  • Junction Box: :

    IP68, three diodes

The latest iteration in Jinko's range of panels is the Tiger Neo series, built on high-performance TOPCon cell technology. TOPCon cells are made using a high-purity N-type cell substrate, Jinko all black is also the most popular series in the European market.

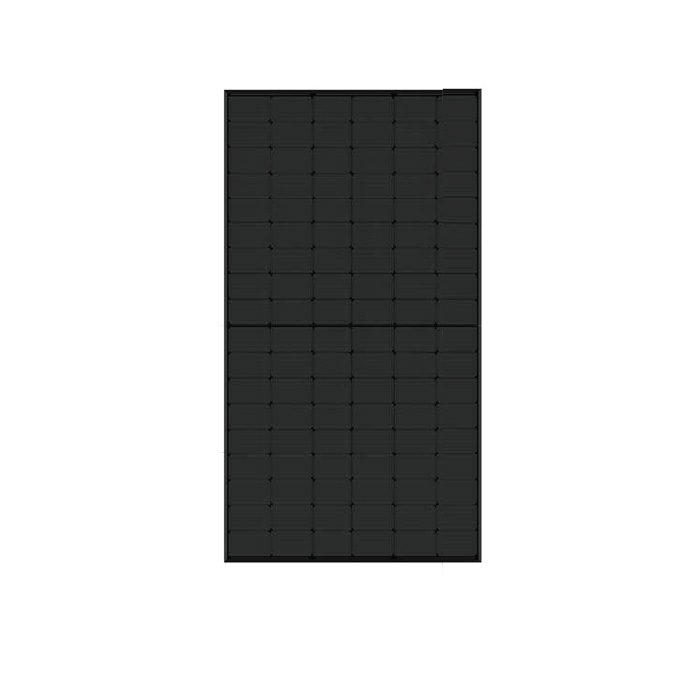

All Black: JKM400-420N-54HL4-B

               JKM420-440N-54HL4R-B

The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID, its half cell design ensures an improved shading response, resulting in higher yields when the module is partially shaded. Shading loss experienced by half-cell modules is much better than conventional modules in certain shading conditions.





The Neo panels range from the 410W panel to the much larger, high-power 635W panels designed for large-scale solar farms. Thanks to recent innovation, maximum efficiency now comes at a record-breaking 23.2% thanks to the high-density cell format and next-generation high-performance N-type TOPCon cells.

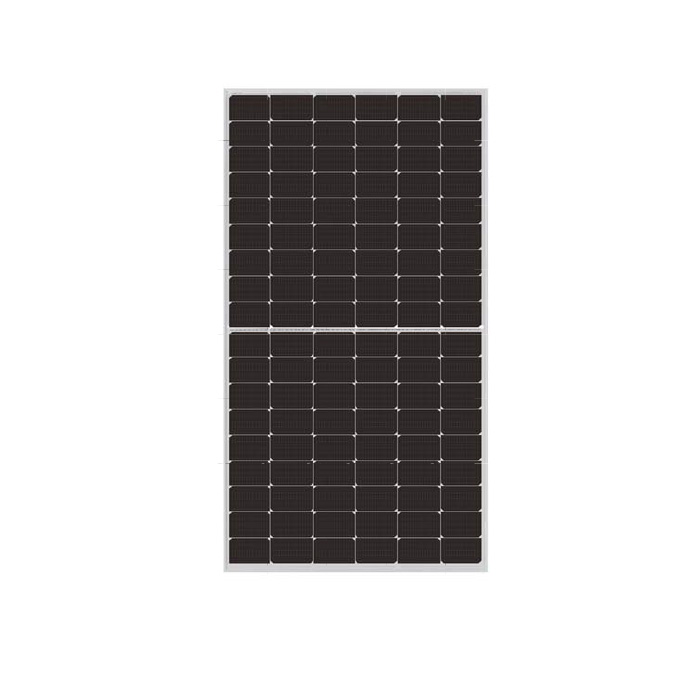

Monoficial: JKM410-430N-54HL4

                   JKM425-445N-54HL4R

                   JKM460-480N-60HL4

                   JKM565-585N-72HL4

                   JKM610-630N-78HL4

Bifacial Module with Transparent Backsheet technologyUp to 20% power gain depending on albedo and PV system design.

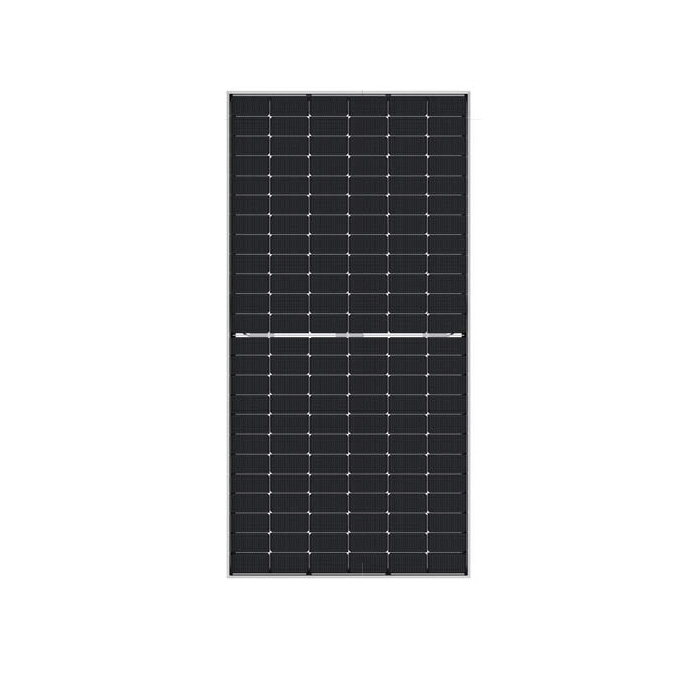

Bifacial: JKM560-580N-72HL4-BDV

             JKM605-625N-78HL4-BDV

N-type cells are resistant to light induced degradation. This immunity leads to a longer carrier lifetime of the cell and a more efficient, powerful system, have a higher temperature tolerance.



Product Parameter(STC)



Module Type
JKM400N-54HL4-B
JKM405N-54HL4-B
JKM410N-54HL4-B
JKM415N-54HL4-B
JKM420N-54HL4-B
Maximum Power (Pmax)
400Wp
405Wp
410Wp
415Wp
420Wp
Maximum Power Voltage (Vmp)
31.28V
31.47V
31.66V
31.85V
32.04V
Maximum Power Current (Imp)
12.79A
12.87A
12.95A
13.03A
13.11A
Open-circuit Voltage (Voc)
37.38V
37.58V
37.77V
37.96V
38.15V
Short-circuit Current (Isc)
13.55A
13.62A
13.68A
13.74A
13.80A
Module Efficiency STC (%)
20.48%
20.74%
21.00%
21.25%
21.51%
Operating Temperature(
-40~+85
Maximum system voltage
1000VDC (IEC)
Maximum series fuse rating
25A
Power tolerance
0~+3%
Temperature coefficients of Pmax
-0.29%/
Temperature coefficients of Voc
-0.25%/
Temperature coefficients of Isc
0.045%/
Nominal operating cell temperature (NOCT)
45±2





AUTHORIZATION



Jinko Solar is highly committed to retaining its 'leadership in mono’and being a loyal partner in its distribution network.

We have obtained their official authorization and established a long-term, stable, and sustainable cooperative relationship.
