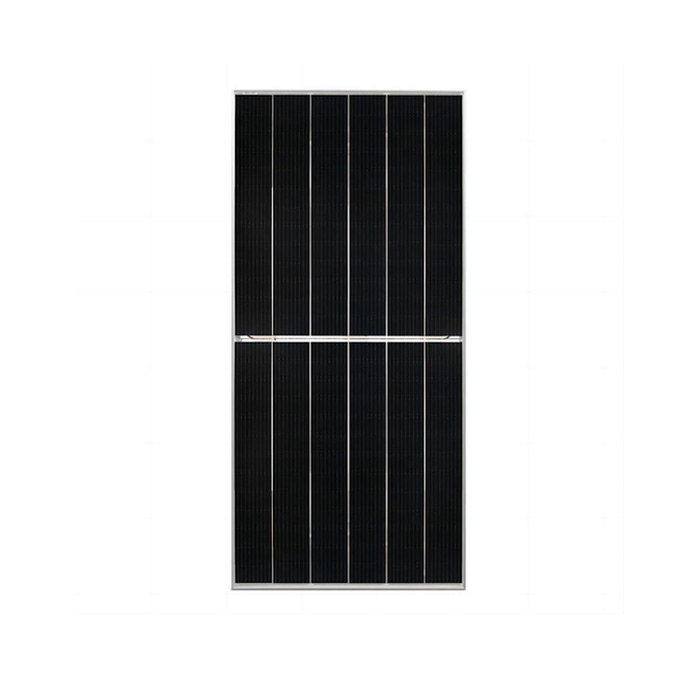

Jinko P-type Series 415Wp 410Wp 405Wp Mono Half Cell 450Wp 460Wp 470Wp Bifacial Solar Panel PV Module 550Wp 545Wp 540Wp

Jinko P-type Series Monocrystalline Multi Busbar 550Wp 555Wp 560Wp Bifacial Half Cell Solar Panel PV Module 450Wp 460Wp 470Wp Double Glass 420Wp 415Wp 410Wp 405Wp

  • Brand Name :

    Jinko
  • Power Range :

    395-560Wp
  • Max. Efficiency :

    21.68%
  • Weight :

    28kg
  • Number of Cells :

    144 Cells
  • Dimensions of Module :

    2278×1134×35mm
  • Glass :

    3.2mm
  • Cable :

    4mm2, 300mm in length, length can be customized
  • Backsheet :

    White
  • Wind/Snow Load :

    5400Pa/2400Pa
  • Connector :

    QC 4.10-351/ MC4-EV02A
  • Junction Box: :

    IP68 Rated
  • Frame: :

    Anodized Aluminium Alloy

Tiger Pro panels were debuted in 2020 with a record-breaking power rating of up to 580W. Shortly after, at the SNEC PV Power Expo in China, Jinko Solar unveiled a 610W version of the Tiger Pro panel, making it one of the most powerful panels on the market.

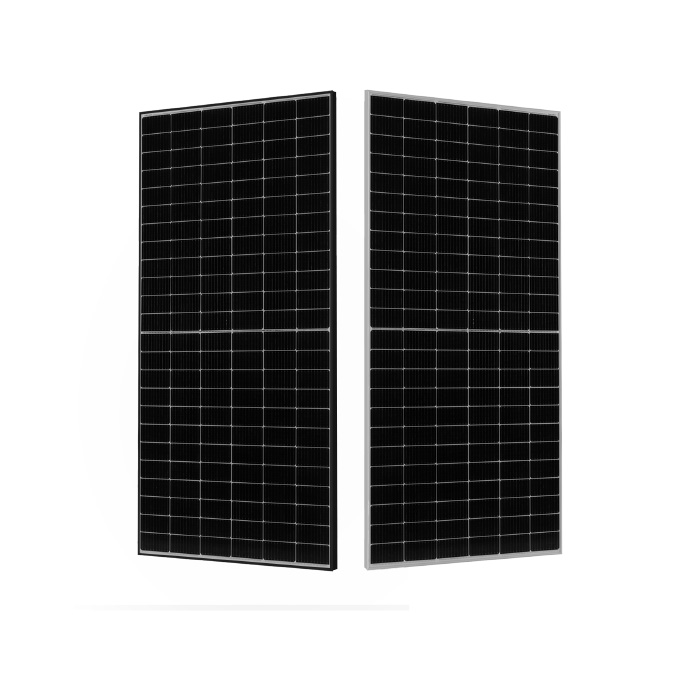

Monofacial: JKM395-415M-54HL4

                    JKM450-470M-60HL4

                    JKM540-560M-72HL4

Advantages: Ultra-high Power for the Lowest LCOE and Highest IRR; Ultra-high Efficiency of 21.4%; Reliable Tiling Ribbon Technology Eliminating the Inter-cell Gap; Multi Busbar Technology Decreasing the Resistance Loss.





Bifacial Module with Transparent Backsheet technologyUp to 20% power gain depending on albedo and PV system design

Bifacial:JKM535-555N-72HL4-BDVP

P-type cells are resistant to light induced degradation. This immunity leads to a longer carrier lifetime of the cell and a more efficient, powerful system, have a higher temperature tolerance.



Product Parameter(STC)



Module Type
JKM540M-72HL4
JKM540M-72HL4-V
JKM545M-72HL4
JKM545M-72HL4-V
JKM550M-72HL4
JKM550M-72HL4-V
JKM555M-72HL4
JKM555M-72HL4-V
JKM560M-72HL4
JKM560M-72HL4-V
Maximum Power (Pmax)
540Wp
545Wp
550Wp
555Wp
560Wp
Maximum Power Voltage (Vmp)
40.70V
40.80V
40.90V
40.99V
41.09V
Maximum Power Current (Imp)
13.27A
13.36A
13.45A
13.54A
13.63A
Open-circuit Voltage (Voc)
49.42V
49.52V
49.62V
49.72V
49.82V
Short-circuit Current (Isc)
13.85A
13.94A
14.03A
14.12A
14.21A
Module Efficiency STC (%)
20.90%
21.10%
21.29%
21.48%
21.68%
Operating Temperature(
-40~+85
Maximum system voltage
1000/1500VDC (IEC)
Maximum series fuse rating
25A
Power tolerance
0~+3%
Temperature coefficients of Pmax
-0.35%/
Temperature coefficients of Voc
-0.28%/
Temperature coefficients of Isc
0.048%/
Nominal operating cell temperature (NOCT)
45±2





AUTHORIZATION



Jinko Solar is highly committed to retaining its 'leadership in mono’and being a loyal partner in its distribution network.

We have obtained their official authorization and established a long-term, stable, and sustainable cooperative relationship.
