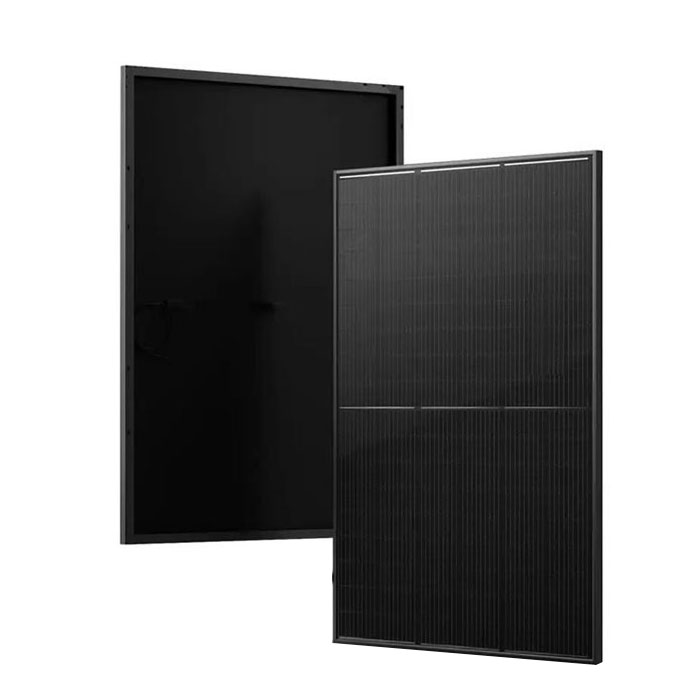

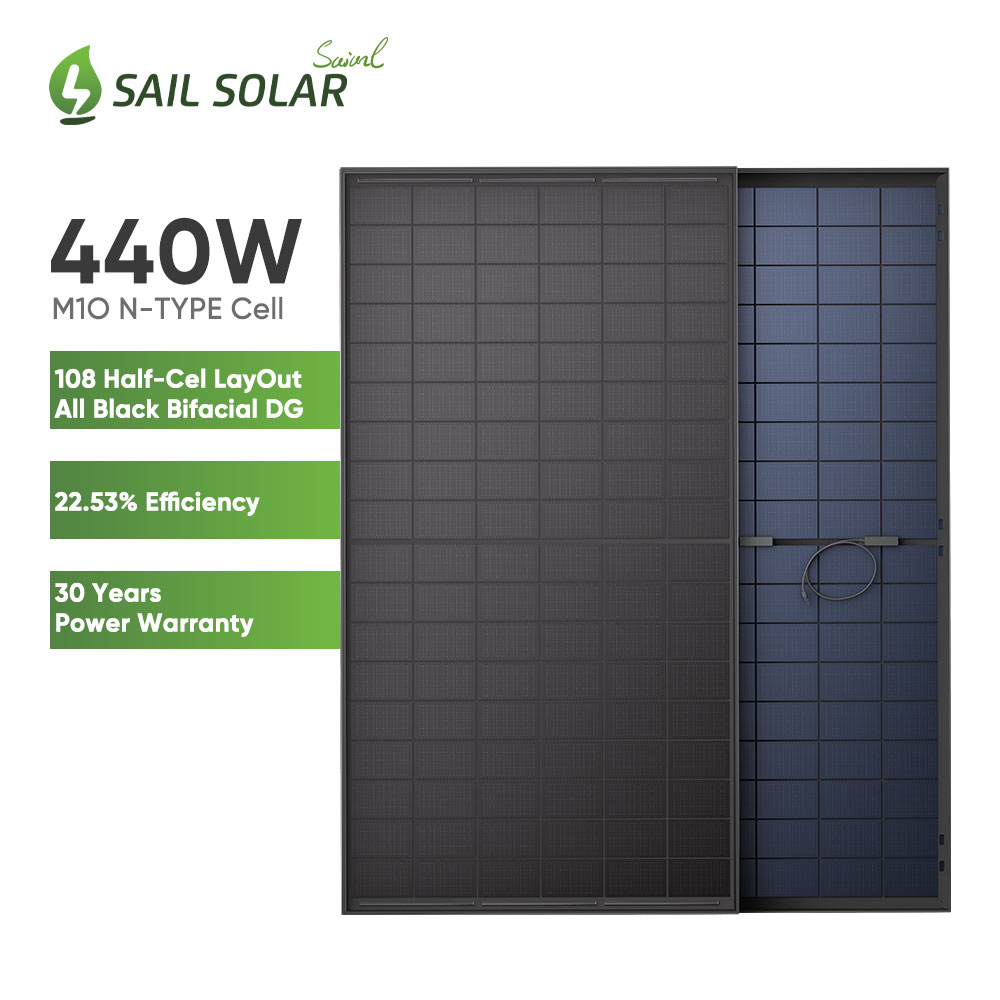

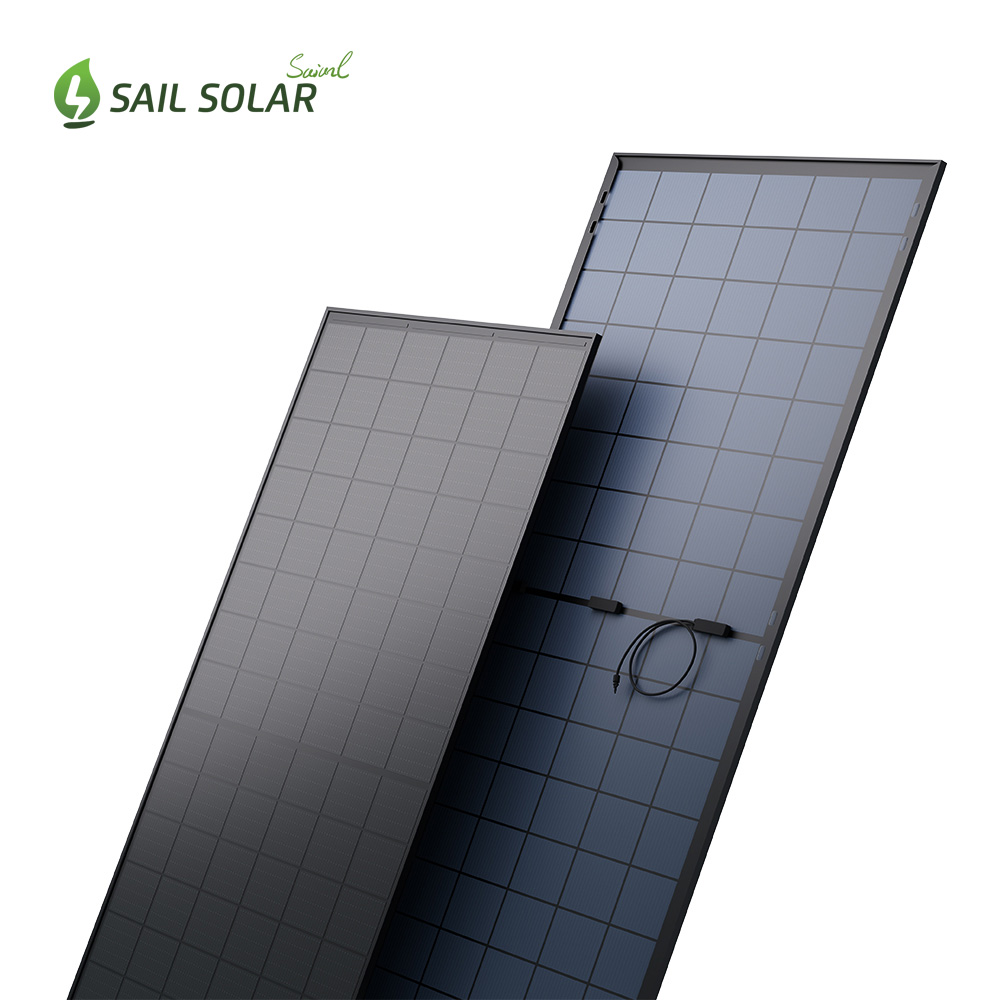

Full Black 182mm Solar Cells Half Cult Technology Solar PV Topcon panel 420W 425W 430W 435W 440W Monocrystalline Photovoltaic Solar Panel Module
Brand Name :
SAIL SOLARPower Range :
420~440WMax. Efficiency :
22.54%Weight :
20.5kgNumber of Cells :
108CellsDimensions of Module :
1722×1134×30mmGlass :
3.2mm coated tempered glassCable :
4mm2, 300mm in length, length can be customizedBacksheet :
WhiteWind/Snow Load :
5400Pa/2400PaPacking :
MC4Junction Box: :
IP68, three diodesFrame: :
Anodized aluminum alloy frame182mm N Type Half Cult 108Cells MBB All Black Mono 415Watt ~440Watt Solar Panel

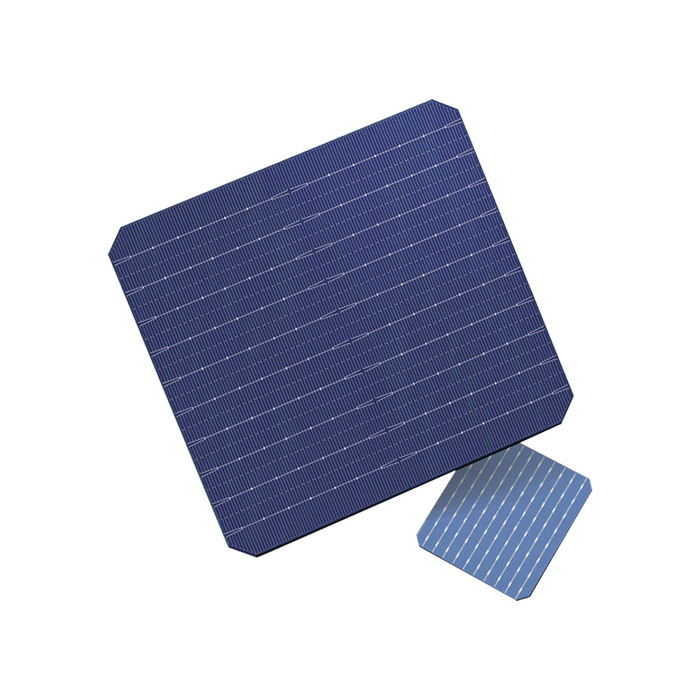

All Black Modules are ideal for use in roofs, carports and building photovoltaics (BIPV). The black roof and building façade are fashionable and beautiful, and at the same time have power generation benefits, which are especially favored by distributed users in Japan, the Middle East, Europe and the United States. The cell adopts nano-scale black silicon texturing technology, which reduces the reflectivity of the cell and improves the utilization rate of sunlight. Sail Solar PV Modules also integrate various technologies such as TOPCon and SMBB to achieve higher power output and reliability.
| Module ID | SAS420MN-108HB | SAS425MN-108HB | SAS430MN-108HB | SAS435MN-108HB | SAS440MN-108HB |
| Maximum Power (Pmax/W) | 420 | 425 | 430 | 435 | 440 |
| Maximum Power Voltage (Vmp/V) | 31.97 | 32.16 | 32.34 | 32.52 | 32.70 |
| Maximum Power Current (Imp/A) | 13.14 | 13.22 | 13.30 | 13.38 | 13.46 |
| Open Circuit Voltage (Voc/V) | 38.46 | 38.59 | 38.72 | 38.85 | 38.98 |
| Short Circuit Current (Isc/A) | 14.09 | 14.17 | 14.25 | 14.33 | 14.41 |
| Module Efficiency (%) | 21.51 | 21.77 | 22.02 | 22.28 | 22.54 |
| Power Output Tolerance (W) |
0~+5W | ||||
| Temperature Coefficient of Isc |
+0.045%/°C | ||||
| Temperature Coefficient of Voc |
-0.250%/°C | ||||
| Temperature Coefficient of Pmax | -0.290%/°C | ||||
STC (Standard Testing Conditions): Irradiance 1000W/m2, Cell Temperature 25°C, Spectra at AM1.5
Test uncertainty for Pmax: ±3%
Certification
SAIL SOALR' s pv panel module have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments etc. We do our best to provide customers with quality products, for the customer's investment and income to provide protection.
