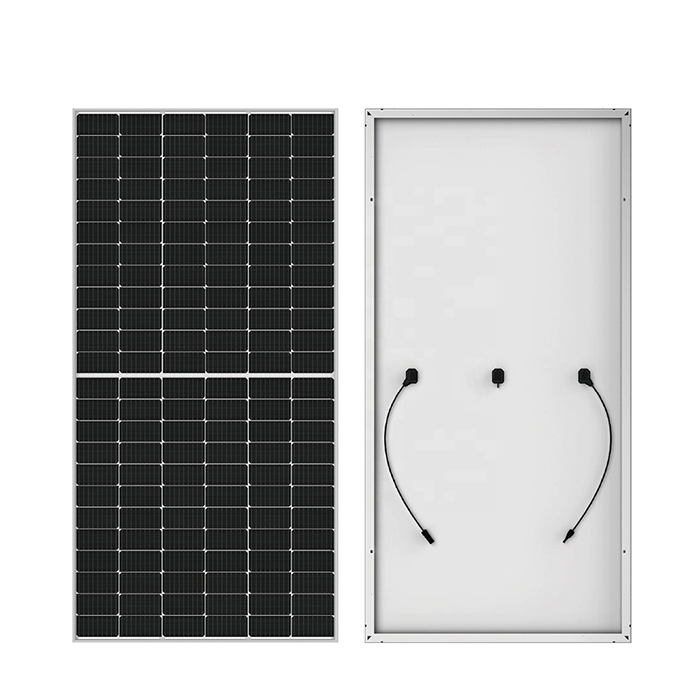

N Type M10 182mm Solar Cells Half Cult MBB Solar PV Panel 560W 565W 570W 575W 580W Monocrystalline Multi Busbar Topcon HJT Solar Panel Module
Brand Name :
SAIL SOLARPower Range :
560~580WMax. Efficiency :
22.45%Weight :
28.6kgNumber of Cells :
144CellsDimensions of Module :
2279x1134x35mmGlass :
3.2mm coated tempered glassCable :
4mm2, 300mm in length, length can be customizedBacksheet :
WhiteWind/Snow Load :
5400Pa/2400PaPacking :
MC4Frame: :
Anodized aluminum alloy frameJunction Box: :
IP68, three diodes182mm PERC Half Cult 144Cells MBB Mono 560Watt ~580Watt Solar Panel
The modules use high-efficiency N type monocrystalline silicon cells, and each cell with the same efficiency is used as a module to optimize the performance of the modules. The battery circuitry is laminated between two sheets of ethylene-vinyl acetate (EVA) with anti-aging properties that act as a sealant for moisture protection, ultraviolet (UV) resistance, and electrical insulation. Its performance is excellent throughout the entire spectral range and it is extremely efficient in low light and without direct sunlight (diffuse radiation).
The most popular solar panel in market , high power with high efficiency, best solar panel for ground mounting power plant.
Up to 580W rated power output, effectively reduce the LCOE cost and increase power generation & the rate of return on investment.
Outstanding module size, best big size module for container loading and long distance shipping, and labor handling and installing.

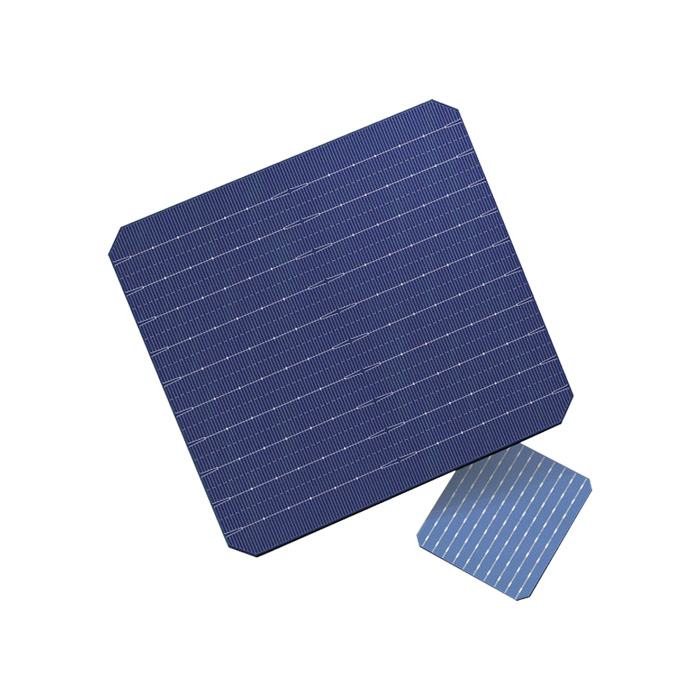

Adopt highest efficiency 182mm half cut solar cells, high power & high yield.
1500Vdc system voltage, more panels can be connected in one string, effectively reduce PV cable and number of inverters.
Favourable working current, compatible for main inverters.
Standard industry module size, compatible with other brands modules, more economic for changing and maintenance.
Outstanding harsh environmental durability and anti-aging ability, 25 years high yield generation.
TUV Rheinland IEC ,CE approved.
| Module ID | SAS560MN-144H | SAS565MN-144H | SAS570MN-144H | SAS575MN-144H | SAS580MN-144H |
| Maximum Power (Pmax/W) | 560 | 565 | 570 | 575 | 580 |
| Maximum Power Voltage (Vmp/V) | 41.96 | 42.15 | 42.30 | 42.45 | 42.60 |
| Maximum Power Current (Imp/A) | 13.35 | 13.41 | 13.48 | 13.55 | 13.62 |
| Open Circuit Voltage (Voc/V) | 50.67 | 50.87 | 51.07 | 51.27 | 51.47 |
| Short Circuit Current (Isc/A) | 14.13 | 14.19 | 14.25 | 14.31 | 14.37 |
| Module Efficiency (%) | 21.68 | 21.87 | 22.07 | 22.26 | 22.45 |
| Power Output Tolerance (W) |
0~+5W | ||||
| Temperature Coefficient of Isc |
+0.045%/°C | ||||
| Temperature Coefficient of Voc |
-0.250%/°C | ||||
| Temperature Coefficient of Pmax | -0.290%/°C | ||||
STC (Standard Testing Conditions): Irradiance 1000W/m2, Cell Temperature 25°C, Spectra at AM1.5
Test uncertainty for Pmax: ±3%
Certification
SAIL SOALR' s pv panel module have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments etc. We do our best to provide customers with quality products, for the customer's investment and income to provide protection.
