M10 Solar Cells Half Cult Technology 10BB Solar PV Panel 420W 425W 430W 435W 440W Monocrystalline N type Topcon Multi Busbar Bifacial Photovoltaic Solar Panel Module
Brand Name :
SAIL SOLARPower Range :
420~440WDimensions of Module :
1722×1134×30mmWeight :
23.5kgGlass :
2.0mm coated tempered glassFrame :
Anodized aluminium alloy (reinforced high-load optional)Junction Box :
Ip68 rated (3 by pass diodes)Cable :
4mm2, 300mm in length, length can be customizedMax. Efficiency :
22.53%Wind/Snow Load :
5400Pa/2400PaNumber of Cells :
108CellsPacking :

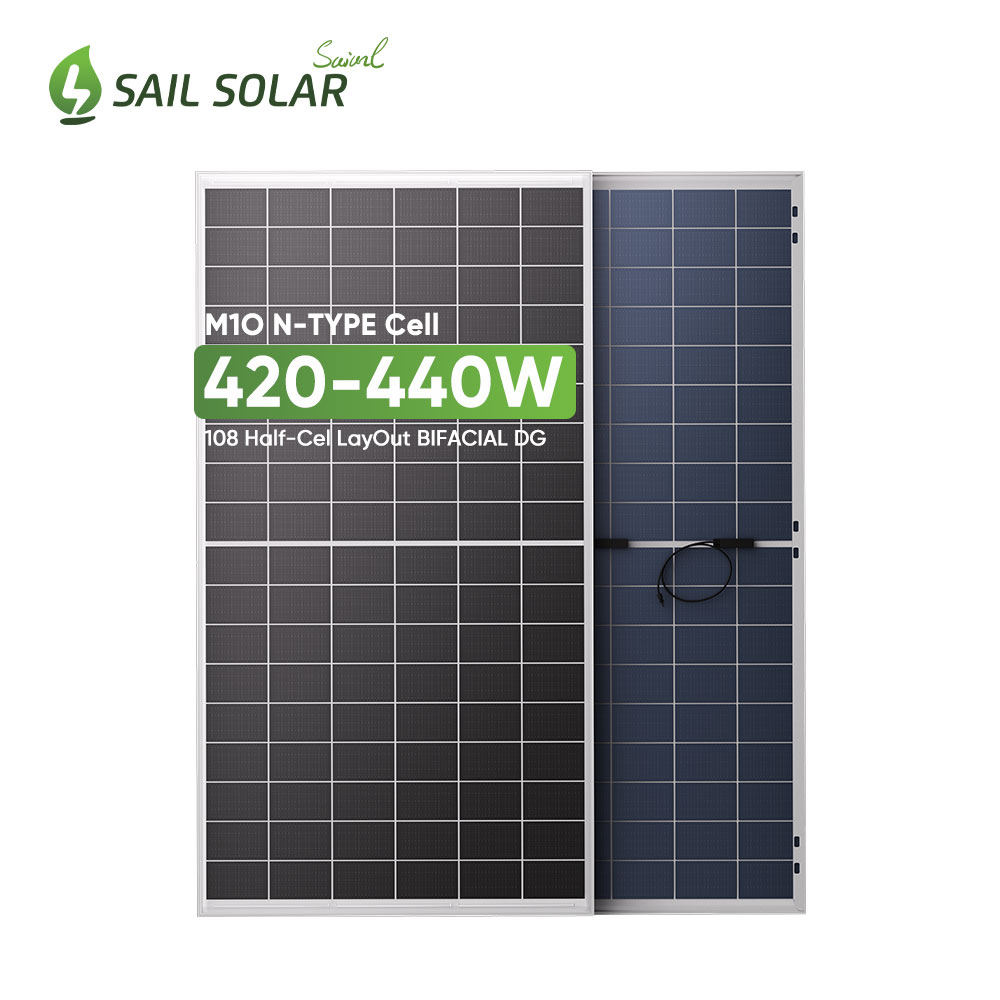

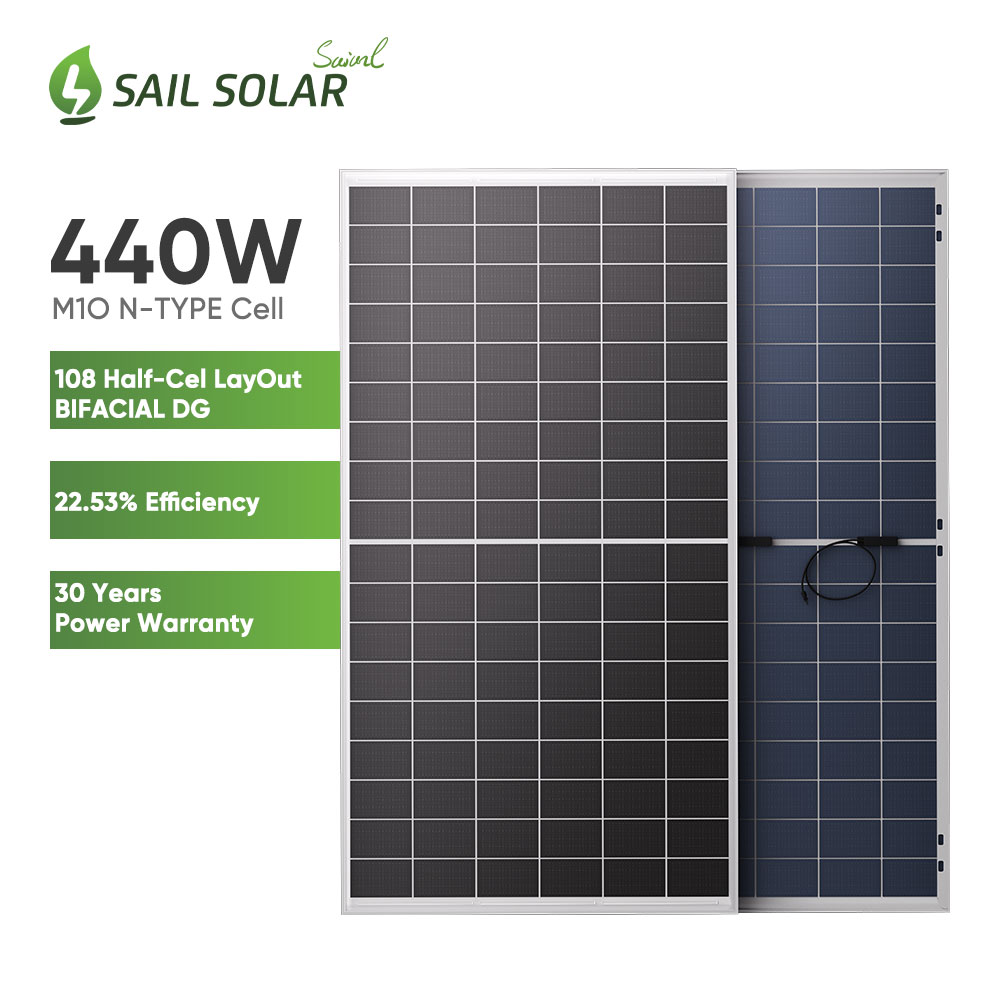

MC4182mm N Type Half Cult 108Cells MBB Mono 420Watt ~440Watt Bifacial Solar Panel

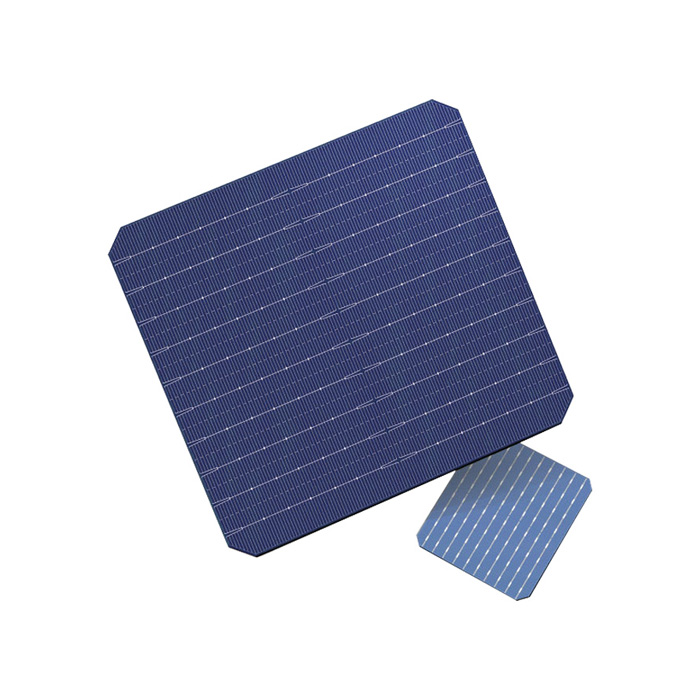

TOPCon is a Tunnel Oxide Passivated Contact solar cell technology based on the principle of selective carriers. Its cell structure is an N-type silicon substrate cell, and a layer of ultra-thin silicon oxide is prepared on the back of the cell. , and then deposit a thin layer of doped silicon, the two together form a passivation contact structure, effectively reduce the surface recombination and metal contact recombination, and provide more space for the further improvement of the conversion efficiency of N-Type cells
N Type/SMBB/TOPCon /Half-Cell
Lower microcrack problem loss compared with the SMBB module
Strong Mechanical Load Capacity
Better temperature coefficients from half-cell design
Excellent anti-PID performance
15-year product, 30-year linear power warranty
| Module ID | SAS420N-108M10 | SAS425N-108M10 | SAS430N-108M10 | SAS435N-108M10 | SAS440N-108M10 |
| Maximum Power (Pmax/W) | 420 | 425 | 430 | 435 | 440 |
| Maximum Power Voltage (Vmp/V) | 31.63 | 31.84 | 32.04 | 32.25 | 32.45 |
| Maximum Power Current (Imp/A) | 13.28 | 13.35 | 13.42 | 13.49 | 13.56 |
| Open Circuit Voltage (Voc/V) | 38.49 | 38.73 | 38.96 | 39.19 | 39.42 |
| Short Circuit Current (Isc/A) | 13.99 | 14.06 | 14.13 | 14.20 | 14.27 |
| Module Efficiency (%) | 21.51 | 21.76 | 22.02 | 22.28 | 22.53 |
| Power Output Tolerance (W) |
0~+5W | ||||
| Temperature Coefficient of Isc |
+0.045%/°C | ||||
| Temperature Coefficient of Voc |
-0.29%/°C | ||||
| Temperature Coefficient of Pmax | -0.25%/°C | ||||
STC (Standard Testing Conditions): Irradiance 1000W/m2, Cell Temperature 25°C, Spectra at AM1.5
Test uncertainty for Pmax: ±3%
Certification
SAIL SOALR' s pv panel module have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments etc. We do our best to provide customers with quality products, for the customer's investment and income to provide protection.
