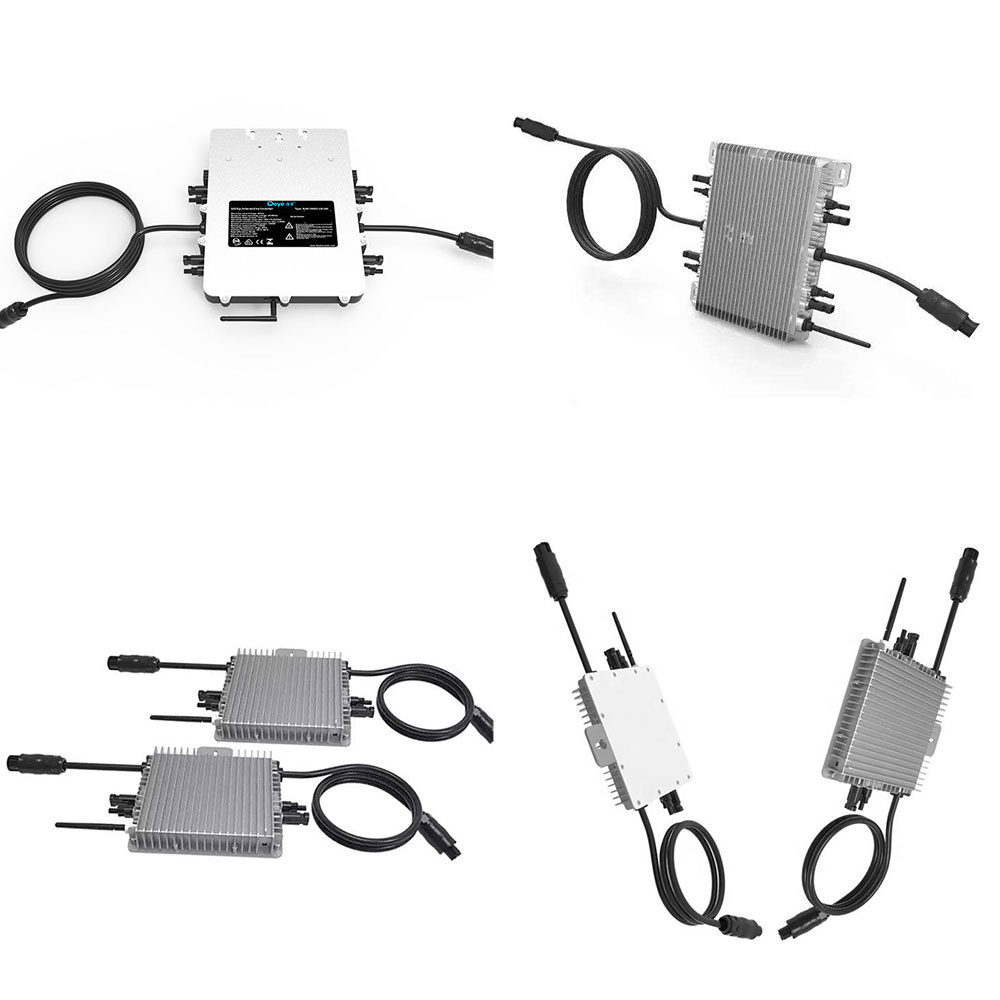

Deye microinverters power ranges from 300W to 2000W, and it comes with different output voltage 220V/230V/127V. It supports multiple communication methods WIFI/PLC/Zigbee. Compared with string inverter, microinverter can harvest maximum power of each panel for the independent MPPT design
Brand Name :
DeyeOperating temperature :
-40-65℃, >45℃ deratingWarranty :
10 yearsOutput Frequency :
50Hz/45Hz-55Hz 60Hz/55Hz-65HzProtection degree :
IP67Safety EMC / Standard :
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2Output Voltage (V) :
L+N+PE, 220V/184V-242, 230V/ 195.5V-253VMax Input DC Voltage (V) :
60Deye Micro-inverters Power Ranges From 300W to 2000W

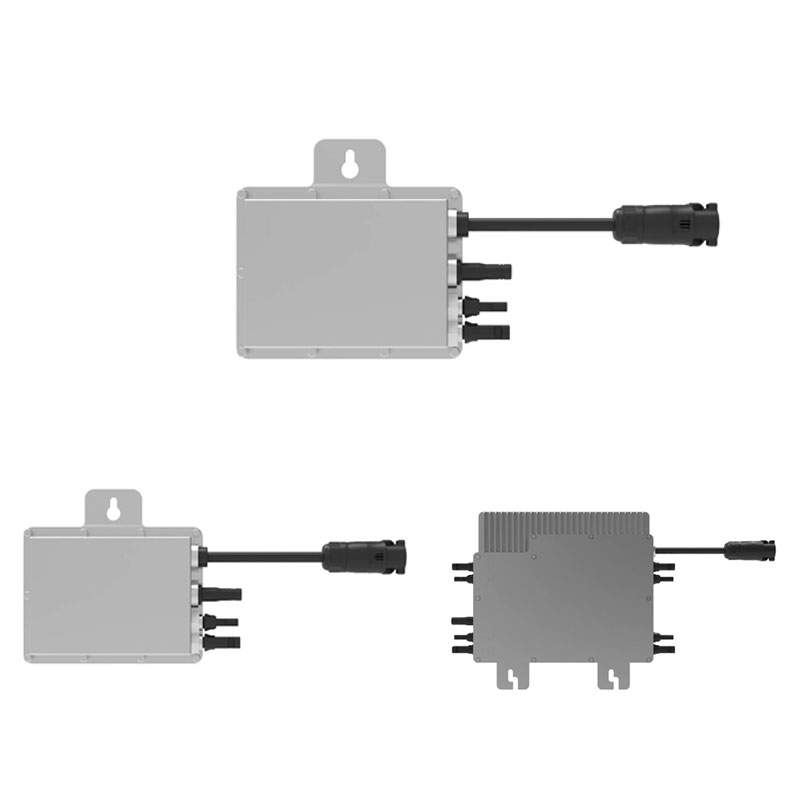

Product Series
SUN-M130/160/200G3-EU-Q0-P1|1300-2000W
SUN-M30/40/50G3-EU-Q0 | 300-500W
SUN-M60/80/100G3-EU-Q0 | 600-1000W

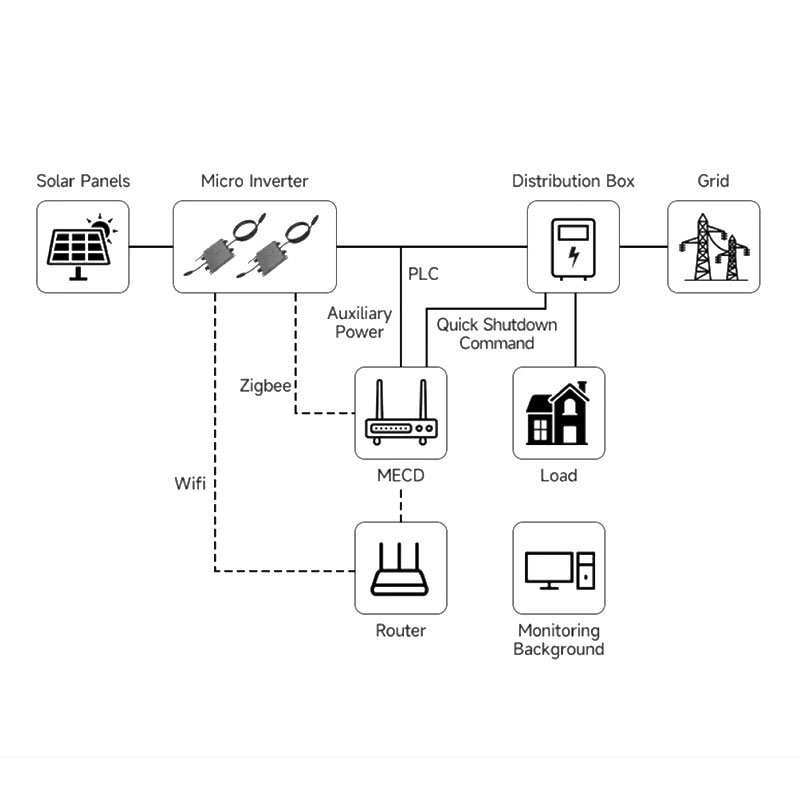

System Connection
The Microinverter is used in grid-tied applications, comprised of two key elements: Microinverter and Router. Deye microinverter has built-in WIFI module so it can communicate with router directly. Each PV module has individual Maximum Peak Power Tracking (MPPT) controls, which ensures that the maximum power is exported to the utility grid regardless of the performance of the other PV modules in the array. When PV modules in the array are affected by shade, dust, orientation, or any situation in which one module underperforms compared with the other units, the Microinverter ensures top performance from the array by maximizing the performance of each module within the solar panel array

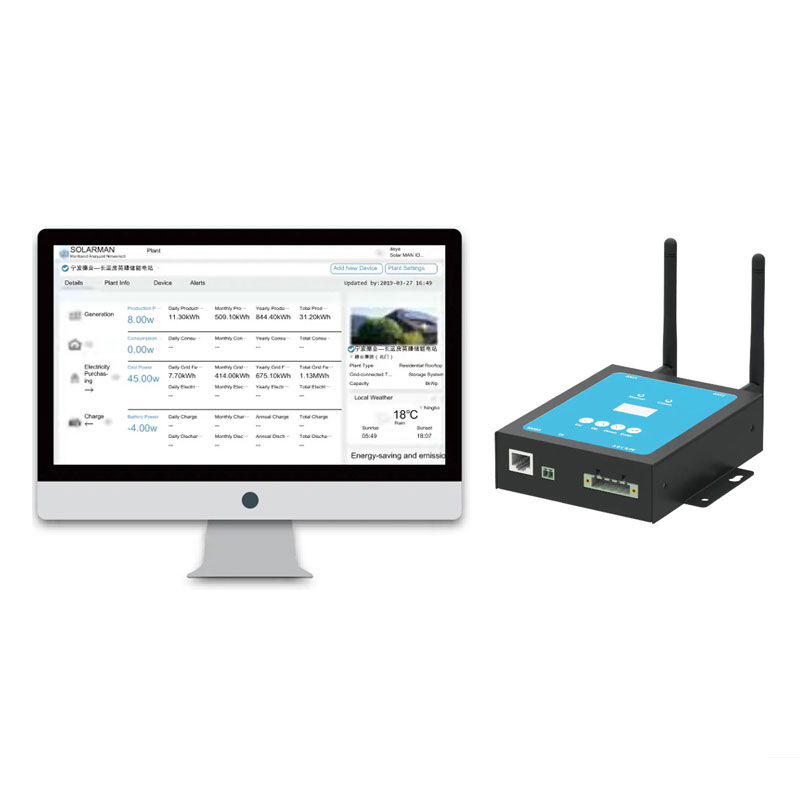

Smart Monitoring Platform
The MECD communications gateway collects and delivers modular performance data in real time, for comprehensive monitor and manage of your solar system, optimizing the performance of your solar system. With built-in programmable DI, the MECD is able to control the microinverter connected shutdown immediately when the DI status is change
