SUN-100/125K-SG02HP3-EU-GM8/GM10, this is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications. Suitable for industrial and commercial energy storage systems.
Brand Name :
DeyePower Range :
100kW/125KWBattery Type :
Lithium BatteryOperation Temperature :
-30°C - 60°C (>50°C derating)Waveform :
Pure Sine WaveTHDi :
<3%Frequency Range :
50/60HzBattery Voltage :
200-900VAC Input Voltage :
380/400VCooling :
Smart air coolingProtection degree :
IP66Topology :
Transformerless
Product Features
- Self-consumption and feed-in to the grid.
- Auto restart while AC is recovering.
- Programmable supply priority for battery or grid.
- Programmable multiple operation modes: On grid, off grid and UPS.
- Configurable battery charging current/voltage based on applications by LCD setting.
- Configurable AC/Solar/Generator Charger priority by LCD setting.
- Compatible with mains voltage or generator power.
- Overload/over temperature/short circuit protection.
- Smart battery charger design for optimized battery performance
- With limit function, prevent excess power overflow to the grid.
- Supporting WIFI monitoring and have 3 or 4 built-in MPP Trackers, 1 MPP Tracker can
connect 2 PV strings.
- Smart settable three stages MPPT charging for optimized battery performance.
- Time of use function.
- Smart Load Function.

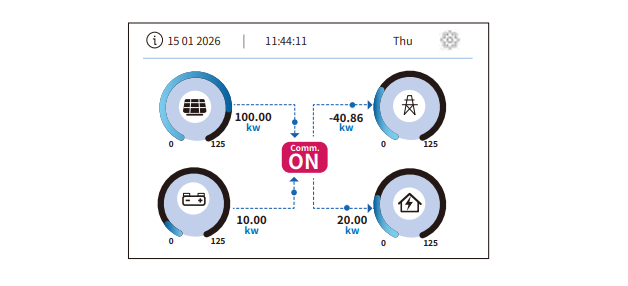

Deye Inverter LCD Display Icons
The LCD is touchscreen, below screen shows the overall information of the inverter.
1.The icon at the center of the screen indicates whether the system is under normal operation or not, displaying "ON" for normal status or displaying a code.
2. On the left side of the top of the inverter's LCD screen is the local date and time. To ensure the correct timestamp recording of historical data on the cloud server, please set it to the correct local time or synchronize it with the cloud server during debugging.
3.Click the gear icon in the upper right corner of the inverter's LCD home screen to access the inverter's 'Setting' menu page.
4.The main screen includes the icons for PV(left up), grid (right up), load (right bottom) and battery (left bottom). It also displays the energy flow direction by moving dots. When the power is approaching to a high level, the color on the panels will change from black to blue, showing vividly the system status on the main screen.
Some clarifications about the system status are as follows:
-PV power will always be positive.
-In single inverter system, load power will always be positive. In a parallel system, the load
power may be negative, which means that the other inverters supply power to this inverter
through the load port.
-A negative Grid power means energy being exported to the grid (sold), whereas positive means
energy being imported form the grid (purchased).
-Negative battery power means charging, positive means discharging.

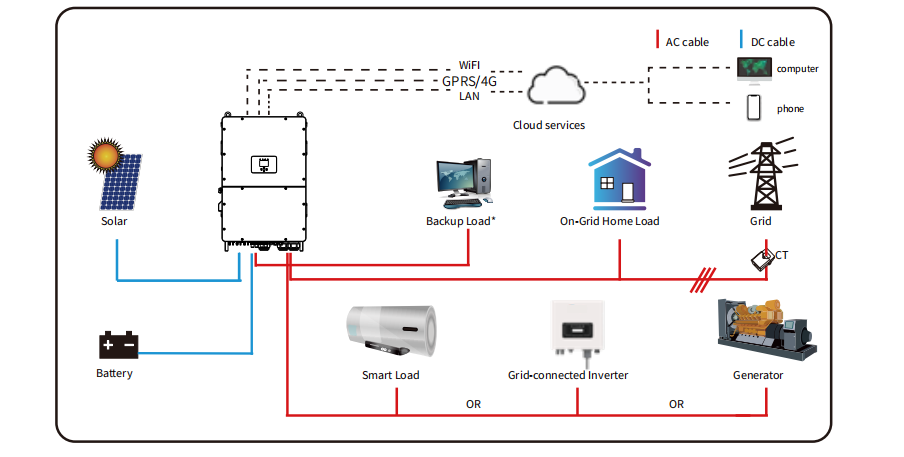

Basic System Architecture
The following illustration shows basic application of this inverter.
It also includes following devices to have a complete running system.
- Generator（Fro off-grid mode）or Utility Grid.
This inverter is designed to power a range of appliances commonly found in homes, offices factory and farm ect, including motor type appliances like refrigerators, air conditioning, factory mechines units. Before use, it's advisable to verify appliance compatibility with this inverter.
The generator interface should not be connected to both the generator and the smart load simultaneously. The generator only can be connected in stand-alone scenario. When the grid be connected, the generator should not be connected simultaneously.
