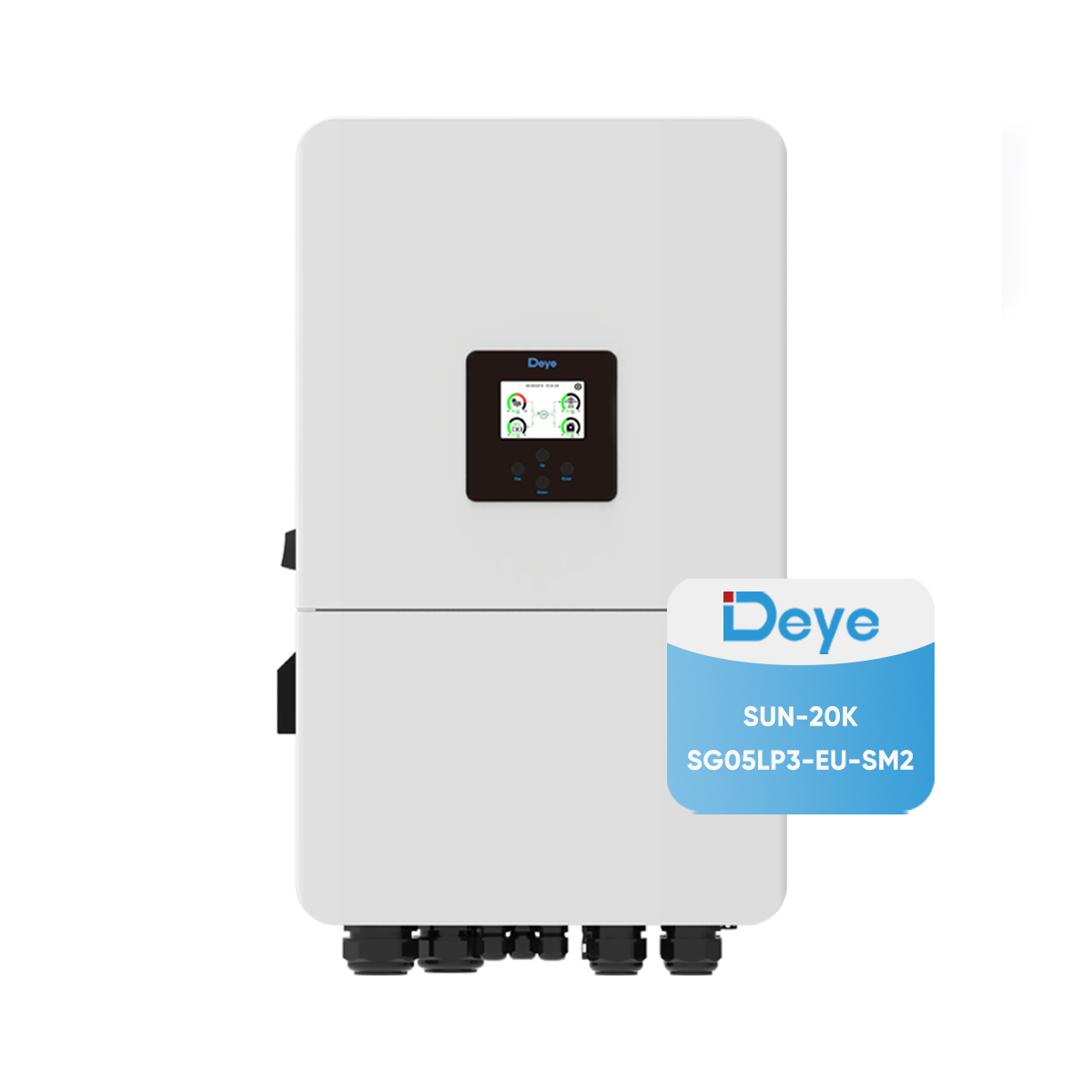

The SUN-SG05LP3-EU-SM2 series inverter is a product developed and launched by Deye to meet the growing market demand.
Brand Name :
DeyeModel ID :
SUN-20K-SG05LP3-EU-SM2Battery Type :
Lithium-ionMPPT Voltage Range（V） :
160-650Grid Connection Form :
3L+N+PECommunication Interface :
RS485/RS232/CANCabinet size（W*H*D） :
456*750*268.5Weight[kg] :
51.9Type Of Cooling :
Intelligent Air CoolingBattery Voltage :
40-60
Features:
● 100% unbalanced output, each phase
● Max. output up to 50% rated power
● AC couple to retrofifit existing solar system
● Max. 10 pcs parallel for on-grid and off-grid operation
● Support multiple batteries parallel
● Max. charging/discharging current of 350A
● Support storing energy from diesel generator
● 48V low voltage battery, transformer isolation design
● 6 time periods for battery charging/discharging

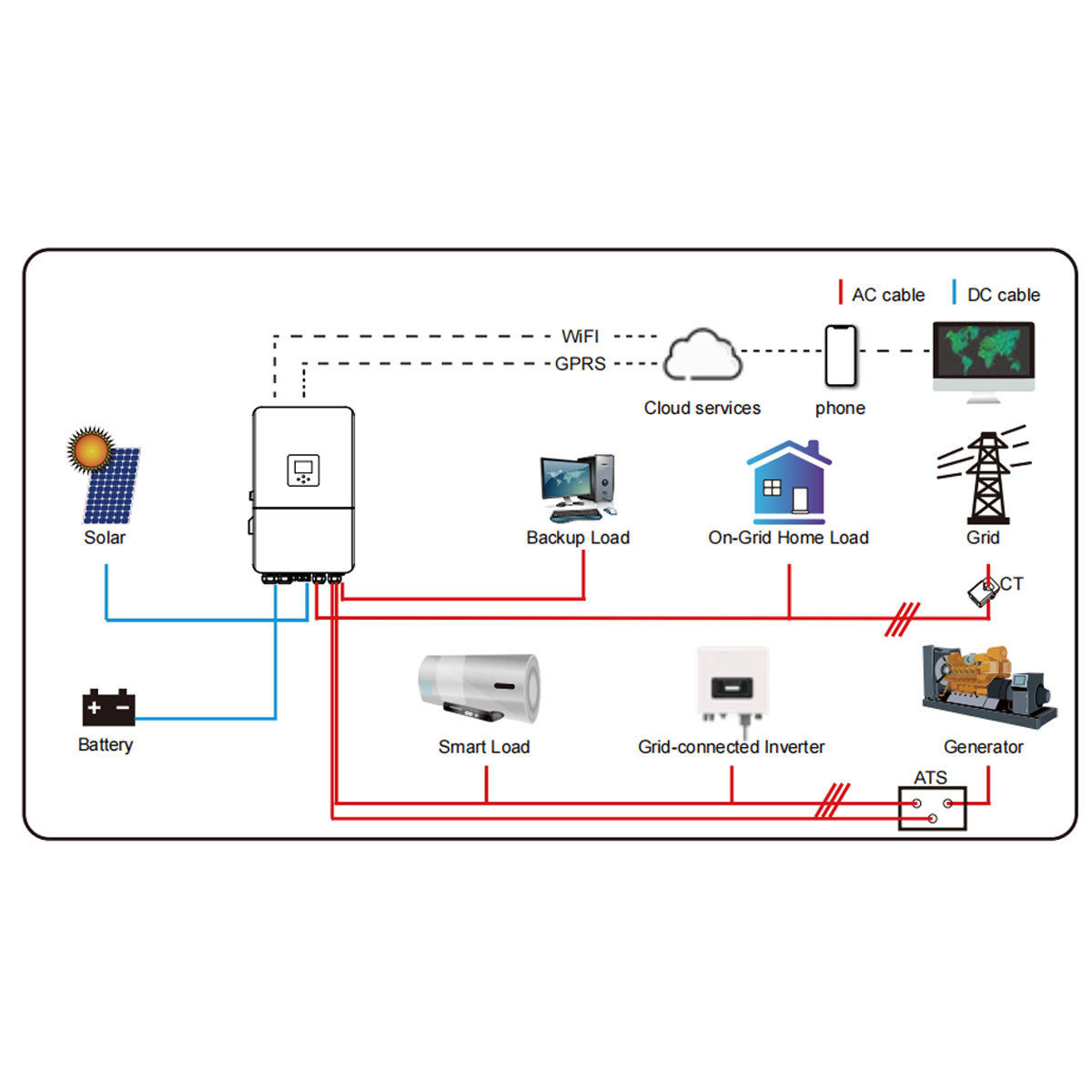

Basic System Architecture
The following illustration shows basic application of this inverter.
It also includes following devices to have a Complete running system.
- Generator or Utility
- PV modules
Please consult SAIL SOLAR for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner.

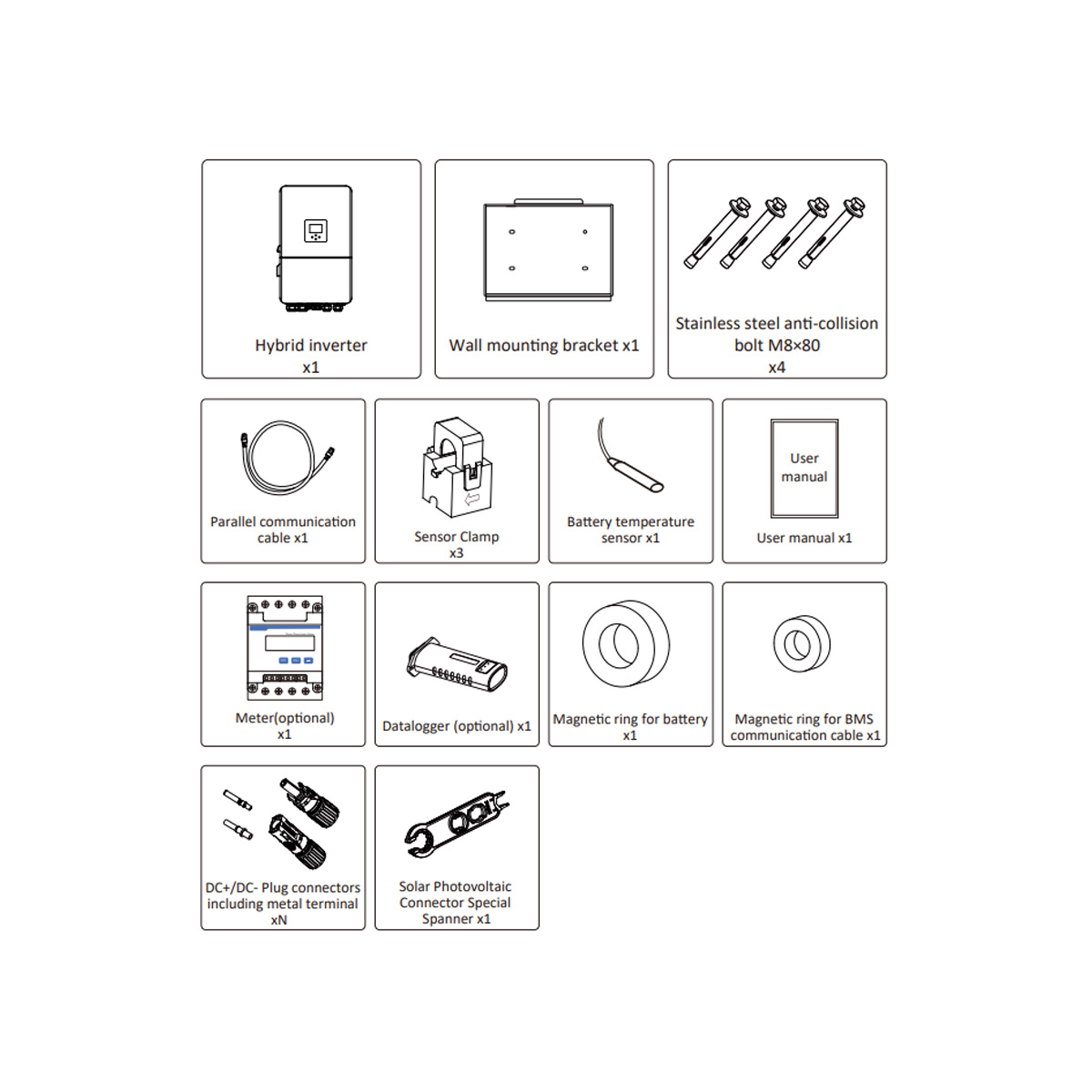

Parts List and Installation:
This Hybrid inverter is designed for outdoor use(IP65), Please make sure the installation site meets below conditions:
· Not in direct sunlight
· Not in areas where highly flammable materials are stored.
· Not in potential explosive areas.
· Not in the cool air directly.
· Not near the television Antenna or antenna cable.
· Not higher than altitude of about 3000 meters above sea level.
· Not in environment of precipitation or humidity(>95%)
