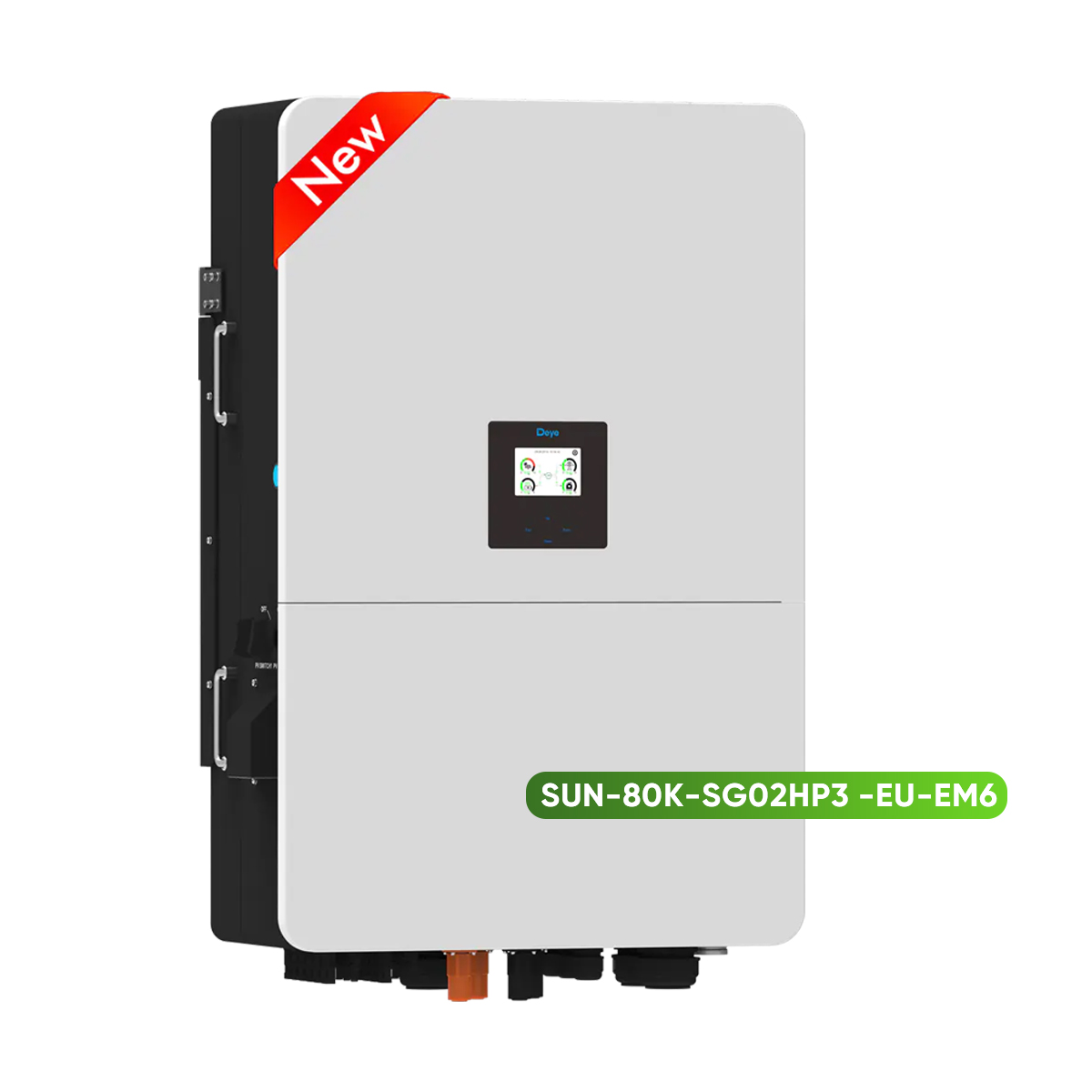

The Deye SUN-80K-SG02HP3 -EU-EM6 typically refers to a solar inverter model produced by Deye, a company known for its energy solutions and photovoltaic system components.
Type: Hybrid solar inverter.
Power Rating: 80KW, suitable for commercial solar installations.
Efficiency: High conversion efficiency, often above 99%, helps maximize energy output.
Brand Name :
DeyePower Range :
80000Operation Temperature :
-40 to +60℃, >45℃ DeratingCommunication BMS :
RS485/RS232/CANMax. Efficiency :
97.60%Warranty/ Duration :
5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty PolicyIntegrated :
DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current MonitoriProtection degree :
IP 65THD :
<3% (of nominal power)Installation Base :
Wall-MountedEuro Efficiency :
97.0%MPPT Efficiency :
>99%
-100% unbalanced output, each phase
-AC couple to retrofit existing solar system
-Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
-Max. charging/discharging current of 160A
-High voltage battery, higher efficiency
-6 time periods for battery charging/discharging
-Support storing energy from diesel generator

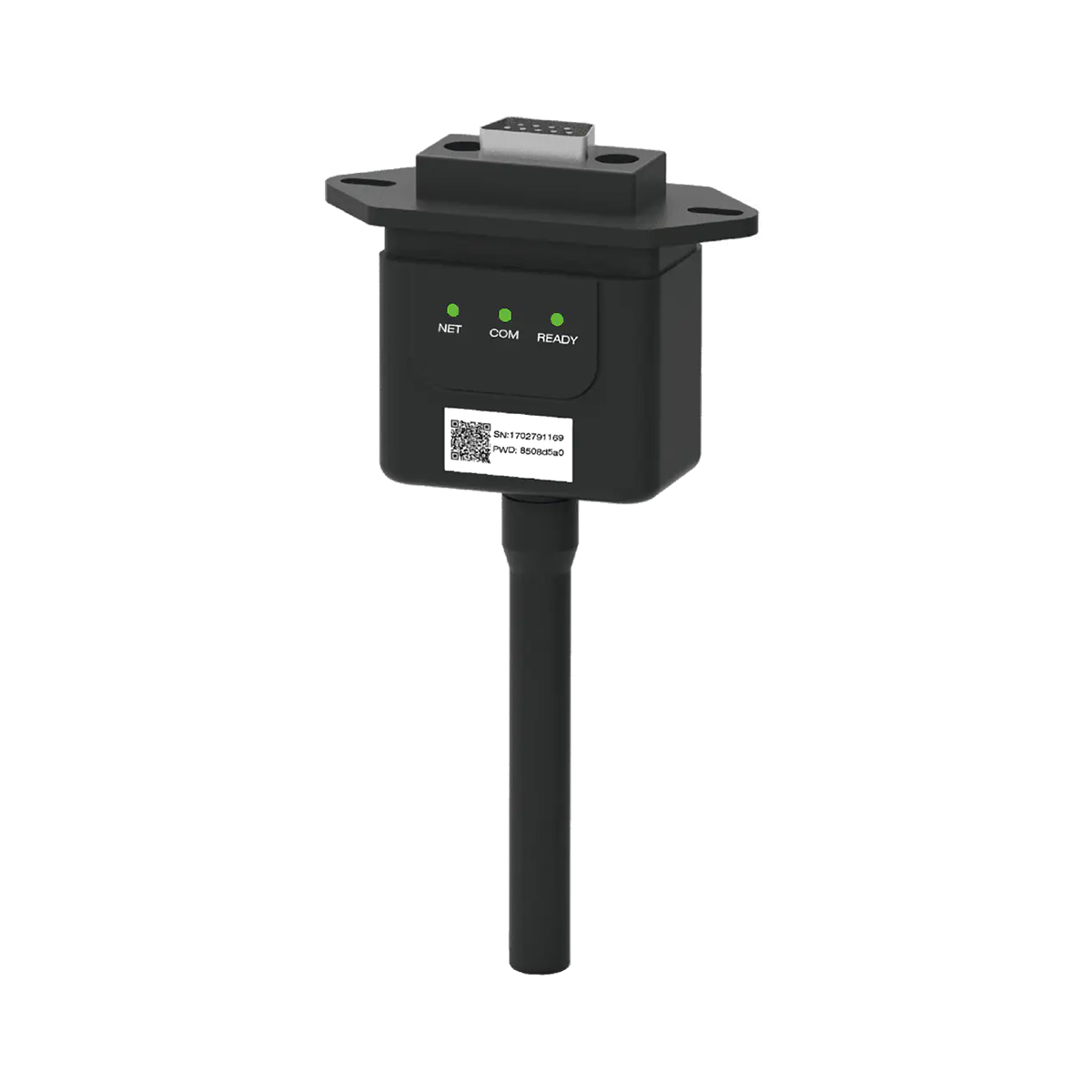

Smart Monitoring Platform
The Deye hybrid inverter monitoring system is designed to track the performance and functionality of hybrid inverters, which integrate both solar energy generation and battery storage systems.
-Enhanced energy management and efficiency by providing visibility into how energy is produced and consumed.
-Increased reliability of the energy system through timely alerts.
-Empowerment for users to make informed decisions about their energy use, potentially leading to cost savings.
-Maximizing solar self-consumption

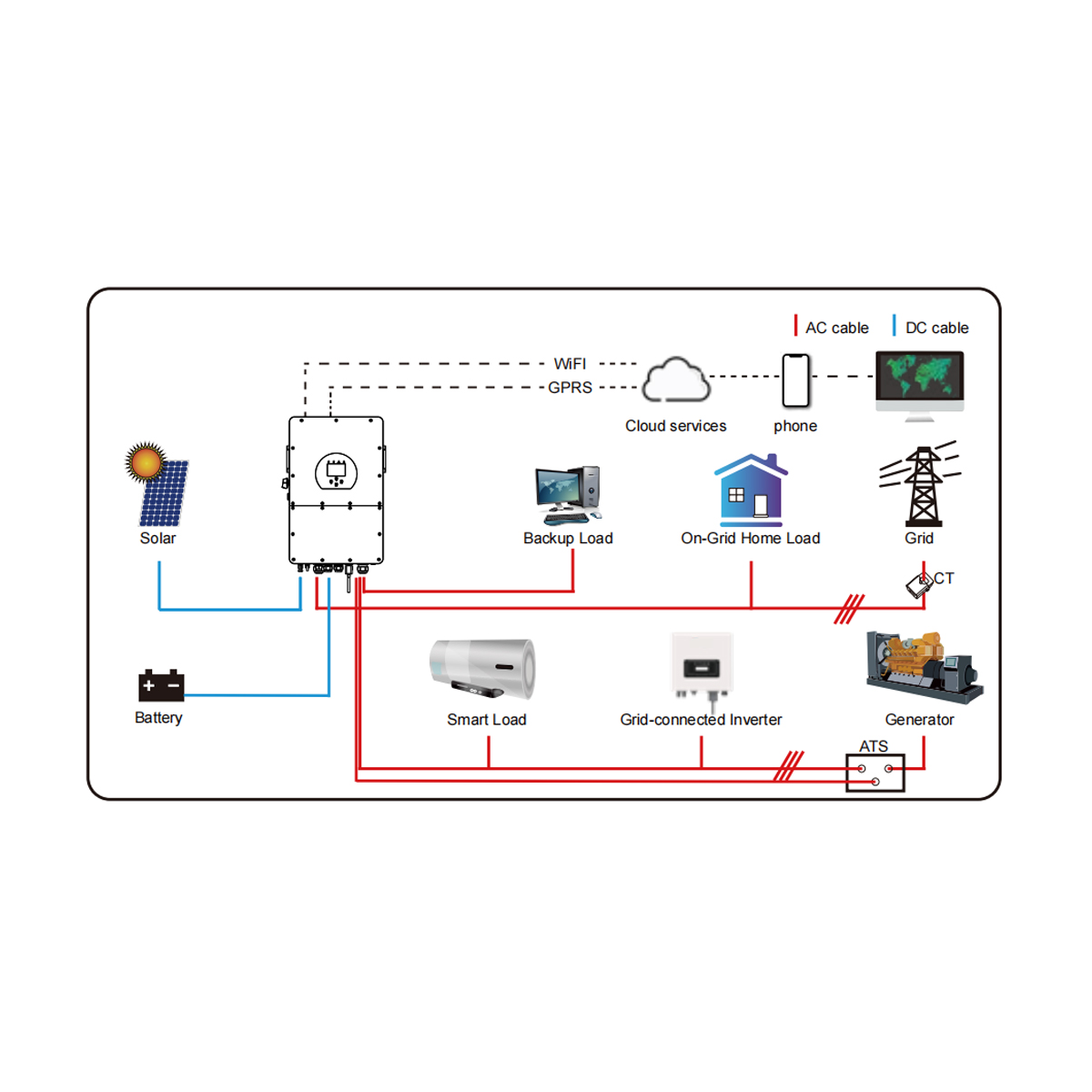

During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via Deye hybrid inverter.
-Providing backup for critical loads
There’re independent critical load output port and grid port. It allows critical loads such as refrigerators, routers, lamps, computers and other critical appliances to be powered when the grid fails. The system can automatically switch to backup mode within 4 milliseconds.
-Reducing your electricity bills
Thanks to there are 6 time periods for battery charge and discharge. Deye hybrid inverter allows the user to charge the battery at the off-peak time and discharge the battery during peak time.
