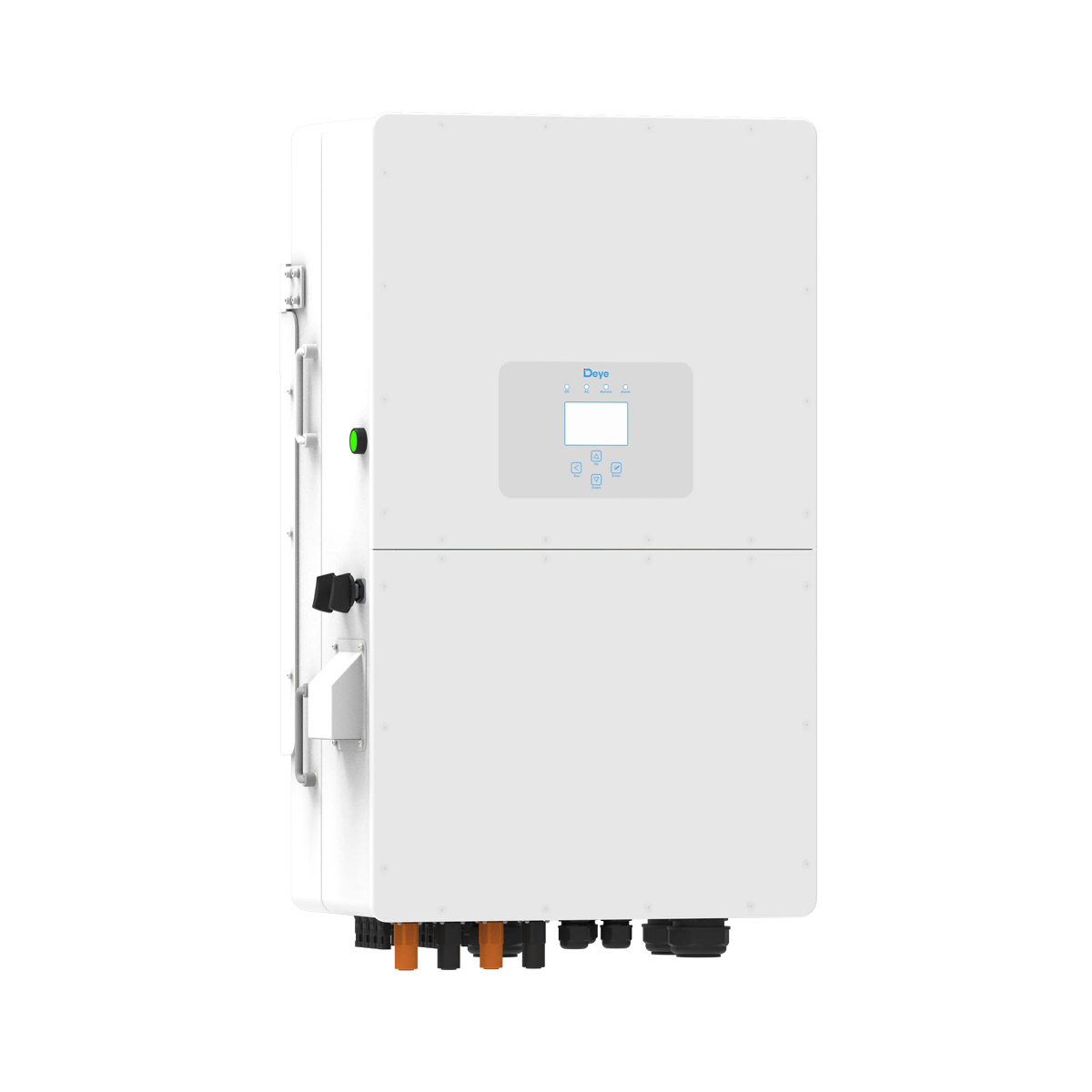

Deye SUN-50K-SG01HP3-EU-BM4 is one of the mass-produced large-scale industrial and commercial energy storage inverters on the market. 4 MPPT interfaces can be used with strings to form 8 native photovoltaic strings.
Brand Name :
DeyeModel ID :
SUN-50K-SG01HP3-EU-BM4Battery Type :
Lithium-ionMPPT Voltage Range（V） :
150-850Grid Connection Form :
3L+N+PECommunication Interface :
RS485/RS232/CANCabinet size（W*H*D） :
527*894*294Weight[kg] :
80Type Of Cooling :
Intelligent air coolingBattery Voltage :
160-800
Product Features
- 230V/400V Three phase Pure sine wave inverter.
- Self-consumption and feed-in to the grid.
- Auto restart while AC is recovering.
- Programmable supply priority for battery or grid.
- Programmable multiple operation modes: On grid, off grid and UPS.
- Configurable battery charging current/voltage based on applications by LCD seting.
- Configurable AC/Solar/Generator Charger priority by LCD seting.
- Compatible with mains voltage or generator power.

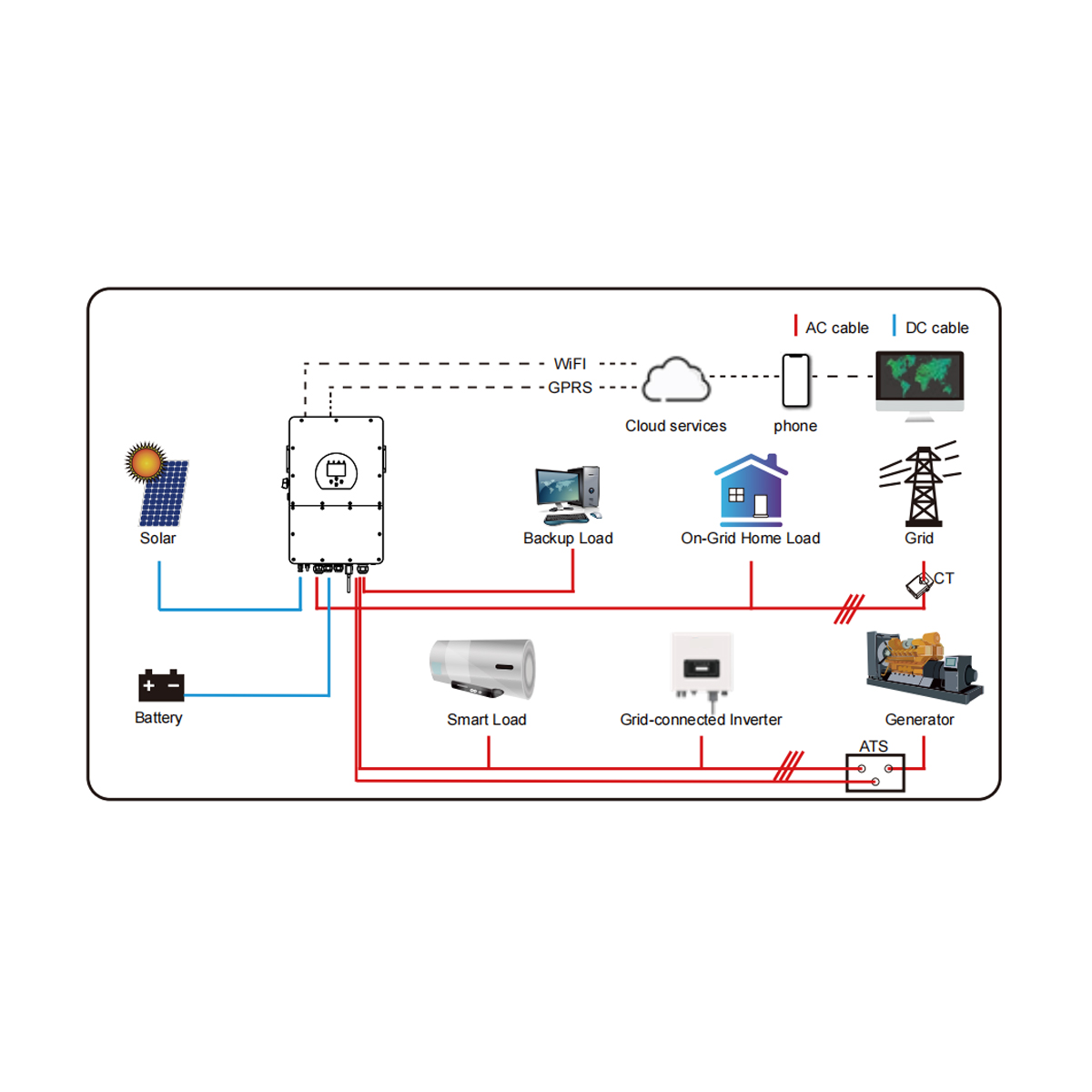

PV Connection
Before connecting to PV modules, please install a separately DC circuit breaker between inverter and PV modules. When selecting proper PV modules, please be sure to consider below parameters:
1) Open circuit Voltage (Voc) of PV modules can not exceed max. PV array open circuit voltage of inverter.
2) Open circuit Voltage (Voc) of PV modules should be higher than min. start voltage.
3) The PV modules used to connected to this inverter shall be Class A rating certified according to lEC 61730.
Introduction:

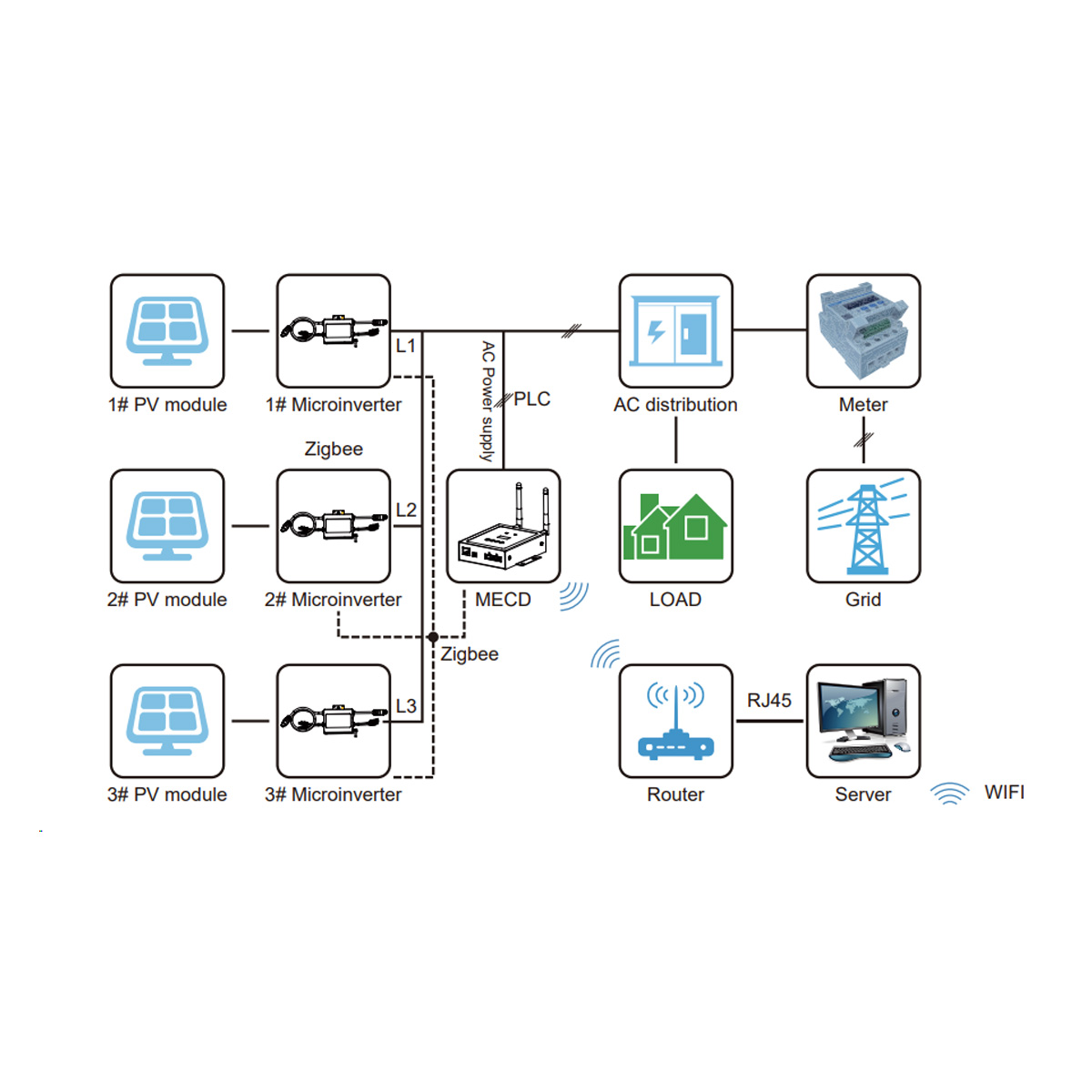

The MECD communications gateway collects and delivers modular performance data in real time, for comprehensive monitor and manage of your solar system, optimizing the performance of your solar system.
With built-in programmable DI, the MECD is able to control the microinverter connected shutdown immediately when the DI status is changed.
