This series of Deye grid-connected inverters is suitable for medium and large commercial rooftop and ground photovoltaic systems, where reliability and stability are of vital importance.
Brand Name :
DeyeModel ID :
SUN-100K-G03MPPT Voltage Range（V） :
200-850No.of MPP Trackers :
6/4+4+4+4+4+4Grid Connection Form :
3L+N+PECommunication Interface :
RS485/RS232Ingress Protection(IP) Rating :
IP 65Cabinet size（W*H*D） :
824*516*312.7Weight[kg] :
81Type Of Cooling :
Intelligent air cooling
Product Description：
Deye three-phase on-grid inverter power range is from 4kW to 110kW with 230/400Vac. So, it can connect to utility grid(230/400V) directly without transformer. All the inverters are equipped with LCD display and buttons, easy operation and maintenance specially for remote and poor areas.

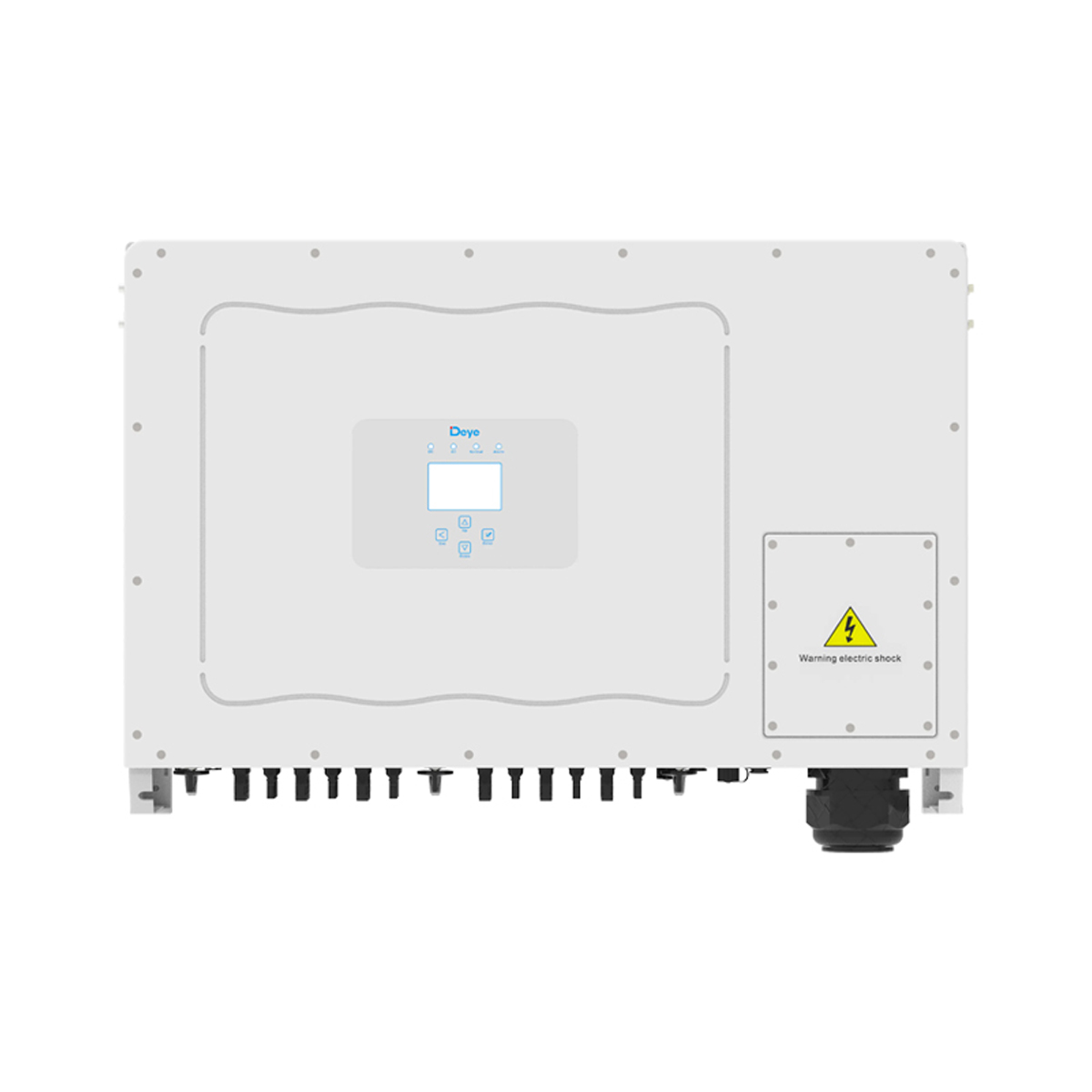

For the SUN-100K-G03, it has 6 MPP trackers and 24 pairs of strings. The Max. DC input power is up to 150kW. So, it can save equipment investment via connecting more PV modules. Solution and service by leading 3 phase string inverter manufacturer.
Usage Recommendations:
a). The maximum open circuit voltage of each set of PV modules shall not exceed 1000Vdc under any conditions.
b). Each input of the inverter better use the same type of PV module in series.
c). Total output power of PV shall not exceed the maximum input power of inverter, each PV modules shall not exceed the rated power of each channel.

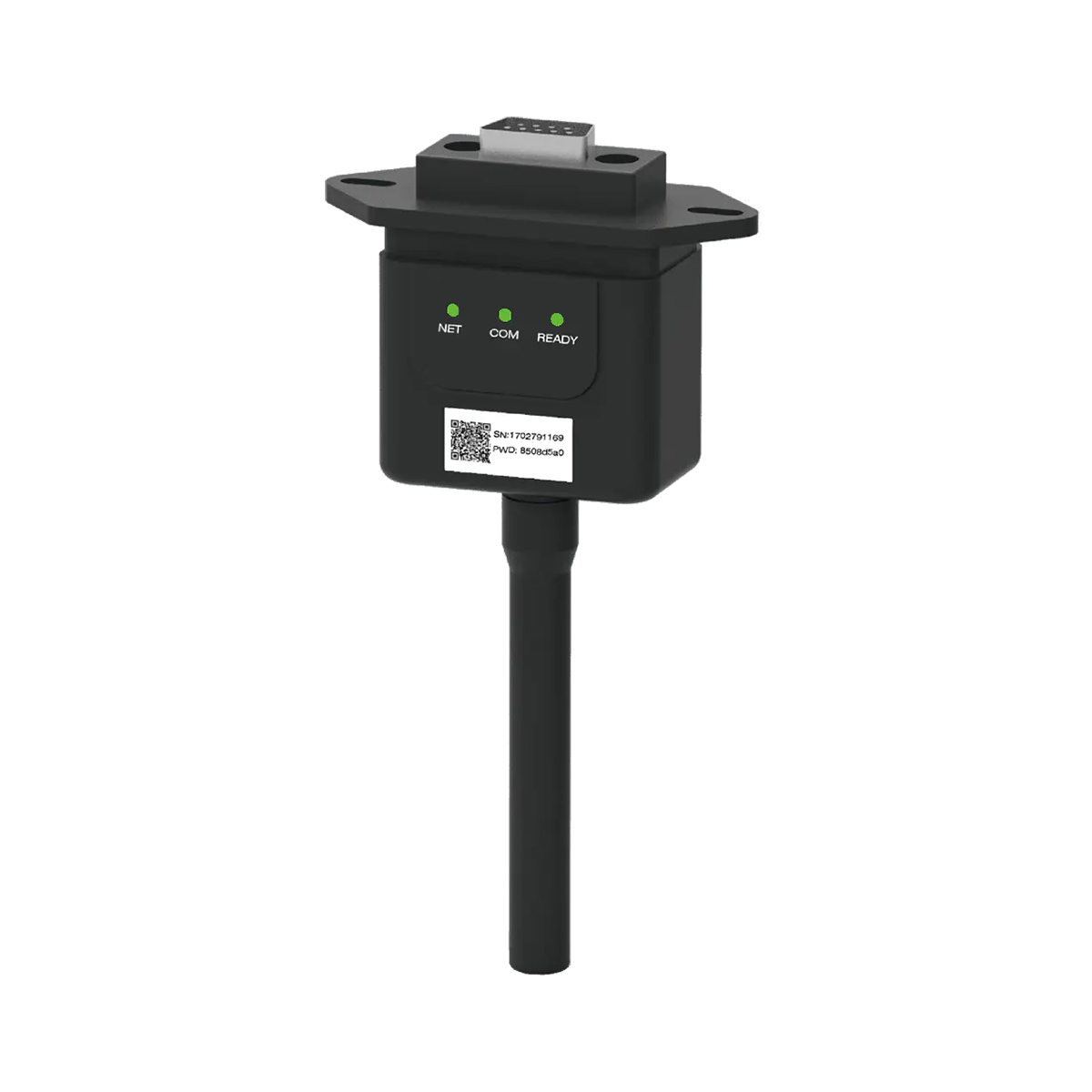

How to Install a WiFi Stick：
When installing the WiFi stick, tear off the sealing strip on the inverter. Insert the datalogger into the interface and fix it with a screw. The configuration of the datalogger needs to be performed after various electrical connections have been completed and the inverter DC power
on. When the inverter is on the DC power, it is determined whether the datalogger is normally electrified (The LED light shines out of the shell).
