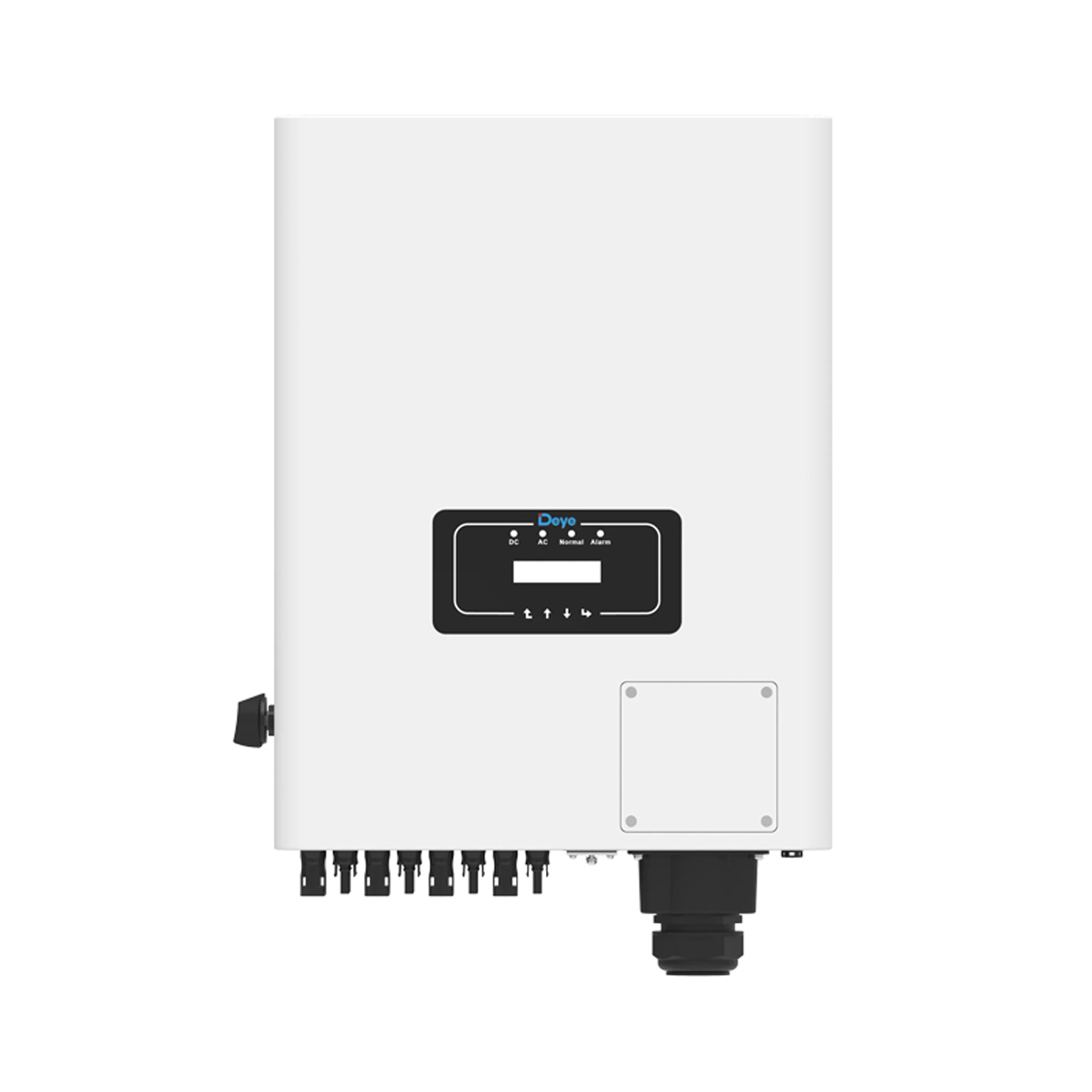

This is Deye's attempt in the field of string inverters and grid-connected small-scale industrial and commercial applications. Undertake technology in the field of energy storage and further extend the quality and IGBT.
Brand Name :
DeyeModel ID :
SUN-50K-G04MPPT Voltage Range（V） :
200-1000No.of MPP Trackers :
4/3+3+3+3Grid Connection Form :
3L/N/PECommunication Interface :
RS485/RS232Ingress Protection(IP) Rating :
IP 65Cabinet size（W*H*D） :
434×570×243Weight[kg] :
39Type Of Cooling :
Intelligent Air Cooling
Feature：
● Max. 4 MPP trackers, Max. effificiency up to 98.7%
● Zero export application, VSG application
● String intelligent monitoring (optional)
● Wide output voltage range
● Anti-PID function (Optional)
Main functions: It can convert the direct current generated by PV panels into alternating current and sell the electricity to the grid to generate profits for customers.

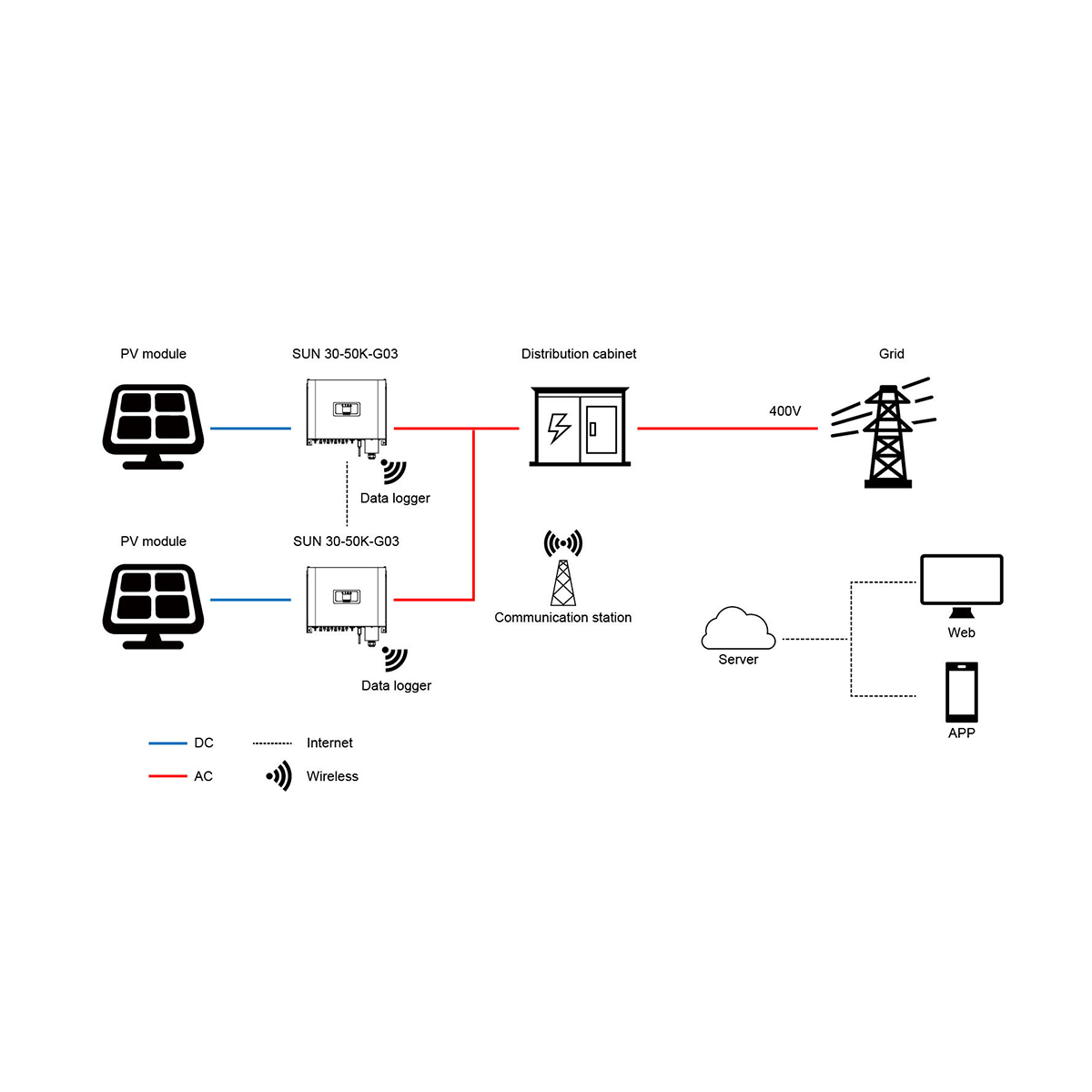

Work Operation Topology Diagram
Inverter has the function of wireless remote monitoring. The inverter with Wi-Fi function is equipped with Wi-Fi Plug to connect the inverter and network. Wi-Fi Plug's operation, installation, Internet access, APP downloading and other processes are detailed in the instructions.
Smart Meter Choice:

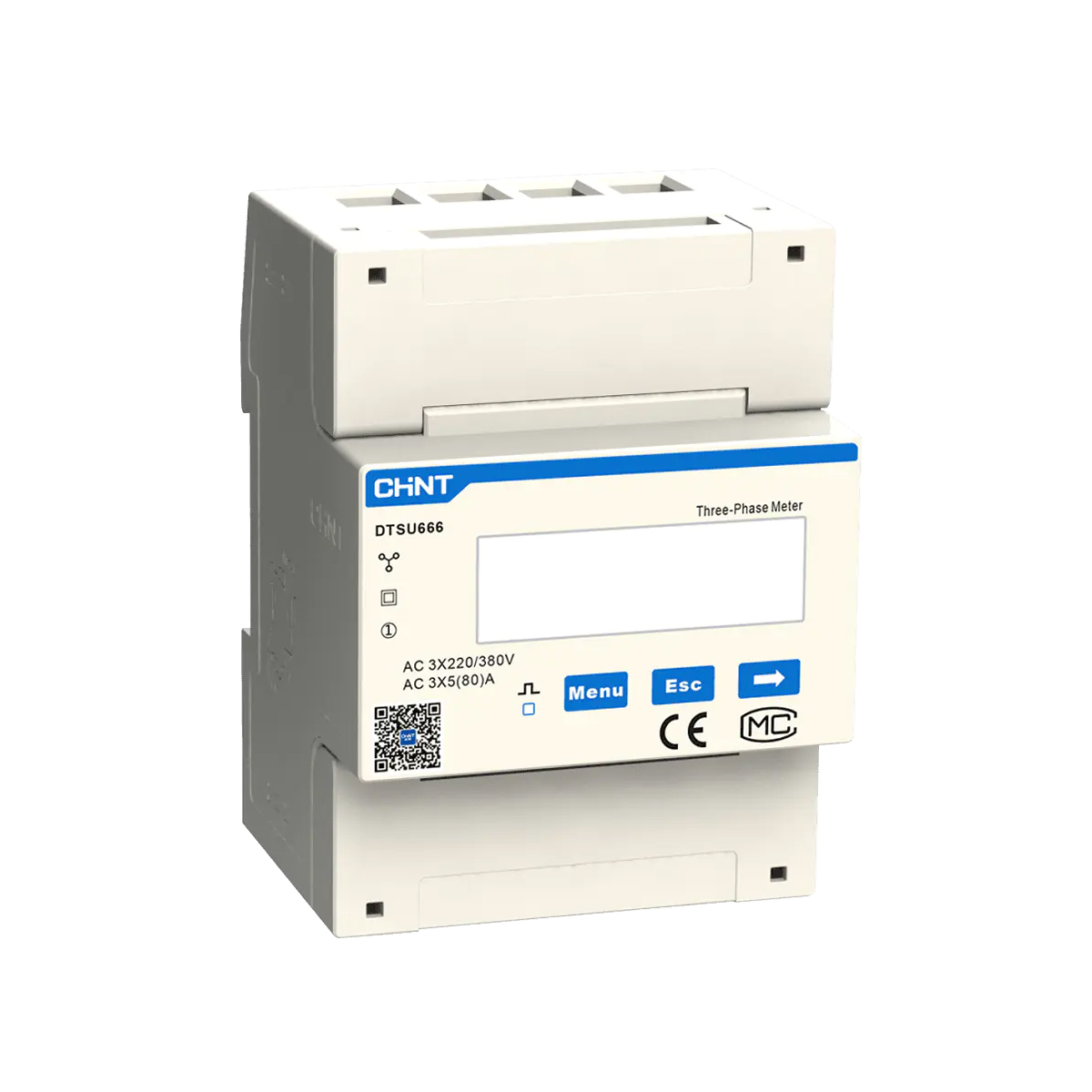

There're several usable models of smart meters for this series inverter. First model is Eastron SDM630-Modbus V2 which is able to measure the Max. 100A current directly. For the Eastron SDM630 MCT 40mA, it needs external CT with a 40mA secondary output current. Also, the CHINT meter DTSU666 5(80) A is also supported, it can measure the Max. 80A current directly. More usable models of DTSU666 series meters from authorized distributors of Deye or directly from Deye.
