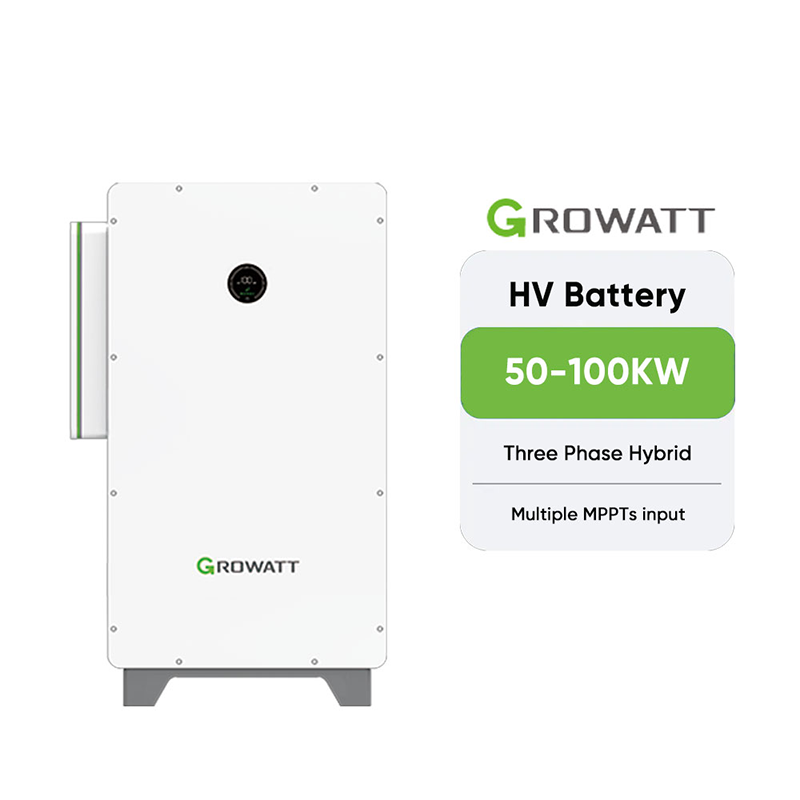

Growatt WIT 100K-HU is a high-performance three-phase hybrid inverter designed for commercial and industrial (C&I) energy storage applications. Supporting high-voltage batteries, it enables seamless integration of solar PV, battery storage, and grid power to maximize energy efficiency and reduce electricity costs.
Brand Name :
GrowattPower Range :
50kWBattery Type :
Lithium BatteryOperation Temperature :
-30°C - 60°C (>50°C derating)Waveform :
Pure Sine WaveTHDi :
<3%Frequency Range :
50/60HzBattery Voltage :
200-900VAC Input Voltage :
380/400VCooling :
Smart air coolingProtection degree :
IP66Topology :
Transformerless
·Flexible capacity options, 29.9~50kW/30~180kWh
·Support multiple sets of sub-systems operation in parallel in off-grid mode
·Multiple MPPTs and battery input for single system
·Easy installation and maintenance
·Suitable for multiple C&I application scenarios
·Support UPS function
·Strong power grid adpatability

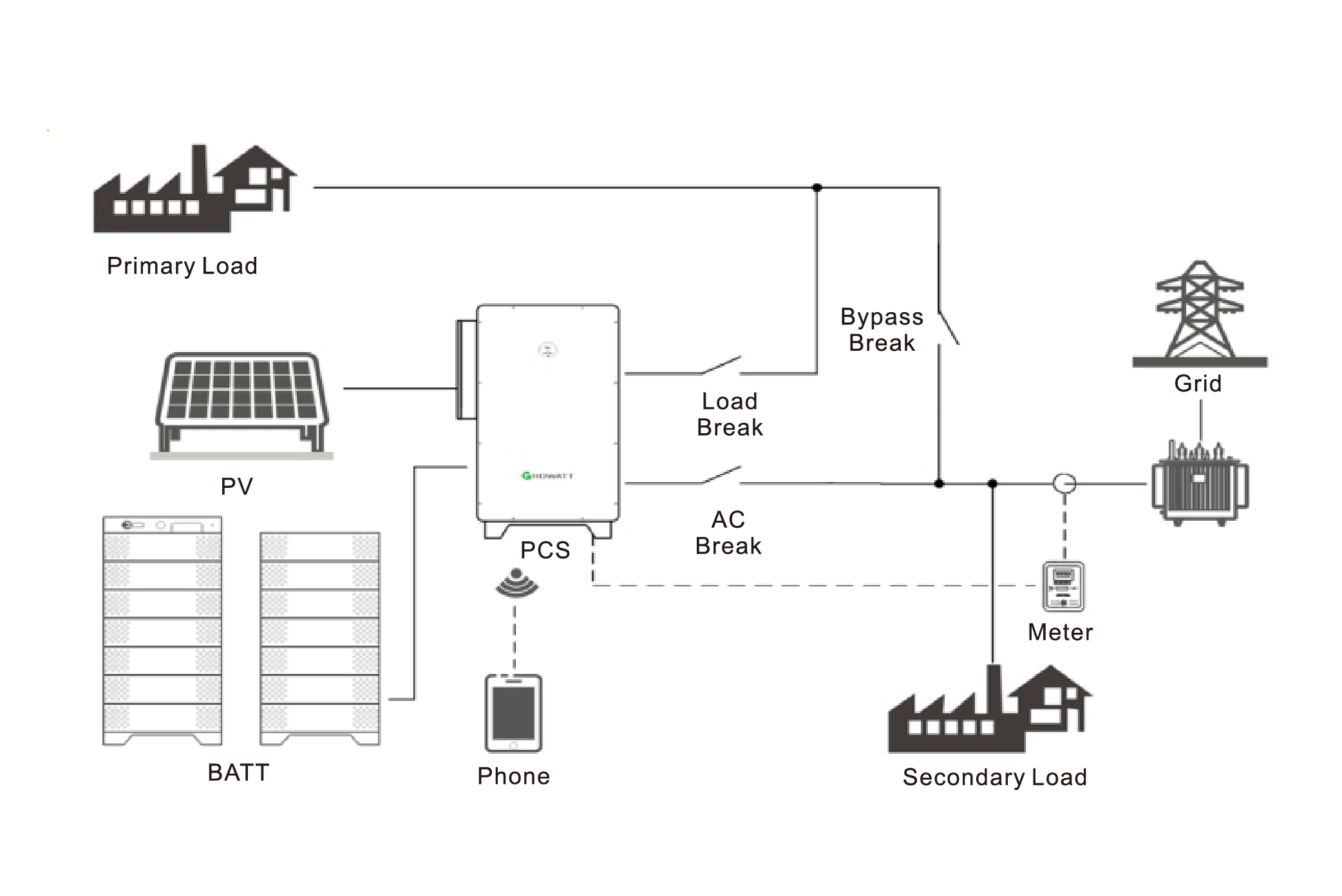

Growatt WIT Hybrid System Description
This solution is a scalable commercial & industrial energy storage system based on multiple WIT 50K-XHU hybrid inverters. It integrates PV generation, battery storage, diesel generator, and grid power into one unified system.
Each inverter connects to independent PV arrays and battery cabinets, while all units operate in parallel to supply power to primary and secondary loads. The system supports flexible energy dispatch, ensuring stable power supply under different conditions.
With intelligent control, it can seamlessly coordinate between solar, battery, generator, and grid. In case of grid failure, the system can switch to off-grid mode and maintain uninterrupted power to critical loads.
This solution is ideal for factories, industrial parks, and microgrid applications requiring high reliability and energy independence.

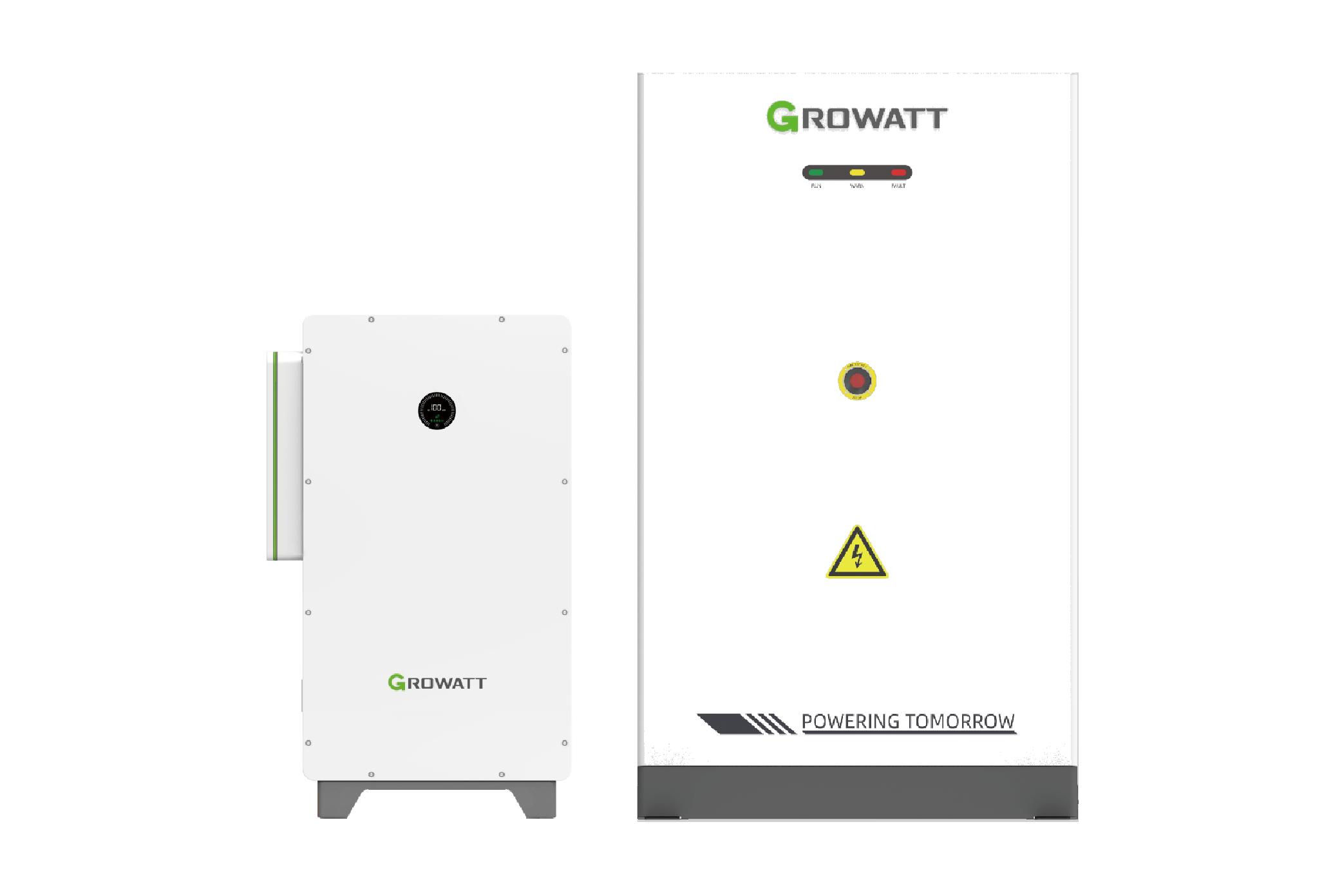

The system consists of a high-performance WIT 50K-XHU hybrid inverter and a modular lithium battery cabinet. The inverter features a compact design with an intuitive display for easy monitoring and operation.

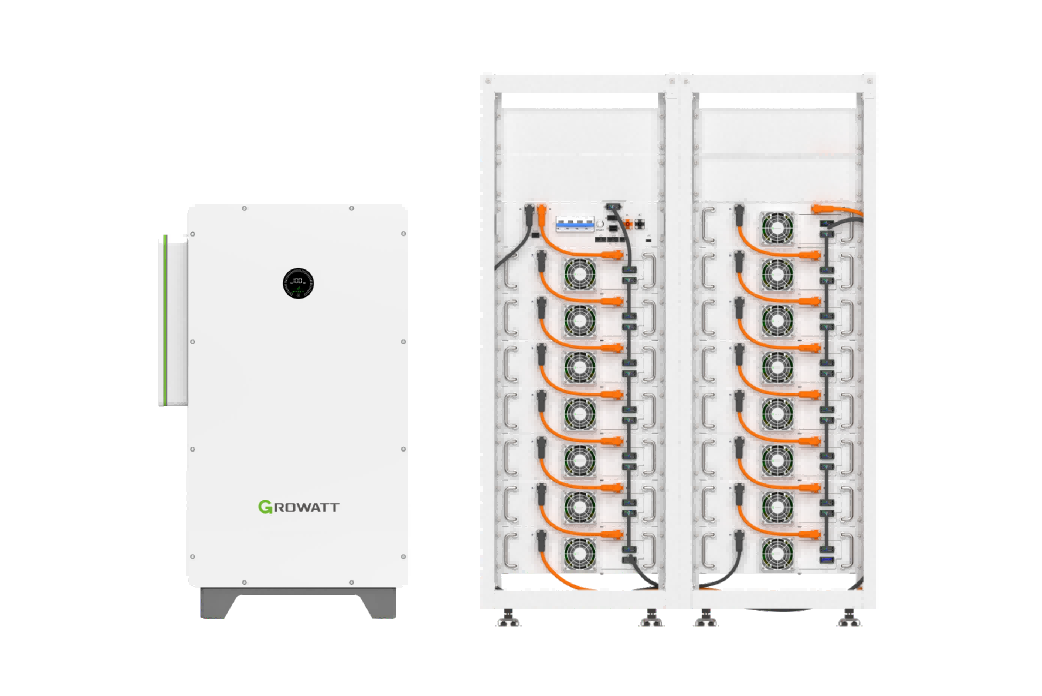

The battery cabinet adopts a rack-mounted modular structure, allowing flexible capacity expansion and convenient maintenance. Each battery module is equipped with an independent BMS to ensure safe and stable operation.
This integrated solution offers high efficiency, reliability, and scalability, making it ideal for commercial and industrial energy storage applications.
