HPS series hybrid inverter is designed for hybrid energy storage system, it converts DC current generated by battery bank into AC current and feed it into the load/grid, also it can take power from solar inverter or grid to charge battery to ensure uninterrupted power supply to the load
Brand Name :
SAIL SOLARModel ID :
HPS30,HPS50,HPS100,HPS120,HPS150Communication with BMS :
RS485/CANBattery Type :
Lead-acid or Li-lonOutput Voltage (V) :
400VOutput Frequency :
50/60HzSize: :
1200/1900/800mmWeight :
948kgOperating temperature :
-25 °C~+55 °C -Protection degree :
IP20Warranty :
5 years(10 years is Optional)SAIL SOLAR Commercial and Industrial Use Hybrid Solar Power Inverter 30KW-150KW

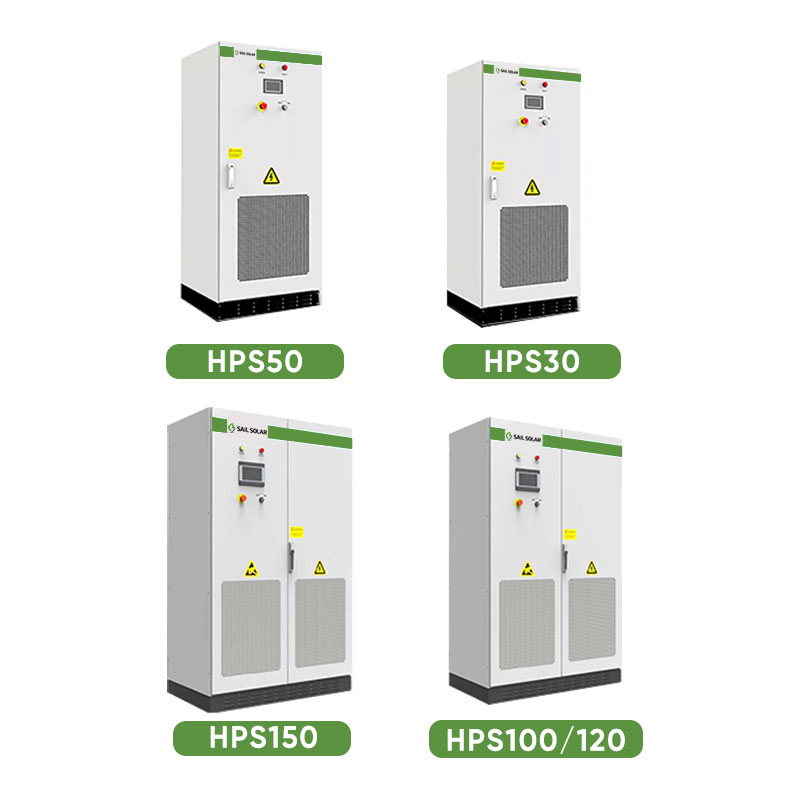

Product Series
HPS30
HPS50
HPS100
HPS120
HPS150

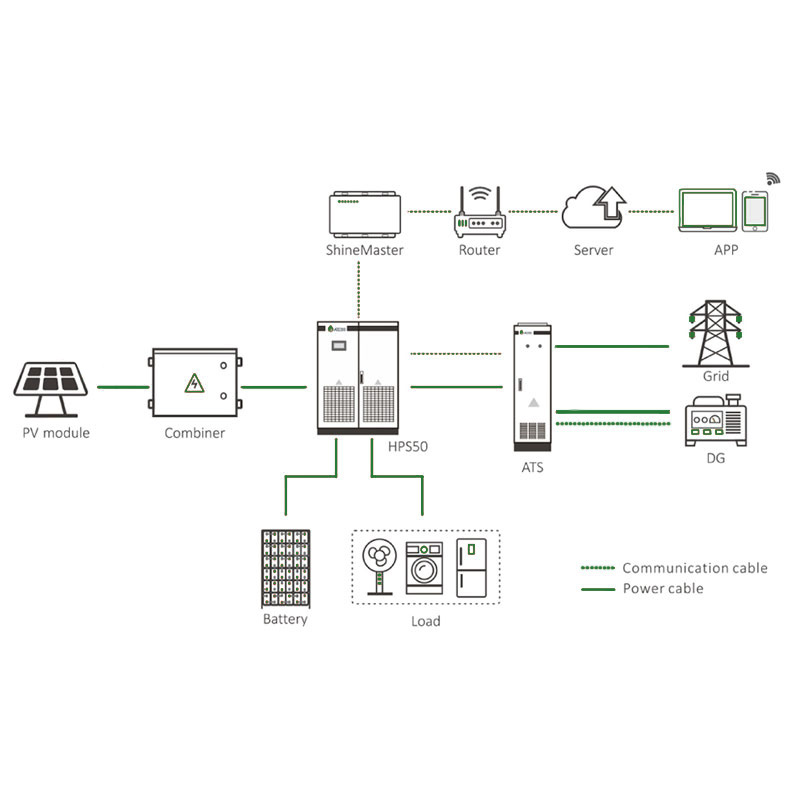

System Connection
HPS series hybrid inverter have a lot of working mode, such as on grid mode, off grid mode, generator mode and PV mode.
Example in on grid mode, User can set load first, when PV energy is sufficient, PV supply priority to load, the remaining to battery. When PV power is lower than lad power, battery discharge automatically. if battery discharged cut off voltage or cut-off SOC (depending on battery type), it will stop discharging, PV and grid supply power to the load together The power supply can be restored when the battery is charged to the set value of battery saturation.
Battery first mode, When the PV energy is sufficient, PV supply priority to battery charge, the remaining to load:
When PV energy is insufficient, the PV charge the battery first. The power grid only supplies all load switch out charging the battery. lt is optional to charge the battery at the same time. If the grid connected backup mode is not discharged or switched to other modes, To maintain electrochemical activity, the battery will enter the discharge state after one week of current limiting charging, and the discharge power will be calculated according to battery specifications.
For more working modes, please contact us to communicate.

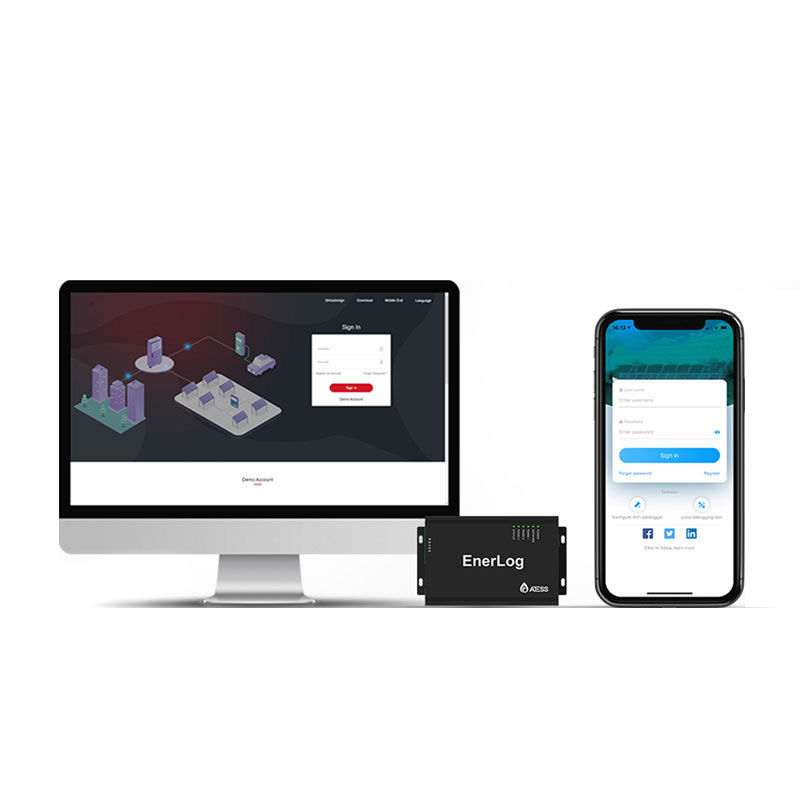

Smart Monitoring System
Install ShineMaster equipment, then through the web page and APP, you can manage your PV system anywhere, obtain more PV system information, data is shared, Know the power generation and system operation status. remove obstacles more quickly, easy and intelligent operation and maintenance. For comprehensive monitor and manage of your solar system, optimizing the performance of your solar system
