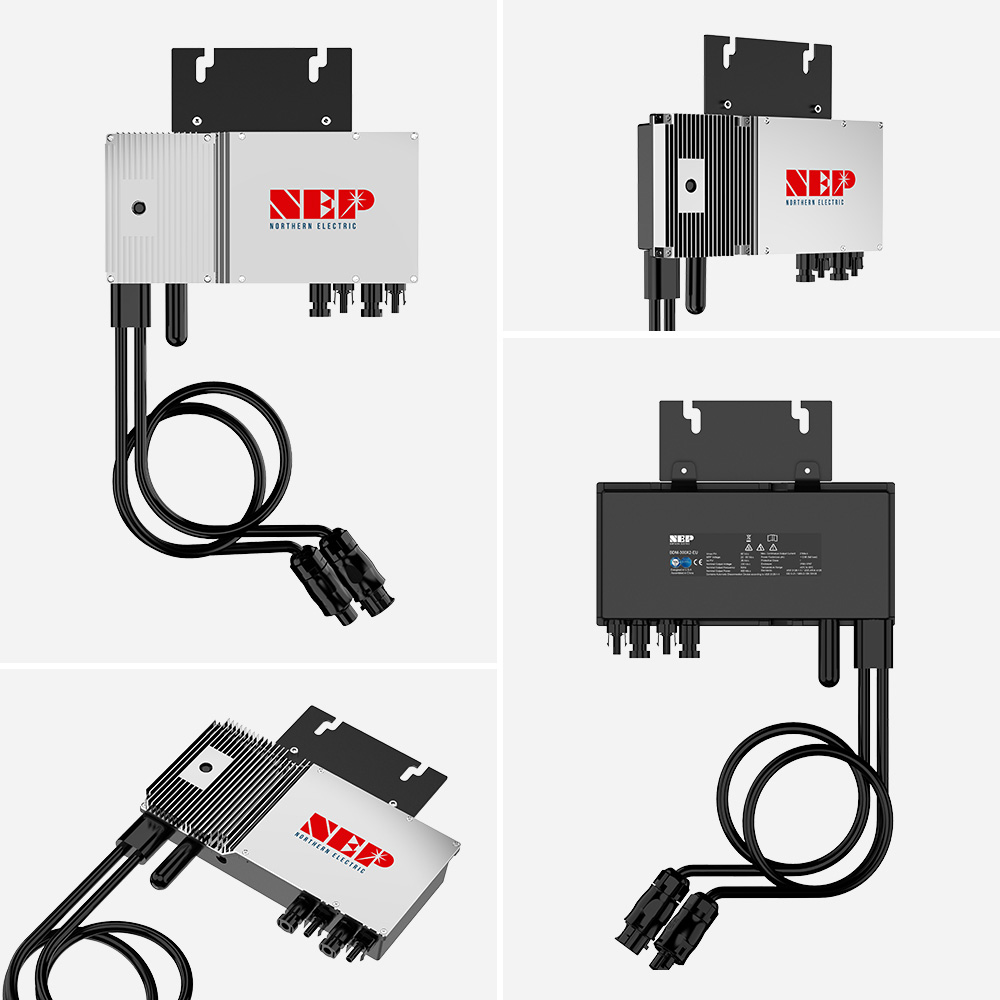

NEP Micro-inverter power range from 300W to 800W, it can match mainstream solar panels in the market, Compared with string inverter, NEP Micro-inverter has significantly improved the efficiency of solar panel array power generation
Brand Name :
NEPModel ID :
BDM-800, BDM-650, BDM-550, BDM-600X, BDM-500, BDM-300Operating temperature :
-40°C to +85°CWarranty :
10 yearsProtection degree :
NEMA-6 / IP-66 / IP-67Safety EMC / Standard :
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2Output Voltage (V) :
L+N+PE, 220V/184V-242, 230V/ 195.5V-253VMax Input DC Voltage (V) :
60Output Frequency :
50Hz/45Hz-55Hz 60Hz/55Hz-65HzNEP Micro-inverters Power Ranges From 300W to 800W

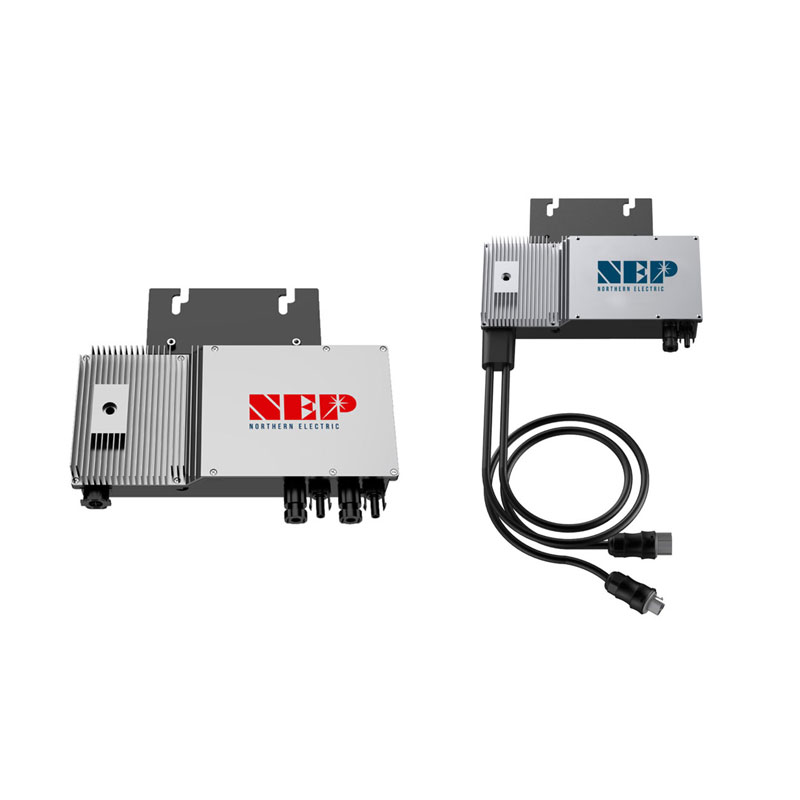

Product Series
BDM-800
BDM 650
BDM 550
BDM 600X
BDM 500
BDM 300
Advantage of Micro-inverter

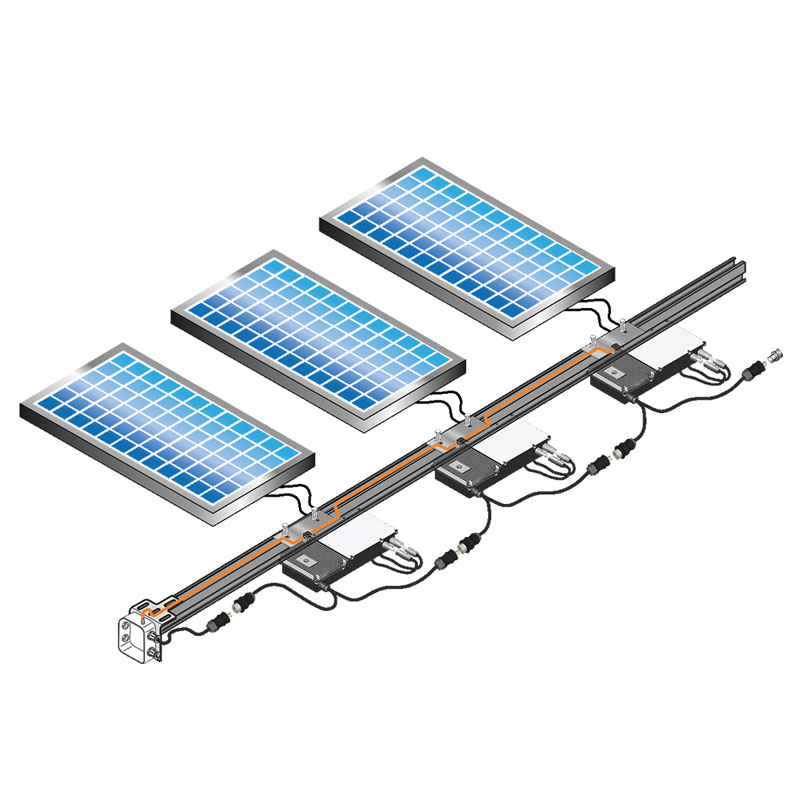

A micro-inverter is device that only connects to one piece solar panel, converting DC (direct current) from the solar panel into AC (alternating current), which can power household appliances or sell power back to the state gridl. Unlike string inverters, micro-inverters control the output of a single panel.
Micro-inverter have a lot of advantages:
Power Optimization
Isolated Equipment Failure
Ease of Installation
Expandable Design
Flexible Array Layout
Meets Module-Level Rapid Shutdown Requirements

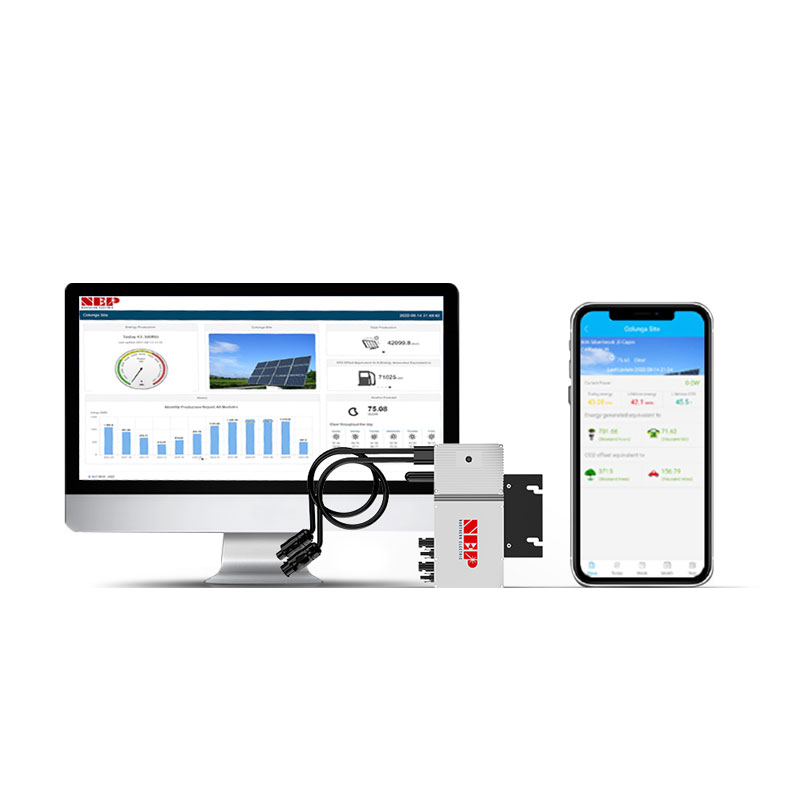

Smart Monitoring Platform
Install NEP data collection and management equipment, then through the web page and APP, you can manage your PV system anywhere, obtain more PV system information, data is shared, Know the power generation and system operation status. remove obstacles more quickly, easy and intelligent operation and maintenance. For comprehensive monitor and manage of your solar system, optimizing the performance of your solar system
