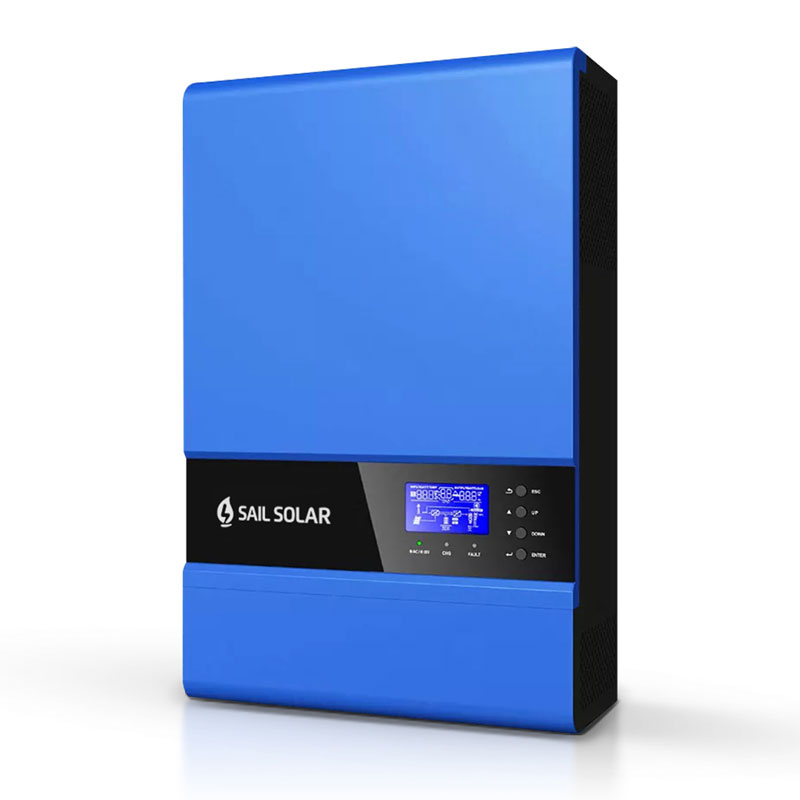

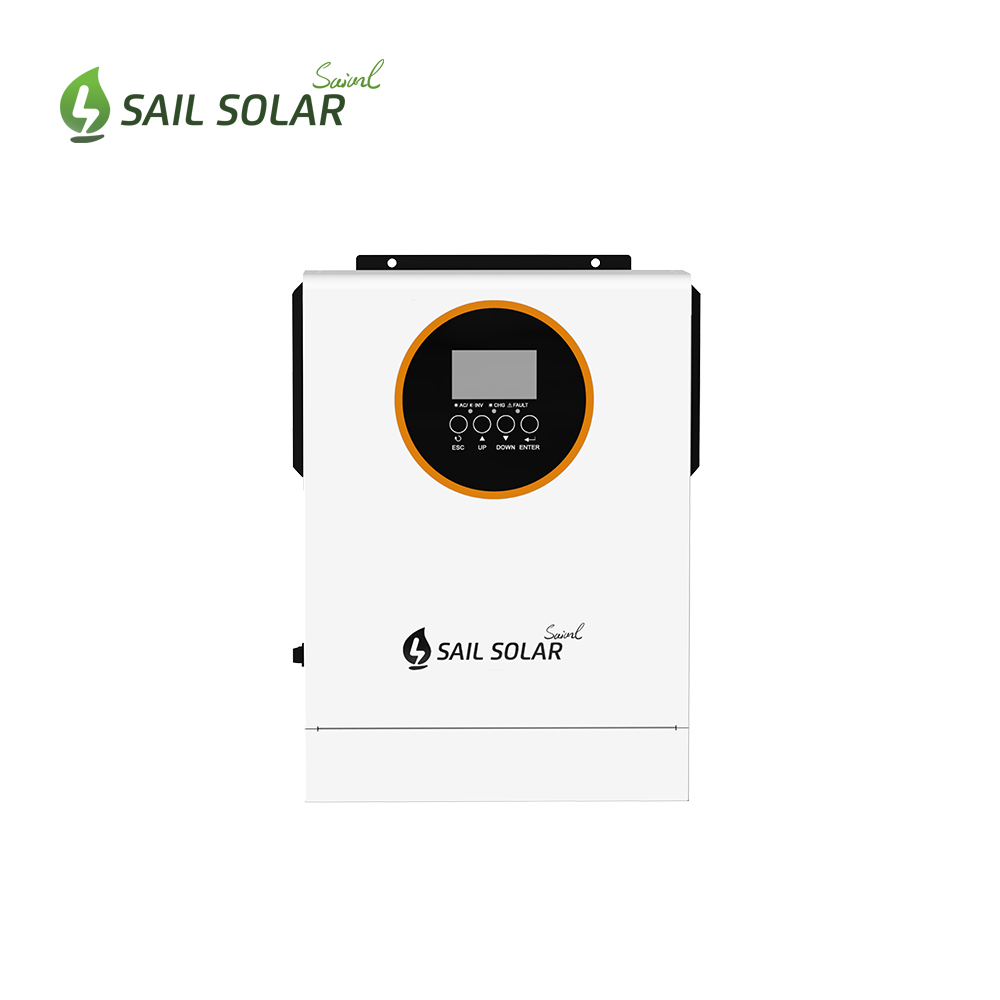

The SAIL SOLAR 3.5kW Hybrid Inverter is a compact and efficient solution for small residential solar systems. It seamlessly integrates solar energy, battery storage, and grid power to maximize self-consumption and reduce electricity costs. Ideal for homes or small offices, it ensures stable and reliable power supply.
Brand Name :
SAIL SOLAROperating temperature :
0℃ ~+50℃Warranty :
5 years(10 years is Optional)Size: :
420×315×145 mmProtection degree :
IP20Module ID :
SAS3524VMIIType of Battery :
Lithium /Lead-acid（48V)Output Voltage :
220V or 380VParallel Capability :
Yes, 6 units maximumOutput Frequency :
50Hz/60Hz
Product Features
Rated Power: 3.5kW
Hybrid Function: Supports simultaneous PV input, battery storage, and grid connection
Battery Compatibility: Lithium-ion and lead-acid batteries supported
Efficiency: Up to 93% conversion efficiency
Smart Features: Real-time monitoring via mobile app, programmable charging/discharging schedules
Protection: Overload, short-circuit, and anti-islanding protections
Application: Perfect for small homes, cabins, and low-consumption commercial setups, providing stable power during outages and reducing reliance on the grid

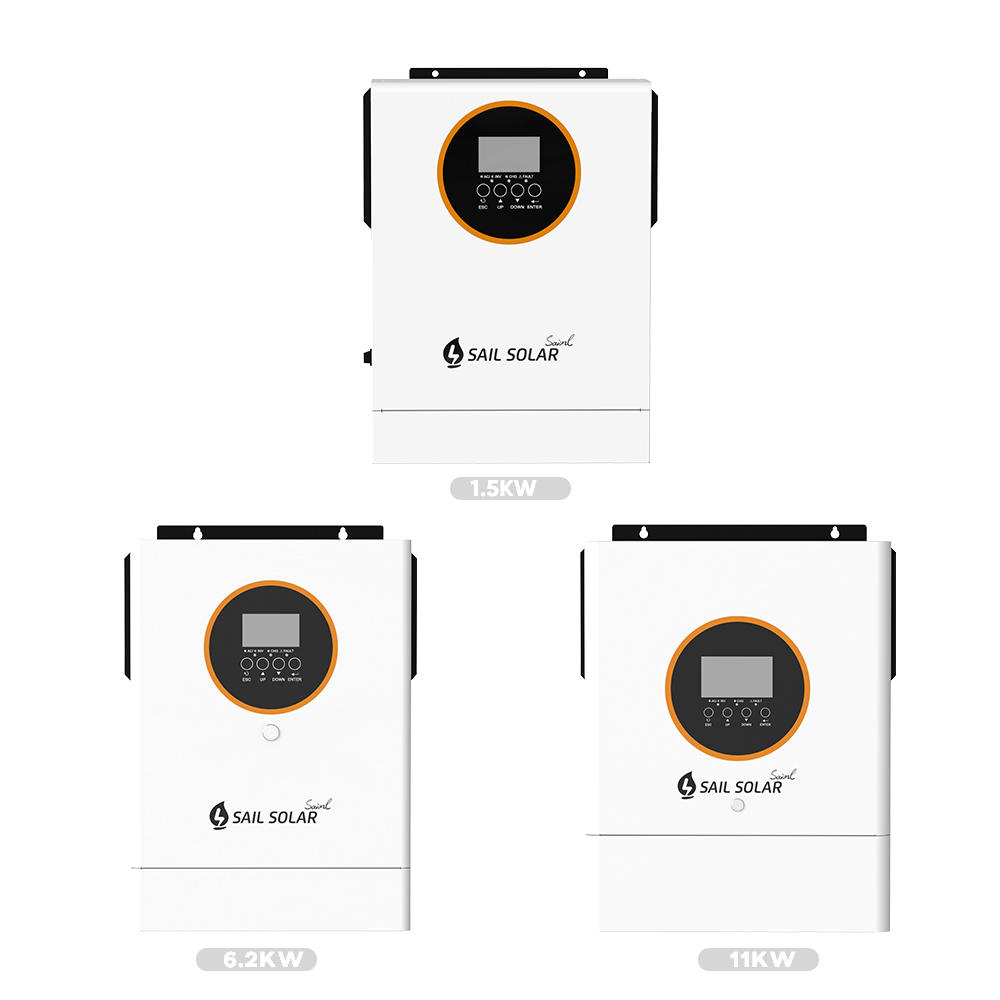

SAIL SOLAR offers a versatile range of hybrid inverters designed to meet diverse energy needs, from small residential to large commercial applications. Our series includes 3.5kW, 6.2kW, and 11kW models, each engineered to seamlessly integrate solar power, battery storage, and grid electricity. With high efficiency, intelligent energy management, and reliable protection features, the SAIL SOLAR hybrid inverter series maximizes solar self-consumption, ensures uninterrupted power supply, and provides flexible solutions for homes, offices, and industrial setups.
Solar Power Input (PV Input)
The inverter receives DC power from the solar panels and converts it into AC electricity to supply household or load consumption.
When solar generation exceeds the load demand, excess power can be used to charge the battery or, if configured, feed back to the grid.
Battery Charge and Discharge Management
The inverter intelligently manages battery charging and discharging.
When solar power is insufficient or during nighttime, the inverter draws energy from the battery to supply the load.
User s can set priorities such as “load first” or “battery charging first” to optimize energy utilization.
Grid Interaction
If both solar and battery cannot meet the load demand, the inverter automatically draws electricity from the grid.
For zero-export or grid-limiting systems, the inverter can control the amount of power sent back to the grid, optimizing compliance and cost.

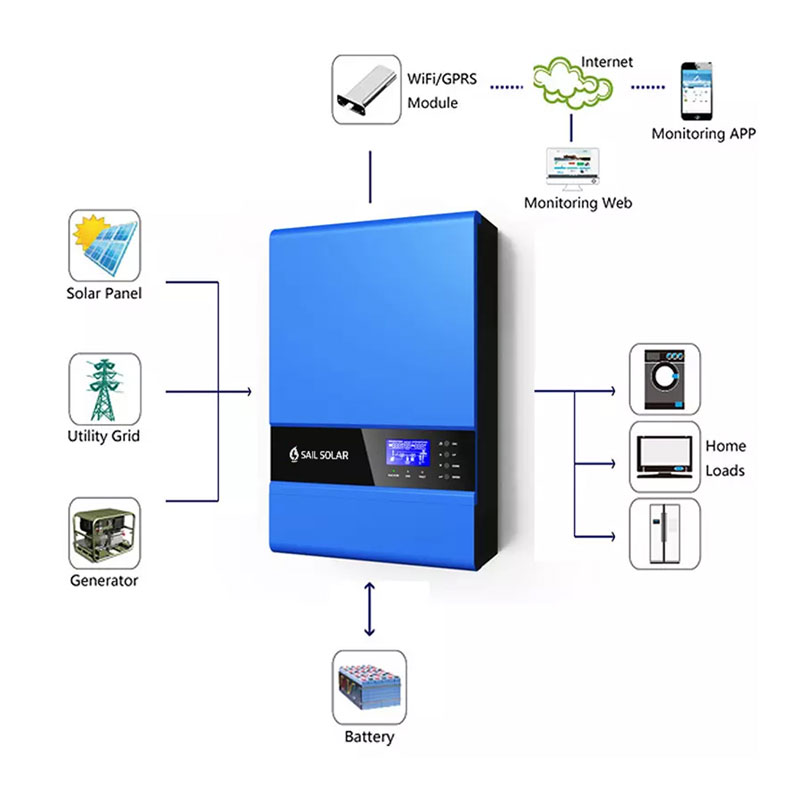

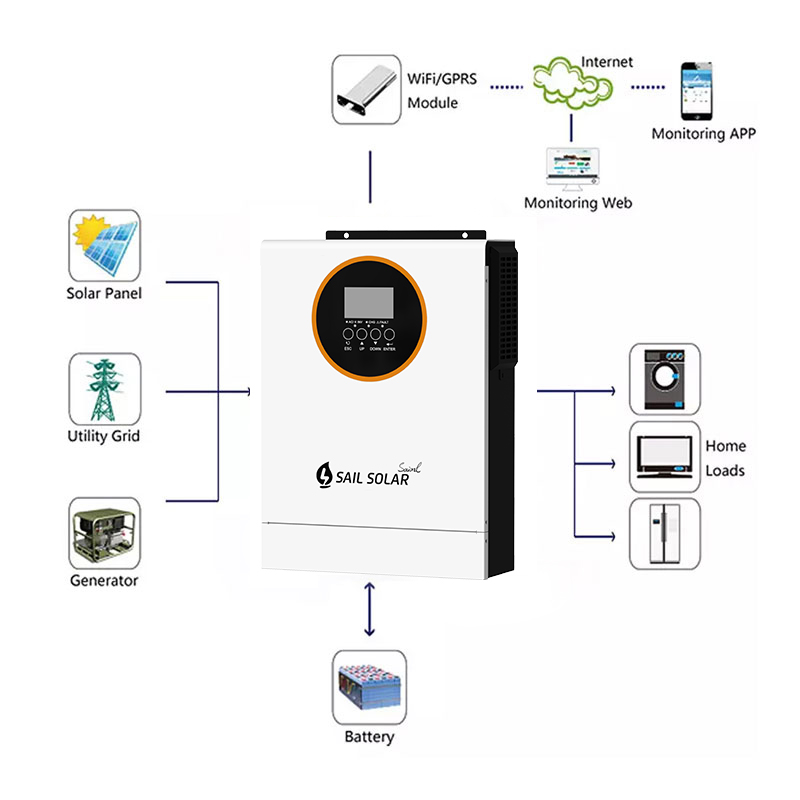

Smart Monitoring and Control

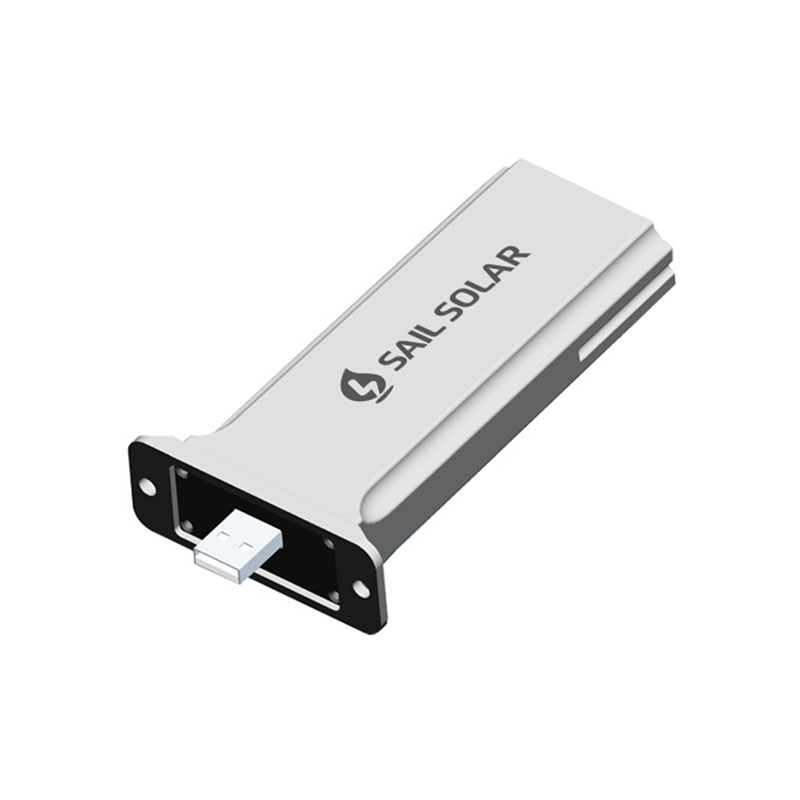

Real-time monitoring of solar generation, battery status, load consumption, and grid supply is available via mobile app or web portal.
The system can automatically switch power modes based on user settings or load demand to achieve optimal energy distribution.
