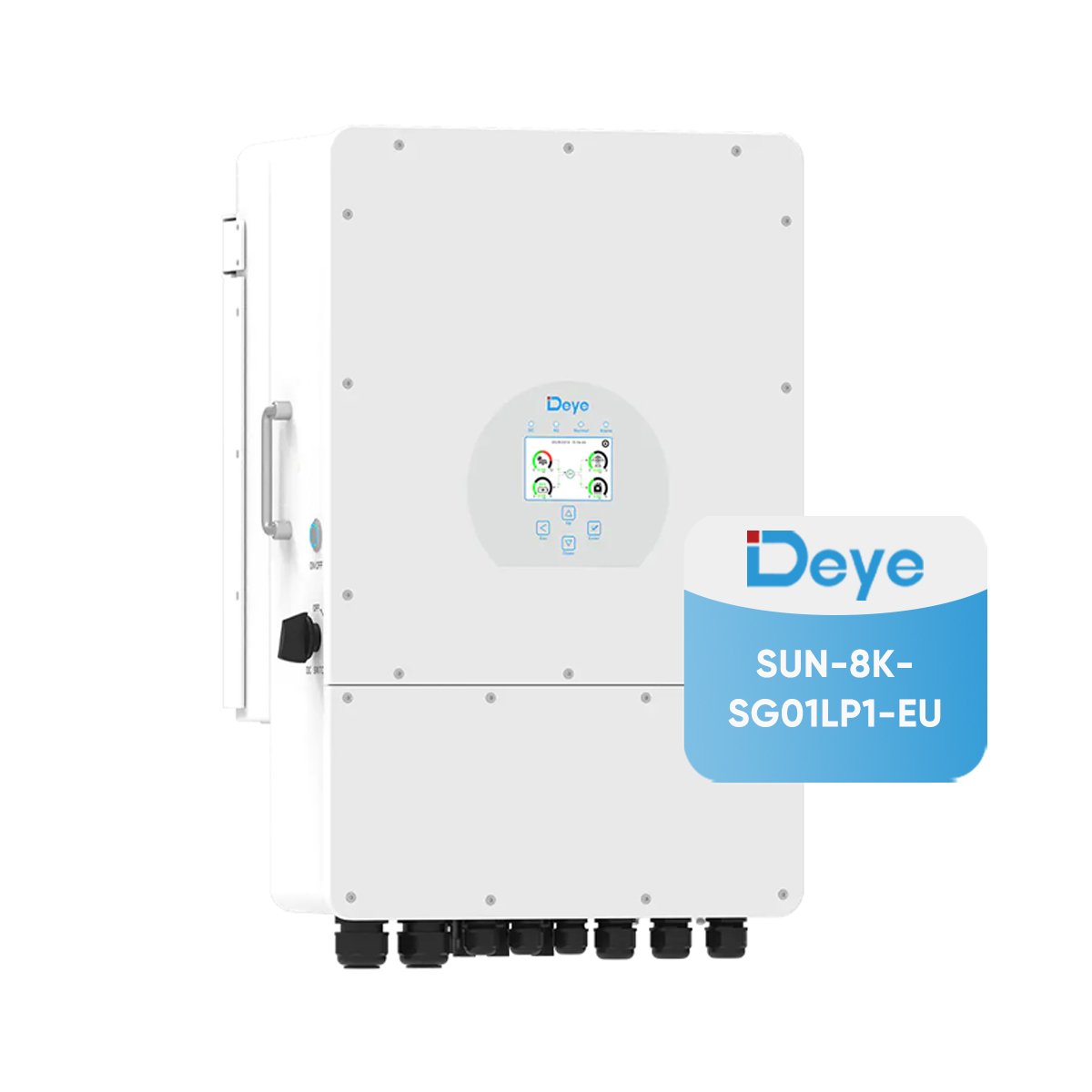

The series, SUN-7.6/8K-SG01LP1-EU, is a single-phase low voltage (48V) hybrid inverter. With the frequency droop control algorithm, this series product supports single phase.
Brand Name :
DeyeModel ID :
SUN-8K-SG01LP1-EUBattery Type :
Lead-acid or Lithium-ionMPPT Voltage Range（V） :
150-425Grid Connection Form :
L+N+PECommunication Interface :
RS485/RS232/CANCabinet size（W*H*D） :
420×670×233Weight[kg] :
30Type Of Cooling :
Intelligent air coolingBattery Voltage :
40-60
Colorful touch LCD, IP65 protection degree
6 time periods for battery charging/discharging
Max. charging/discharging current of 190A
AC couple to retrofit existing solar system
Support storing energy from diesel generator
Max. 16 pcs parallel for on-grid and off-grid operation
Support multiple batteries parallel

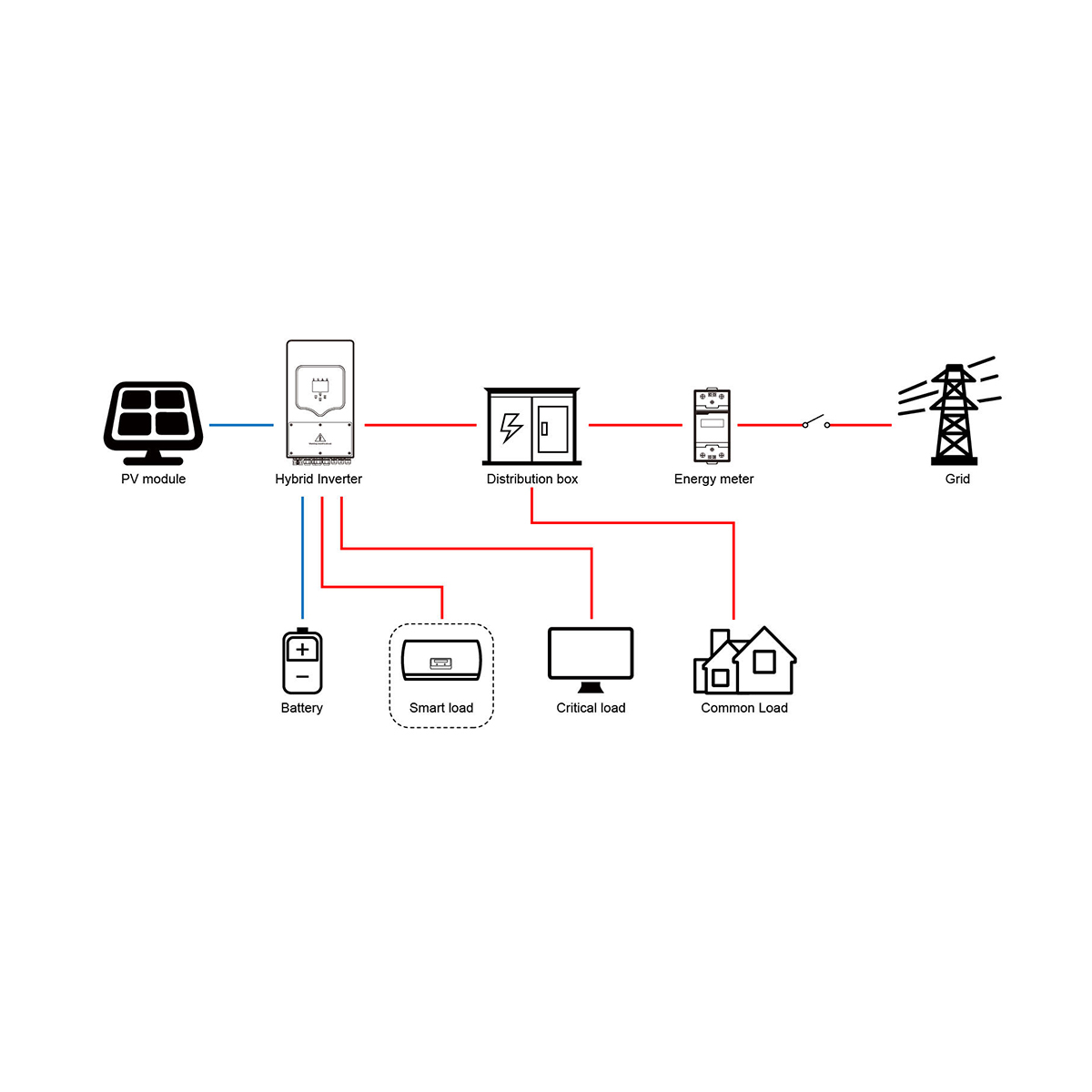

This diagram shows the basic application of this inverter.
It also includes the following equipment to have a complete operating system.
Generator or Utility - Photovoltaic Modules
Consult your system integrator for other possible system architectures depending on your requirements.
This inverter can power a variety of appliances in a home or office environment, including motor-type appliances such as refrigerators and air conditioners.

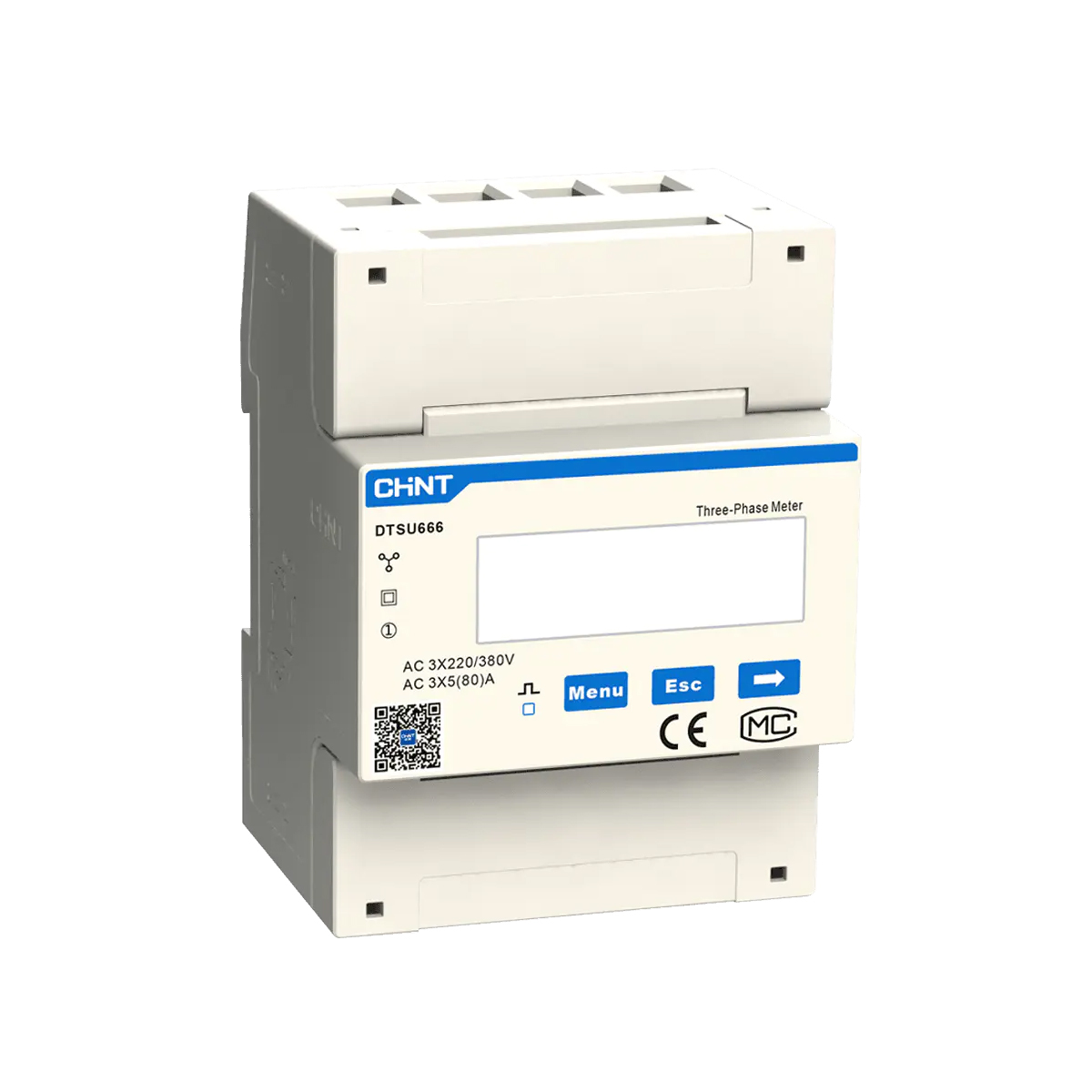

Energy Meter, the DDSU666 Single-phase electronic type guide rail mounting electric energy meters. It is used to monitor and display the grid power (voltage, current frequency and energy), and transfer this info to solar inverter via RS485 communication in zero-export system. The DTSU666 series three phase four wire electronic energy meter (din-rail) is designed based on power monitoring and energy metering demands for PV power plants etc. Mainly applied into the measurement and display for the grid parameters in the zero-export system, including grid voltage, current, active power, reactive power, frequency, etc.
