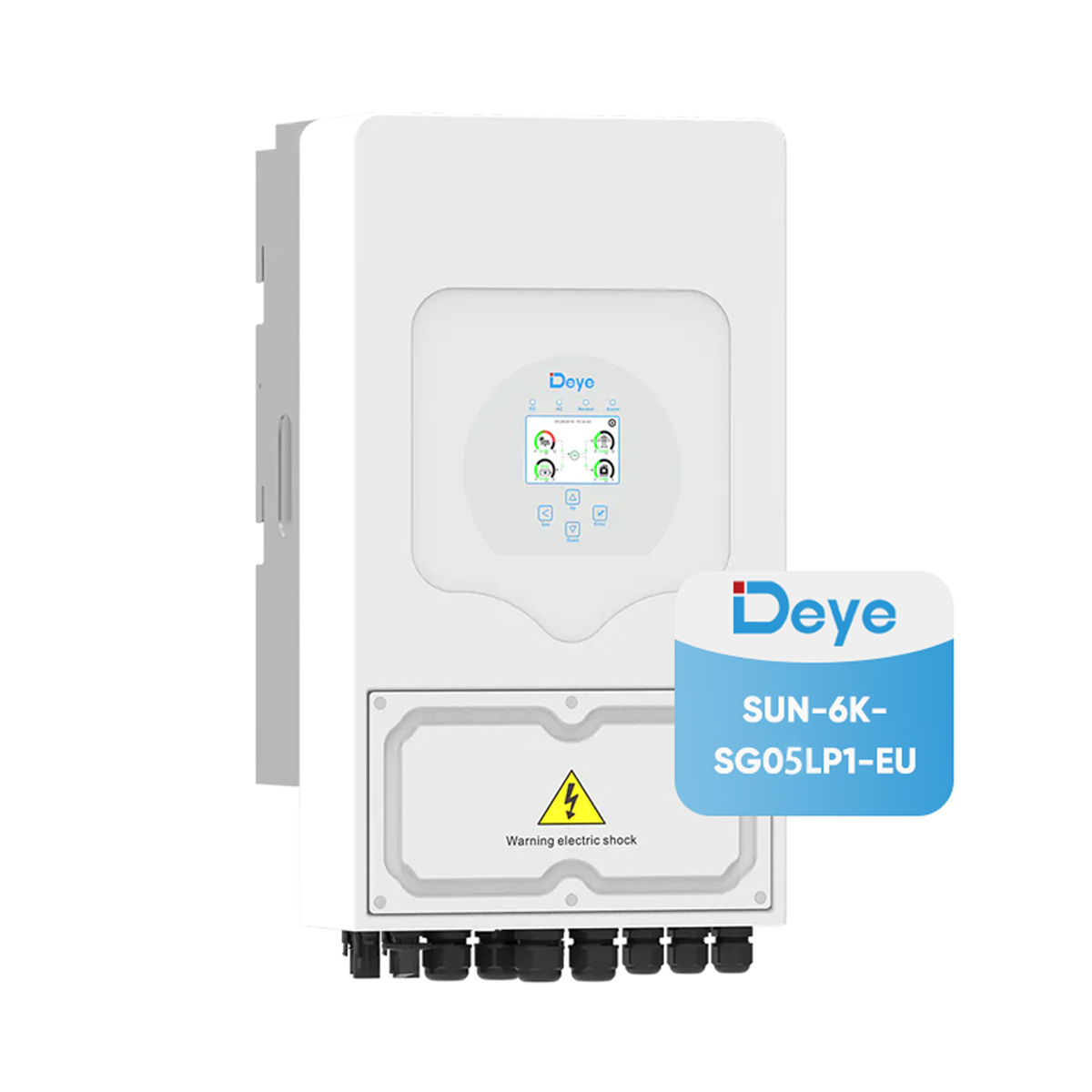

The Deye SUN-6K-SG05LP1-EU is a new moduel highly advanced and efficient inverter designed for household. The new design reduces weight while maintaining good performance, making transportation and installation more convenient.
Brand Name :
DeyeModel ID :
SUN-6K-SG05LP1-EUBattery Type :
Lead-acid or Lithium-ionMPPT Voltage Range（V） :
150-425Grid Connection Form :
L+N+PECommunication Interface :
RS485/RS232/CANCabinet size（W*H*D） :
330×580×232Weight[kg] :
24.9Type Of Cooling :
Intelligent air coolingBattery Voltage :
40-60
Advantages of Choosing Hybrid Inverters
1. Wide adaptability: Hybrid photovoltaic inverters can adapt to different working environments and requirements. They can be used for off-grid photovoltaic power generation systems as well as grid-connected photovoltaic power generation systems, providing a wider range of applications.
2. Peak shaving and valley filling to earn profits: During the valley period (when the electricity price is low), the city power charges the battery through the inverter; during the peak period (when the electricity price is high), the inverter outputs full power, and the battery power feeds the city power while meeting the load demand, achieving the purpose of selling electricity online. It not only reduces the pressure on the city power, but also provides users with the economic benefits brought by the peak-valley price difference of electricity charges.

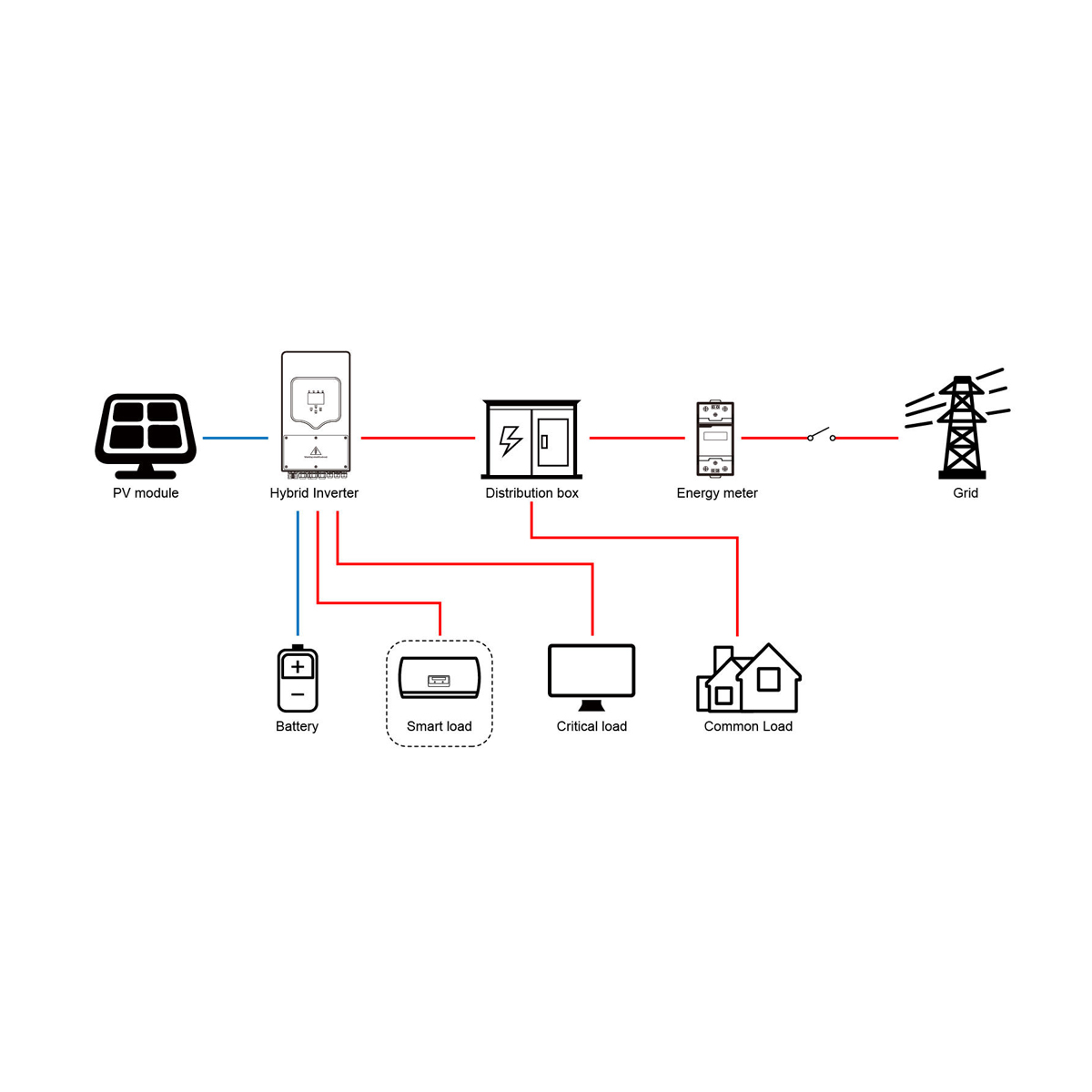

Inverter operation:
● When the hybrid inverter is connected to the utility grid, it can provide uninterrupted power supply. The inverter can output the excess energy of the solar panel back to the grid.
● The hybrid inverter has a built-in battery management system. This allows it to switch between grid power supply and battery power supply. It is this flexibility that allows excess solar energy to be stored in the battery or output to the grid. When the battery is fully charged, the system will automatically stop charging.
In the grid-connected operation mode, the inverter converts DC power into AC power and supplies power to the load through the grid. At this time, the inverter is connected in parallel with the grid, and the output voltage is synchronized with the grid voltage. When the grid voltage is stable, the inverter mainly plays the role of voltage stabilization and regulation to ensure the quality of the output AC power. If the grid voltage exceeds the tolerance range of the inverter, the inverter will automatically switch to the energy storage mode and obtain DC power from the battery for inversion to maintain the stability of the load power supply.
In the off-grid operation mode, when the grid is powered off, the inverter detects an overload or short circuit state and automatically enters the protection mode. At this time, the inverter will disconnect from the grid and work in a standalone operation state. The microprocessor detects the output voltage of the inverter and compares it with the reference voltage, and adjusts the output voltage by controlling the PWM output duty cycle to ensure the normal power supply of the load.
