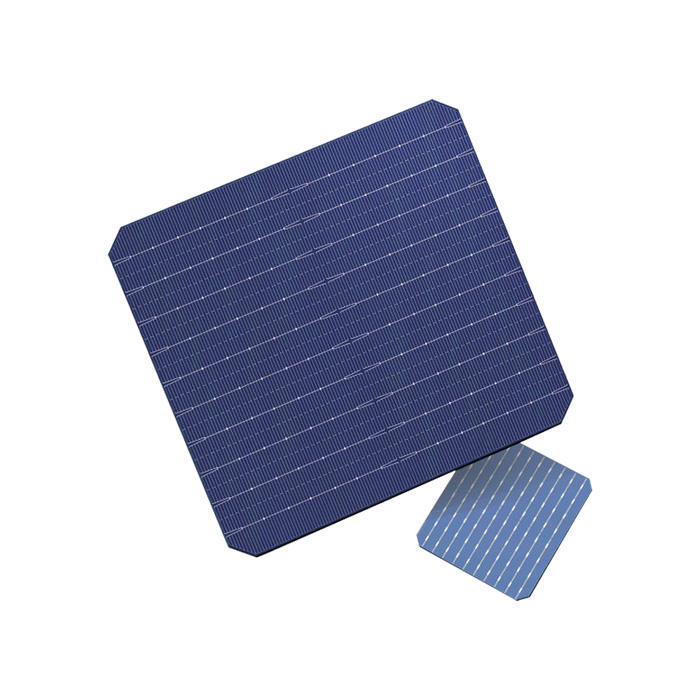

M10 182mm Solar Cells Half Cult 10BB Solar PV Panel 530W 535Wp 540W 545Wp 550Watt 555Watt Monocrystalline Multi Busbar Solar Panel Module
Brand Name :
SAIL SOLARPower Range :
530~555WDimensions of Module :
2279x1134x35mmWeight :
28.6kgGlass :
3.2mm coated tempered glassFrame :
Anodized aluminum alloy frameJunction Box :
IP68, three diodesCable :
4mm2, 300mm in length, length can be customizedMax. Efficiency :
22.5%Wind/Snow Load :
5400Pa/2400PaBacksheet :
WhitePacking :
MC4Number of Cells :
144Cells182mm PERC Half Cult 144Cells MBB Mono 530Watt ~555Watt Solar Panel
Half-cell technology is the process of cutting a cell in half, reducing resistance and thereby increasing efficiency. A traditional full-cell panel with 72 cells creates resistance, which reduces the panel's ability to generate more power. A half-cell with 144 cells has a lower resistance, which means more energy is captured and generated. 144 half-cells simplify the complexity and redefines the aesthetic concept of photovoltaic modules.
Up to 570W rated power, the most powerful and popular module on the market;
High transmittance photovoltaic glass, EVA film and back panel, increase sunlight transmission and reflection.
Ergonomic weight and size, suitable for all kinds of power station installations such as ground installation and flat roof sloping installation.
Half-cell panels have smaller cells in each panel, which reduces the mechanical stress on the panel. The smaller the cells, the less potential for micro-cracking of the panel.
New thick aluminum alloy, better mechanical properties and oxidation resistance.
| Module ID | SAS530M-144H | SAS535M-144H | SAS540M-144H | SAS545M-144H | SAS550M-144H | SAS555M-144H |
| Maximum Power (Pmax/W) | 530 | 535 | 540 | 545 | 550 | 555 |
| Maximum Power Voltage (Vmp/V) | 40.74 | 40.88 | 41.01 | 41.15 | 41.28 | 41.42 |
| Maximum Power Current (Imp/A) | 13.01 | 13.09 | 13.17 | 13.25 | 13.33 | 13.41 |
| Open Circuit Voltage (Voc/V) | 49.26 | 49.40 | 49.53 | 49.70 | 49.80 | 49.94 |
| Short Circuit Current (Isc/A) | 13.69 | 13.77 | 13.85 | 13.93 | 14.01 | 14.09 |
| Module Efficiency (%) | 20.51 | 20.70 | 20.89 | 21.09 | 21.28 | 21.48 |
| Power Output Tolerance (W) |
0~+5W | |||||
| Temperature Coefficient of Isc |
+0.048%/°C | |||||
| Temperature Coefficient of Voc |
-0.270%/°C | |||||
| Temperature Coefficient of Pmax | -0.350%/°C | |||||
STC (Standard Testing Conditions): Irradiance 1000W/m2, Cell Temperature 25°C, Spectra at AM1.5
Test uncertainty for Pmax: ±3%
Certification
SAIL SOALR' s pv panel module have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments etc. We do our best to provide customers with quality products, for the customer's investment and income to provide protection.
