182mm Solar Cells Half Cult 10BB Solar PV Panel 480Wp 485Wp 490Wp 495Wp 500Wp 505Wp P type Monocrystalline Multi Busbar Solar Panel Module
Brand Name :
SAIL SOLARPower Range :
480~505WMax. Efficiency :
21.3%Weight :
26.3kgNumber of Cells :
132CellsDimensions of Module :
2094x1134x30mmGlass :
3.2mm coated tempered glassCable :
4mm2, 300mm in length, length can be customizedBacksheet :
WhiteWind/Snow Load :
5400Pa/2400PaPacking :
MC4Junction Box: :
IP68, three diodesFrame: :

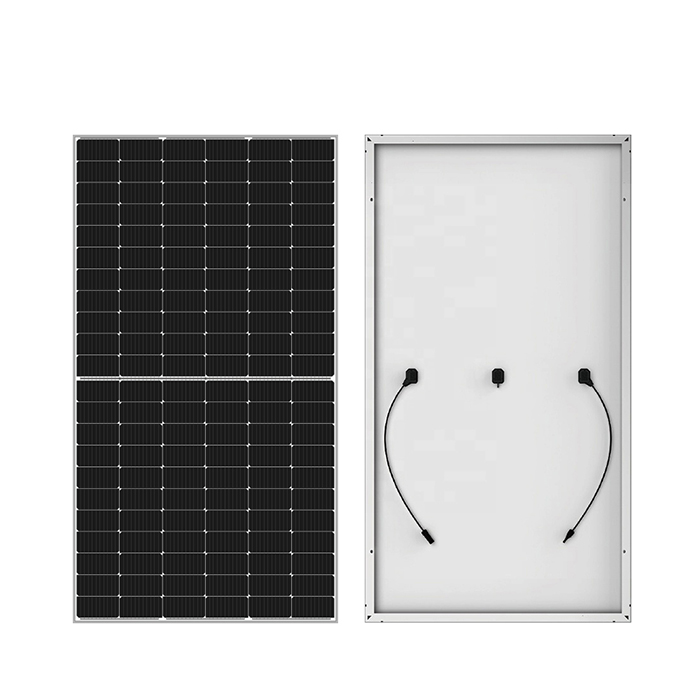

Anodized aluminum alloy frame182mm PERC Half Cult 132Cells MBB Mono 480Watt ~505Watt Solar Panel

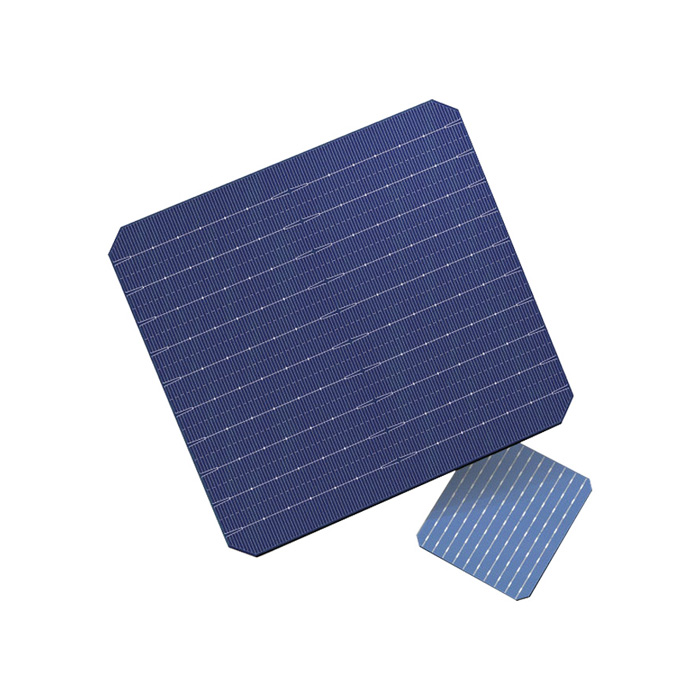

The innovation of PERC(Passivated Emitter and Rear Cell) lies in the passivation of the dielectric film on the back surface, and the use of localized gold PERC cell contact, which effectively reduces the electron recombination speed on the back surface, and at the same time improves the passivation reflection of light on the back surface. PERC technology increases efficiency by increasing the cell's ability to capture light at longer wavelengths, especially in the early morning, late afternoon or cloudy conditions.
2X1 meter module size, rated maximum output power 505W, easy for project design and calculation.
Dual module layout, 132 cells, 22 cell strings, 6 strings connected in parallel.
First-line brand material packaging, 100% automatic production line assembly, to ensure the consistency of all processing.
Lower current and operating temperature, less heat reduction, greatly reducing the possibility of component burnout.
Industry standard size, high product compatibility, convenient for later replacement and maintenance.
| Module ID | SAS480M-132H | SAS485M-132H | SAS490M-132H | SAS495M-132H | SAS500M-132H | SAS505M-132H |
| Maximum Power (Pmax/W) | 480 | 485 | 490 | 495 | 500 | 505 |
| Maximum Power Voltage (Vmp/V) | 37.62 | 37.80 | 37.99 | 38.17 | 38.35 | 38.53 |
| Maximum Power Current (Imp/A) | 12.76 | 12.83 | 12.90 | 12.97 | 13.04 | 13.11 |
| Open Circuit Voltage (Voc/V) | 45.07 | 45.20 | 45.33 | 45.46 | 45.59 | 45.72 |
| Short Circuit Current (Isc/A) | 13.65 | 13.72 | 13.79 | 13.86 | 13.93 | 14.00 |
| Module Efficiency (%) | 20.21 | 20.42 | 20.64 | 20.85 | 21.06 | 21.27 |
| Power Output Tolerance (W) |
0~+5W | |||||
| Temperature Coefficient of Isc |
+0.048%/°C | |||||
| Temperature Coefficient of Voc |
-0.270%/°C | |||||
| Temperature Coefficient of Pmax | -0.350%/°C | |||||
STC (Standard Testing Conditions): Irradiance 1000W/m2, Cell Temperature 25°C, Spectra at AM1.5
Test uncertainty for Pmax: ±3%
Certification
SAIL SOALR' s pv panel module have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments etc. We do our best to provide customers with quality products, for the customer's investment and income to provide protection.
