M10 182mm Solar Cells Half Cult 10BB Bifacial Solar PV Panel 525W~570W Monocrystalline Multi Busbar Dual Glass Solar Panel Module
Brand Name :
SAIL SOLARPower Range :
525~550WDimensions of Module :
2285x1134x35mmWeight :
31.6kgGlass :
Dual glass, 2.0mm coated tempered glassFrame :
Anodized aluminum alloy frameJunction Box :
IP68, three diodesCable :
4mm2, 300mm in length, length can be customizedMax. Efficiency :
21.28%Wind/Snow Load :
5400Pa/2400PaNumber of Cells :
144CellsPacking :

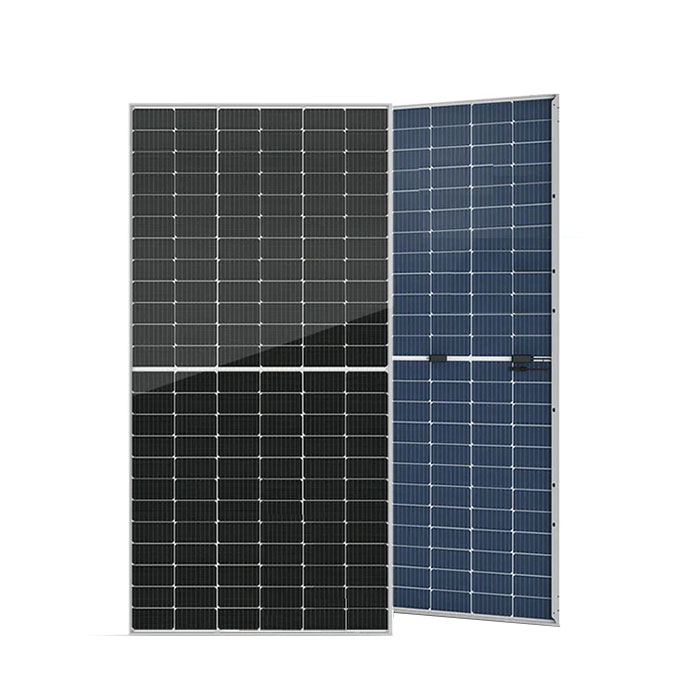

MC4182mm PERC Half Cult 144Cells MBB Mono Bifacial 525W~570W Solar Panel
Bifacial PERC cells can achieve double power generation with almost no increase in cost, and achieve a power generation gain of 10%-25% at the system side, which greatly enhances the competitiveness and potential of PERC technology. It continues to benefit customers and global economy with its advantages of "higher power, lower degradation".
Dual glass encapsulation structure of the bifacial module has better resistance to environmental erosion by water vapor, salt-air fog, etc. Compared with conventional monocrystalline panels, double-sided photovoltaic modules can generate electricity under direct sunlight on the front and reflected sunlight on the back.
Bifacial technology enables additional energy harvesting from rear side (up to 25%)
Glass/glass lamination ensures 30 years product lifetime, with annual power degradation <0.55 %
Solid PID resistance ensured by solar cell process optimization and careful module BOM selection
| Module ID | SAS525MB-144H | SAS530MB-144H | SAS535MB-144H | SAS540MB-144H | SAS545MB-144H | SAS550MB-144H |
| Maximum Power (Pmax/W) | 525 | 530 | 535 | 540 | 545 | 550 |
| Maximum Power Voltage (Vmp/V) | 41.15 | 41.32 | 41.48 | 41.64 | 41.80 | 41.96 |
| Maximum Power Current (Imp/A) | 12.76 | 12.83 | 12.90 | 12.97 | 13.04 | 13.11 |
| Open Circuit Voltage (Voc/V) | 49.17 | 49.32 | 49.46 | 49.60 | 49.76 | 49.92 |
| Short Circuit Current (Isc/A) | 13.66 | 13.72 | 13.79 | 13.86 | 13.93 | 14.00 |
| Module Efficiency (%) | 20.31 | 20.51 | 20.70 | 20.89 | 21.09 | 21.28 |
| Power Output Tolerance (W) |
0~+5W | |||||
| Temperature Coefficient of Isc |
+0.045%/°C | |||||
| Temperature Coefficient of Voc |
-0.261%/°C | |||||
| Temperature Coefficient of Pmax | -0.331%/°C | |||||
STC (Standard Testing Conditions): Irradiance 1000W/m2, Cell Temperature 25°C, Spectra at AM1.5
Test uncertainty for Pmax: ±3%
Certification
SAIL SOALR' s pv panel module have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments etc. We do our best to provide customers with quality products, for the customer's investment and income to provide protection.
