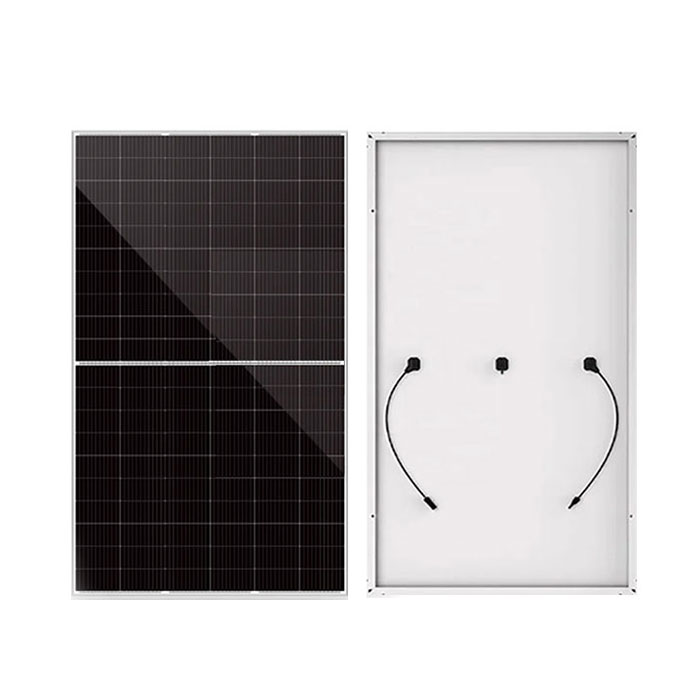

M12 Solar Cells Half Cult 12BB PERC Solar PV Module 585W 590W 595W 600W 605W Monocrystalline Solar Panel
Brand Name :
SAIL SOLARPower Range :
585~605WDimensions of Module :
2172x1303x35mmWeight :
30.9kgGlass :
Single glass, 3.2mm coated tempered glassFrame :
Anodized aluminum alloy frameJunction Box :
IP68, three diodesCable :
4mm2, 300mm in length, length can be customizedMax. Efficiency :
21.38%Wind/Snow Load :
5400Pa/2400PaBacksheet :
WhitePacking :
MC4Number of Cells :
120ells210mm PERC Half Cult 110Cells MBB Mono 600Watt Solar Panel
PERC cells have obvious performance and cost advantages. They are well compatible with existing cell and module production lines, and at the same time achieve an efficiency increase of about 1%, becoming the first high-efficiency cell technology that has achieved a breakthrough in large-scale commercialization.

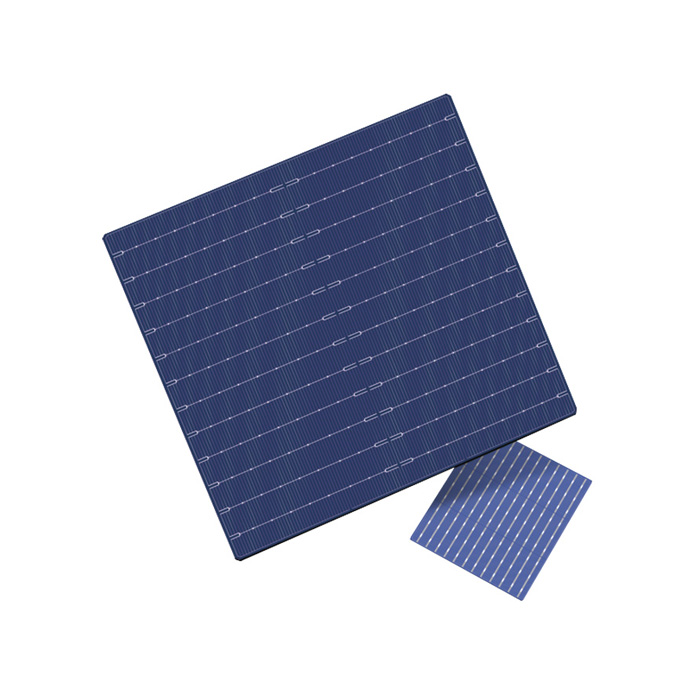

Adopt M12 210mm large solar cells
Single-glass module with a maximum rated output power of 555W and ultra-high performance.
Effectively reduce the project LCOE cost and labor cost, and shorten the investment recovery period.
35mm frame, reinforced crossbeam in the middle of the back to improve the mechanical performance of the panel and ensure the snow pressure ability.
Higher container loading quantity, effectively reducing transportation costs
| Module ID | SAS585M-110H | SAS590M-110H | SAS595M-110H | SAS600M-110H | SAS605M-110H |
| Maximum Power (Pmax/W) | 585 | 590 | 595 | 600 | 605 |
| Maximum Power Voltage (Vmp/V) | 33.8 | 34.00 | 34.20 | 34.40 | 34.60 |
| Maximum Power Current (Imp/A) | 17.31 | 17.36 | 17.40 | 17.45 | 17.49 |
| Open Circuit Voltage (Voc/V) | 40.90 | 41.10 | 41.30 | 41.50 | 41.70 |
| Short Circuit Current (Isc/A) | 18.23 | 18.27 | 18.31 | 18.35 | 18.39 |
| Module Efficiency (%) | 20.67 | 20.85 | 21.02 | 21.20 | 21.38 |
| Power Output Tolerance (W) |
0~+5W | ||||
| Temperature Coefficient of Isc |
+0.050%/°C | ||||
| Temperature Coefficient of Voc |
-0.290%/°C | ||||
| Temperature Coefficient of Pmax | -0.340%/°C | ||||
STC (Standard Testing Conditions): Irradiance 1000W/m2, Cell Temperature 25°C, Spectra at AM1.5
Test uncertainty for Pmax: ±3%
Certification
SAIL SOALR' s pv panel module have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments etc. We do our best to provide customers with quality products, for the customer's investment and income to provide protection.
