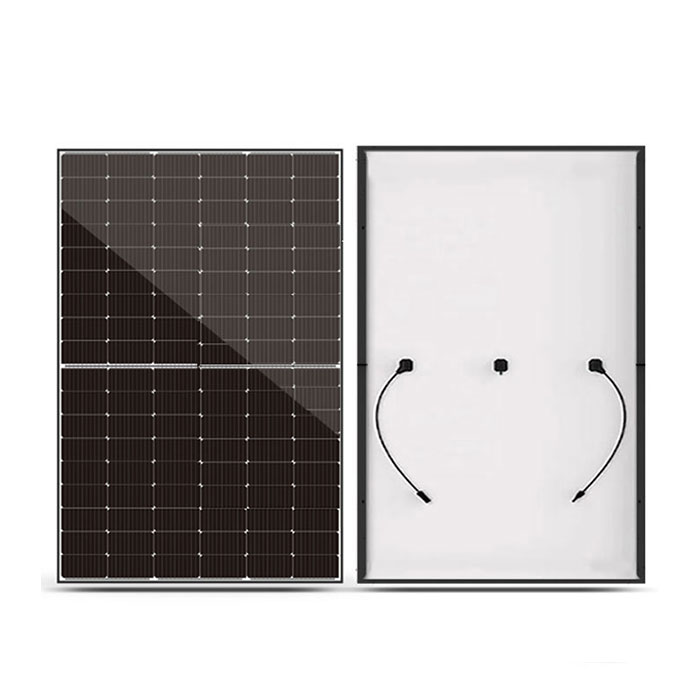

Black Frame M10 Solar Cells Half Cult Technology 10BB Solar PV Topcon panel 420W 425W 430W 435W 440W Monocrystalline Multi Busbar Photovoltaic Solar Panel Module
Brand Name :
SAIL SOLARPower Range :
420~440WDimensions of Module :
1722×1134×30mmWeight :
20.5kgGlass :
3.2mm coated tempered glassFrame :
Anodized aluminum alloy frameJunction Box :
IP68, three diodesCable :
4mm2, 300mm in length, length can be customizedMax. Efficiency :
22.53%Wind/Snow Load :
5400Pa/2400PaBacksheet :
WhitePacking :
MC4Number of Cells :
108Cells182mm N Type Half Cult 108Cells MBB Black Frame Mono 420Watt ~440Watt Solar Panel
The light-induced attenuation is low, and the boron content in phosphorus-doped N-type crystalline silicon is extremely low, which weakens the influence of boron and oxygen on
Process equipment production line High compatibility, compatible with PERC, N-PERT double-sided cell high-temperature preparation process production line

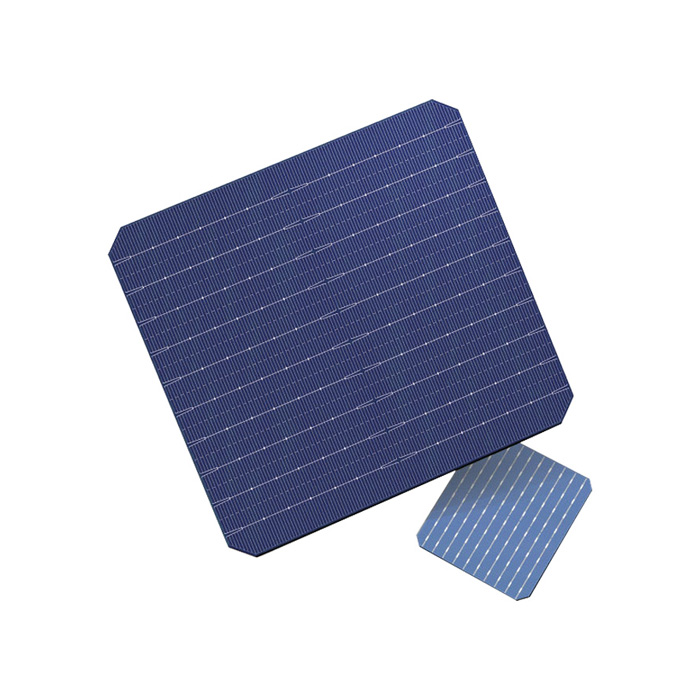

N-type TOPCon cells can be combined with SE, IBC, multi-busbar, half-cell, and laminated technologies to significantly improve cell efficiency and module power
Sail Solar redefined the high-efficiency module series by integrating 182mm silicon wafers with multi-busbar and half-cut cell technologies. Sail Solar panel combined creative technology effectively and extremely improved the module efficiency and power output.
Less mismatch to get more power
Less power loss by minimising the shading impact
Competitive low light performance
Three times EL test to ensure best quality
Ideal choice for utility and commercial scale projects by reduced BOS and improve ROI
| Module ID | SAS420MN-108H | SAS425MN-108H | SAS430MN-108H | SAS435MN-108H | SAS440MN-108H |
| Maximum Power (Pmax/W) | 420 | 425 | 430 | 435 | 440 |
| Maximum Power Voltage (Vmp/V) | 31.52 | 31.71 | 31.89 | 32.08 | 32.26 |
| Maximum Power Current (Imp/A) | 13.33 | 13.41 | 13.49 | 13.57 | 13.65 |
| Open Circuit Voltage (Voc/V) | 38.11 | 38.30 | 38.49 | 38.68 | 38.87 |
| Short Circuit Current (Isc/A) | 14.07 | 14.15 | 14.23 | 14.31 | 14.39 |
| Module Efficiency (%) | 21.51 | 21.77 | 22.02 | 22.28 | 22.53 |
| Power Output Tolerance (W) |
0~+5W | ||||
| Temperature Coefficient of Isc |
+0.044%/°C | ||||
| Temperature Coefficient of Voc |
-0.272%/°C | ||||
| Temperature Coefficient of Pmax | -0.350%/°C | ||||
STC (Standard Testing Conditions): Irradiance 1000W/m2, Cell Temperature 25°C, Spectra at AM1.5
Test uncertainty for Pmax: ±3%
Certification
SAIL SOALR' s pv panel module have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments etc. We do our best to provide customers with quality products, for the customer's investment and income to provide protection.
