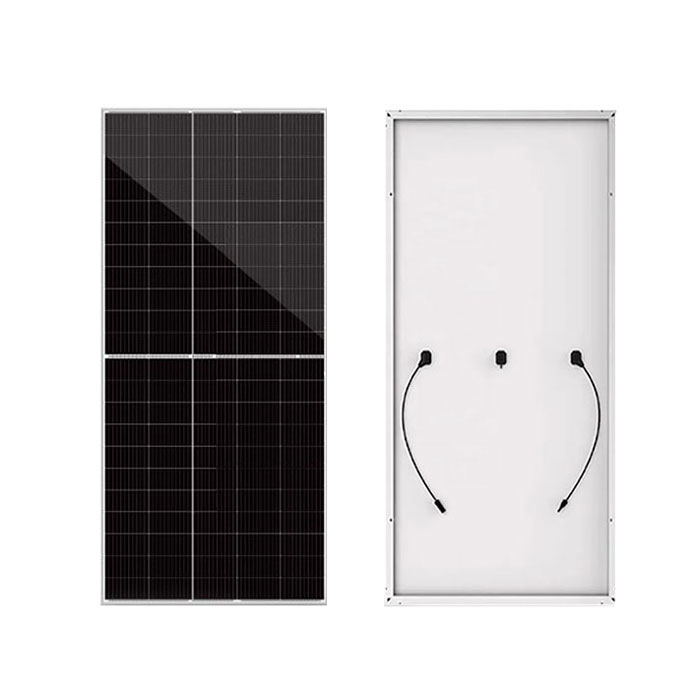

210mm Solar Cells Half Cult MBB N Type Topcon& HJT Solar PV Panel 550Wp 555Wp 560Wp 565Wp 570Wp 575Wp 580Wp Monocrystalline Solar Module Panelv
Brand Name :
SAIL SOLARPower Range :
550~580WDimensions of Module :
2384×1096×35 mmWeight :
28.6kgGlass :
Single glass, 3.2mm coated tempered glassFrame :
Anodized aluminum alloy frameJunction Box :
IP68, three diodesCable :
4mm2, 300mm in length, length can be customizedMax. Efficiency :
22.2%Wind/Snow Load :
5400Pa/2400PaBacksheet :
WhitePacking :
MC4Number of Cells :
110ells210mm N type Half Cult 110Cells MBB Mono 550Watt ~580Watt Solar Panel

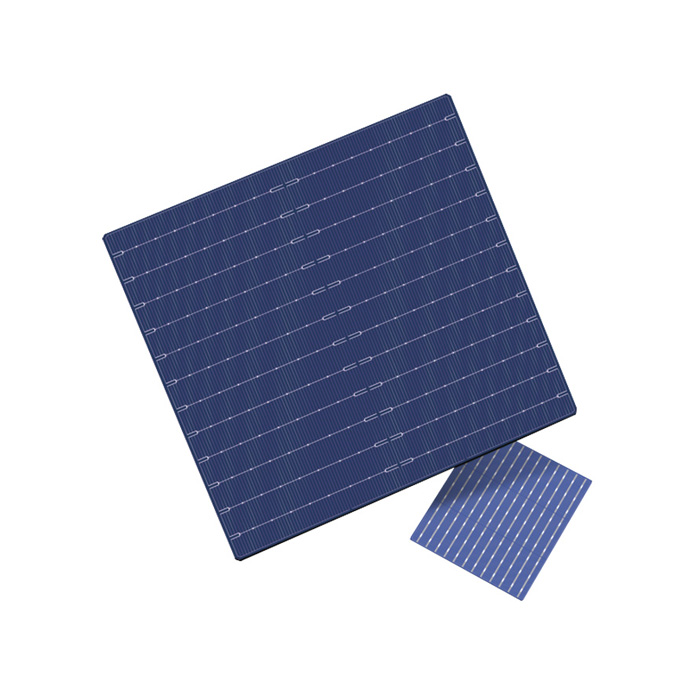

Compare with P type wafer used by PERC cell, the TOPCon takes N type wafer with advantages in terms of the higher efficiency and tolerance to metal impurity, longer lifetime of minority carrier, lower or even non-light-induced-degradation due to non-boron oxygen complex formed, phosphorus doping instead
The crystalline Si growth processes of these twotechnologies are mature with no essential differences.The cost gap will be narrowed as long as n typewafer production expansion and technical furtherimprovements in near future.
Increased SMBB (Multi Busbar) reflectance ensure higher power
Power output: Positive tolerance of up to 5W
100% EL double inspection ensures modules are defect-free
Anti-reflective and self-cleaning surface reduces
Pass ammonia and salt mist test
| Module ID | SAS560MN-110H | SAS565MN-110H | SAS570MN-110H | SAS575MN-110H | SAS580MN-110H |
| Maximum Power (Pmax/W) | 560 | 565 | 570 | 575 | 580 |
| Maximum Power Voltage (Vmp/V) | 34.17 | 34.35 | 34.53 | 34.71 | 34.88 |
| Maximum Power Current (Imp/A) | 16.39 | 16.45 | 16.51 | 16.57 | 16.63 |
| Open Circuit Voltage (Voc/V) | 40.77 | 40.96 | 41.16 | 41.35 | 41.54 |
| Short Circuit Current (Isc/A) | 17.19 | 17.25 | 17.31 | 17.37 | 17.43 |
| Module Efficiency (%) | 21.4 | 21.6 | 21.8 | 22.0 | 22.2 |
| Power Output Tolerance (W) |
0~+5W | ||||
| Temperature Coefficient of Isc |
+0.045%/°C | ||||
| Temperature Coefficient of Voc |
-0.250%/°C | ||||
| Temperature Coefficient of Pmax | -0.290%/°C | ||||
STC (Standard Testing Conditions): Irradiance 1000W/m2, Cell Temperature 25°C, Spectra at AM1.5
Test uncertainty for Pmax: ±3%
Certification
SAIL SOALR' s pv panel module have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments etc. We do our best to provide customers with quality products, for the customer's investment and income to provide protection.
