Longi Tier 1 Brand 405Wp 410Wp 415Wp 420Wp Hi-MO 4 Series Multi-busbar Mono 450Wp 455Wp 460Wp 465Wp Double Glass Half Cut Solar Panel Longi PV Module All Black Hi-MO 4m 355Wp 360Wp 370Wp
Brand Name :
LongiPower Range :
355-465WpDimensions of Module :
2094X 1038X35mmWeight :
24.3kgGlass :
3.2mm coated tempered glassFrame :
Anodized aluminum alloy frameJunction Box :
IP68, three diodesCable :
4mm2, 300mm in length, length can be customizedMax. Efficiency :
21.4%Wind/Snow Load :
5400Pa/2400PaBacksheet :
WhitePacking :
QC 4.10-351/ MC4-EV02ANumber of Cells :
144 Cells

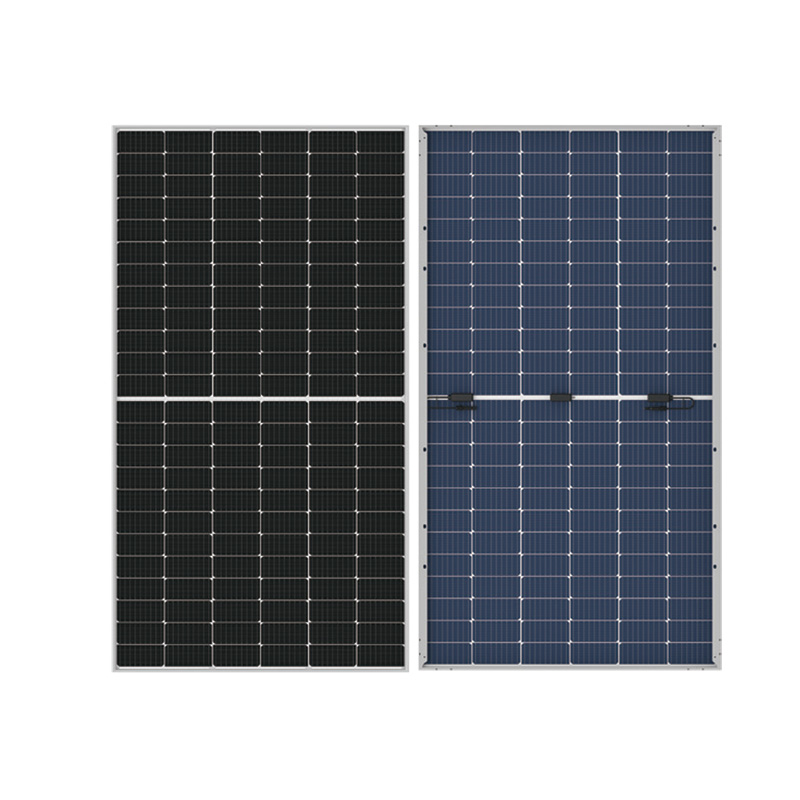

Hi MO 4, the power output of a bifacial half-cell module increases and energy yield is higher under high irradiance conditions.
Our nine-busbar design improves current collection capability.
Additional power generation from the backside of bifacial modules increases the overall energy yield, which has been verified by customers and third-party testing organizations.
Monofacial:
LR4-60HPH 355-385M
LR4-66HPH 405-425M
LR4-72HPH 430-460M
Bifacial:
LR4-72HBD 425-455M
LR4-72HBD 440-460M

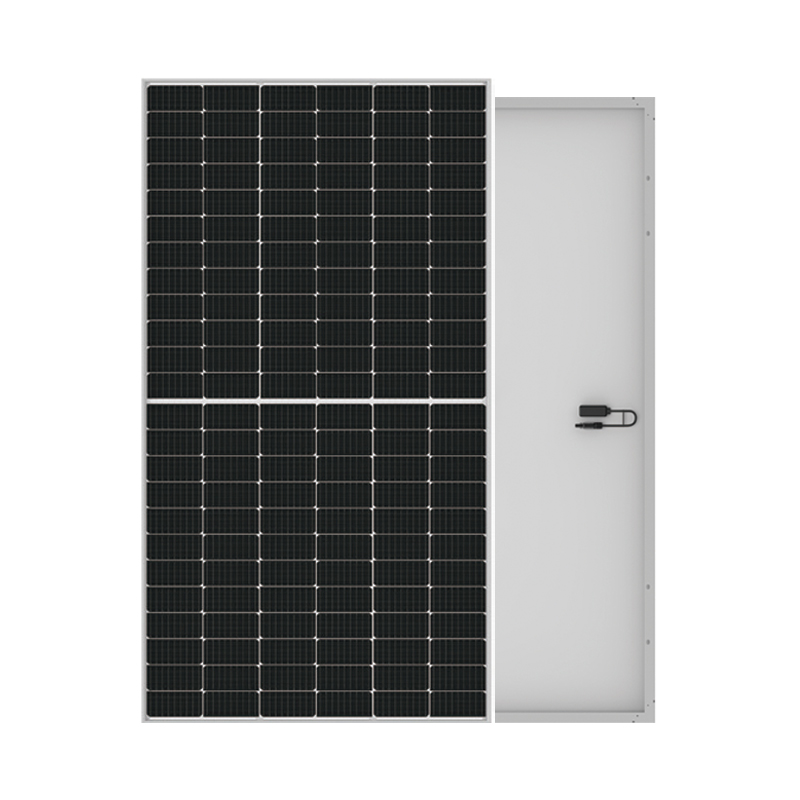

Hi-MO 4, its 60-cell/72-cell modules can be perfectly adapted to different roofs. Among them, the size and weight of the 60-cell module make it the most suitable for convenient installation by a one person, and is mainly installed on household roofs. The 72-cell module can be installed on industrial and commercial roofs. The current of Hi-MO 4m module perfectly matches various brands of string inverter, power optimizers, and microinverters.
Monofacial:
LR4-60HPH 365-385M
LR4-72HPH 445-465M
All Black:
LR4-60HPB 355-375M
Product Parameter(STC)
| Module Type | LR4-72HPH-445M | LR4-72HPH-450M | LR4-72HPH-455M | LR4-72HPH-460M | LR4-72HPH-465M |
| Maximum Power (Pmax/W) | 445 | 450 | 455 | 460 | 465 |
| Open Circuit Voltage (Voc/V) | 49.10 | 49.30 | 49.50 | 49.70 | 49.90 |
| Short Circuit Current (lsc/A) | 11.53 | 11.6 | 11.66 | 11.73 | 11.79 |
| Voltage at Maximum Power (Vmp/V) | 41.30 | 41.50 | 41.70 | 41.90 | 42.10 |
| Current at Maximum Power (Imp/A) | 10.78 | 10.85 | 10.92 | 10.98 | 11.05 |
| Module Efficiency(%) | 20.5 | 20.7 | 20.9 | 21.2 | 21.4 |
| Operational Temperature | -40'C ~ +85'C | ||||
| Power Output Tolerance | 0~3% | ||||
| Temperature Coefficient of lsc | +0.050%/°C | ||||
| Temperature Coefficient of Voc | -0.265%/°C | ||||
| Temperature Coefficient of Pmax | -0.340%/°C | ||||
AUTHORIZATION
LONGi Solar is highly committed to retaining its 'leadership in mono’and being a loyal partner in its distribution network.
We have obtained their official authorization and established a long-term, stable, and sustainable cooperative relationship.
