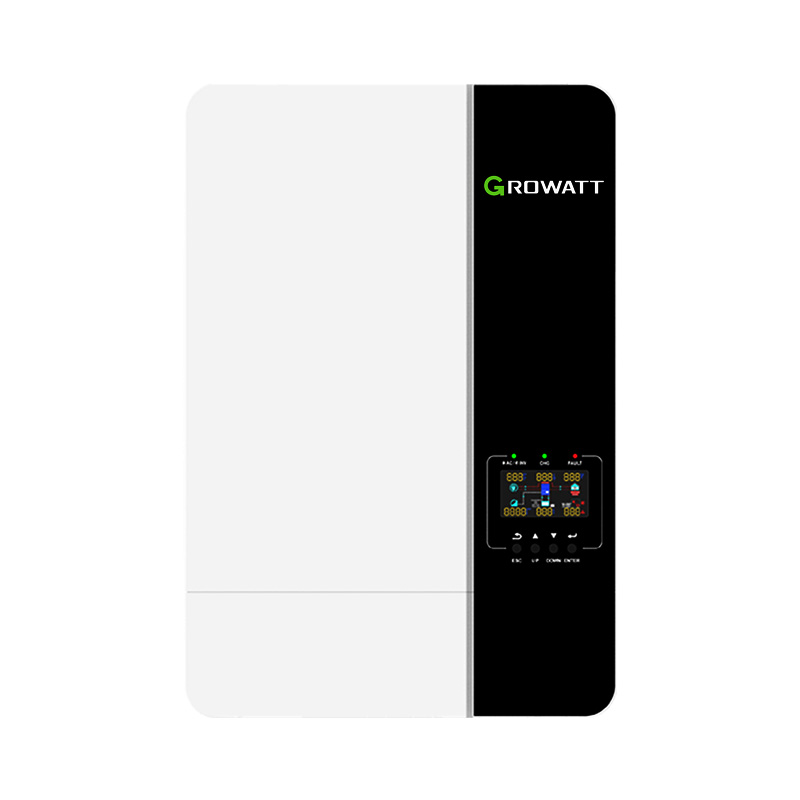

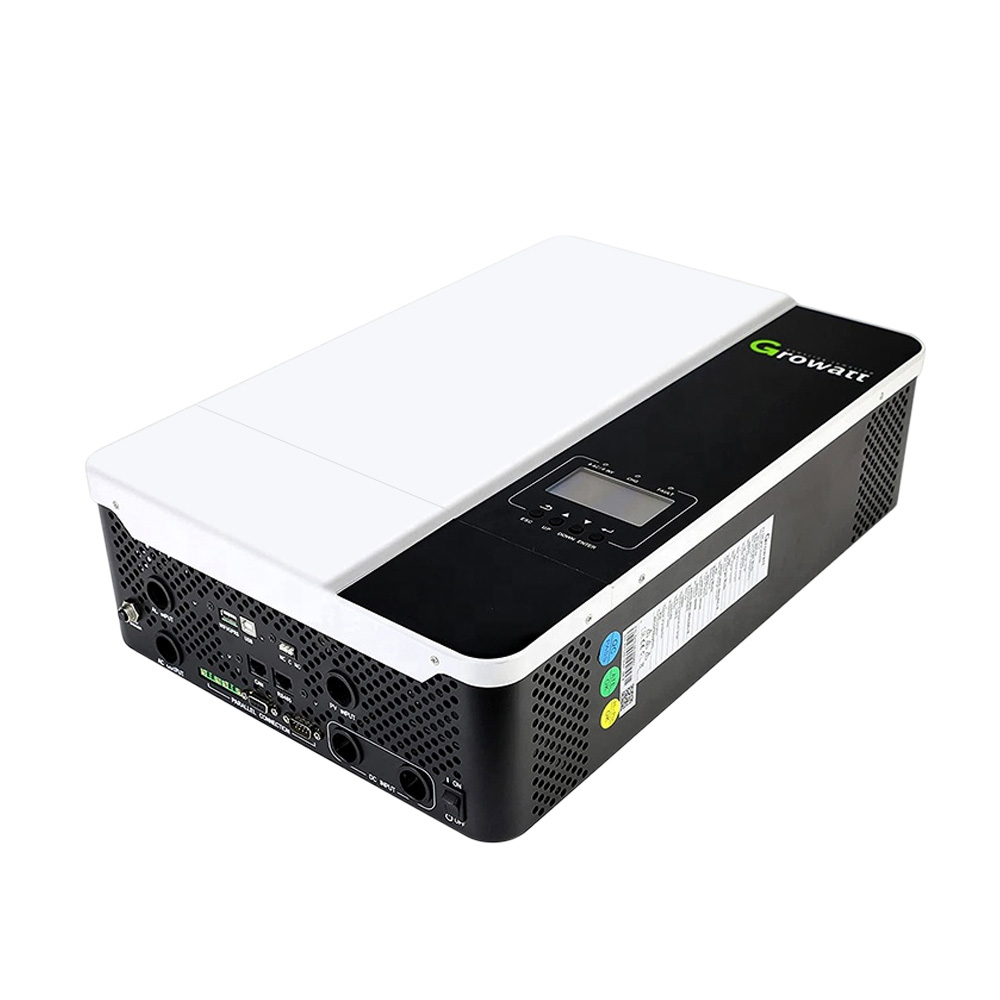

Growatt SPF ES Series Off Grid Inverter 3.5KW and 5KW

This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications



  • Brand Name :

    Growatt
  • Module ID :

    SPF 3500~5000 ES
  • Type of Battery :

    Lithium /Lead-acid(48V)
  • Output Voltage :

    220V or 380V
  • Output Frequency :

    50Hz/60Hz
  • Parallel Capability :

    Yes, 6 units maximum
  • Size: :

    330/485/135mm
  • Operating temperature :

    –0 °C ~+55 °C
  • Weight :

    12KG
  • Protection degree :

    IP20
  • Warranty :

    5 years(10 years is Optional)

Growatt SPF ES Series Off Grid Inverter

Product Feature

Product Features

SPF 3000~5000 ES

Integrated MPPT charge controller

Equalization charging function

Work with or without battery

PV input voltage up to 450VDC

Configurable grid or solar input priority

Optional WIFVGPRS remote monitoring

Support parallel operation for capacity expansion up to 30kW

PV and grid power the load jointly if PV energy is unsufficient

Flexibly schedule the Inverter charging and discharging time

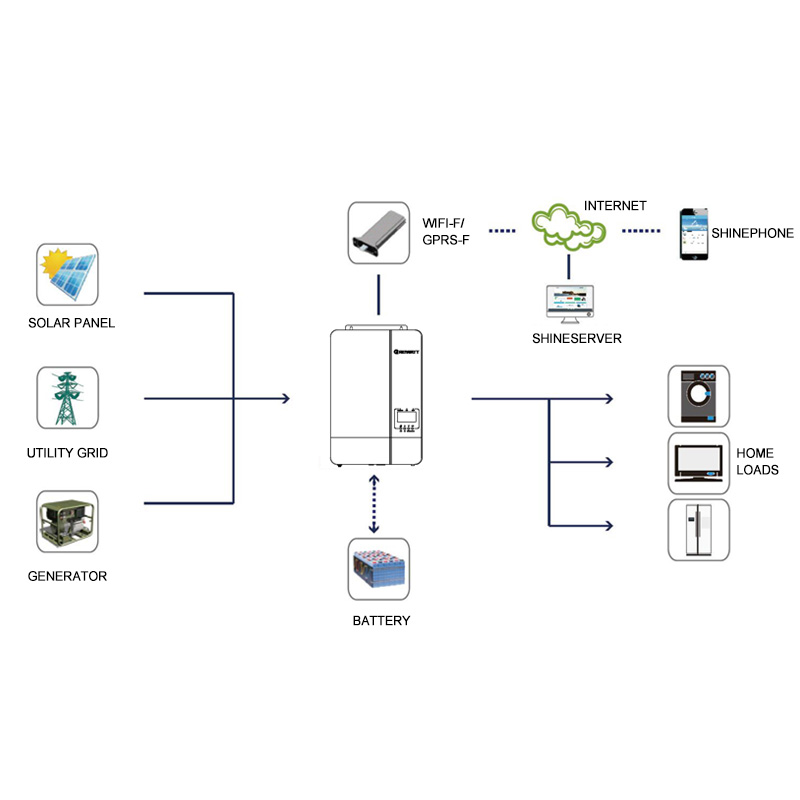

system connection

Growatt SPF ES Series Off Grid Inverter Chart

SPF3500ES and 5000ES are multi-functional off grid solar inverter, the whole system include such as solar panel, battery, generator and utility grid etc.

During the day, solar photovoltaic power is converted into alternating current through the inverter for use by the load, and the extra power will be stored in the battery for use at night. When the power in the battery is low or in rainy weather, generator and utility grid  can be used as a supplement

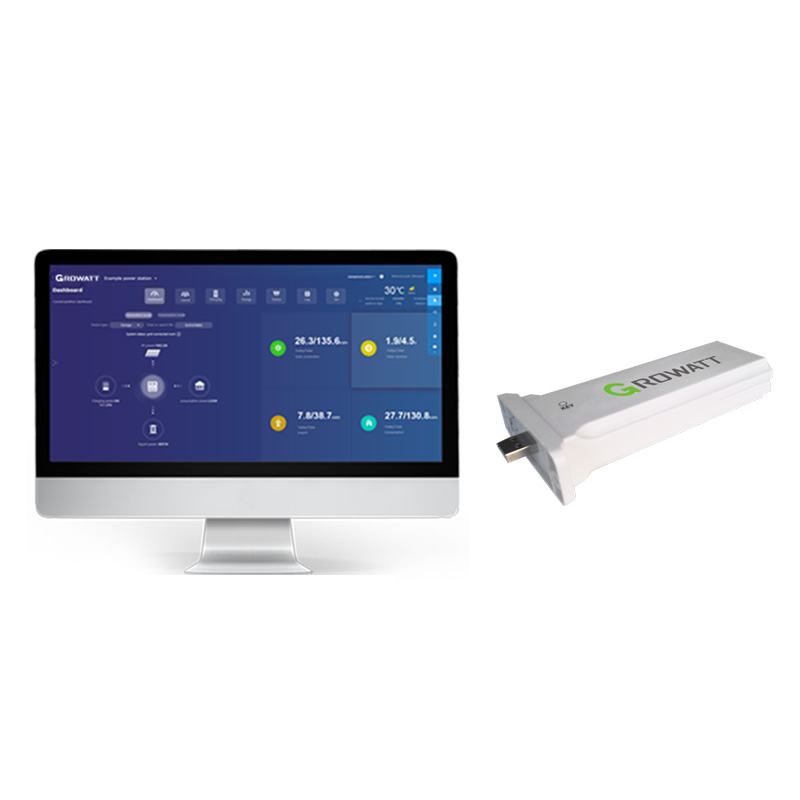

The WiFi / GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.



Smart Monitoring Platform

Smart Monitoring System

ShineWiFi/GPRS-F

Smart and Powerful

>special design for the off grid system

>Support remote firmware upgrade

Simple and Efficient

>Cable free, easy installation

>Built-in memory for one month of data

Growatt Monitoring Platform

ShinePhone

>System monitoring APP for users

> One APP for all Growatt products

>Simple WiFi configuration

ShineServer

>Web version monitoring platform for users

>Self-consumption and energy trend display

ShineTools

>Lite version O&M APP

>Local commissioning and local firmware upgrade

OSS

>Powerful O&M platform for installers and distributors

>Online smart I-V curve diagnosis
