Growatt is a leading global manufacturer of solar inverters, energy storage solutions, and smart energy management systems. These inverters are designed for residential and small industrial applications. Available capacities: 4KW -12KW. The Growatt SPF inverter is known for its high efficiency, reliability, and flexibility.
Brand Name :
GrowattPower Range :
4KW-12KWBattery Type :
Lithium / Lead Acid BatteryWaveform :
Pure sine waveHumidity :
5% to 95% Relative Humidity(Non-condensing)Frequency Range :
50Hz/60Hz (Auto sensing)Protection degree :
IP20/NEMA Type 1AC Input Voltage :
230 VACBattery Voltage :
48VDCParallel Capability :
No

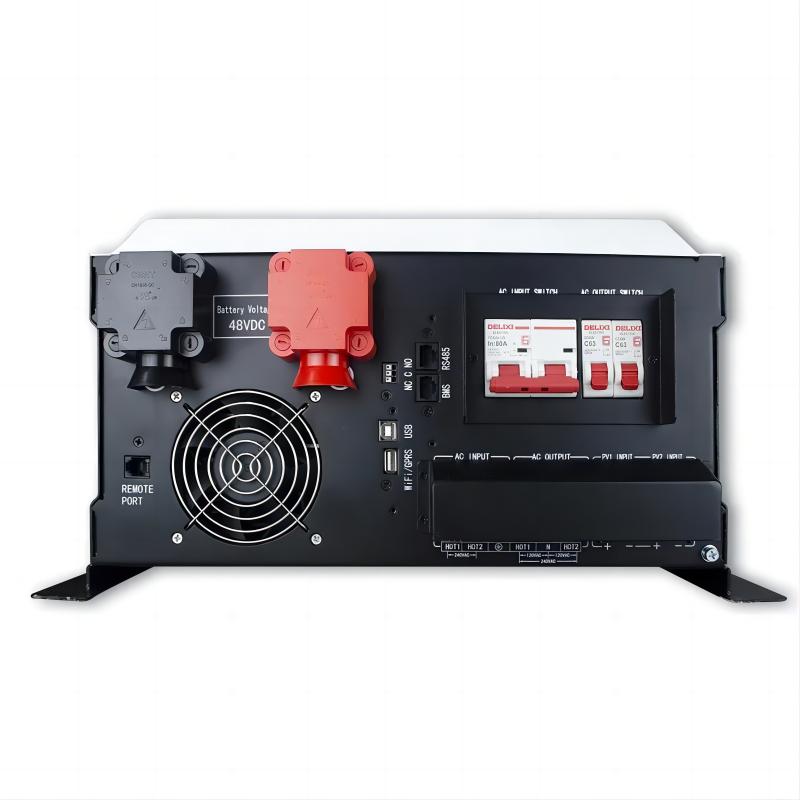

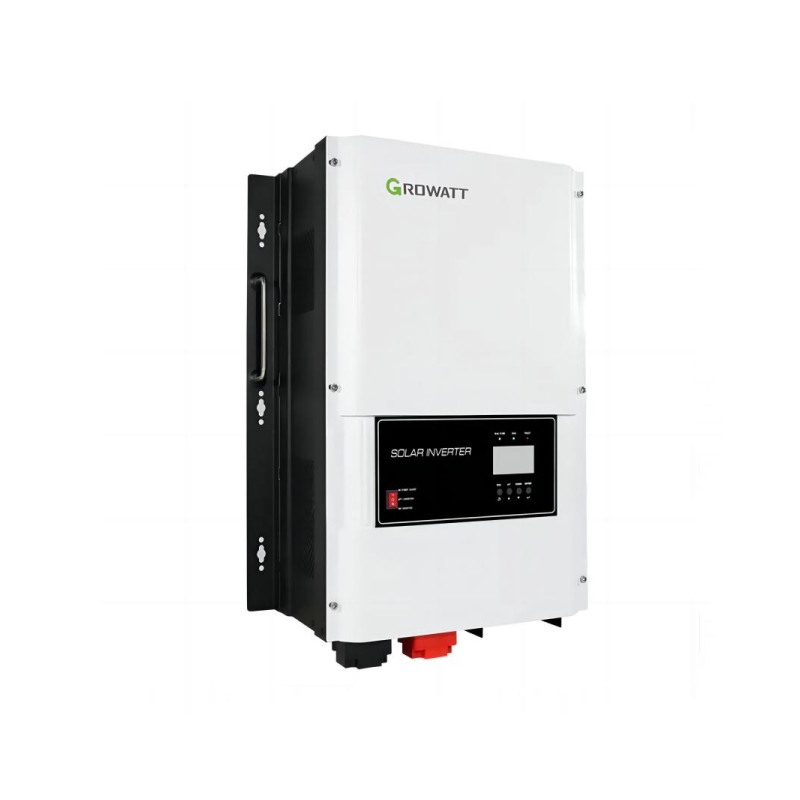

Growatt SPF 4K~12KT DVM-US/ -US MPV
This is a multifunctional split-phase output off grid solar inverter, integrated with a MPPT solar charge controller, a lowfrequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications.
Features:
>Low frequency inverter 120/240Vac Split Phase output
>Integrated MPPT charge controller
>Optional WIFI/ GPRS remote monitoring
>Built-in pure copper low frequency transformer
>Configurable grid or solar input priority/Generator connection
available

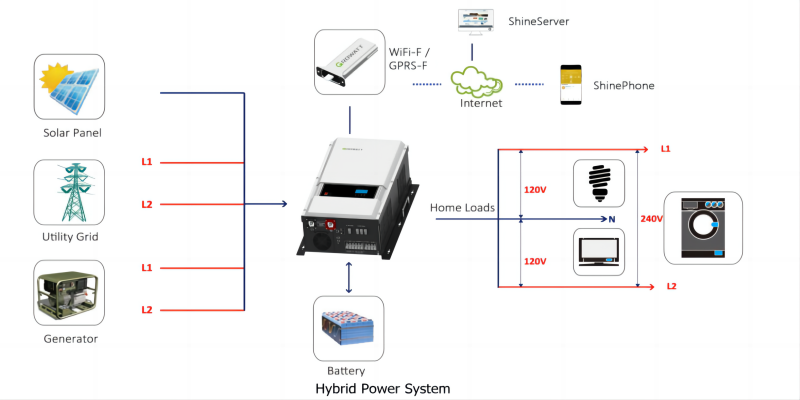

System Working Connection Drawing
The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid. You could consult with your system integrator for other possible system architectures depending on your requirements. The WiFi / GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.

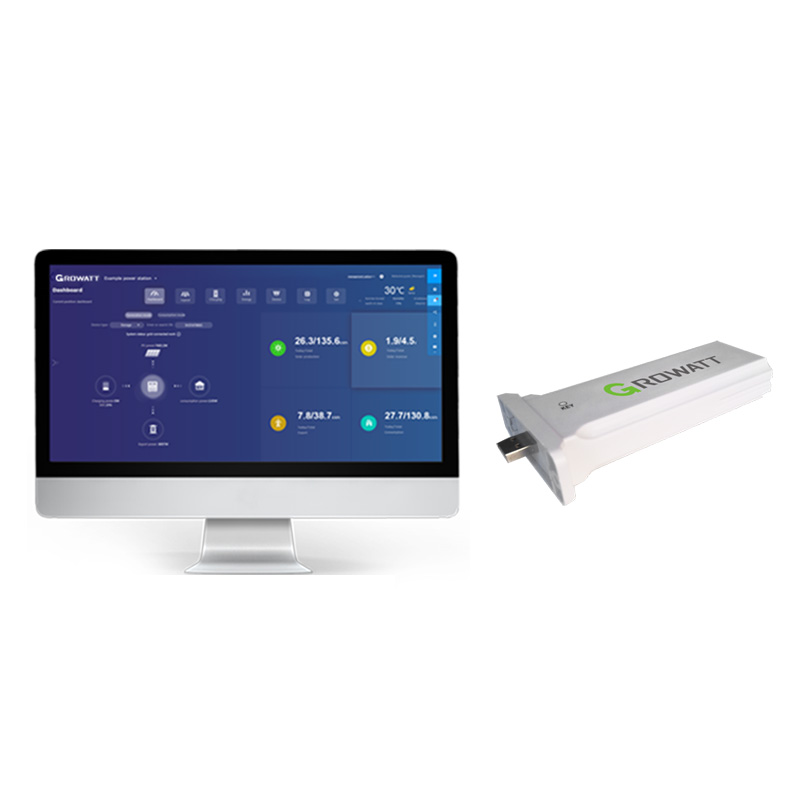

Smart and Powerful– Monitoring Platform
Its Online monitoring and maintenance, which supports local commissioning and firmware upgrade (for ShineWiFi-F)
>Data Security-Data encrypted with built-in memory for one month of data.
>Ability to store data for up to 30 days after connection loss
>Updated information after internet connection is regained
>User-friendly interface
>Easy to use and install
>Operating range up to 50m
>Data accessibility via website or ShinePhone application
