SPH Series is used to store energy generated by the solar panels or energy from grid if it is allowed in the battery, also energy can be sent to power grid through SPH for self consumption or when Grid power is lost, SPH can be used as backup power.
Brand Name :
GrowattOperating temperature :
–25 °C ~+60 °CWarranty :
5 years(10 years is Optional)Output Frequency :
50Hz/60HzSize: :
458/565/188mmModule ID :

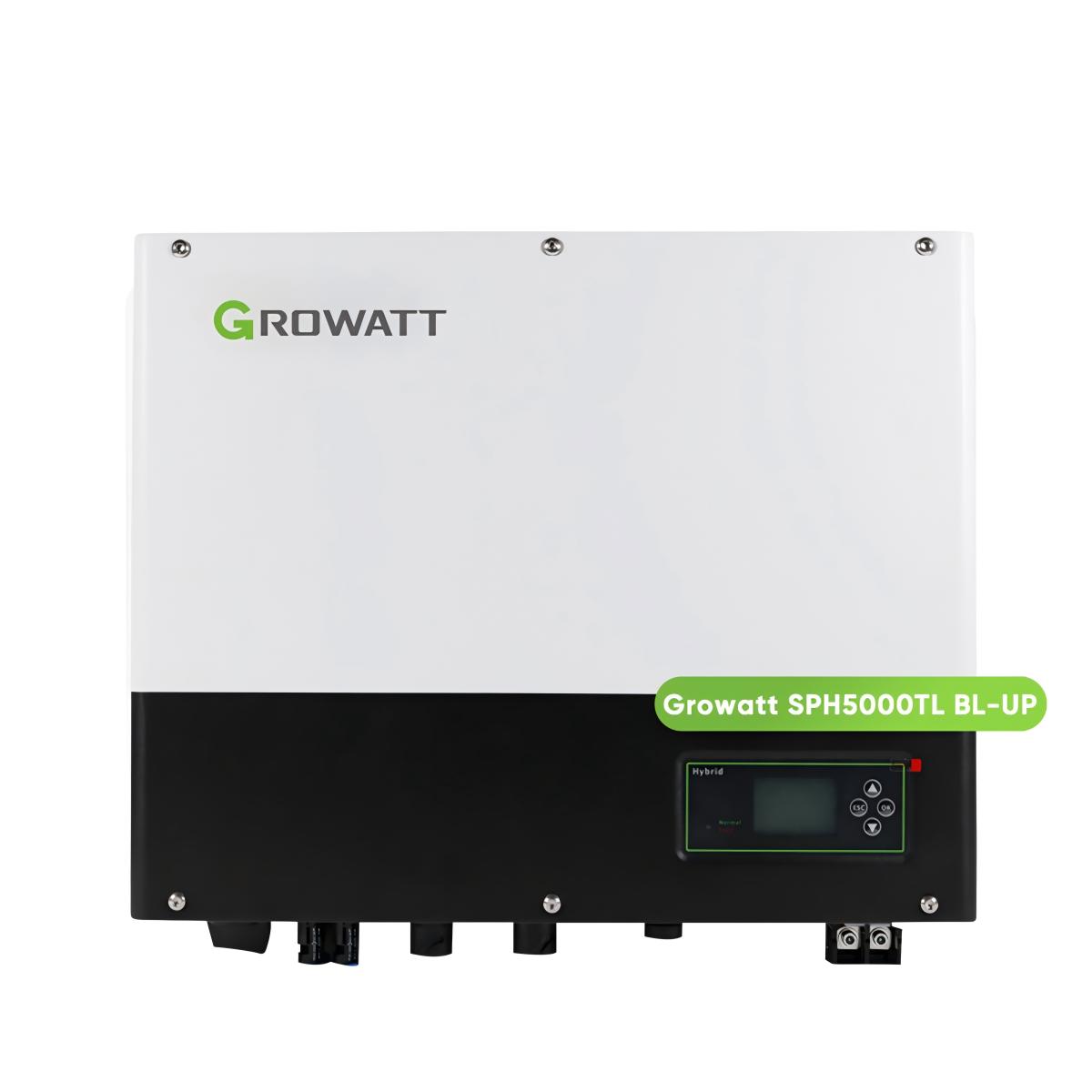

SPH 5000TL BL-UPProtection degree :
IP65Type of Battery :
Lithium /Lead-acidSelfpower consumption :
<10WOutput Voltage :
220V or 380V
Product Feature
-Back-up function
-2 MPPTs allowing the connection of two panel strings to the inverter.
-Natural cooling results in less noise.
-User-friendly thanks to a built-in LCD screen.
-Possibility to adjust charging and discharging capacities and times.

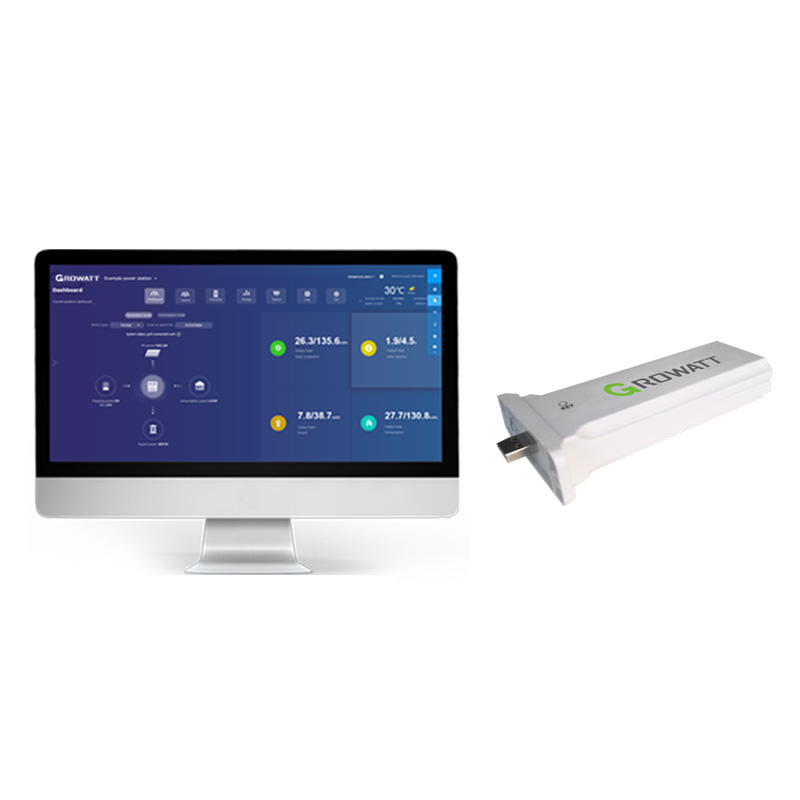

-Access to the Online Smart Service with an app, OSS system, and a web server.
-Compatible with ShineLink-X series for monitoring.
These features make the SPH-BL-UP series from Growatt a smart and efficient choice for anyone looking for seamless integration of renewable energy technologies.
Product Usage
The Growatt SPH BL-UP 5kW hybrid inverter enables design flexibility with 2 MPPTs and an IP65 rating that allows for the inverter to be installed outside. This inverter can be monitored via the Growatt Shine-WiFi-X.
The SPH5000 BL-UP is single phase hybrid inverter ideal for new installation storage system. Stunning IP65 protection level, more durable and flexible for installation, multiple programmable working modes, decide by yourself how to realize self-sufficiency and increase system self-consumption. And the EPS output can even provide backup supply during grid absence.
The SPH BL-UP comes with EPS functionality built in, with <10ms changeover time keeping the power on during blackouts. The SPH BL-UP can be paired with up to 6 x 3.3kWh ML33TRA (19.8kWh) or 4 x 6.5kWh GBLI batteries (26kWh).
Buying from Sail Solar also increases the warranty from the standard 5 years to 10 years.
Growatt SPH Series
Growatt SPH 3000-6000TL BL-UP, single-phase hybrid inverters are ideal for home systems. When paired with a low voltage battery, these inverters provide an uninterruptible power supply to a home.
Suitable for both new installations and retrofit systems, these hybrid inverters offer a wide PV voltage range and features programmable working modes.
The unit has a compact, robust design, with IP65 protection and natural cooling. They have an outstanding efficiency of up to 97.6% and include an LCD & LED display with touch keys as well as a DC switch.
