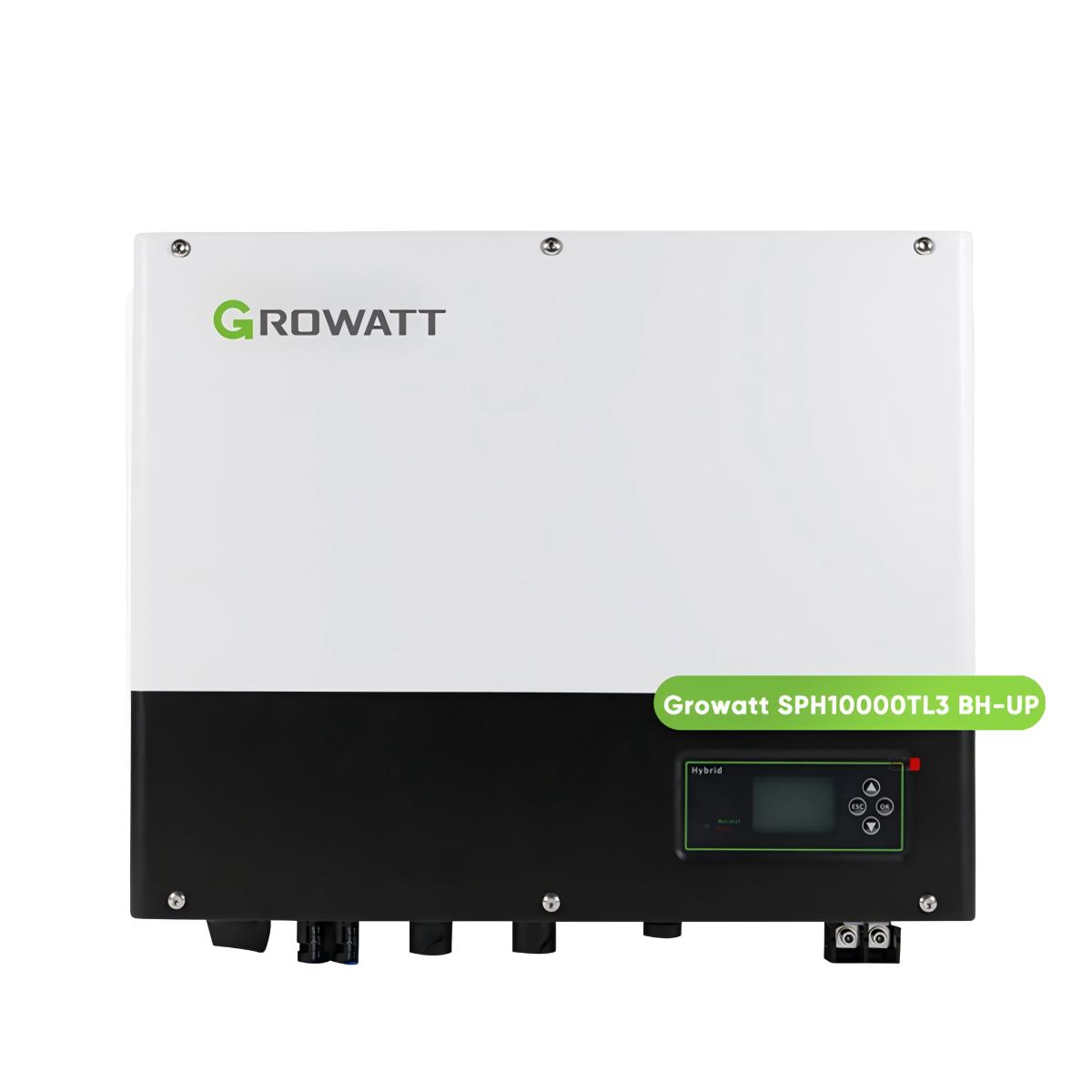

The Growatt SPH BH series are ideal 3-phase hybrid inverters suitable for large residential and small commercial PV installations. The technology equipped in these inverters ensures excellent interaction between solar panels, storage systems, and the power grid, making them a preferred choice for many installers.
Brand Name :
GrowattOperating temperature :
–25 °C ~+60 °CWarranty :
5 years(10 years is Optional)Output Frequency :
50Hz/60HzSize: :
505/453/198mmModule ID :
SPH10000TL3 BH-UPProtection degree :
IP65Type of Battery :
Lithium /Lead-acidSelfpower consumption :
<10WOutput Voltage :
220V or 380V
Product Features
-2 MPPTs allowing connection of two panel strings to the inverter.
-Natural cooling resulting in reduced noise.
-User-friendly with a built-in LCD screen.
-Capability to adjust charging and discharging capacities and times.

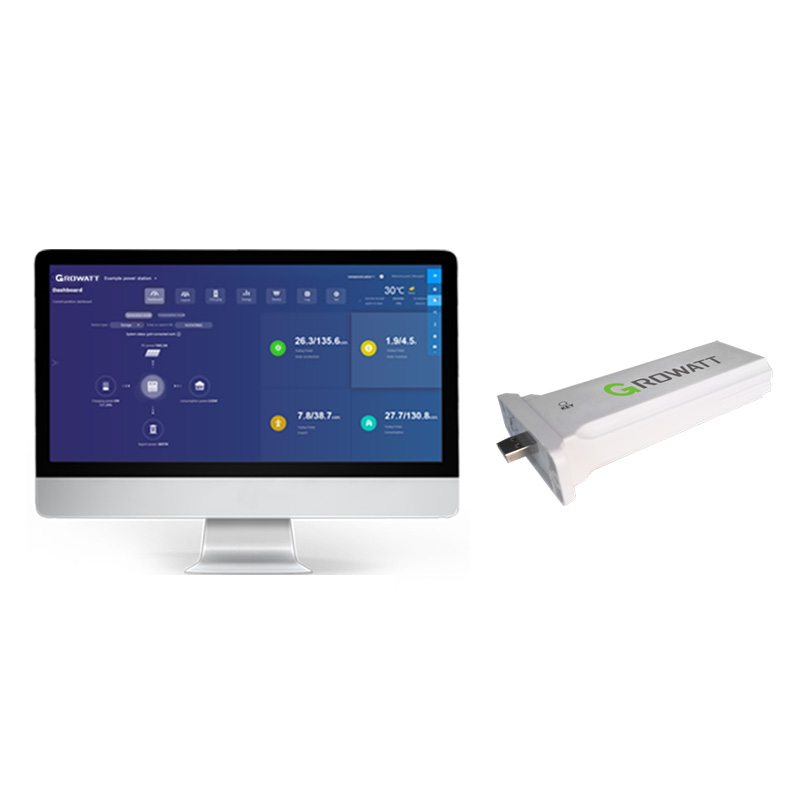

-Access to the Online Smart Service with an app, OSS system, and a web server.
-Compatible with the ShineLink-X series for monitoring.
These features make the Growatt SPH-BH-UP series a smart and efficient choice for anyone seeking seamless integration of renewable energy technologies.
General Informatiopn
-UPS function, 10 ms switching
-Compact design for easier installation
-3% phase unbalanced 100-phase output
-Asymmetrical management of energy flow in phases
-LCD display with four buttons
-Natural cooling without fans
-Possibility to set charging and discharging times
-Online Smart service
-Battery management system for safe operation
-Battery charge status check
-IP65 protection grade
-Total Growatt Warranty Plan
-10 years warranty
Products Services
Growatt Inverters are traveling to you in insured transport. Shipments are packed with great care in such a way that inverter arrived at its destination intact. Packing takes place under the supervision of cameras. However, if there is a problem, please write a protocol with the courier, mark what exactly is damaged and this is where the customer's responsibility ends.
