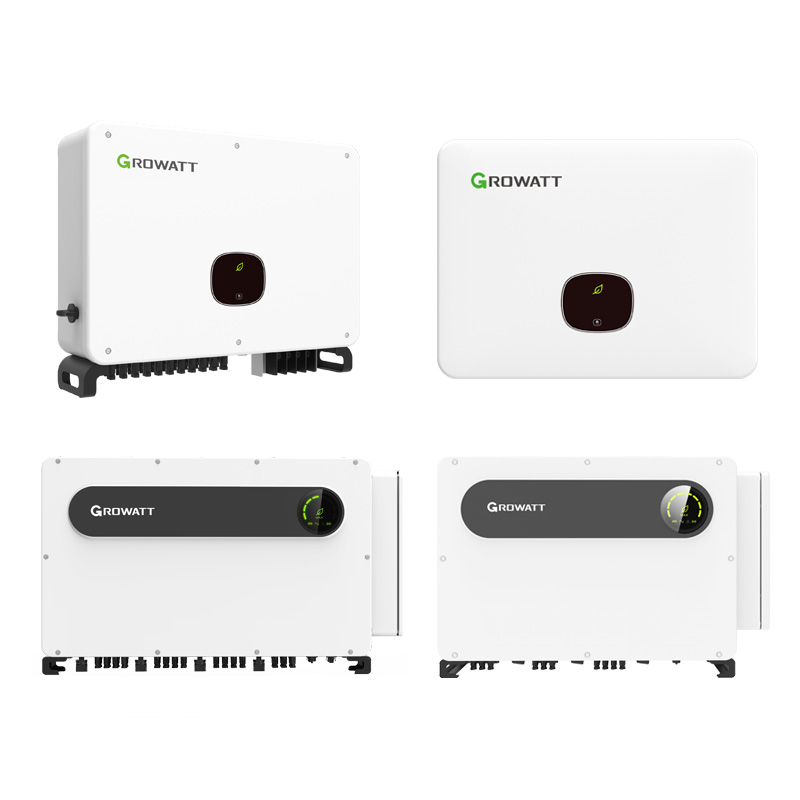

Growatt is a global leader of smart energy solutions and provides residential, commercial and utility-scale PV inverters, energy storage, microgrid systems and smart energy management solutions.
Brand Name :
GrowattOperating temperature :
–0 °C ~+55 °CWarranty :
5 years(10 years is Optional)Size: :
460/395/132mmProtection degree :
IP20Module ID :
SPF6000ES PlusType of Battery :
Lithium /Lead-acid（48V)Output Voltage :
220V or 380VParallel Capability :
Yes, 6 units maximumOutput Frequency :
50Hz/60Hz
Key Features
1. Dual MPP trackers
2. Plug-and-Play terminal for PV port
3. Two AC input terminals with integrated transfer switch
4. Dust-proof filter for harsh environment
5. PV input voltage up to 500VDC
6. Adjustable inverter charging and output time
7. Equalization charging function
8. Configurable output and charging priority
9. SUB working mode
10. Parallel operation available up to 6 units
11. Compatible with lithium battery
12. Work with battery or without battery
Product Usage

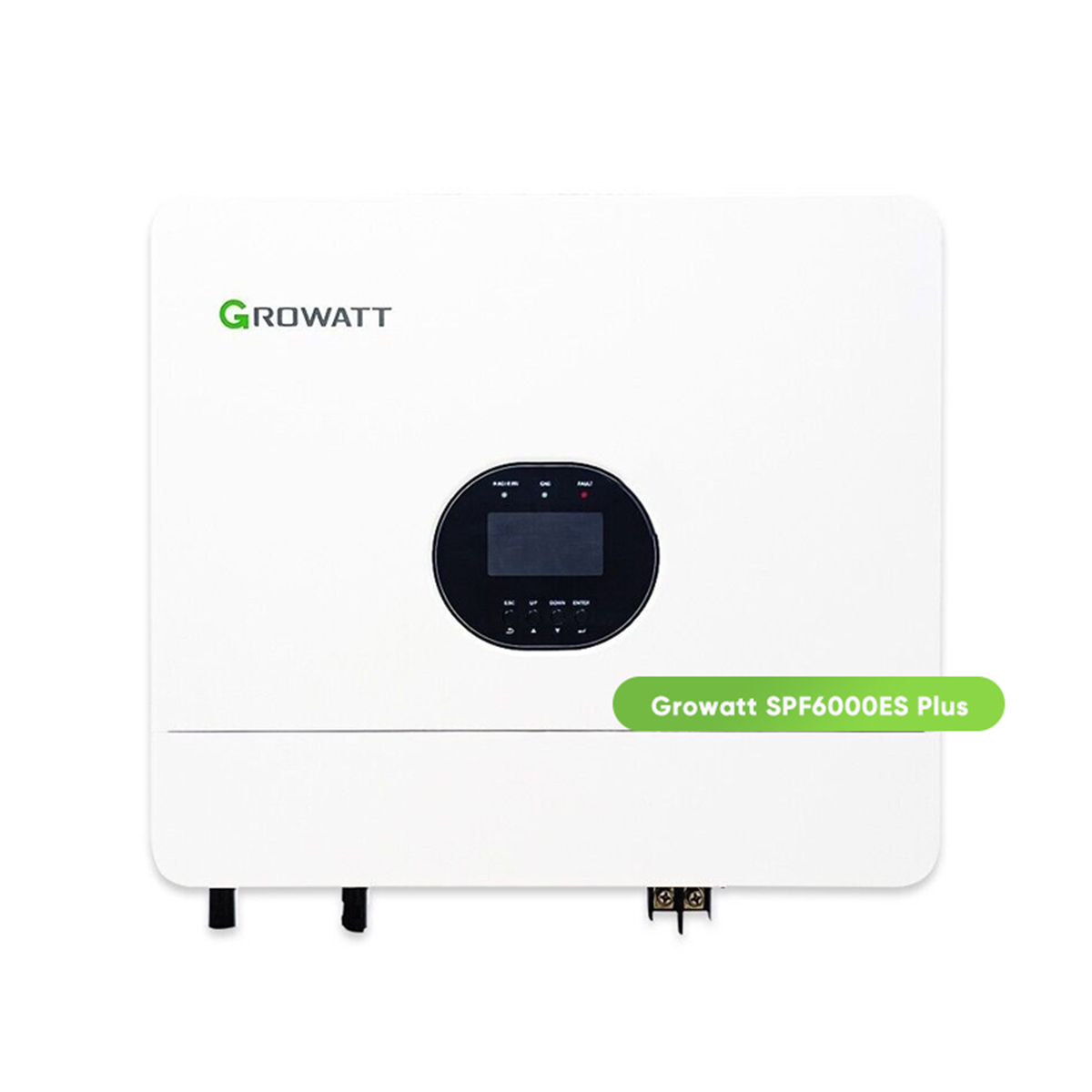

The SPF 6000 ES PLUS Growatt Solar Inverter can work with or without batteries. This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter, and a UPS function module all in one machine, which is perfect for off grid backup power and self-consumption applications.
If you're looking to use 3rd party lithium batteries (not Growatt branded), please confirm with the battery supplier they are compatible with this hybrid inverter before purchase.
Solar Charger
-Maximum PV Array Power 8000w
-MPPT Range @ Operating Voltage 120VDC ~ 450VDC
-Maximum PV array open circuit voltage 500VDC
-Maximum Solar Charge Current 100A
-Maximum Efficiency 98%
AC Charger
-Charge Current 80A
-AC Input Voltage 230VAC
-Selectable Voltage Range 90 - 280VAC (For Home Appliances)
-Frequency Range 50/60Hz (Auto Sensing)
