Trina Tier 1 Mono Vertex S Series 420Wp 425Wp 430Wp 435Wp Solar Panel Black Frame 405Wp 410Wp 415Wp 420Wp PV Module All Black

Trina Tier 1 Vertex S Series 415Wp 420Wp 425Wp 430Wp Half Cell Solar Panel Monocrystalline 405Wp 410Wp 415Wp 420Wp PV Module Black Frame Hot Seller 390Wp 395Wp 400Wp 405Wp Solar Panel

  • Brand Name :

    Trina
  • Power Range :

    380-435Wp
  • Max. Efficiency :

    21.6%
  • Weight :

    28.6kg
  • Number of Cells :

    110Cells
  • Dimensions of Module :

    2384×1096×35 mm
  • Glass :

    3.2 mm
  • Cable :

    Photovoltaic Technology Cable 4.0mm2
  • Backsheet :

    White
  • Wind/Snow Load :

    5400Pa/2400Pa
  • Packing :

    MC4 EVO2 / TS4*
  • Frame: :

    35mm(1.38 inches) Anodized Aluminium Alloy
  • Junction Box: :

    IP 68 rated

As the first ultra-high power panels specifically designed for homes and commercial buildings, the Vertex S series open up a new era. Up to 425W module is perfectly designed to fulfill power, efficiency, size, weight, appearance, mechanical load, reliability requirements of rooftop application! Best balance of power and size & weight.

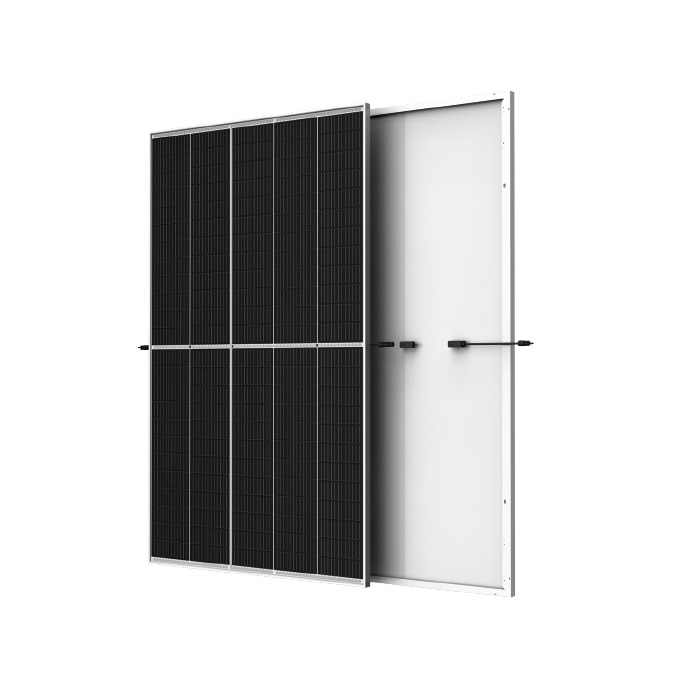

Mono: TSM-DE09

          TSM-DE09R



Vertex S comes with an extended 15-year product warranty and a full 25-year performance warranty-for peace of mind and long-lasting returns.





The upgraded Vertex S series modules feature excellent product performance along with innovative and design-inspired aesthetics.

Vertex S is perfectly designed to fulfill specific requirements for rooftop application, such as power, efficiency, appearance, mechanical load, handling, and reliability. This module will provide the best balance of power, size and weight.

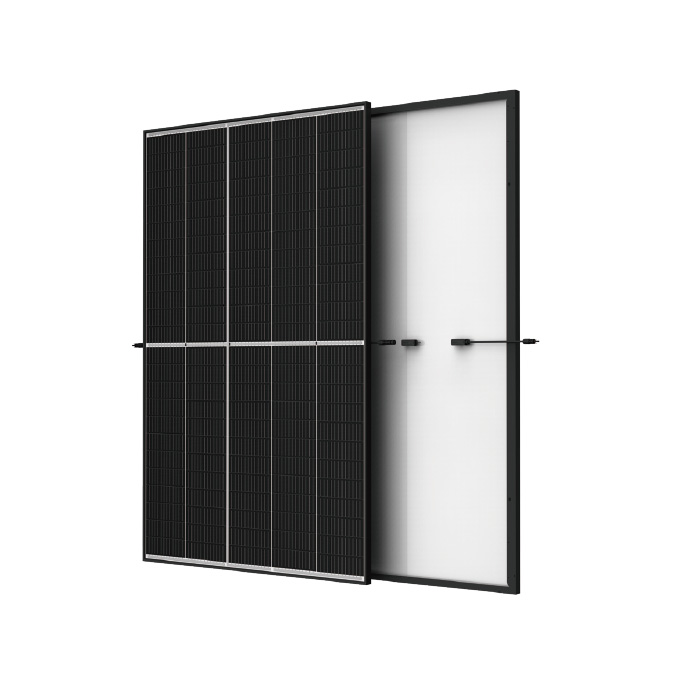

Black Frame: TSM-DE09.08

                     TSM-DE09R.08



Vertex S comes with an extended 15-year product warranty and a full 25-year performance warranty-for peace of mind and long-lasting returns.



The upgraded Vertex S series modules feature excellent product performance along with innovative and design-inspired aesthetics. Design options include the all-black appearance, to match different architectural styles and application scenarios.

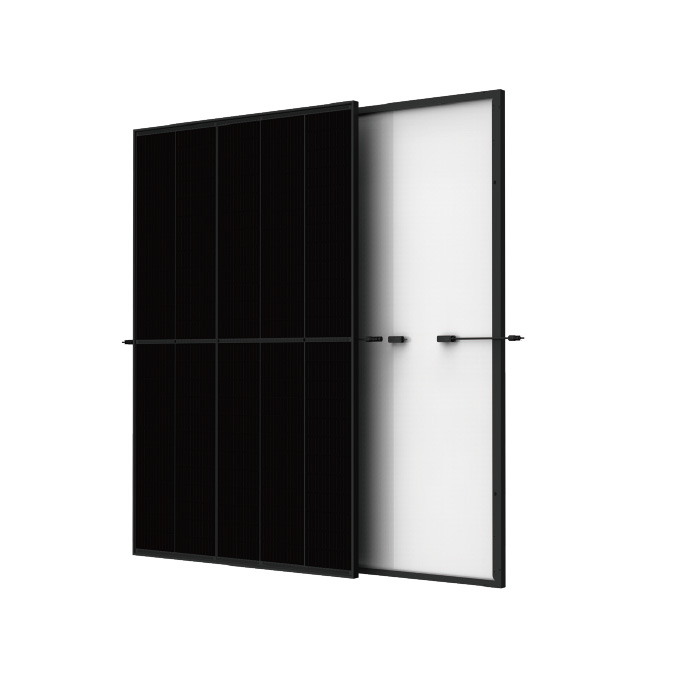

All Black: TSM-DE09.05

                TSM-DE09R.05



Vertex S comes with an extended 15-year product warranty and a full 25-year performance warranty-for peace of mind and long-lasting returns.









Product Parameters(STC)



Module Type
TSM-DE09R.08 415W
TSM-DE09R.08 420W TSM-DE09R.08 425W TSM-DE09R.08 430W TSM-DE09R.08 435W
Power Tolerance-PMAX(W)
0 ~ +5
Maximum Power Voltage-VMPP(V)
41.7
42.0
42.2
42.3
42.5
Maximum Power Current-IMPP(A)
9.94
10.01
10.08
10.17
10.24
Open Circuit Voltage-VOC(V)
50.0
50.1
50.2
50.3
50.4
Short Circuit Current-ISC(A)
10.55
10.58
10.61
10.64
10.67
Module Efficiency η m (%)
20.8
21.0
21.3
21.5
21.8
Operational Temperature
-40~+85ºC
Maximum System Voltage
1500V DC (IEC)
Max Series Fuse Rating
20A
Temperature Coeffcient of PMAX
- 0.34%/°C
Temperature Coeffcient of VOC
- 0.25%/°C
Temperature Coeffcient of ISC
0.04%/°C





AUTHORIZATION



Trina Solar is highly committed to retaining its 'leadership in mono’and being a loyal partner in its distribution network.

We have obtained their official authorization and established a long-term, stable, and sustainable cooperative relationship.
