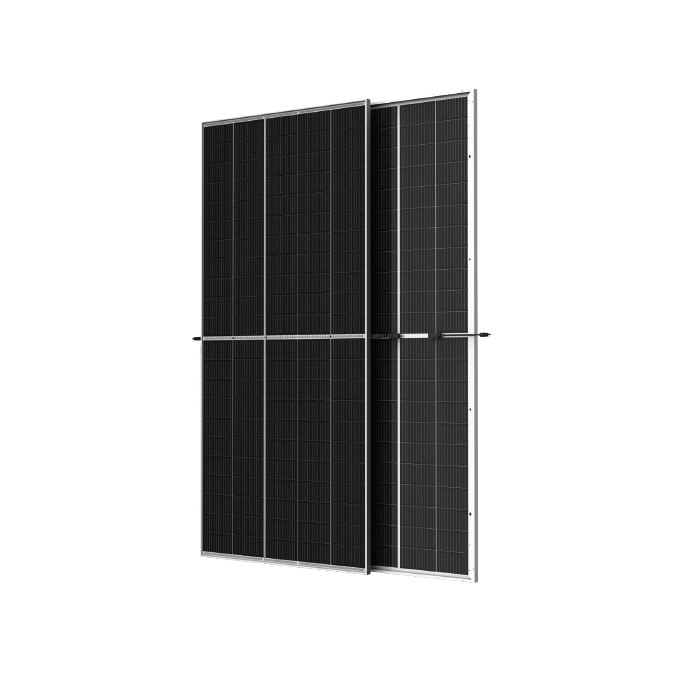

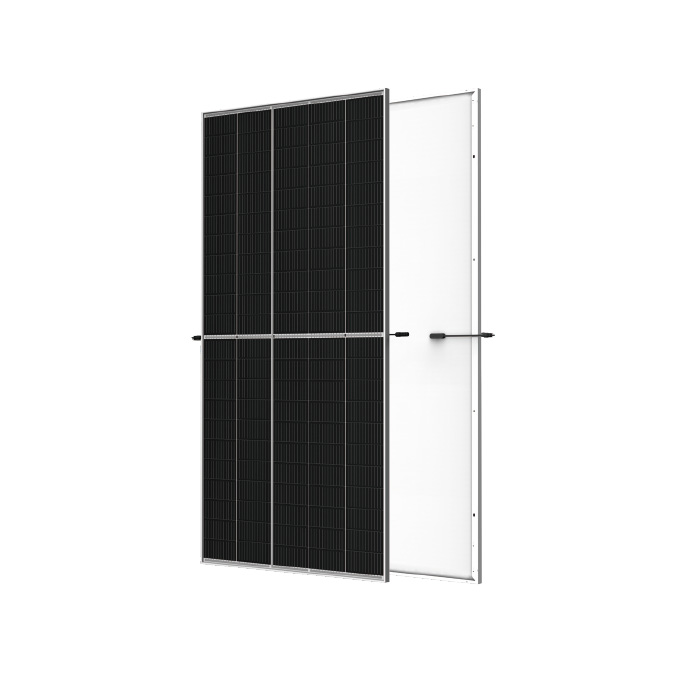

Trina Vertex Series 210mm Multi Busbar 650Wp 660Wp 670Wp Half Cell Solar Panel Monocrystalline 545Wp 550Wp 555Wp 560Wp PV Module Bifacial 530Wp 535Wp 540Wp 545Wp Solar Panel

  • Brand Name :

    Trina
  • Power Range :

    480-670Wp
  • Max. Efficiency :

    21.6%
  • Weight :

    28.6kg
  • Number of Cells :

    110Cells
  • Dimensions of Module :

    2384×1096×35 mm
  • Glass :

    3.2 mm
  • Cable :

    Photovoltaic Technology Cable 4.0mm2
  • Backsheet :

    White
  • Wind/Snow Load :

    5400Pa/2400Pa
  • Connector :

    MC4 EVO2 / TS4*
  • Junction Box: :

    IP 68 rated
  • Frame: :

    35mm(1.38 inches) Anodized Aluminium Alloy

Based on the 210mm large-size silicon wafer and monocrystalline PERC cell, the innovative Vertex allows high power output up to 670W. Multi-busbar, Non-destructive cutting and high-density interconnect technologies, which together allow it to reach 670W power output and 21.6% module efficiency. By virtue of low-voltage and higher module string power output, the new Vertex series unlocks huge potential for further reducing balance-of-system costs.



Mono: TSM-DE18M

            TSM-DE19

            TSM-DE20

            TSM-DE21



Nowadays the market share of PV modules featuring MBB technology is dominant in the global solar industry.





The innovative design of low-voltage and higher string power output improves system efficiency, reducing BOS costs and LCOE.

The TrinaPro utility solution integrates bifacial Vertex modules and our customized TrinaTracker to optimize Vertex module performance and ensure system safety and reliability, boosting performance by 3-8%.



Bifacial: DEG18MC.20(II)

             DEG19C.20

             DEG20C.20

             DEG21C.20

Product Parameters(STC)



Module Type
TSM-DE19 535W
TSM-DE19 540W TSM-DE19 545W TSM-DE19 550W TSM-DE19 555W
Power Tolerance-PMAX(W)
0 ~ +5
Maximum Power Voltage-VMPP(V)
31.0
31.2
31.4
31.6
31.8
Maximum Power Current-IMPP(A)
17.28
17.33
17.37
17.40
17.45
Open Circuit Voltage-VOC(V)
37.3
37.5
37.7
37.9
38.1
Short Circuit Current-ISC(A)
18.36
18.41
18.47
18.52
18.56
Module Efficiency η m (%)
20.5
20.7
20.9
21.0
21.2
Operational Temperature
-40~+85ºC
Maximum System Voltage
1500V DC (IEC)
Max Series Fuse Rating
30A
Temperature Coeffcient of PMAX
- 0.34%/°C
Temperature Coeffcient of VOC
- 0.25%/°C
Temperature Coeffcient of ISC
0.04%/°C





AUTHORIZATION



Trina Solar is highly committed to retaining its 'leadership in mono’and being a loyal partner in its distribution network.

We have obtained their official authorization and established a long-term, stable, and sustainable cooperative relationship.
