All your home appliances, lighting, central air conditioning, and heating, can be powered sufficiently after the installation of the Huawei Smart Module Controller.
Brand Name :
HUAWEIWeight :
0.6 kg (1.3 lb.)Compatible inverters :
SUN2000-12K/15K/17K/20K/25K-MB0, SUN2000-8K/10K-LC0, SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-12/15/17/20/25KTL-M5,SUN2000-8/10/12/15/17/20KTL-M2 SUN2000-30/36/40KTL-M3 SUN2000-12/15/17/20/23/25KTL-M5 SUN2000-50KTL-M3IP rating :
IP68Output wire length :
1.3 m (4.3 ft.)Installation part :
Frame mounting bracket / T-shaped bolt4Input connector :
Staubli MC4Input wire length :
0.15 m (0.49 ft.)Dimensions :
75 mm x 140 mm x 28 mm (3.0 in. x 5.5 in. x 1.1 in.)Output connector :
Staubli MC4Operating temperature :
-40 °C to +85 °C 5 / 0% - 100%
Each panel can work to deliver their maximum power, unaffected by partial shading and module failure, and achieve accelerated power generation and higher yields.

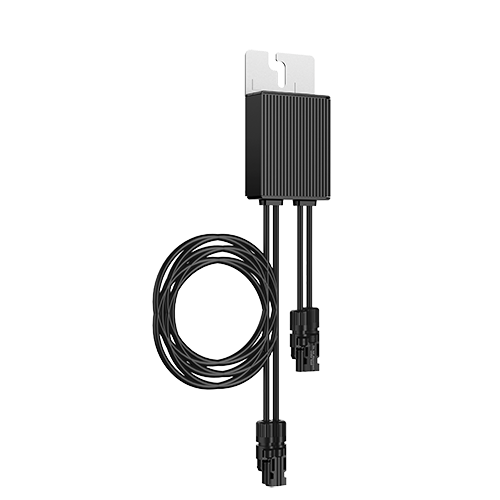

Technical Specification: SUN2000-450W-P2

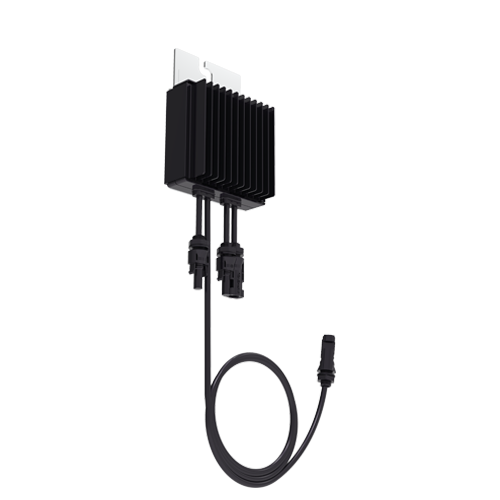

SUN2000-600W-P

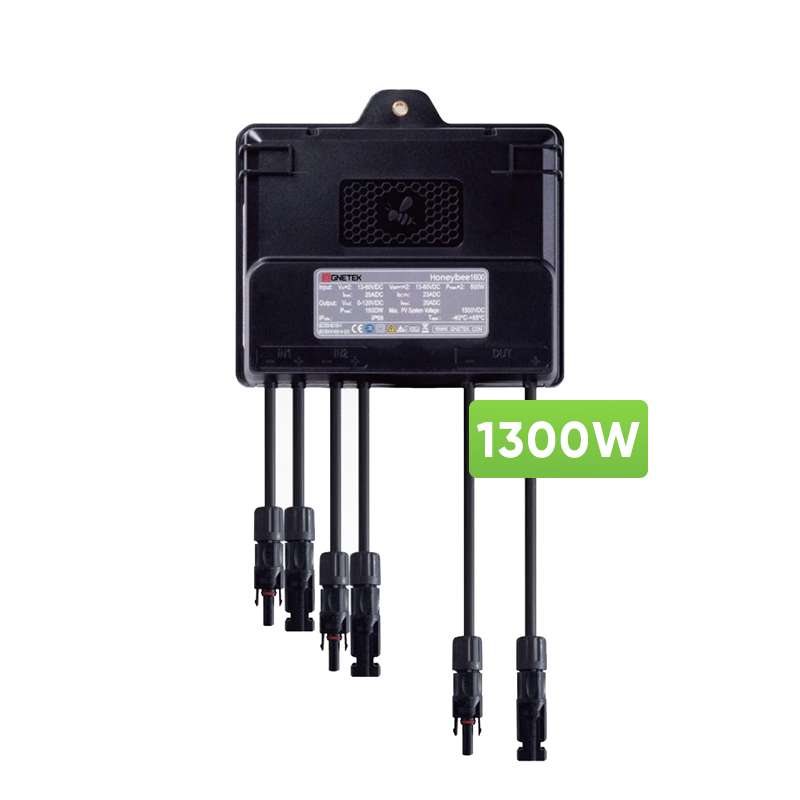

MERC-1100/1300W-P
The Huawei Smart Module Controller brings you a reassuringly ultimate safeguard. In any emergency, the inverter will be switched off instantly, or for any power outage, the rapid shutdown (RSD) of the module voltage will be activated to clear potential risks on a high-voltage rooftop for personnel and firefighting safety.
Input
| Rated input DC power | 450W | 600W |
| Absolute max. input voltage | 80V | |
| MPPT operating voltage range | 10-80V | |
| Max. short-circuit current (Isc) | 14.5A | |
| Input Overcurrunt Protection | 15A | |
| Max. efficiency | 99.5% | |
| Weighted efficiency | 99.0% | |
| Overvoltage category | Ⅱ | |
Output
| Max. output voltage | 80V |
| Max. output current | 15A |
| Output bypass | Yes |
| Output voltage during standby | 0V |
| Output impedance during standby | 1 kΩ ± 10% |
PV System Design
| SUN2000- 2~6KTL-L1 |
SUN2000- 8K/10K-LC0 |
SUN2000- 3~10KTL-M1 |
SUN2000- 12~25KTL-M5 |
SUN2000- 12K/15K/17K/ 20K/25K-MB0 |
|
| Min. string length (power optimizers) | 4 | 4 | 6 | 6 | 6 |
| Max. string length (power optimizers) | 25 | 25 | 35 | 35 | 35 |
| Max. DC power per string | 6,000W | 6,000W | 10,000W | 12,000W | 12,000W |
*1 The maximum power of PV module at STC shall NOT exceed the “Rated Input DC Power” of the power optimizer. PV modules with up to +5% power tolerance are allowed.
*2 Any power optimizer, which is connected to an operating inverter in a PV string, will be bypassed when it fails.
*3 Once the power optimizer stops working, its output voltage is reduced to 0 V.
*4 It is for PV module frame/extruded aluminum profile racking system installation.
*5 When the operating temperature of the SUN2000-450W-P2/600W-P reaches 70 °C to 85 °C, it may shut down due to over-temperature protection and report an over-temperature alarm. After the temperature decreases, it can automatically resume working without causing any damage.
*6 SUN2000-450W-P2/600W-P and MERC-1100/1300W-P can NOT be used in mixture under the same Smart Energy/PV Controller.
