Designed with dual wall insulation, electron beam cross-linked, the PV cable has excellent resistance to UV, water, ozone, fluids, salt, general weathering, anti-abrasion. XLPO material is used for insulation and sheath, so that the cable can resist sunlight and can also be used in high and low temperature environments.
Product Name :

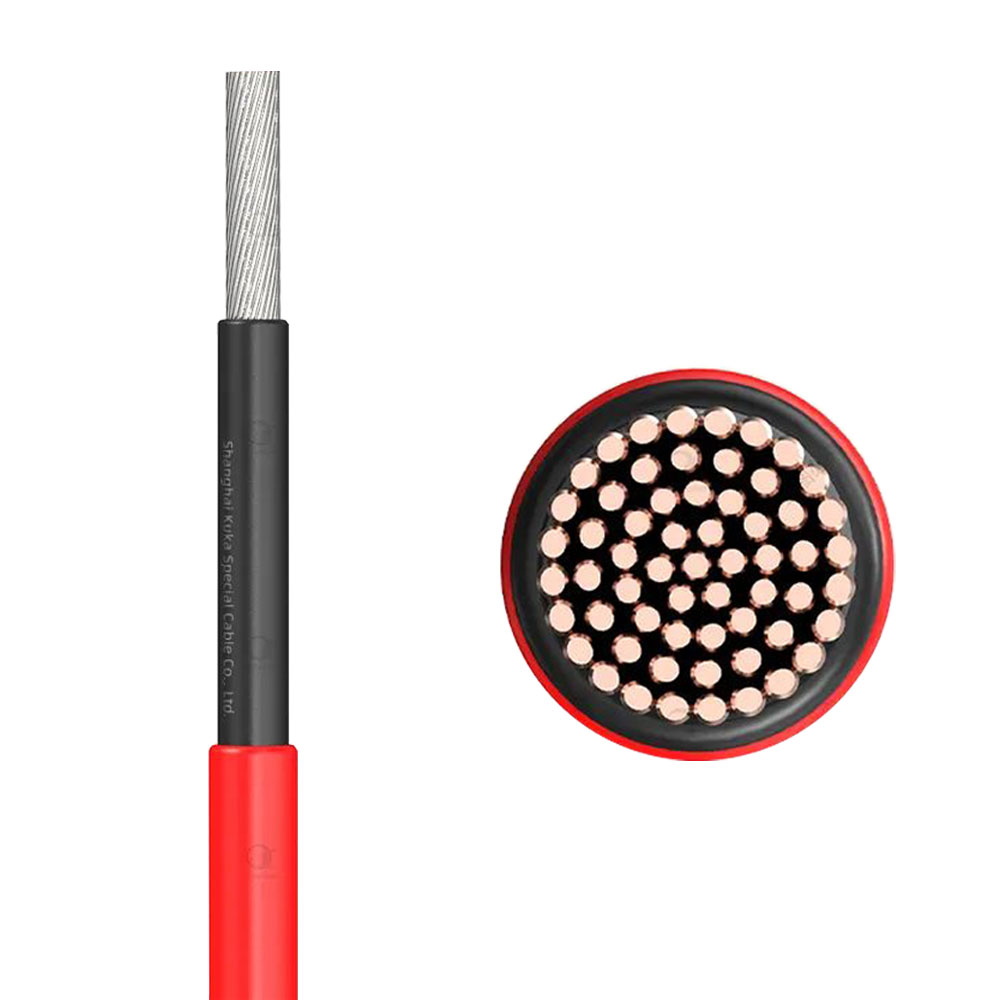

TUV Single Core PV1-F CableConductor :
Tinned copper, Class 5, according to IEC 60228Insulation :
XLPO halogen freeJacket :
XLPO halogen freeInsulation Color :
BlackJacket Color :
Black Or RedService Life :
25 yearsWarranty :
5 years
|
Parameter |
|||
|
Electrical Characteristics |
Mechanical Characteristics |
||
|
Rated Voltage |
0.6/1KVAC, 1000DC |
Bending radius |
Fixed: 4 ×Φ； Flexing:5xΦ |
|
Max. permitted voltage |
1500VDC |
Temperature Range |
-40 °C ~ +120 °C |
|
Insulation resistance |
1000ΜΩ/KM |
Flame-resistant test |
EN 60332-1-2 |
|
Test Voltage |
AC 6.5kV, 50Hz, 5 min |
UV resistance Test |
EN50289-4-17 |
|
Standard |
PV1-E 2 PfG 1169 |
||

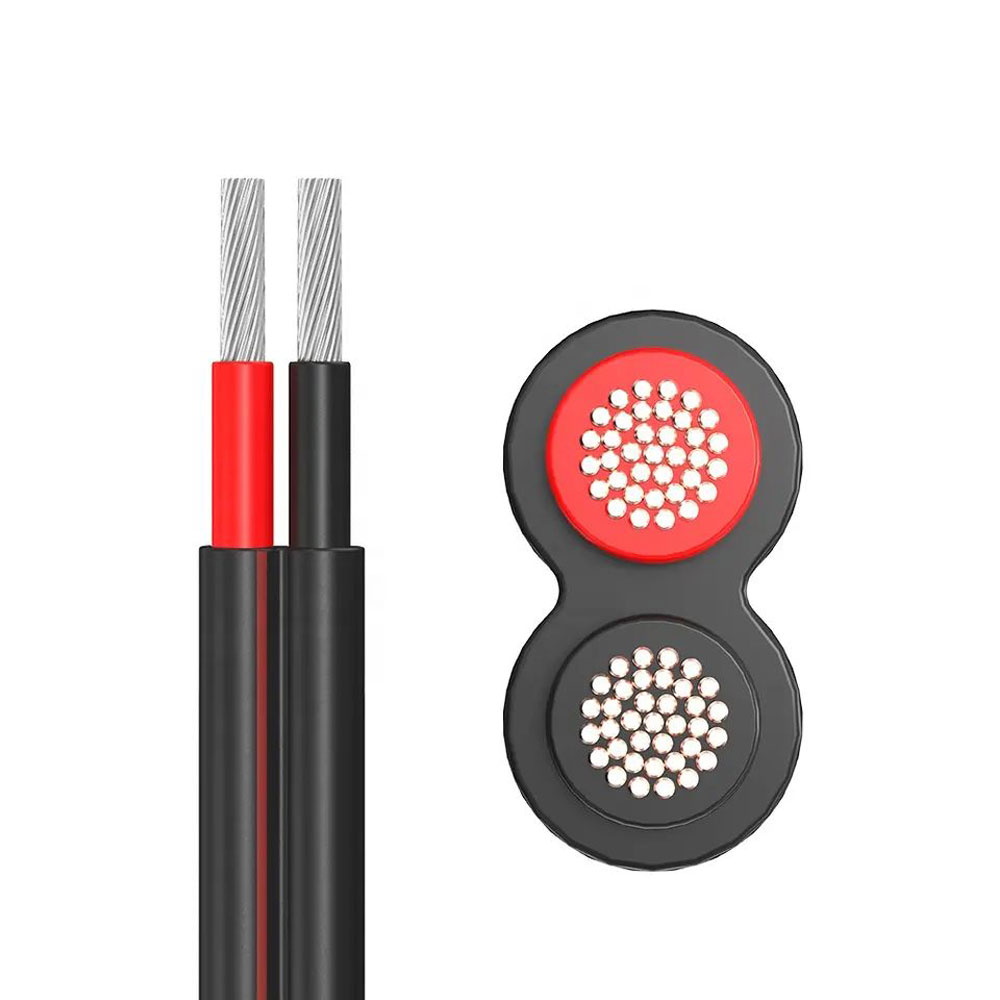

Photovoltaic cables are single-core flexible cables specially designed for solar power distribution systems, widely used in photovoltaic system power stations, junction boxes, connectors, inverters, combiner boxes and other fields.
|
Parameter |
|||
|
Electrical Characteristics |
Mechanical Characteristics |
||
|
Rated Voltage |
1.0/1KVAC, 1500DC
|
Bending radius |
Fixed: 4 ×Φ； Flexing:5xΦ |
|
Max. permitted voltage |
1800VDC |
Temperature Range |
-40 °C ~ +120 °C |
|
Insulation resistance |
1000ΜΩ/KM |
Flame-resistant test |
EN 60332-1-2 |
|
Test Voltage |
AC 6.5kV, 50Hz, 5 min |
UV resistance Test |
EN50289-4-17 |
|
Standard |
EN50618&IEC62930 |
||
The conductor cross-section below 800mm²adopts the compacted conductor with good roundness and high compaction coefficient. The conductor cross-section above 800mm²adopts the split conductor, effectively reducing the skin effect of the conductor and improving the current carrying capacity of the cable.
