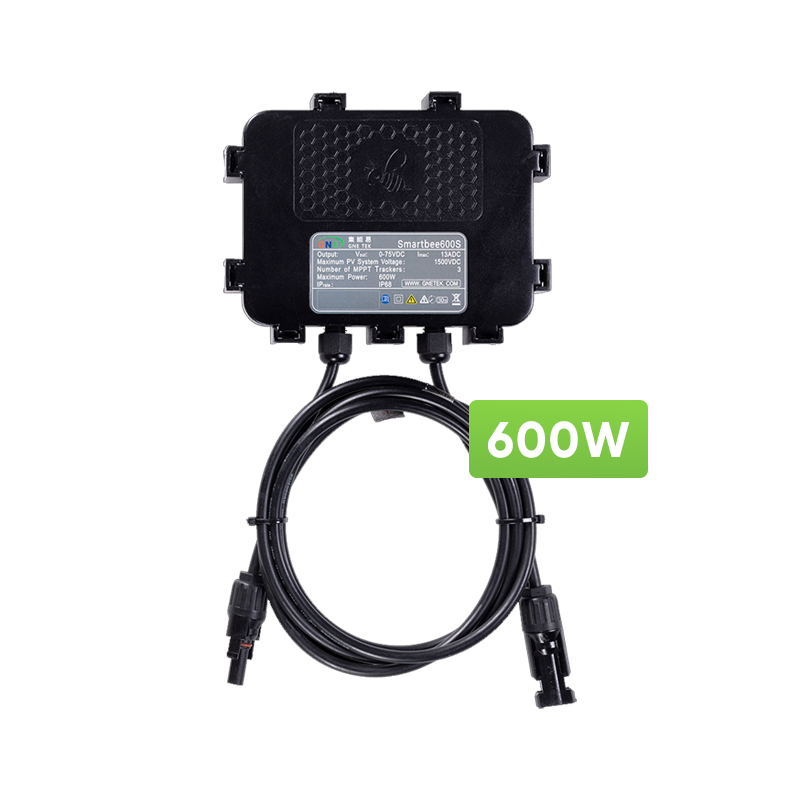

All your home appliances, lighting, central air conditioning, and heating, can be powered sufficiently after the installation of the SAIL SOLAR optimizer. Each panel can work to deliver their maximum power, unaffected by partial shading and module failure, and achieve accelerated power generation and higher yields.
Voltage Range :
0～75 VDCMaximum System Voltage :
1500 VDCMaximum Input Power :
15A/21A/23AMaximum Conversion Efficiency :
99.50%Maximum Output Power :
600WMaximum Output Current :
600WOperation Temperature :
-40～+85℃Cable Length (Input/Output) :
Input: 200 mm/Output: 1000 mm (customizable)Communication Model :
868M/915M/2.4G/PLCConnector (Input/Output) :
Compatible with MC4、StaubliRelative Humidity Protection Level :
0～100% IP68Protection Level :
IⅡ
Product Features:
1. Improving Efficiency: Component-level MPPT tracking, increasing system power generation by 5-25%
2. Safety Shutdown: Automatically shutdown in case of overvoltage, overcurrent, or overtemperature, supporting local and remote shutdown to eliminate high voltage danger
3. Accurate Monitoring: Real-time monitoring of each component's operating data to promptly identify problematic components
4. Convenient Installation: Can be directly connected to existing PV systems without changing the original wiring
5. Long Lifespan: Designed for a 25-year lifespan, matching with PV modules
Solar Panels on Every Side

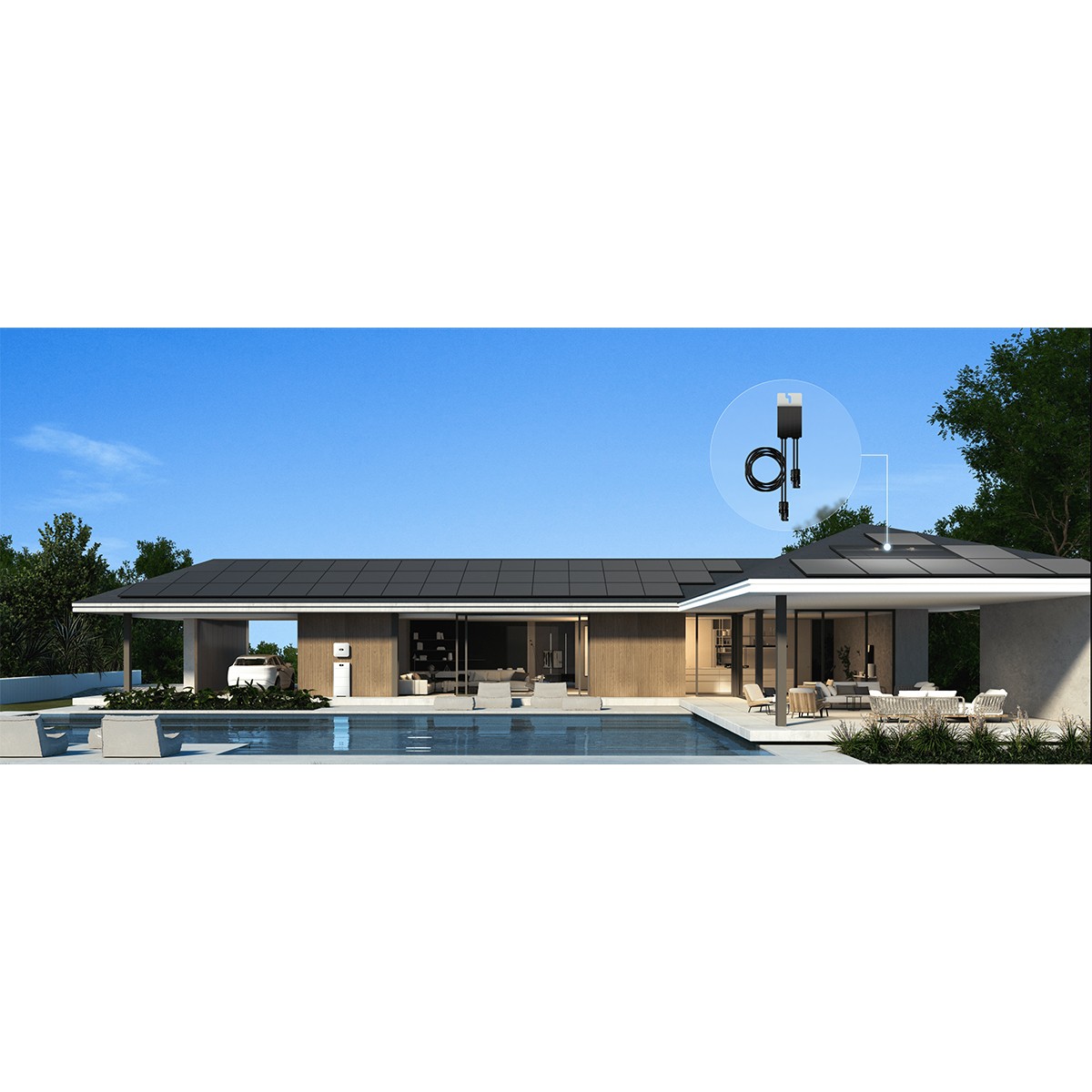

Just make full use of your rooftop by installing solar panels in every available space and creating more green power. The Smart Module Controller enables solar panels to operate independently without interfering with one another. This allows for flexible installation on the rooftop, fearless of shadows, and maximizes the utilization of the surface area.
High-Quality Stay Powerful in All Weathers
Harsh environments and climates, including high temperatures, snow, sandstorms, and rainstorms, are no longer concerns. Huawei smart module controller endures all the extremes and stands the test of time.
