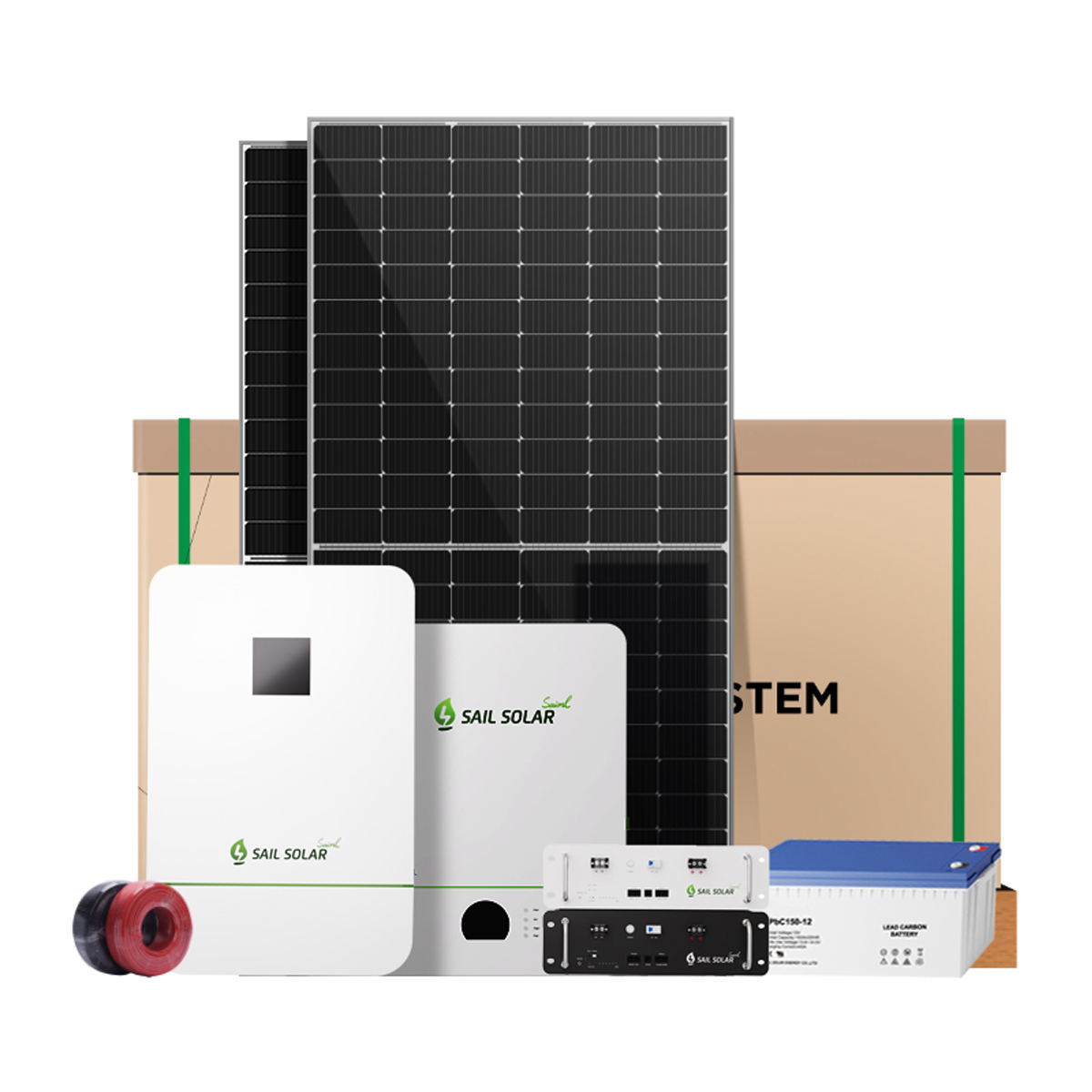

Off-grid solar systems are often used in remote areas where the power grid is unstable. They are designed to provide backup power through battery power storage.
Brand Name :
SAIL SOLARSystem Power :
10KWSystem Type :
Off-GridApplicable Voltage :
EU/US VersionSolar Panel Type :
Mono-crystallineInstallation Type :
Roof/Ground/Water SurfaceCustomization :
AcceptablePre-sale Design :
AcceptableApplication :
Residential & HouseholdCertificate :
CE/MCS/TUV/VDE/UL/CSA/ETL/CECOEM :
Acceptable
What is an Off-Grid Solar System?
An off-grid solar system, also known as an independent photovoltaic system, is a power generation system that operates independently without relying on the power grid. It is mainly composed of solar panels, energy storage batteries, charge and discharge controllers, and inverters. Solar panels convert light energy into electrical energy, and charge and discharge batteries through charge and discharge controllers. Inverters convert DC power into AC power for use by AC loads.

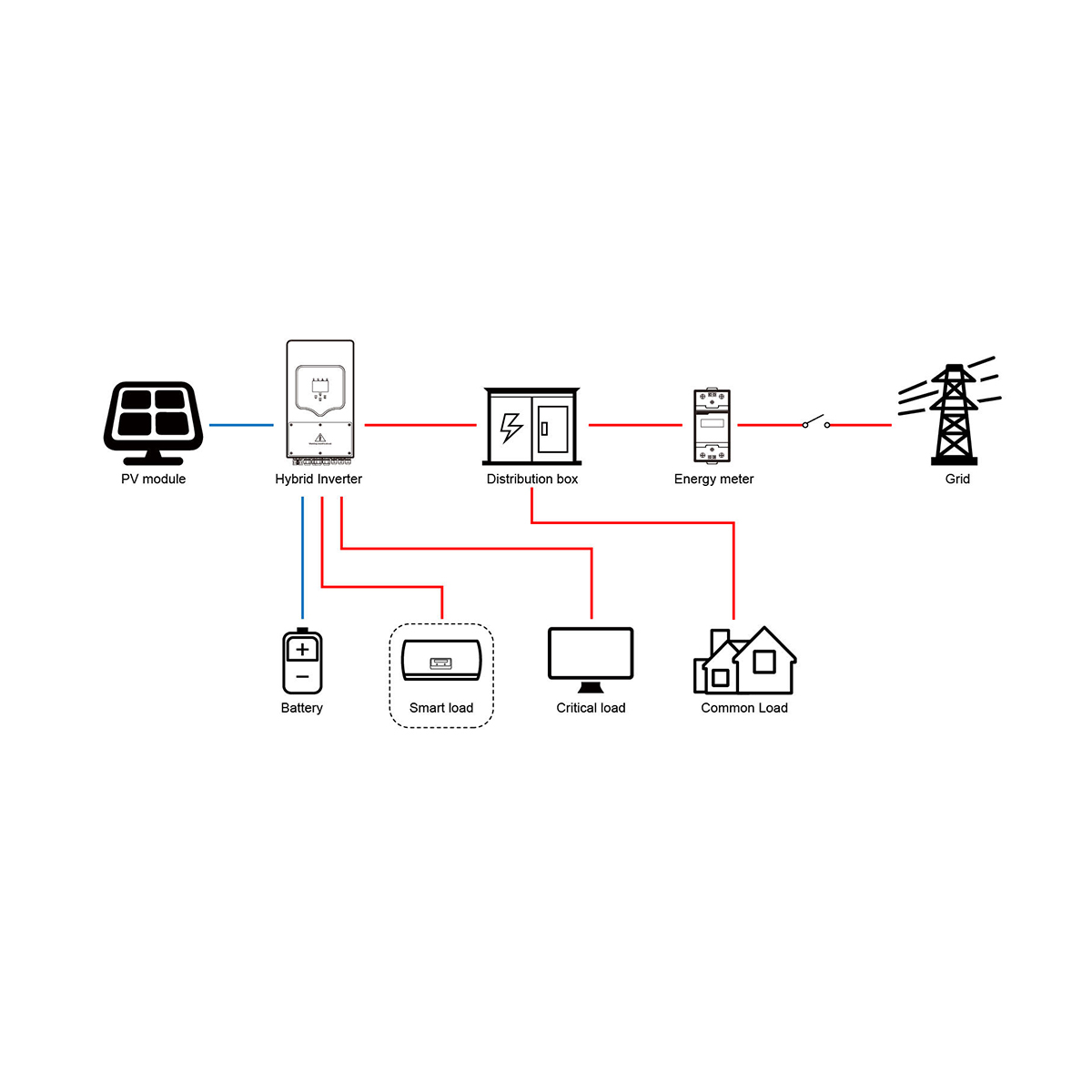

Working Principle
When there is sunlight, the solar panel converts solar energy into electrical energy, and supplies power to the load through the charge and discharge controller, while charging the battery. When there is no sunlight, the battery is converted into AC power through the inverter to supply power to the AC load.
What products are included in an off-grid solar system?

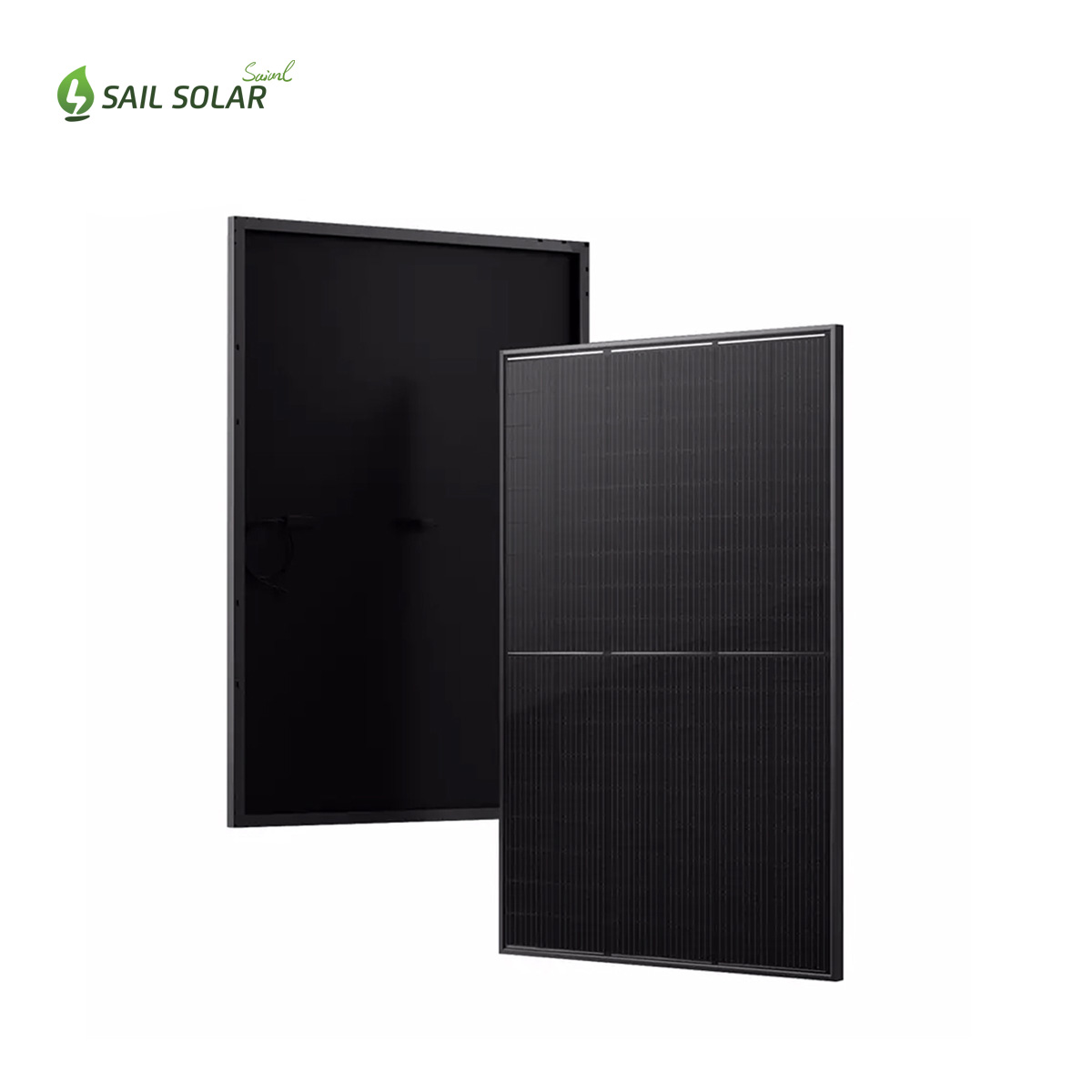

Solar Panel
Mono/Poly/Black etc all type solar panel, High Efficiency P/N type half cell/bifacial solar modules
> 30 years Warranty
> Highest conversion efficiency over 23%
> Anti-reflective and anti-soiling surface power, loss from dirt and dust
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance

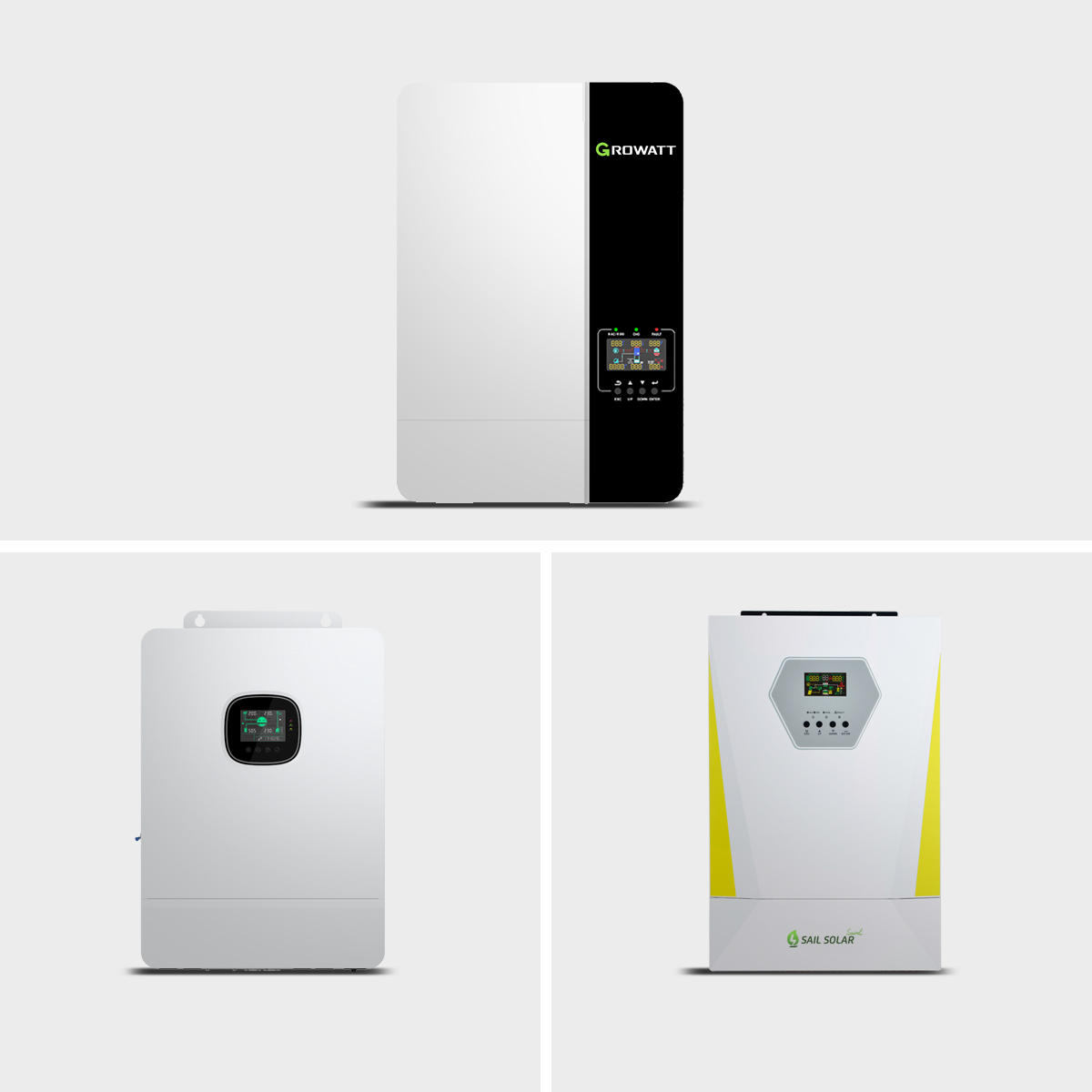

Multiple Types of Off-Grid Inverters
· Plug-and-Play terminal for PV port
· Maximun PV input voltage up to 500VDC
· Configurable grid or solar input priority
· Parallel for scalability
· Dust-proof filter for harsh environment
· Two AC input terminals with integrated transfer switch

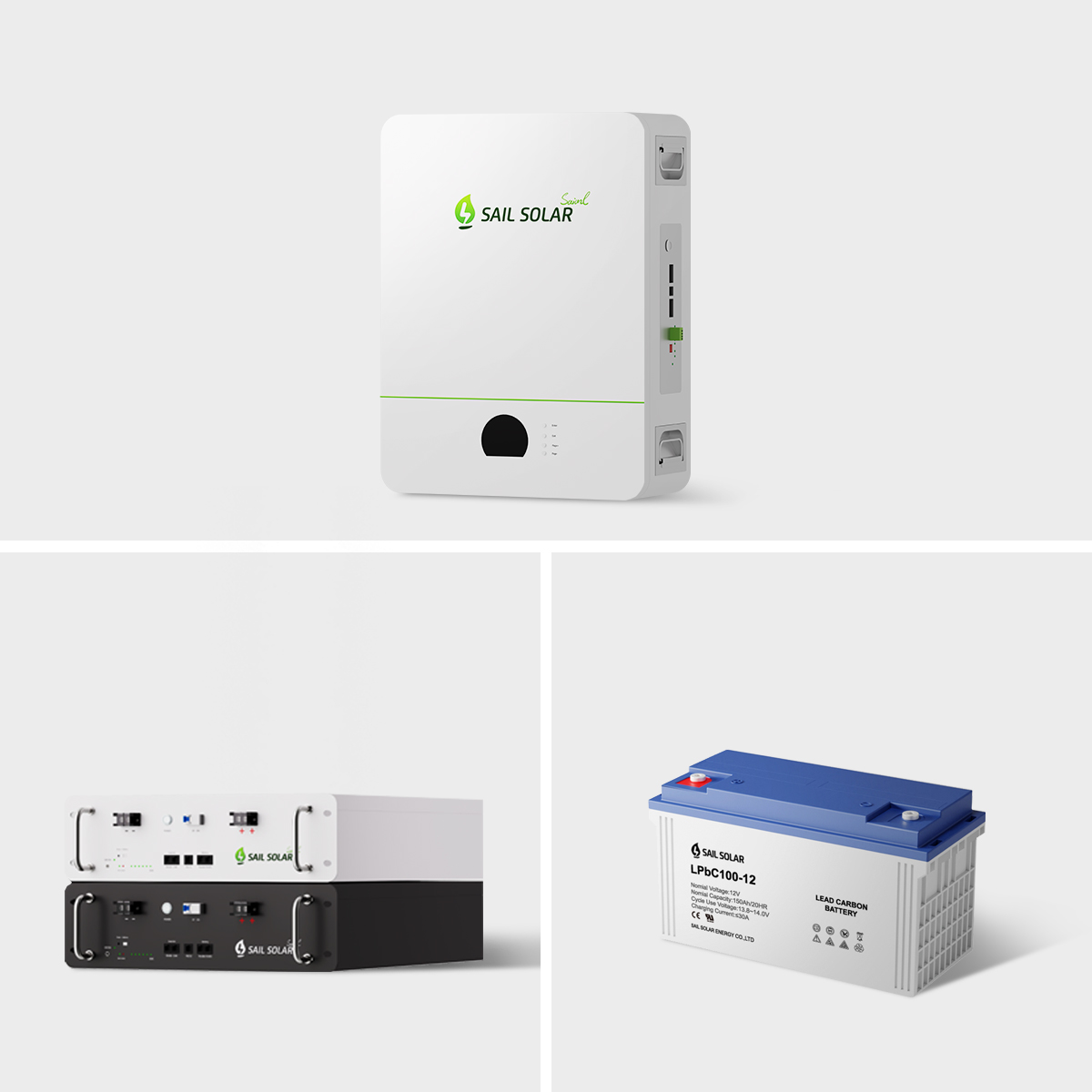

A Variety of Energy Storage Batteries:
1. Rack-mounted/wall-mounted/stacked lithium iron phosphate batteries
2. Lead-acid/gel/lead-carbon/front terminal/tubular batteries
3. Own factory, professional design and manufacturing
4. Market selection, cost-effective first
5. Quality assurance, worry-free after-sales, up to 10 years warranty
6. Complete qualifications, perfect certification, focus on export

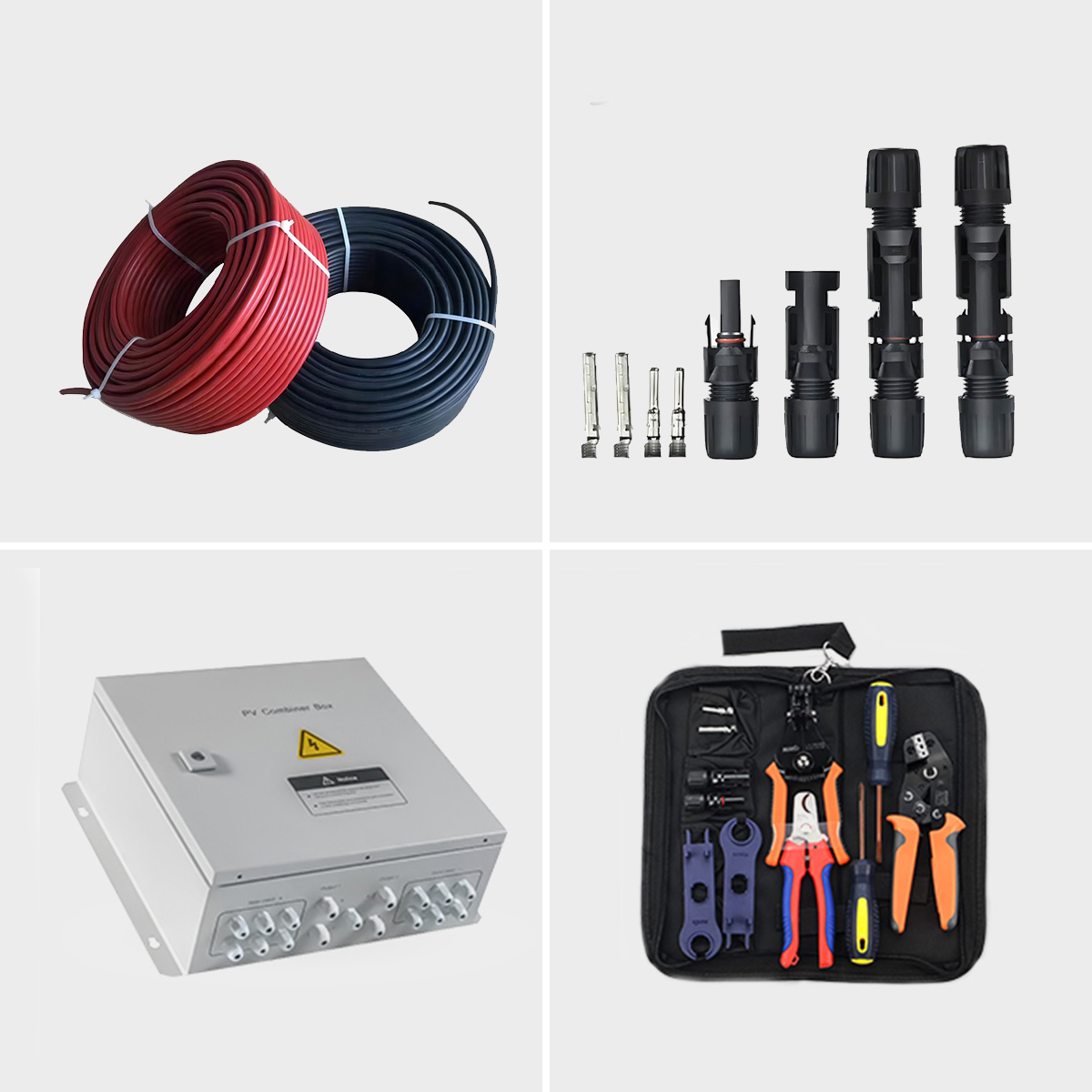

Accessories
Cable
> PV DC Cable 4mm2 6mm2 10mm2, etc
> AC Cable
> MC4 solar compatible connectors
Installation Tools
Whole set tools of Installing solar system, Crimping pv connector with cable.
> Solar Crimper
> Connector Wrench
PV Combiner Box
> Customized pv combiner box for solar panels connection
> Anti-Reverse diode/ DC Circuit Breaker/DC fuse/ Surge protection device Included
> IP65 Waterproof, applicable for outdoor PV systems

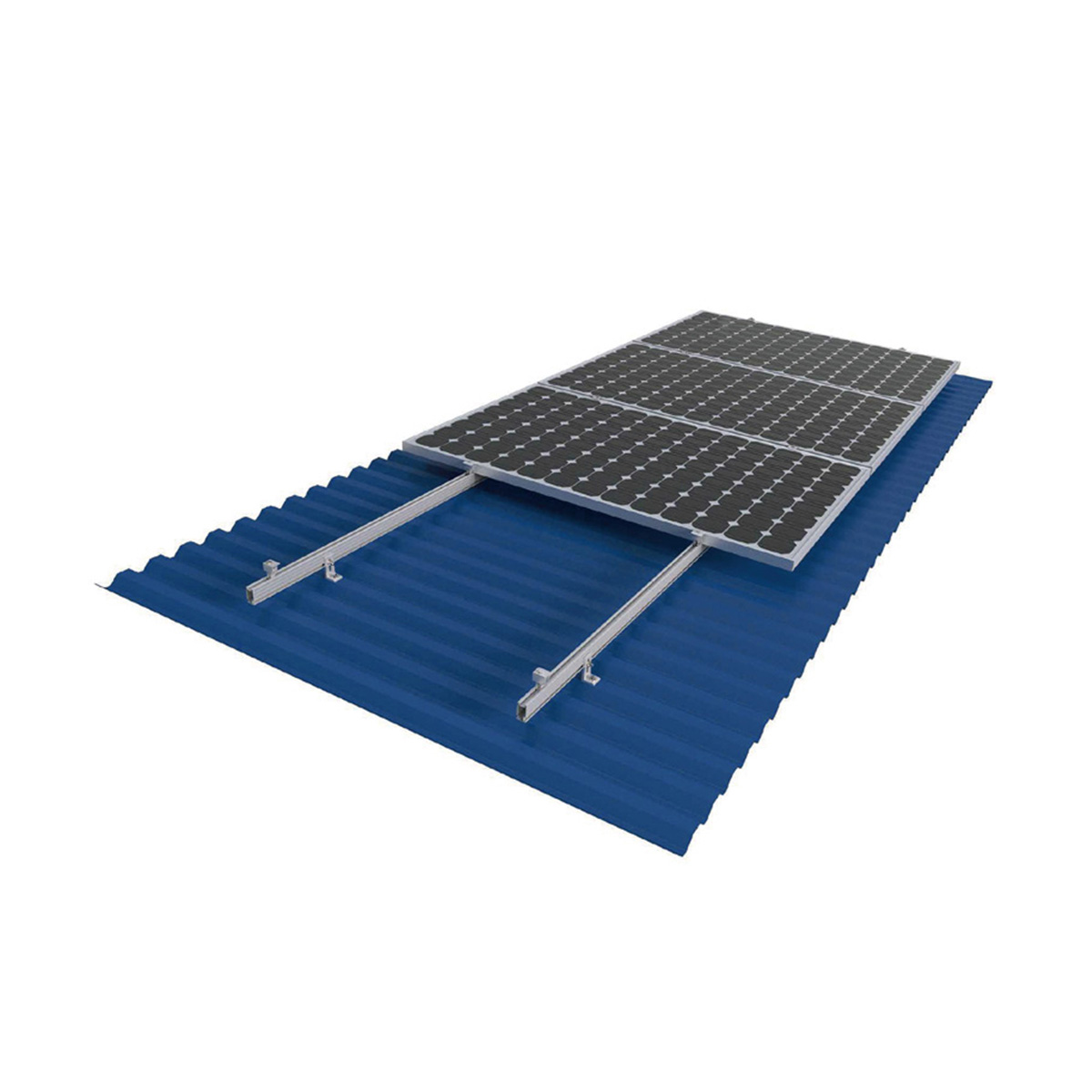

Mounting Rackets
> Residential Roof(Pitched Roof)
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
