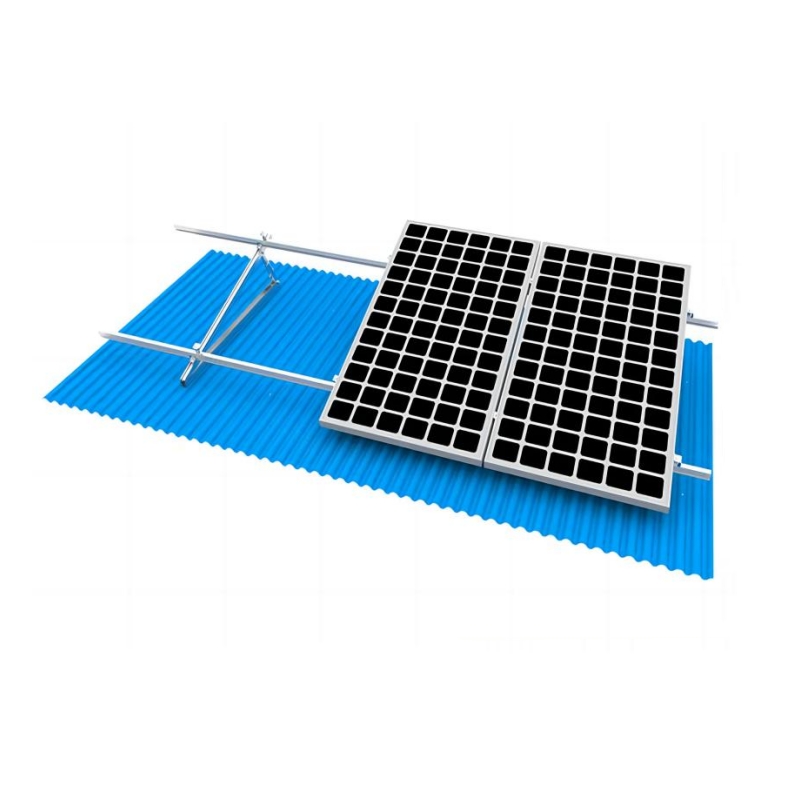

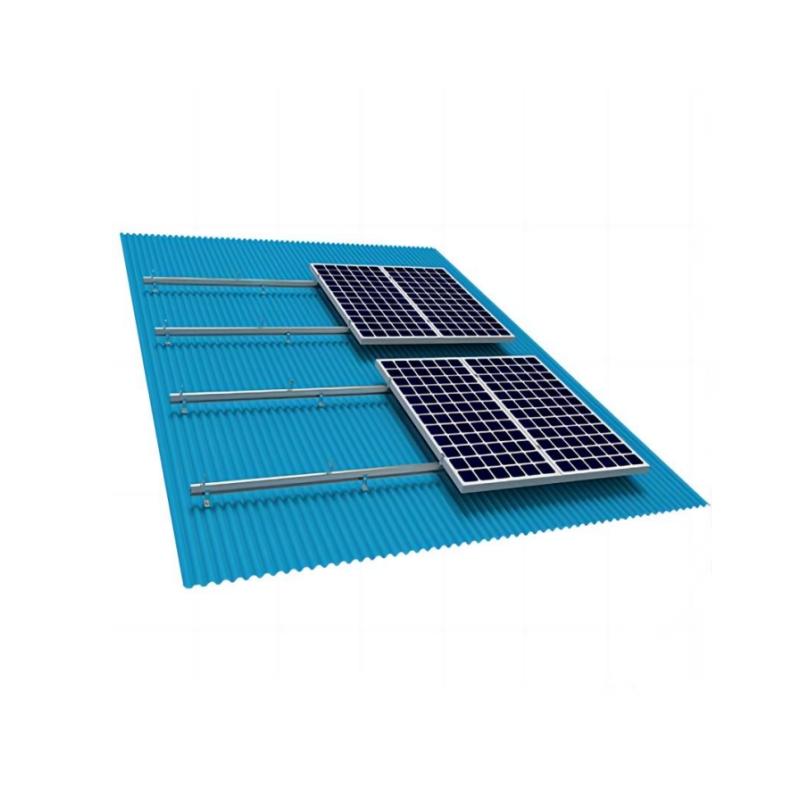

The metal roof mounting system is suitable for roofing with corrugated sheet metal, trapezoidal metal sheet. L Feet/ clamp roof solution, is available for almost all type of tin roof. Fasteners are stainless steel material which featured with high strength and high anti-corrosion.
Brand Name :
SAIL SOLARAvailable Panel :
Framed or Frameless Solar PanelInstallation Site :
Trapezoid Metal RooftopMain Material :
AL6005-T5, SUS304Fixed Parts Material :
SUS304Max Wind Load :
≤60m/sMax Snow Load :
≤1.4KN/M2Warranty/ Duration :
10 years/ More Than 20 yearsDesign Standards :
AS/NZS 1170, ASCE 7-10, JIS2017The steel tile roof installation system is suitable for large-area upright seam-type color steel tiles and corner-type color steel tile roofs such as factories or warehouses.
Features:
1. Compatible with all types of photovoltaic solar panels;
2. Simple, minimal system components;

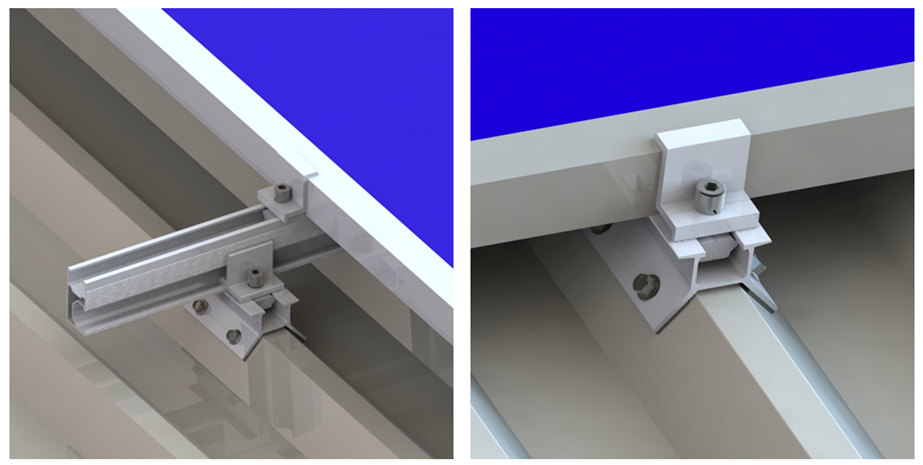

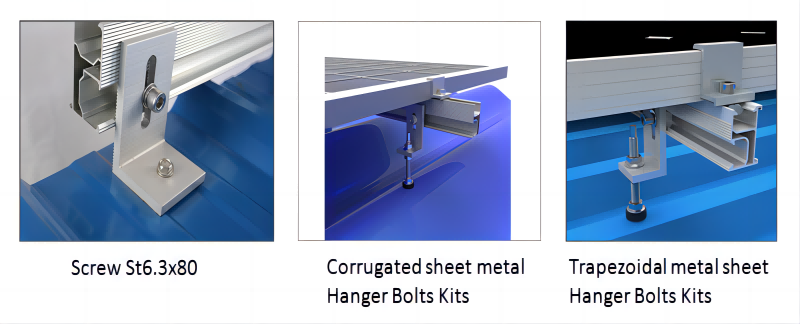

3. Drilling solutions, like bracket L-feet, hanger bolt, T type hook etc;
4. Made of SUS 304 stainless steel;
5. Save you inventory cost, quick and easy to install;
6. Rail or without rail design, no damage to the roof;
7. Provide 10-year warranty.
