Sail Solar provides you with two types of cost-effective brackets: spiral piles and cement piers. These two types adapt to different geological conditions and complement each other. This product has been installed in projects around the world and has good quality assurance.
Brand Name :
Sail SolarInstallation Site :
Open Field Area_Aluminum ground mounting systemAvailable Panel :
Frame/Frameless Solar PanelDesign Standards :
AS/NZS 1170 &JIS C 8955-2011Max Snow Load :
< 80cmMax Wind Load :
< 60m/sMain Material :
Al6005-T5 for aluminum profiles and clamps.Stainless steel for fasten bolt and nut.Warranty/ Duration :
12 years/ More than 25 yearsInstallation Base :
Ground screws and concrete foundations optional
The Solar Ground Pile Mounting System uses Pile drivers to drive C-beams, H-beams or other structural steel directly into the Ground. Installation is simple. This type of installation is widely used in many uneven terrain.
-Simple and fast installation
-High corrosion resistance, anodized aluminum profiles
-Ground screw foundation and concrete foundation acceptable
-Easy installation, highly pre-assembled design
-Safety and reliability.
-10 years warranty, more than 20 years service life.

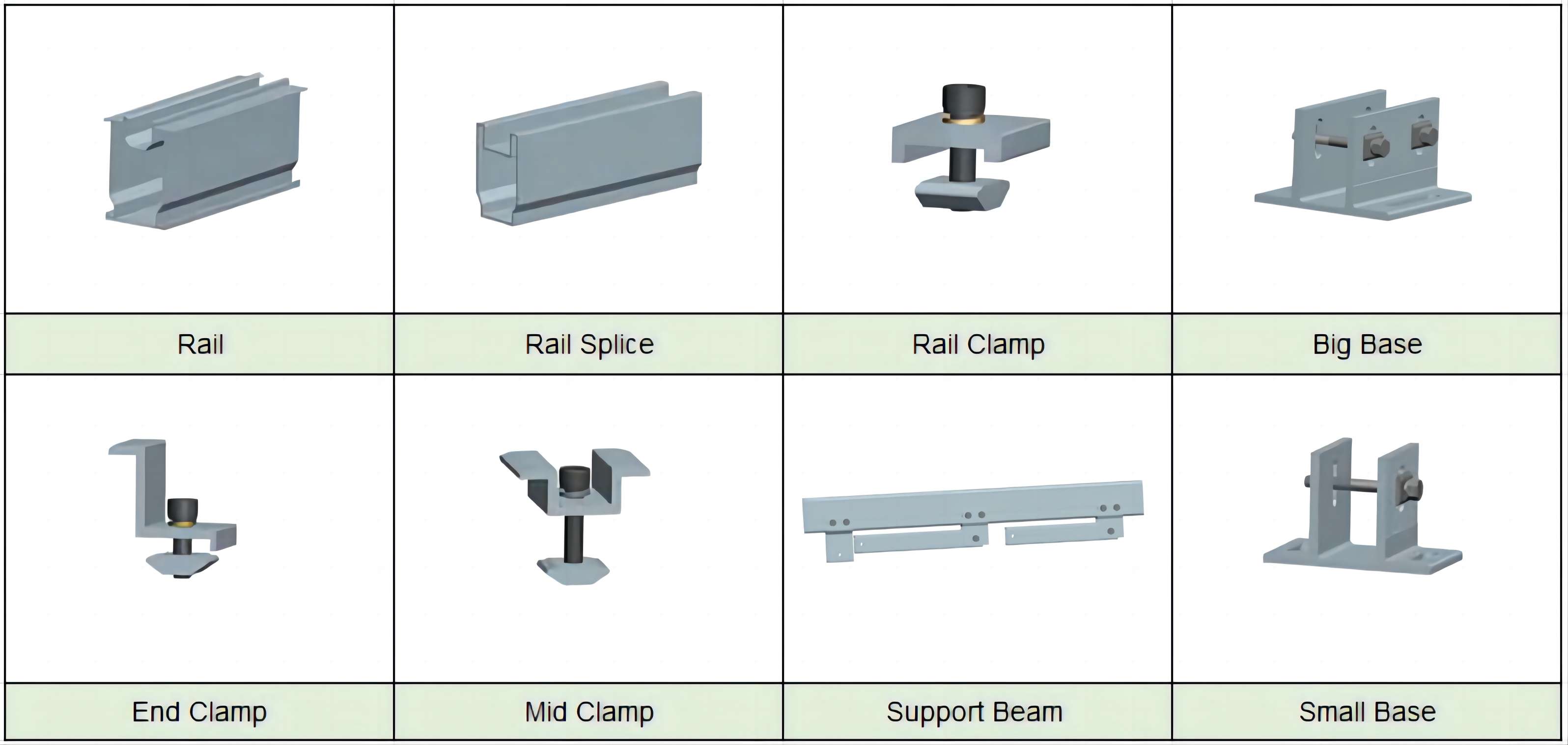

Components Details

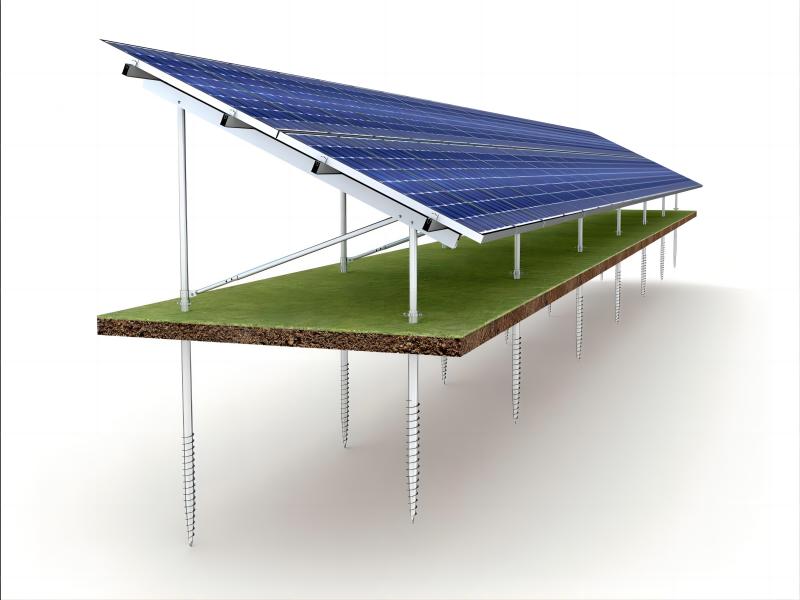

Screw Pile Installation: Using specialized machinery, the screw piles are driven into the ground at designated locations and depths, ensuring they are securely anchored.
The mounting rails are attached to the screw piles using brackets or clamps. The rails are positioned and aligned based on the desired tilt angle and orientation of the solar panels.

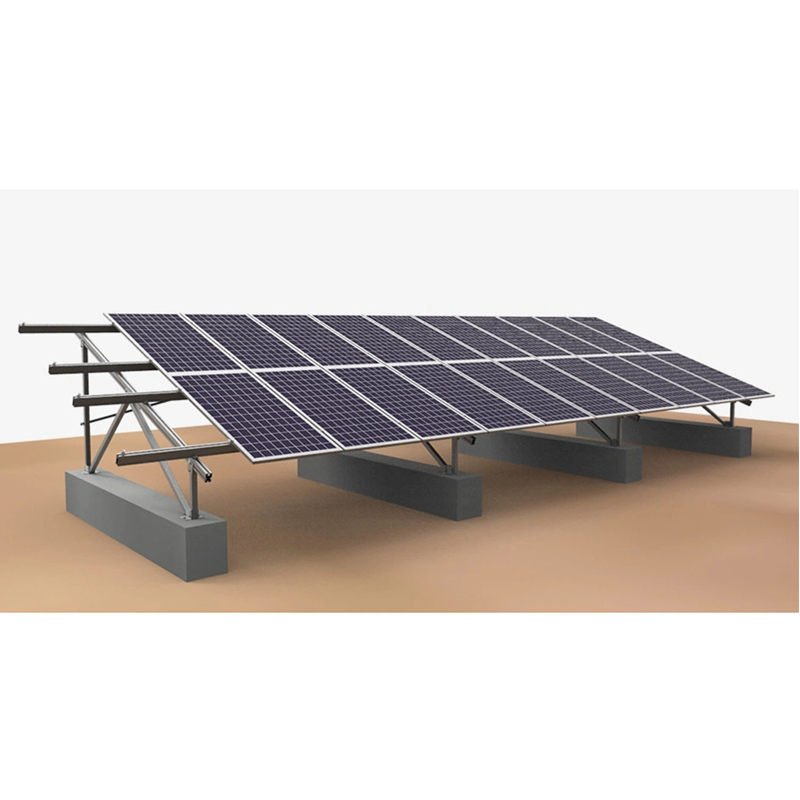

The Concrete Foundation Solar Support System is the ground system with the best environmental protection.
-Prefabricate the concrete foundation solar system, reduce the time of on-site construction
-do not damage the original ground environment.
-It is suitable for flat ground installation.
-Pour concrete counterweights according to the climate of different regions.
-Unique lightning protection and grounding design, high pre-assembled ground support system.

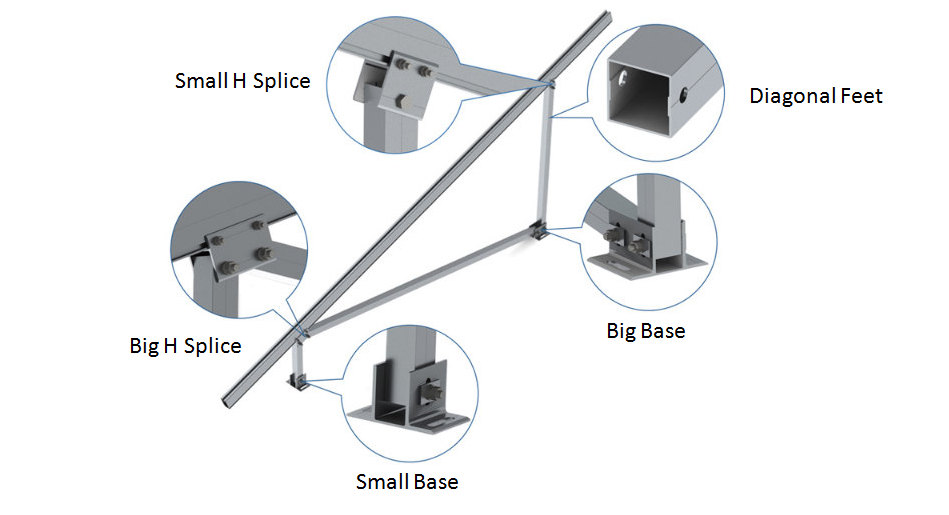

Components Details

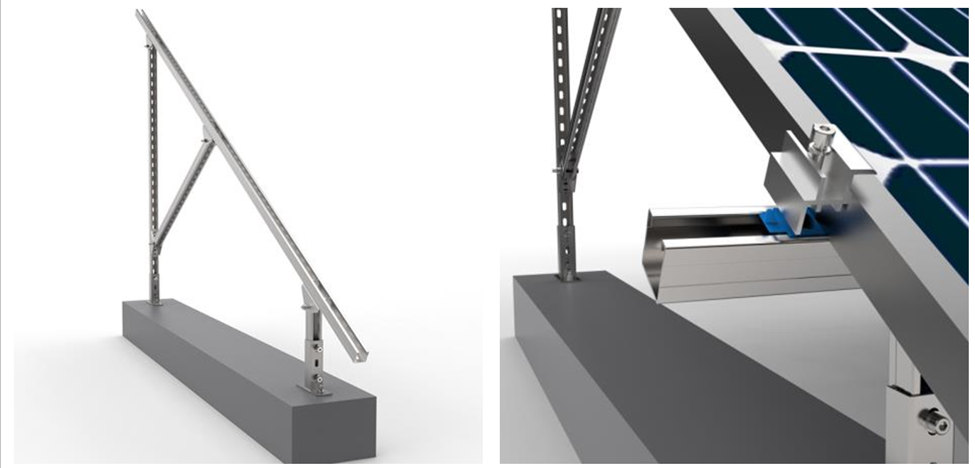

Concret base installation: Once the foundation is ready, secure the support columns into the concrete using appropriate fasteners.
Horizontal beams or rails are mounted on support columns to form the frame for the solar panels. These beams are securely fastened using bolts or clamps.
